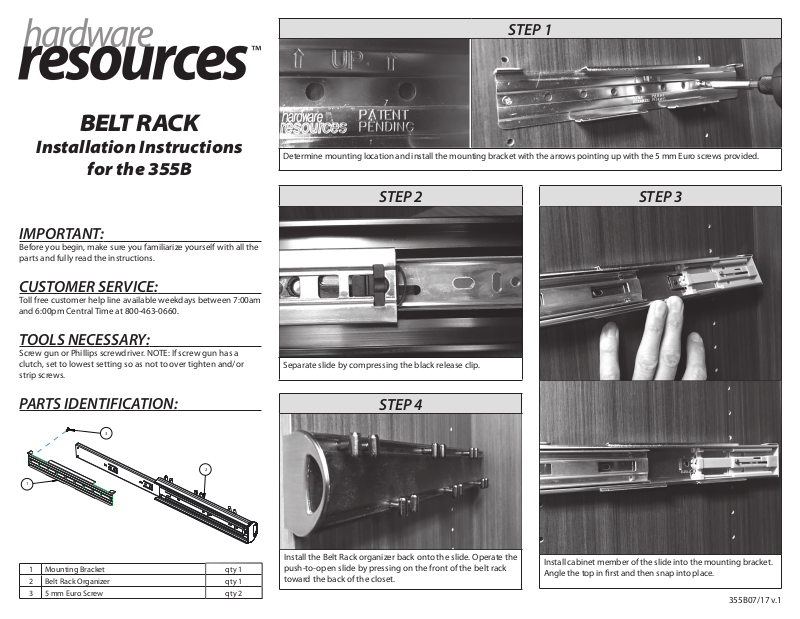

BELT RACK
STEP 1
Installation Instructions
for the 355B
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am
and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver. NOTE: If screw gun has a
clutch, set to lowest setting so as not to over tighten and/or
strip screws.
PARTS IDENTIFICATION:
3
Determine mounting location and install the mounting bracket with the arrows pointing up with the 5 mm Euro screws provided.
STEP 2
Separate slide by compressing the black release clip.
STEP 3
STEP 4
2
1
1 Mounting Bracket qty 1
2 Belt Rack Organizer qty 1
3 5 mm Euro Screw qty 2
Install the Belt Rack organizer back onto the slide. Operate the
push-to-open slide by pressing on the front of the belt rack
toward the back of the closet.
Install cabinet member of the slide into the mounting bracket.
Angle the top in rst and then snap into place.
355B07/17 v.1
TIE RACK
STEP 1
Installation Instructions
for the 355T
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am
and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver. NOTE: If screw gun has a
clutch, set to lowest setting so as not to over tighten and/or
strip screws.
PARTS IDENTIFICATION:
2
Determine mounting location and install the mounting bracket with the arrows pointing up with the 5 mm Euro screws provided.
STEP 2
Separate slide by compressing the black release clip.
STEP 3
STEP 4
3
1
1 Mounting Bracket qty 1
2 Tie Rack Organizer qty 1
3 5 mm Euro Screw qty 2
Install the Tie Rack organizer back onto the slide. Operate the
push-to-open slide by pressing on the front of the Tie Rack
toward the back of the closet.
Install cabinet member of the slide into the mounting bracket.
Angle the top in rst and then snap into place.
355T07/17 v.1
