Scan to watch the installation video
http://delivr.com/285UG

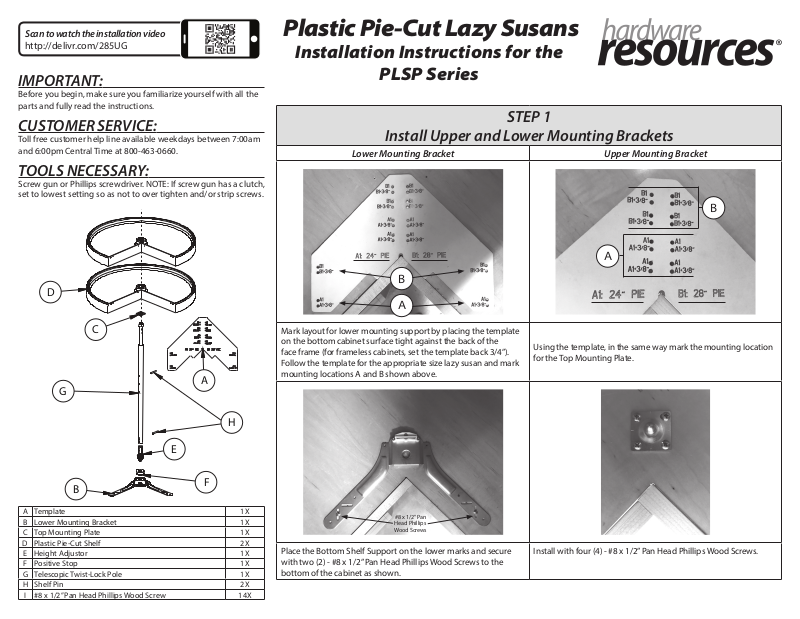

Plastic Pie-Cut Lazy Susans
Installation Instructions for the
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am
and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver. NOTE: If screw gun has a clutch,
set to lowest setting so as not to over tighten and/or strip screws.
D
C
A
G
PLSP Series
STEP 1
Install Upper and Lower Mounting Brackets
Lower Mounting Bracket Upper Mounting Bracket
B
A
Mark layout for lower mounting support by placing the template
on the bottom cabinet surface tight against the back of the
face frame (for frameless cabinets, set the template back 3/4”).
Follow the template for the appropriate size lazy susan and mark
mounting locations A and B shown above.
B
A
Using the template, in the same way mark the mounting location
for the Top Mounting Plate.
H
E
B
A Template 1X
B Lower Mounting Bracket 1X
C Top Mounting Plate 1X
D Plastic Pie-Cut Shelf 2X
E Height Adjustor 1X
F Positive Stop 1X
G Telescopic Twist-Lock Pole 1X
H Shelf Pin 2X
I #8 x 1/2” Pan Head Phillips Wood Screw 14X
F
#8 x 1/2” Pan
Head Phillips
Wood Screws
Place the Bottom Shelf Support on the lower marks and secure
with two (2) - #8 x 1/2” Pan Head Phillips Wood Screws to the
bottom of the cabinet as shown.
Install with four (4) - #8 x 1/2” Pan Head Phillips Wood Screws.
STEP 2 - Pole Assembly STEP 3 - Shelf and Pole Assembly
A B
C D
(A) Adjust the nut on the height adjuster so that about 1/8” of the threads are showing below the
nut. (B) Insert the height adjuster into the end of the pole as shown, making sure that the guides
line up with the slots in the pole. (C & D) Then insert the height adjuster into the positive stop as
shown.
STEP 4 - Door Installation STEP 5 - Door Adjustment
A B
C D
Slide the top of the pole through both shelves. Work the pole and shelf assembly into the cabinet.
(A) Place the positive stop in the center hole of the Lower Mounting Bracket and extend the twistn-lock pole until it is secure against the Top Mounting Bracket. Secure pole by twisting clockwise
to tighten. (B) Lift the top shelf to desired height and slide one pin through the hole in the pole as
shown. (C) Slide the shelf down the pole making sure the pin slips into the alignment slots as shown.
(D) Repeat with lower shelf making sure that the pin goes through the pole adjuster as shown.
NOTE: #8 X 1/2” LONG PAN HEAD WOOD SCREWS ARE PROVIDED FOR DOOR INSTALLATION. MAKE SURE THIS LENGTH IS CORRECT FOR
YOUR DOOR THICKNESS BEFORE USING THESE SCREWS. Turn the shelves 1/8 turn. Work the door into the cabinet and place into the
pie-cut corner. Place the template between the bottom of the door and the face frame and secure the door with one (1) screw in each shelf.
Carefully work the pie-cut around to be able to access the back of the other side of the door. Again, place template between door and face
frame and making sure the door is tight to the corner of the plastic pie cut, secure door with one (1) screw in each shelf.
Adjust door left and right by sliding the top or bottom
plate in the necessary direction. Adjust the height by
turning the adjustment wheel either up or down as
necessary.
PLSP 12/17 v.1
