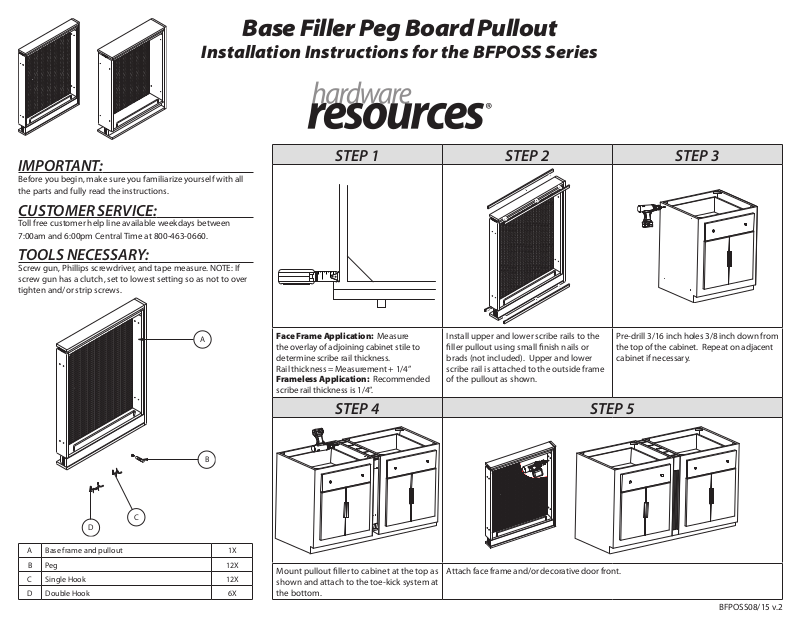

Base Filler Peg Board Pullout
Installation Instructions for the BFPOSS Series
IMPORTANT:
Before you begin, make sure you familiarize yourself with all
the parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between
7:00am and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun, Phillips screwdriver, and tape measure. NOTE: If
screw gun has a clutch, set to lowest setting so as not to over
tighten and/or strip screws.
A
STEP 1 STEP 2 STEP 3
Face Frame Application: Measure
the overlay of adjoining cabinet stile to
determine scribe rail thickness.
Rail thickness = Measurement + 1/4”
Frameless Application: Recommended
scribe rail thickness is 1/4”.
STEP 4 STEP 5
Install upper and lower scribe rails to the
ller pullout using small nish nails or
brads (not included). Upper and lower
scribe rail is attached to the outside frame
of the pullout as shown.
Pre-drill 3/16 inch holes 3/8 inch down from
the top of the cabinet. Repeat on adjacent
cabinet if necessary.
B
C
D
A Base frame and pullout 1X
B Peg 12X
C Single Hook 12X
D Double Hook 6X
Mount pullout ller to cabinet at the top as
shown and attach to the toe-kick system at
the bottom.
Attach face frame and/or decorative door front.
