User Manual
Xavier 2.0™ - User Manual Rev: 1.0 Page 2
TABLE OF CONTENTS
INTRODUCTORY INFORMATION ............................................ 4
CONVENTIONS ............................................................................................................. 4
CE COMPLIANCE ......................................................................................................... 5
FCC COMPLIANCE....................................................................................................... 5
IC (INDUSTRY CANADA) COMPLIANCE ........................................................................... 6
GENERAL NOTES .................................................................... 7
SAFETY INFORMATION .................................................................................................. 8
COPYRIGHT NOTICE ................................................................................................... 11
XAVIER 2.0 AND ACCESSORIES DESCRIPTION ................. 12
XAVIER 2.0 OVERVIEW ...............................................................................................12
XAVIER 2.0 LAYOUT ...................................................................................................14
XAVIER 2.0 OPERATION ........................................................ 18
TURNING THE XAVIER 2.0 ON ....................................................................................18
TURNING THE XAVIER 2.0 OFF ...................................................................................20
XAVIER 2.0 INDICATIONS ............................................................................................21
MAKING A SAFETY CALL .............................................................................................23
MAKING A SAFETY CALL WHEN XAVIER 2.0 IS OFF ......................................................25
MAKING A SILENT SAFETY CALL .................................................................................27
MAKING A SAFETY CALL WITHOUT A SIM CARD ..........................................................28
MAKING AN OUTGOING CALL ......................................................................................29
ENDING A CALL ..........................................................................................................30
ADJUSTING THE SPEAKER VOLUME .............................................................................31
MUTE MODE..............................................................................................................32
SENDING A TEXT MESSAGE (SMS) .............................................................................33
RECEIVING INCOMING PHONE CALLS ..........................................................................34
GPS .........................................................................................................................36
CHARGING THE BATTERY ............................................................................................37
BATTERY INFORMATION ..............................................................................................39
XAVIER 2.0 SETUP VIA THE INTERNET ............................... 41
Xavier 2.0™ - User Manual Rev: 1.0 Page 3
XAVIER 2.0 LOGIN .....................................................................................................41
DEVICE SETUP ..........................................................................................................43
CLEAR FIELDS ..........................................................................................................44
SPEED DIALING BUTTONS SETTINGS ...........................................................................45
SAFETY CALL BUTTON SETTINGS ................................................................................46
DEFINING ALERTS ......................................................................................................46
PRESETTING AUTHORIZED INCOMING CALLS ................................................................48
ANSWERING MODE ....................................................................................................49
INCOMING CALLS INDICATION ......................................................................................49
SOUNDS ....................................................................................................................50
UPDATE SETTINGS .....................................................................................................51
CARE AND MAINTENANCE................................................... 53
CARING FOR YOUR XAVIER 2.0 ...................................................................................53
TROUBLESHOOTING ...................................................................................................55
LIMITED WARRANTY ...................................................................................................56
XAVIER 2.0 SPECIFICATIONS ............................................... 58
Xavier 2.0™ - User Manual Rev: 1.0 Page 4
INTRODUCTORY INFORMATION
CONVENTIONS
This guide uses the following conventions to convey instructions
and information:
A warning calls for attention to a situation that can result in
physical harm to the user or equipment.
A note calls for attention to an important item in the text.
Xavier 2.0™ - User Manual Rev: 1.0 Page 5
CE COMPLIANCE
DECLARATION OF CONFORMITY
Harbour Technologies Medical Systems (1998) Ltd hereby
declares that the Xavier 2.0 is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the Declaration of Conformity may be
obtained from Harbour Technologies Corporation
Within the European Union the product must be
taken to separate collection at the product end
of life. Do not dispose of this device as unsorted
municipal waste.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC ID: VZU-XAVIER 2.0
Xavier 2.0™ - User Manual Rev: 1.0 Page 6
IC (INDUSTRY CANADA) COMPLIANCE
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
IC: 6931A-XAVIER 2.0
SAR STATEMENT (EU)
Specific Absorption Rate (SAR) is a value that corresponds to
the relative amount of RF energy absorbed by the user of a
wireless phone. Xavier 2.0™ is designed and manufactured so
as not to exceed the emission limits for exposure to radio
frequency (RF) energy set by international standards. These
limits include a substantial safety margin designed to assure the
safety of all persons, regardless of age or health.
The SAR tests for the Xavier 2.0 were conducted with the
device transmitting at its highest power level in all tested
frequency bands.
The SAR limit is 2.0 watts/kilogram (W/kg). The highest SAR
value of the Xavier 2.0 is 0.693 W/kg.
Xavier 2.0™ - User Manual Rev: 1.0 Page 7
GENERAL NOTES
The Xavier 2.0 is NOT a medical device
The Xavier 2.0 must NOT TO BE SOLD and USED in Norway
Xavier 2.0™ - User Manual Rev: 1.0 Page 8
SAFETY INFORMATION
To ensure safety and to maintain the Xavier 2.0 in good working
condition, please read and follow these rules:
SWITCH ON SAFETY
Do not switch the Xavier 2.0 on where wireless phone
use is prohibited or when it may cause interference or
danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to
operate the vehicle while driving. Your first
consideration while driving should be road safety.
SWITCH OFF IN HOSPITALS
When in a hospital or any other health care facility,
observe the restrictions on the use of mobile phones.
Switch the Xavier 2.0 off if instructed to do so by the
guidelines posted in sensitive areas. Medical
equipment may be sensitive to RF energy.
MEDICAL EQUIPMENT
The operation of cardiac pacemakers, other
implanted medical equipment and hearing aids can
be affected by interference from the Xavier 2.0 when
placed close to the device. If in doubt about potential
danger, contact your physician to verify that the
equipment is properly shielded. Pacemaker patients
are advised to keep their Xavier 2.0 away from the
pacemaker while it is on.
Xavier 2.0™ - User Manual Rev: 1.0 Page 9
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause
interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the Xavier 2.0 at a refueling point. Do not
use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Do not operate the Xavier 2.0 in the presence of
flammable gases or fumes. Switch off the Xavier 2.0
when you are near petrol stations, fuel depots,
chemical plants or where blasting operations are in
progress. Operation of any electrical equipment in
potentially explosive atmospheres can constitute a
safety hazard.
RADIO INTERFERENCE
Your Xavier 2.0 receives and transmits radio
frequency energy while switched on. Remember that
interference can occur if it is used close to TV sets,
radios, computers or inadequately shielded
equipment.
Follow any special regulations and always switch off
the Xavier 2.0 wherever prohibited or when you
suspect that it may cause interference or danger.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
Xavier 2.0™ - User Manual Rev: 1.0 Page 10
WATER-RESISTANCE
Your Xavier 2.0 is not water-resistant. Keep it dry.
ENVIRONMENT
Never leave the Xavier 2.0 exposed to direct sunlight
or in environments with high humidity or dust levels.
CLEANING
Do not use liquids or strong detergents to clean the
Xavier 2.0. Follow the cleaning instructions given
hereunder in this guide.
QUALIFIED SERVICE
Only qualified personnel may install or repair the
Xavier 2.0. Battery and SIM card replacement must
be executed only by an authorized service facility.
Never attempt to disassemble the Xavier 2.0 by
yourself. Contact an authorized service facility in case
of malfunctions or any other problems.
EMERGENCY CALLS
The Xavier 2.0 operates using radio signals and
cellular networks that cannot be guaranteed to
connect in all conditions. Therefore, you should never
rely solely upon any wireless device for essential
communication, for example emergency calls.
In order to make or receive calls, the Xavier 2.0 must
be switched on, its battery charged and in a service
area with adequate cellular signal strength.
AGE
Xavier 2.0 is not recommended for children under the
age of 3.
Xavier 2.0™ - User Manual Rev: 1.0 Page 11
COPYRIGHT NOTICE
All rights reserved.
Copyright © 2008 Harbour Technologies Corporation
Harbour Technologies Corporation
E-mail: www.info@harbourtechnologies.com
Web: www.harbourtechnologies.com
All information contained in this manual is copyrighted and all
rights are reserved. No part of this document, in whole or in
part, may be reproduced or copied in any form without prior
written consent from Harbour Technologies Corporation
All product names mentioned in this manual are trademarks of
Harbour Technologies Corporation
Document Control: 1.0
Xavier 2.0™ - User Manual Rev: 1.0 Page 12
XAVIER 2.0 AND ACCESSORIES DESCRIPTION
XAVIER 2.0 OVERVIEW

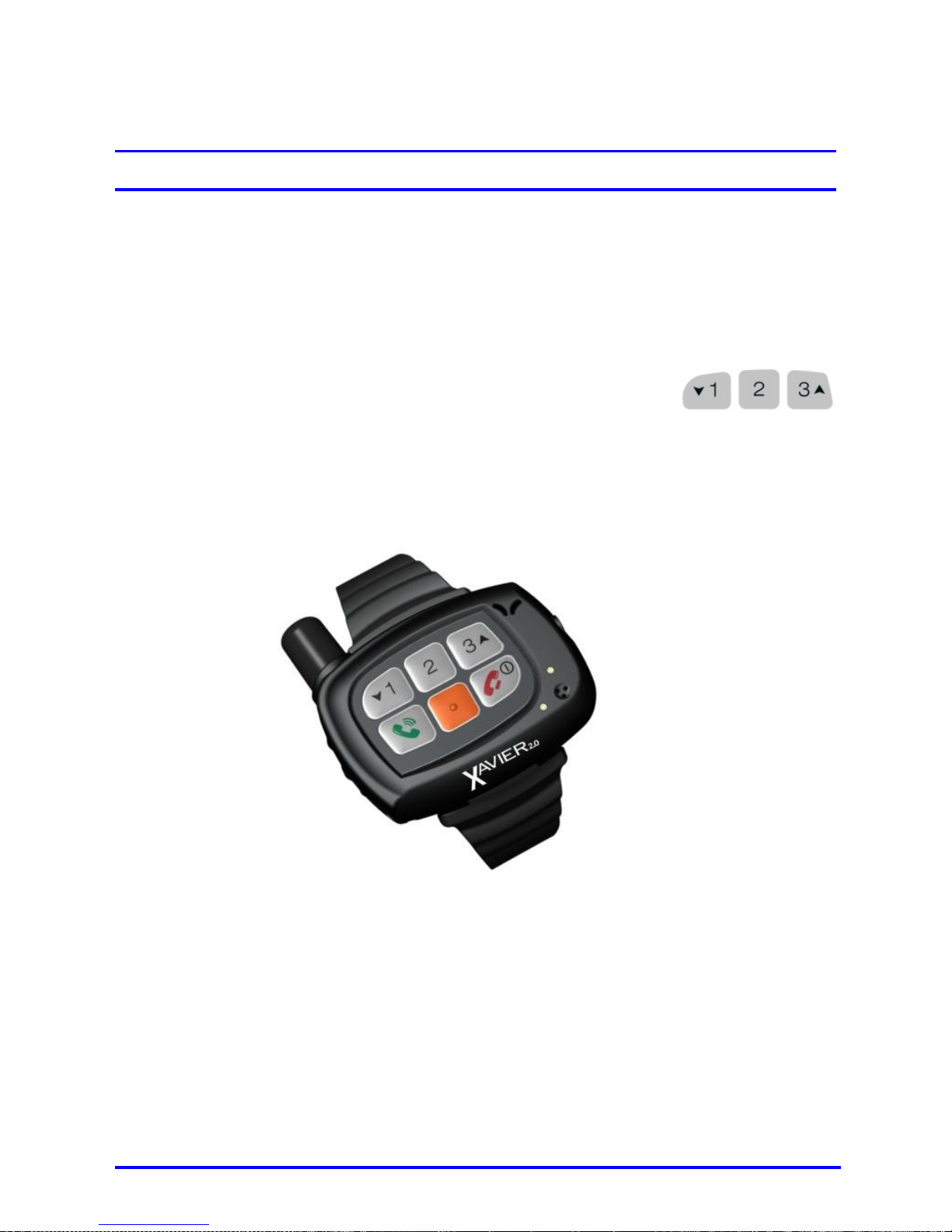

The Xavier 2.0™ (“Xavier 2.0”) is a small wearable wireless
communication device that lets you stay in touch anytime,
anywhere. You do not have to dial a number to establish
contact. All you have to do is press a single button and you are
able to contact people who may help you in case of need.
Xavier 2.0 has a built-in GPS receiver to allow locating your
position. The position data is automatically sent to a secured
website.
Authorized people will be able to locate your position on an
interactive map displayed on that website.
One can limit the permissible zone of movement (Geofencing).
Any violation of the defined limits will be automatically reported
via an SMS to a selected cellular phone or a pre defined email
address and will clearly show on the map.
The Xavier 2.0 is designed for use on quad band GSM
networks (850/900/1800/1900).
With Xavier 2.0 you can:
1. Contact a safety number by pressing a single button. When
pressing the safety button – your location will be
automatically detected.
2. Initiate a call to a safety number even when the device is
turned off.
3. Send current position via SMS or GPRS.
4. Receive a sound notification if you left the predefined zone
or returned to it. Your authorized relatives will receive the
Xavier 2.0™ - User Manual Rev: 1.0 Page 13
appropriate SMS and email notifications to locate your
position via website including driving instructions to that
location.
5. Contact up to 3 additional phone numbers with a single
touch of a button (speed dialing).
6. Send preset text messages to the speed dialing numbers.
7. Receive calls from anyone or limit the Xavier 2.0 to receive
phone calls only from authorized callers (up to 10 contacts).
8. Use Xavier 2.0 in silent mode (without speaker activation).
The other party can listen in to the Xavier 2.0 environment.
9. Use the Internet to remotely configure the Xavier 2.0.
10. Configure the Xavier 2.0 to answer automatically or
manually.
11. Wear the Xavier 2.0 on your wrist or your neck.
This guide explains how to use Xavier 2.0 and make the most of
its features.
Xavier 2.0™ - User Manual Rev: 1.0 Page 14

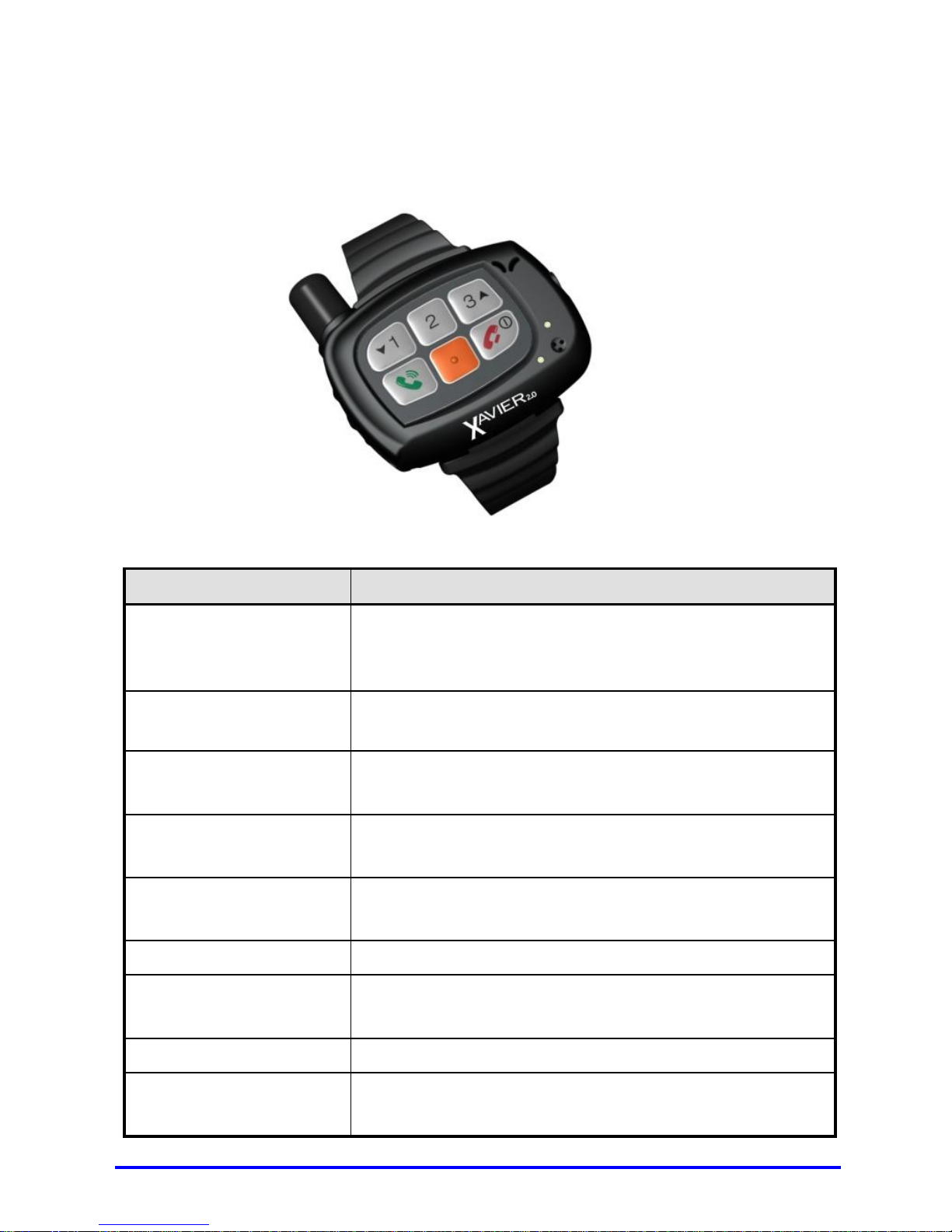

XAVIER 2.0 LAYOUT
The following figure shows the Xavier 2.0’s layout:
Xavier 2.0™ - User Manual Rev: 1.0 Page 15
Connecting the Xavier 2.0 Accessories
The Xavier 2.0 comes with a choice of two straps for wearing
the device: a wrist strap or a lanyard (neck strap).
WRIST STRAP
Wear the Xavier 2.0 on your right or left wrist at your
convenience (the same way that you wear a wrist watch).
To replace or remove the wrist strap from Xavier 2.0, proceed
as follows:
1. Position the Xavier 2.0 on its front panel with the rear panel
facing towards you.
2. Use a tool (e.g. tweezers) to hold the spring on one of its
sides and press it toward the other side so that the spring
exits the hole.
3. Bend the wrist strap and free one side of the spring. Then
free the other side of the spring from the strap.
Take care during this step not to lose the spring.
4. Repeat the same steps for the other wrist strap.
To install the strap again, simply repeat the actions in reverse
order.
Xavier 2.0™ - User Manual Rev: 1.0 Page 16
Keep the two springs in a safe place for future installation of the
wrist strap.
LANYARD (NECK STRAP)
Disconnect the wrist strap and connect the lanyard through the
hole in the rear panel of the Xavier 2.0
Xavier 2.0™ - User Manual Rev: 1.0 Page 17
A
B
Xavier 2.0™ - User Manual Rev: 1.0 Page 18
C
Xavier 2.0™ - User Manual Rev: 1.0 Page 19
XAVIER 2.0 OPERATION
TURNING THE XAVIER 2.0 ON
Before using the Xavier 2.0 for the first time, charge the battery
for at least 2 hours.
Always make sure the Xavier 2.0 is charged prior to turning it
on.
(See Charging the Battery on page 38)
Follow these steps to turn the Xavier 2.0 ON:
1. Press and hold the Power button for at least 1 second.
2. A beep will sound.
Xavier 2.0™ - User Manual Rev: 1.0 Page 20
3. Xavier 2.0 turns on and the green LED flashes every
second.
4. After about 30-40 seconds, the Xavier 2.0 connects to the
network and the green LED flashes every 5 seconds,
indicating normal standby operation.
If the Xavier 2.0 failed to connect to the network, emergency
dialing is enabled by pressing the Safety Call button.
See Making A Safety Call Without A SIM Card on page 29 for
more details.
TURNING THE XAVIER 2.0 OFF
Follow these steps to turn the Xavier 2.0 OFF:
Xavier 2.0™ - User Manual Rev: 1.0 Page 21
1. Press and hold the Power button for at least 2
seconds.
2. A beep will sound.
3. Green and orange LEDs light continuously.
4. Wait for a few seconds. The Xavier 2.0 turns off, indicated
by both LEDs turning off.
XAVIER 2.0 INDICATIONS
The Xavier 2.0's current status is indicated by the green and
orange LEDs on its top panel.
Xavier 2.0™ - User Manual Rev: 1.0 Page 22
The following are the different indications:
Status
Indication
Turned on
(Searching for the
network)
Green LED flashes every second for
30-40 seconds.
Standby (connected
to the network)
Green LED flashes every 5 seconds.
Voice call (outgoing
and incoming)
Green and orange LEDs flash in
alternating mode.
Sending SMS
Green and orange LEDs flash in
alternating mode.
Buttons disabled
(busy)
Green LED is on continuously.
Battery charging
Orange LED is on continuously.
Battery reaches full
charge
Orange LED lights continuously with a
flash every 3 seconds.
Low battery
Orange LED flashes every 5 seconds.
Turn off
Green and orange LEDs light continuously
until the Xavier 2.0 turns off.
Xavier 2.0™ - User Manual Rev: 1.0 Page 23
In addition, when the sound beeps are enabled (see Sounds on
page 53) a beep will sound in the following conditions:
1. When pressing any dialing button.
2. At the end of a conversation.
3. After sending a text message (SMS).
4. When plugging or unplugging the charger.
5. When the device is being remotely updated.
6. When leaving or returning to the Geo-Fence zone (5
beeps).
Xavier 2.0™ - User Manual Rev: 1.0 Page 24
MAKING A SAFETY CALL
Follow these steps to initiate a Safety Call:
1. Press and hold the Safety Call button until a beep is
heard. Xavier 2.0 sounds a ring tone and the green and
orange LEDs flash in alternating mode.
2. Xavier 2.0 calls the first preset safety number. If there is no
answer, Xavier 2.0 will try to call the next stored number (up to 4
numbers can be preset, see Safety Call Button Settings on page
49) in sequence until there is an answer.
3. The user can cancel the process at any time by pressing the
Disconnect button .
4. Wait for the other party to answer the phone call.
5. When the call is answered, the ring tone will stop.
Listen to the other party and speak into the microphone.
Xavier 2.0™ - User Manual Rev: 1.0 Page 25
6. If the call is answered by an automatic answering machine or
automatic answering service, you may press the Safety Call
button again to cancel the current call and to call the next
stored number in sequence.
7. The location will be automatically checked by the GPS and
sent to the servers.
Xavier 2.0™ - User Manual Rev: 1.0 Page 26
MAKING A SAFETY CALL WHEN XAVIER 2.0 IS OFF
You can initiate a Safety Call even when the Xavier 2.0 is
turned off, by following these steps:
1. Press and hold the Safety Call button for at least 1
second, until a beep is heard.
2. Xavier 2.0 turns on and the green LED flashes every
second.
3. After about 20-30 seconds, the Xavier 2.0 connects to the
network and the green LED flashes every 5 seconds
indicating normal standby operation.
4. Xavier 2.0 sounds a ring tone and the green and orange
LEDs flash in alternating mode.
5. Xavier 2.0 calls the first preset safety number. If there is no
answer, Xavier 2.0 will try to call the next stored number (up to 4
Xavier 2.0™ - User Manual Rev: 1.0 Page 27
numbers can be preset, see Safety Call Button Settings on page
49) in sequence until there is an answer.
6. The user can cancel the process at any time by pressing the
Disconnect button .
7. Wait for the other party to answer the phone call.
8. When the call is answered, the ring tone will stop.
Listen to the other party and speak into the microphone.
9. If the call is answered by an automatic answering machine or
automatic answering service, you may press the Safety Call
button again to cancel the current call and to call the next
stored number in sequence.
10. The location will be automatically checked by the GPS and
sent to the servers.
Xavier 2.0™ - User Manual Rev: 1.0 Page 28
MAKING A SILENT SAFETY CALL
When Silent Mode is enabled (see Safety Call Button Settings
on page 49) Safety Calls will be dialed without any sound from
the Xavier 2.0.
Follow these steps to initiate a Silent Safety Call:
1. Press and hold the Safety Call button .
2. Xavier 2.0 does not sound any ring tone. The green and
orange LEDs flash intermittently every second.
3. Xavier 2.0 calls the first preset safety number. If there is no
answer, Xavier 2.0 tries to call the next stored number (up to 4
numbers can be preset, see Safety Call Button Settings on page
49) in sequence until there is an answer.
4. The user can cancel the process at any time by pressing the
Disconnect button .
Xavier 2.0™ - User Manual Rev: 1.0 Page 29
5. The location will be automatically checked by the GPS and
sent to the servers.
MAKING A SAFETY CALL WITHOUT A SIM CARD
If the SIM card is not present, not installed correctly or blocked,
pressing the Safety Call button will dial the national emergency
number.
The emergency number for GSM 900/1800 frequency bands is
112, in GSM 850/1900 networks 911. The availability of
emergency numbers depends on the services offered by the
provider according to national regulations.
Xavier 2.0™ - User Manual Rev: 1.0 Page 30
MAKING AN OUTGOING CALL
You can make calls to up to 3 preset numbers by pressing the
speed dial buttons.
For instructions on how to store the numbers, see
on page 48.
1. Press and hold one of the speed dial buttons
until a beep is heard. Xavier 2.0 sounds a ring tone and
starts dialing. The green and orange LEDs will flash in
alternating mode.
2. Wait for the other party to answer the phone call.
3. Listen to the other party and speak into the microphone.
Xavier 2.0™ - User Manual Rev: 1.0 Page 31
ENDING A CALL
At any time, you can hang up by momentarily pressing the
Disconnect button .
The voice call is also terminated if the other party hangs up.
At the end of the call a beep is emitted.
After the call ends, the green LED flashes every 5 seconds
indicating normal standby operation.
Xavier 2.0™ - User Manual Rev: 1.0 Page 32
ADJUSTING THE SPEAKER VOLUME
During voice conversations, the left and right speed dialing
buttons function as volume controls.
During a call you can increase or decrease the speaker volume
by pressing the volume up or volume down buttons
respectively.
Xavier 2.0™ - User Manual Rev: 1.0 Page 33
MUTE MODE
During voice conversations, the middle speed dialing button
functions as speaker mute control. At any time during the call
you can mute the speaker by pressing the Mute button .
In Mute mode the speaker is muted, resulting in a one-way
conversation from the Xavier 2.0 to the other party.
Mute mode is not active during a Safety Call (when the call was
initiated by pressing the Safety Call button)
Pressing the Mute button again or pressing any of the
volume control buttons will cancel the Mute mode.
Xavier 2.0™ - User Manual Rev: 1.0 Page 34
SENDING A TEXT MESSAGE (SMS)
You can send pre - stored text messages (SMS) to up to 3
predefined numbers by pressing the speed dialing buttons.
For instructions on how to store the numbers and the text, see
Speed Dialing Buttons Settingson page 48.
1. Press and hold one of the speed dial buttons
until a beep is heard .
2. The green and orange LED flash in alternating mode while
the message is being sent.
3. After the message has been sent a beep is emitted.
Xavier 2.0™ - User Manual Rev: 1.0 Page 35
RECEIVING INCOMING PHONE CALLS
The Xavier 2.0 can receive incoming phone calls.
Answering incoming calls can be preset to automatic or manual.
For instructions on how to preset the answering mode, see
Answering Mode on page 52.
The Xavier 2.0 can also be preset to answer all incoming calls or
only those from authorized phone numbers. If set to answer only
calls from authorized phone numbers, the Xavier 2.0 will ignore
calls from non authorized phone numbers. For instructions on
how to preset authorized incoming calls see Presetting
Authorized Incoming Calls on page 51.
TO RECEIVE A CALL:
1. When there is an incoming phone call, the green and
orange LEDs will flash in alternating mode. The Xavier 2.0
also generates an incoming call indication (ring) as
predefined (see Incoming calls Indication on page 52).
2. In case that the Xavier 2.0 has been preset to Auto Answer
mode, the call will be answered automatically after two
rings.
3. In case that the Xavier 2.0 has been preset to Manual
Answer mode, you can answer the call by pressing the Answer
button .
Xavier 2.0™ - User Manual Rev: 1.0 Page 36
4. Listen to the other party and speak into the microphone.
Xavier 2.0™ - User Manual Rev: 1.0 Page 37
GPS
The Xavier 2.0 has a built-in GPS receiver with omni-directional
high sensitivity GPS antenna that can receive GPS signals from
all direction.
Once the GPS is activated it will locate its position (longitude
and latitude coordinates), speed and direction.
The GPS position data is send from the Xavier 2.0 to:
1. Cell phone by SMS (short message service) or;
2. Internet website by GPRS
Whenever you press the Safety Call button to generate a
Safety Call, the GPS is activated in the background to get the
position and send the position data.
The GPS can also be activated remotely (by sending GPS
activation SMS to your Xavier 2.0). In this case, the GPS will
also sends its position data.
In order for the GPS to acquire location accurately or to acquire
location at all, the Xavier 2.0 must be in the open.
If the Xavier 2.0 is not under the open (for example, near
buildings, or on balcony) the position data might not be
accurate.
Xavier 2.0™ - User Manual Rev: 1.0 Page 38
CHARGING THE BATTERY
A rechargeable battery that must be charged periodically
powers the Xavier 2.0.
Before using the Xavier 2.0 for the first time, charge the battery
for at least 2 hours.
WHEN SHOULD I CHARGE THE BATTERY?
When the battery is low, the orange LED flashes every 5
seconds and a beep sounds every 5 minutes. When this occurs,
charge the battery as soon as possible.
It is recommended to charge the battery every day in order to
maintain maximum performance.
TO CHARGE THE BATTERY:
1. Connect the supplied charger to the wall outlet and then to
the Xavier 2.0 charger connector.
The orange LED lights continuously.
Xavier 2.0™ - User Manual Rev: 1.0 Page 39
2. When the battery becomes fully charged the orange LED
lights continuously and flashes every 3 seconds.
3. Disconnect the charger from the device, then from the wall
outlet.
Do not connect the Xavier 2.0 to the charger while the Xavier
2.0 is worn on the body.
Do not charge the battery with a charger other than the one
supplied with the Xavier 2.0.
The use of any other charger may cause permanent damage
to the Xavier 2.0.
Do not connect the Xavier 2.0 charger to any other device
except to the Xavier 2.0.
Xavier 2.0™ - User Manual Rev: 1.0 Page 40
The socket-outlet for the direct plug-in AC/DC adapter should
be installed near the equipment and should be easily
accessible.
BATTERY INFORMATION
A rechargeable battery powers the Xavier 2.0. The battery can
be charged and discharged hundreds of times but it will
eventually wear out. When the talk and standby times are
noticeably shorter than normal, the battery should be replaced.
Unplug the charger from the wall outlet and from the Xavier 2.0
when not in use. Do not leave Xavier 2.0 with a fully charged
battery connected to the charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will
lose its charge over time.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object such as a coin, clip, or pen causes
direct connection of the positive (+) and negative (-) terminals of
the battery. (These look like metal strips on the battery). Short circuiting the terminals may damage the battery or the
connecting object.
Leaving the Xavier 2.0 in hot or cold places such as in closed
cars in summer or winter conditions will reduce the capacity and
lifetime of the battery. Always try to keep the Xavier 2.0 between
Xavier 2.0™ - User Manual Rev: 1.0 Page 41
15°C and 25°C. A device with hot or cold battery may not work
temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below
freezing.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Dispose of batteries
according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Do not dismantle, open, or shred cells or batteries. In the event
of battery leak, do not allow the liquid to come in contact with
the skin or eyes. In the event of leak or a hazard seek medical
help immediately.
TO REPLACE THE BATTERY PLEASE CONTACT A XAVIER
2.0 AUTHORIZED SERVICE FACILITY.
NO ATTEMPT SHOULD BE MADE TO OPEN THE XAVIER
2.0 OR TO REPLACE THE BATTERY BY YOURSELF OR
THIS MAY VOID YOUR WARRANTY.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE
Xavier 2.0™ - User Manual Rev: 1.0 Page 42
Xavier 2.0™ - User Manual Rev: 1.0 Page 43
XAVIER 2.0 SETUP VIA THE INTERNET
Your Xavier 2.0 service provider may provide you with a website
address for configuring or updating your Xavier 2.0 settings
remotely on line.
Prior to submitting configuration or changes make sure that the
Xavier 2.0 is turned ON and has network connection (green
LED flashes every 5 seconds).
When the Xavier 2.0 is being updated beep(s) will be emitted.
Xavier 2.0™ - User Manual Rev: 1.0 Page 44
XAVIER 2.0 LOGIN
Access the Xavier 2.0 website. The Xavier 2.0 Login window is
displayed as shown below:
1.
The actual website may appear different than the pictures in this
document, depending on your service provider.
Enter your user name and password as received from your
provider upon purchase.
Xavier 2.0™ - User Manual Rev: 1.0 Page 45
Click the Login button.
Xavier 2.0™ - User Manual Rev: 1.0 Page 46
DEVICE SETUP
The device setup page appears as shown below.
Xavier 2.0™ - User Manual Rev: 1.0 Page 47
NOTIFICATION PREFERENCE
Xavier 2.0™ - User Manual Rev: 1.0 Page 48
SPEED DIALING BUTTONS SETTINGS
To configure outgoing call settings:
1. Fill in the telephone numbers in the Tel field. For a number
with internal extension – fill in the extension number in the
Ext field.
2. To specify that a button should make a voice call, select the
radio button: Call only.
3. To specify that a button should send text message (SMS)
only, select the radio button: SMS only.
4. To specify that a button should make a voice call first and
then send a text message in case the voice call failed,
select the radio button: Call or SMS.
5. To make the key unusable select the Disable check box.
Text messages can be received only by phones that support
SMS services.
Xavier 2.0™ - User Manual Rev: 1.0 Page 49
SAFETY CALL BUTTON SETTINGS
Fill in the desired safety telephone numbers (up to four
numbers) and the extensions (optional).
Select the Silent mode check box to enable making silent safety
calls (see Making a Silent Safety Call on page 28).
Some service providers will not allow you to change the Safety
Call button designation. In this case the Safety Call Button
information will not be displayed.
DEFINING ALERTS
The Xavier 2.0 can send preset text (SMS) alerts in various
events.
Xavier 2.0™ - User Manual Rev: 1.0 Page 50
For the Xavier 2.0 to send an alert while the Safety button is
pressed:
1. Select the Enable SMS alert on Safety Call check box.
2. Compose the text to be sent in the text field (up to 30
characters).
3. Update the destination mobile number in the To Phone
field.
For the Xavier 2.0 to send an alert when the battery is low:
1. Select the Enable SMS alert on low battery check box.
2. Compose the text to be sent in the text field (up to 30
characters).
3. Update the destination mobile number in the To Phone
field.
For the Xavier 2.0 to send an alert when turning the device on:
1. Select the Enable SMS alert on Power on check box.
2. Compose the text to be sent in the text field (up to 30
characters).
3. Update the destination mobile number in the To Phone
field.
For the Xavier 2.0 to send an alert when turning the device off:
1. Select the Enable SMS alert on Power off check box.
2. Compose the text to be sent in the text field (up to 30
characters).
Xavier 2.0™ - User Manual Rev: 1.0 Page 51
3. Update the destination mobile number in the To Phone
field.
PRESETTING AUTHORIZED INCOMING CALLS
To preset authorized incoming phone numbers, select the check
box Answer authorized numbers only.
Enter up to 10 authorized numbers.
To authorize any phone number to call your Xavier 2.0, verify
that the check box Answer authorized numbers only is
cleared.
Xavier 2.0™ - User Manual Rev: 1.0 Page 52
ANSWERING MODE
To preset the answering mode select the desired radio button.
INCOMING CALLS INDICATION
To preset the incoming call indication, select the desired radio
button.
Xavier 2.0™ - User Manual Rev: 1.0 Page 53
When selecting Silent, the Xavier 2.0 will automatically answer
an authorized number only, with no ring tone and with a muted
speaker.
See Presetting Authorized Incoming Calls on page 51.
SOUNDS
Select the Enable beeps check box to enable sound
indications.
If Enable beeps is not selected no beeps will be sound when
pressing dialing buttons.
Xavier 2.0™ - User Manual Rev: 1.0 Page 54
UPDATE SETTINGS
After presetting the desired functions, click the Update All
button (at the bottom of the page) to update the Xavier 2.0.
After the Xavier 2.0 is updated, a summary such as the
following will be displayed.
Xavier 2.0™ - User Manual Rev: 1.0 Page 55
1. When the Xavier 2.0 receives an update command a
beep will be heard.
2. Depending on the settings, a few updates may be sent
simultaneously, generating several beep sounds.
3. Please verify that Xavier 2.0 was correctly updated by
performing trial calls and test of functionality.
4. In particular, it is highly recommended to test the
settings of the Safety Call button after each device
setup.
Xavier 2.0™ - User Manual Rev: 1.0 Page 56
CARE AND MAINTENANCE
CARING FOR YOUR XAVIER 2.0
Your Xavier 2.0 is a high quality sensitive product and should be
treated with care. To promote the continued operation of your
Xavier 2.0, make sure to follow the directions below.
1. Use only a soft, clean, dry cloth to clean the
device.
2. Keep the Xavier 2.0 dry. Precipitation,
humidity, and all types of liquids or moisture
can contain minerals that will corrode
electronic circuits. If your Xavier 2.0 does get
wet, turn it off and allow it to dry completely
before turning it on.
3. Do not use or store the Xavier 2.0 in a dusty,
dirty area. Its moving parts and electronic
components can be damaged.
4. Do not store the Xavier 2.0 in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and wrap or melt
certain plastics.
5. Do not store the Xavier 2.0 in cold areas.
When the Xavier 2.0 returns to its normal
temperature, moisture can form inside the
device and damage electronic circuit boards.
6. Do not attempt to open the Xavier 2.0.
7. Do not drop, knock, or shake the Xavier 2.0.
Rough handling can break internal circuit
boards and fine mechanics.
Xavier 2.0™ - User Manual Rev: 1.0 Page 57
8. Do not use harsh chemicals, cleaning
solvents, or strong detergents to clean the
device.
9. Use a soft, clean, dry cloth to clean the device.
10. Use chargers indoors.
11. Turn the Xavier 2.0 off before storage.
Xavier 2.0™ - User Manual Rev: 1.0 Page 58
TROUBLESHOOTING
Symptom
After turning the Xavier 2.0 on, a continuous beep (2
seconds) sounds and the Xavier 2.0 turns off.
Problem
Internal hardware problem.
Possible solution
Give the Xavier 2.0 to authorized service facility.
Symptom
After turning the Xavier 2.0 on, the Xavier 2.0 turns off.
Problem
Battery is empty.
Possible solution
Charge the Xavier 2.0 for at least two hours.
Symptom
After turning the Xavier 2.0 on, the green LED flashes every
second for more than 45 seconds and does not enter
standby mode (green LED flashes every 5 seconds).
Problem
The Xavier 2.0 failed to connect to the network.
Possible solution
1. No network coverage. Change location and retry.
2. SIM card problem (not present, not installed correctly or
blocked). Give the Xavier 2.0 to authorized service
facility.
Symptom
The Xavier 2.0 does not operate (no incoming or outgoing
calls) and the LEDs flash or light in an unexpected pattern
(see Xavier 2.0 Indications on page 21).
Problem
Xavier 2.0™ - User Manual Rev: 1.0 Page 59
Undefined error.
Possible solution
Turn the Xavier 2.0 off, wait for 1 minute and turn it on
again. If the Xavier 2.0 still does not function, turn it off and
give it to a Xavier 2.0 authorized service facility.
LIMITED WARRANTY
Harbour Technologies Corporation (“Harbour Technologies”)
warrants that the Xavier 2.0™ (“the Product”) is free from
defects in material and workmanship that result in failure during
normal usage, according to the following terms and conditions:
1. The limited warranty for the Product is for one (1) year
beginning on the date of purchase.
2. The limited warranty for the battery, straps and accessories
is for six (6) months beginning on the date of purchase.
3. Never attempt to disassemble the Product by yourself.
Contact an authorized service facility if malfunctions or
other problems occur.
4. Battery and SIM card replacement must only be performed
by an authorized service facility.
5. This limited warranty will be void if the Product has been
damaged by accident, or has been misused, abused, or
altered, or if the consumer opens or disassemble the
Product or if any attempt has been made to disassemble,
repair or replace the Product or any part thereof, including
the battery and SIM card, other than by an authorized
service facility.
6. During the limited warranty period, Harbour Technologies
will repair or replace, at Harbour Technologies’s sole
Xavier 2.0™ - User Manual Rev: 1.0 Page 60
discretion, any defective parts, or any parts that will not
properly operate for their intended use with new or
refurbished replacement items if such repair or replacement
is needed because of Product malfunction or failure during
normal usage. No charge will be made to the consumer for
any such parts or labor.
7. The limited warranty does not cover defects in appearance,
cosmetic, decorative or structural items, including framing,
and any non-operative parts.
8. Harbour Technologies's liability under this limited warranty
shall be limited to the actual cash value at the time the
consumer returns the Product for repair, determined by the
price paid by the consumer for the Product. Harbour
Technologies shall not be liable for any other losses or
damages, whether direct or indirect.
9. Upon Harbour Technologies's request, the consumer must
provide proof of the date of the original purchase through a
dated bill of sale or dated receipt.
10. The consumer shall bear the cost of shipping the Product to
Harbour Technologies’s authorized service center.
11. This warranty is in lieu of all other warranties, expressed or
implied, including any implied warranty of merchantability or
suitability for a particular purpose and no person is
authorized to assume for Harbour Technologies any other
liability in connection with the sale of this Product.
Xavier 2.0™ - User Manual Rev: 1.0 Page 61
XAVIER 2.0 SPECIFICATIONS
Feature
Implementation
Value
Physical
Dimensions
67 x 48 x 19 mm
Weight (battery included)
80 grams
Environmental
Operating Temperature
0 ÷ 45
O
C
Power
Rating
5V DC, 600mA
AC Adapter
Input: 100-240VAC, 50-60Hz, 0.2A
Output: 5VDC, 1A
Battery
Type
Lithium Ion 3.7V/660mAH
Low battery alert
LED + sound + automatic SMS*
Charging
External charger (supplied)
User Interface
On/Off button
x 1
Safety call button*
x 1 (Voice call or SMS)*
Speed dialing buttons*
x 3 (Voice call or SMS)*
Speaker
Internal
Speaker volume control
Yes
Microphone
Internal
Battery/charge indicator
Orange LED + automatic SMS*
Status indicator
Green LED
Cellular
Wireless module
Telit GE863-GPS
Network
GSM/GPRS
Frequency bands
850/900/1800/1900 MHz
Antenna
Integrated
Data communication
GPRS and SMS
GPS
GPS
SiRFstar III
GPS Antenna
Integrated omni-directional active
antenna
* These features are remotely programmable using a Web-based interface.
Specifications are subject to change without notice.
