Instruction Manual
BS08
Black / White Camera with Night Vision
INTRODUCTION
This Weatherproof Security Closed Circuit TV Camera kit is designed to make
installation as simple and quick as possible. However it is essential that the installer
reads and fully understands the instructions and precautions contained in this manual
before installing.
The Weatherproof Security Camera kit includes:
Ultra Mini Black & White Camera with Built-in Microphone and Mounting Bracket1.
80 ft. Camera Cable2.
Power Supply Adapter (120 V~ input, 7.5 VDC / 300 mA output)3.
Hardware kit4.
1 2 3 4
TESTING BEFORE INSTALLATION
Test the camera before mounting it by connecting it and ensuring it operates 1.
correctly.
Also, determine the best location and angle for the camera.2.
WEATHERPROOF STANDARD: IP56
Note: Power adapter is NOT weatherproof.
CAUTION
Do not open the camera housing to prevent damage. Warranty is void if housing 1.
has been opened.
Disconnect power supply before installation.2.
Verify that installation surface has no hidden utility lines before drilling or driving 3.
screws.
Wear ANSI-approved safety goggles and heavy-duty work gloves during 4.
installation.
Power adapter is not weatherproof and must be used only indoors.5.

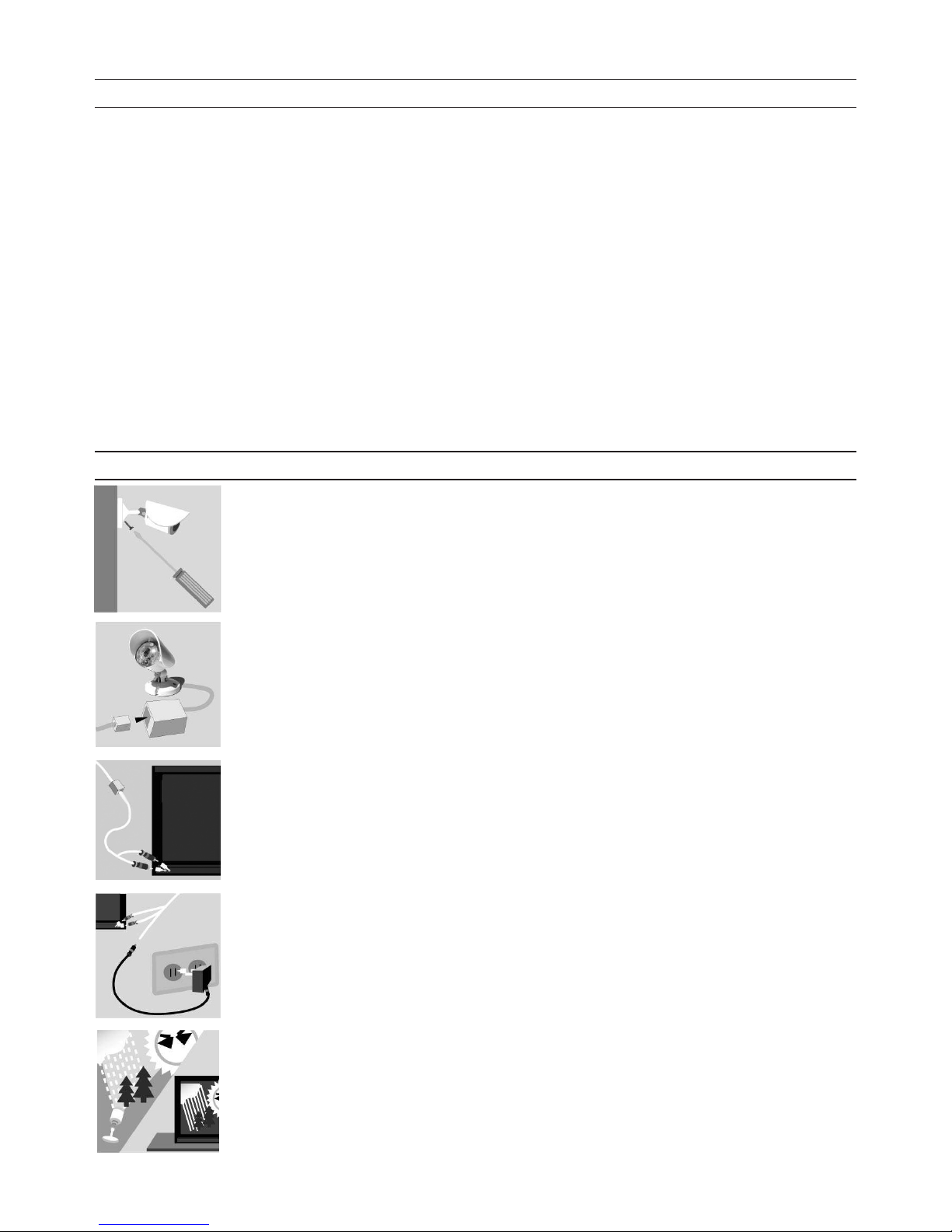

INSTALLATION
Mount the camera on wall or ceiling using the supplied hardware.a.
Connect the Camera phone jack to the Camera Cable.b.
Connect the Yellow video plug to the yellow jack. c.
Connect the White audio plug to the white jack.
Connect the Power Adapter to an indoor grounded 120 V~ outlet. d.
Connect the Power Adapter Cable to the Camera Cable.
Turn on the TV and place in the AV or video mode. The Camera’s e.
view should appear on the screen.
SPECIFICATIONS
TV System EIA CCIR
Power Requirements 7.5 VDC, 300 mA
Image 1/4” CMOS Sensor
Effective Picture Element 320 (H) x 240 (V) 352 (H) x 288 (V)
Scanning System 2:1 Interlaced
Sync. Frequency H: 15750 Hz, V: 60 Hz H: 15625 Hz, V: 50 Hz
Sync. System Internal
Resolution 350 TV Lines 400 TV Lines
S/N Radio More than 48 dB (AGC off)
IR Night Vision up to 10-12 ft. range
Minimum Illuminance 0 Lux
AGC On
AES 1/50~1/6000
Lens f=3.6 F=2.8
Gamma Correction 0.45
Microphone Built-in
Rainproof IP56 (camera only, not power adapter)
Audio Output 1.4V RMS (Output Impedance 18K Ohms)
Video Output Composite Video Signal: 1.0 Vp-p, 75 Ohms
Operating Temperature 14° F ~ 122° F
Operating Humidity 30% ~ 90%
Camera Dimensions Ø 1.97” x 3.6”
Weight 3.1 oz. (including bracket)
