Harbor Freight Tools 94855 User Manual

IMPACT WRENCH

18 VOLT - CORDLESS

Model 94855

OPERATING INSTRUCTIONS

Due to continuing improvement, actual product may differ slightly from product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

PRODUCT SPECIFICATIONS

Item Description

Power Source 18 VDC Battery, 1.3 Ah.

Battery Lock: Yes (Clips). Cell Type: Ni-Cad /1300 mAh. Cell Count: 15 Cells. Charge Time: 3-5 Hours. Plug Type: 2 Prong.

Charger Input 120 VAC / 60 Hz.

Charger Output 24 VDC / 400 mA. 9.6 Amp.

Tool Drive 1/2” w/ Spring Ball & Clip.

Maximum Torque 150 FT. Lbs.

Impact Speed 1900 BPM.

Socket Size 1/2” (Qty. 1) (not included)

Weight 5.35 Pounds.

Variable Speed 0- 2400 RPM

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks

REV 12/06

SKU 94855 PAGE 2

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. Protect others in the work area from debris such as chips and sparks. Provide barriers or shields as needed.

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If the tools should electrically malfunction or break down, grounding

provides a low resistance path to carry electricity away from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in

any way. Double insulation eliminates the need for the three wire grounded

power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools or

pull the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or moving parts. Replace damaged Power Cords immediately. Damaged

Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”. These extension cords are rated for outdoor use, and reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

SKU 94855 PAGE 3

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

12. Avoid accidental starting. Be sure the Power Switch is off before plugging in. Carrying power tools with your finger on the Power Switch, or plugging in power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a key that is left attached to a rotating part of the power tool may result in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the power tool in unexpected situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is

unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off. Any tool that cannot be controlled with the Power Switch is dangerous and must be replaced.

19. Disconnect the Power Cord Plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with a sharp cutting edge are less likely to bind and are easier to control. Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.

SKU 94855 PAGE 4

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained

tools.

23. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool.

SERVICE

24. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the manual. Use of unauthorized parts or failure to follow maintenance instructionsmay

create a risk of electric shock or injury.

“Inspection, Maintenance, And Cleaning”

section of this

SPECIFIC SAFETY RULES

1. Maintain a safe working environment. Keep the work area well lit. Make sure there is adequate surrounding workspace. Always keep the work area free of obstructions, grease, oil, trash, and other debris. Do not use the Impact Wrench in areas near flammable chemicals, dusts, and vapors. Do not use this product in a damp or wet location.

2. Maintain labels and nameplates on the Impact Wrench. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

3. When using the Impact Wrench, always maintain a firm grip on the tool with

both hands.

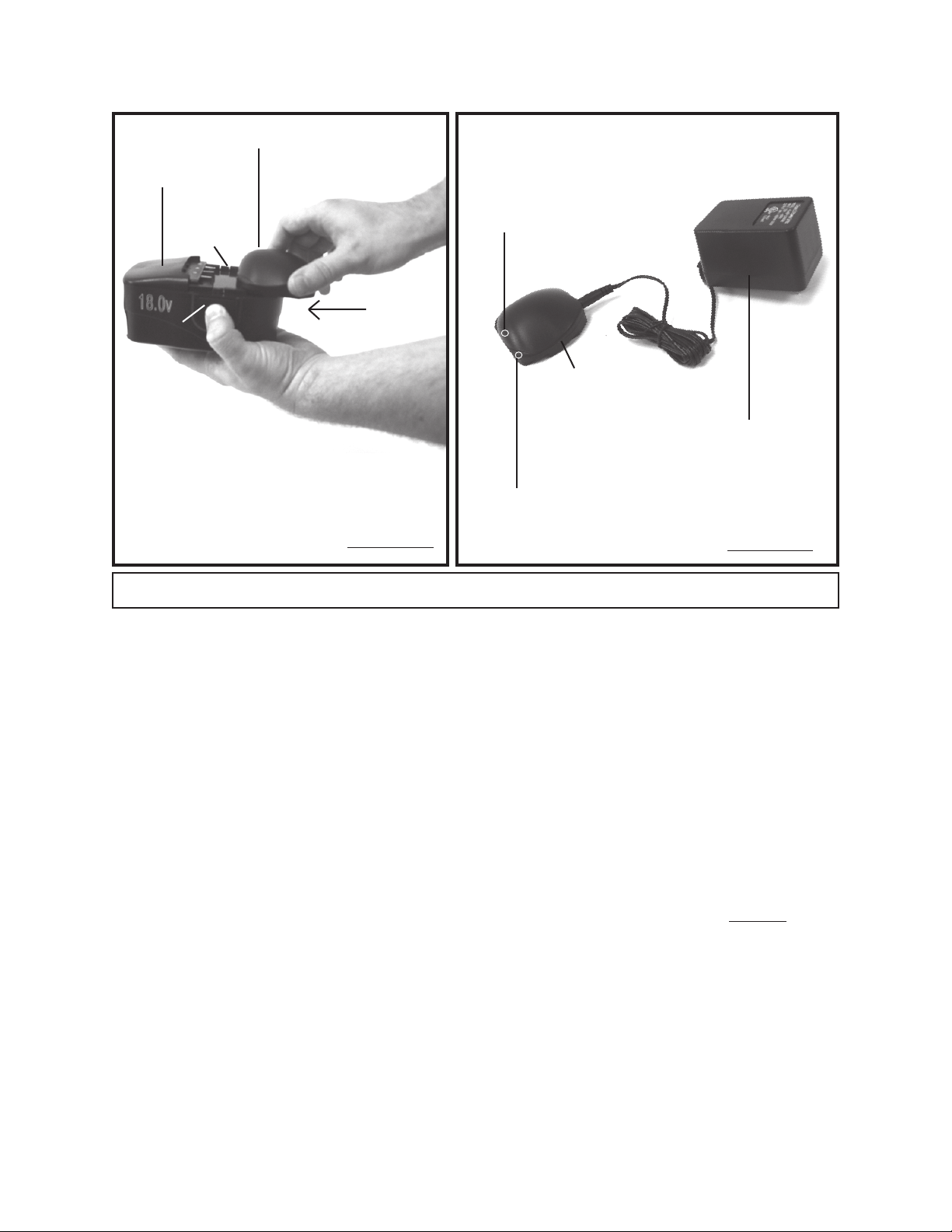

4. Do not use the Impact Wrench or Charger (48) if it has been dropped, damaged, left outdoors, or immersed in liquid.

5. Do not charge the Battery (30) when the temperature is below 50 degrees Fahrenheit or above 104 degrees Fahrenheit.

6. Do not shake, drop, or strike the Battery (30).

7. To avoid electrical shock, do not pull or carry the Charger (48) by its Power Cord or pull the Power Cord around sharp corners or edges. Do not unplug the

SKU 94855 PAGE 5
