GAS ENGINE GENERATOR
Model
94191
®
13 HP
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
CAUTION!
Your Warranty Is Voided If:
You do not put engine oil in the Engine’s crankcase prior to its first use.
Before each use, check the oil level. Never run the Engine with low or no engine oil.
Running the Engine with low or no oil will permanently damage the unit.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright© 2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
SPECIFICATIONS
Electrical
Specifications
Engine
Specifications
Overall
Dimensions
Weight 175 Pounds
The Emission Control System for this generator’s engine is warranted for standards set by
the U.S. Environmental Protection Agency and by the California Air Resources Board (also
known as CARB). For warranty information, refer to the back two pages of this manual.
Alternator Type: 2-Pole, Single Phase
Output Frequency: 60 Hz
Output: 5,500 Continuous Watts / 6,500 Peak Watts
AC Receptacles: Dual 120V, 20 Amp grounded receptacle
240V, 30 Amp, L14-30, four blade twist lock receptacle
DC Receptacle: 12V Terminal with Cap Screws
Circuit Breakers: 20 Amp, Qty. 2 / 25 Amp, Qty. 2
Fuse Type: F10A250V
Overload Protection: Resettable Circuit Protection for AC outlets, and Fuse for DC outlet
13 HP / 4-Cycle / Electronic Ignition & Recoil Start
Engine Speed: 3,600 RPM
Required Fuel Type: Unleaded Gasoline
Fuel Capacity: 6.5 Gal.
Recommended Oil Type: F-SAE 30W (Above 32°)
F-SAE 5W-30W (Below 32°)
Automatic Low Oil Shut-Down: Yes
EPA and CARB Approved
29-3/4” L x 25-1/2” W x 20-5/8” H
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES AND PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. 1. Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
REV 06l
For technical questions, please call 1-800-444-3353.
Page 2SKU 94191
Keep bystanders, children, and visitors away while operating a power tool. 3.
Distractions can cause you to lose control. Provide barriers or shields as needed.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense when operat-1.
ing a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. 2.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure the Engine Ignition (2) is in its “OFF” posi-3.
tion before moving the Generator and before performing any service, mainte-
nance, or cleaning procedures on the unit.
Remove adjusting keys or wrenches before turning the Generator on. 4. A
wrench or a key that is left attached to a rotating part of the machine may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. 5. Proper footing
and balance enables better control of the power tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Always wear
ANSI approved safety impact goggles when using this product. ANSI
approved hearing protection must also be used.
TOOL USE AND CARE
Do not force the tool. Use the correct tool for your application. 1. The correct
tool will do the job better and safer at the rate for which it is designed.
Do not use the Generator if the Engine’s Ignition (2) does not turn it on or off. 2.
Any tool that cannot be controlled with its power switch is dangerous and must be
replaced.
Store idle tools out of reach of children and other untrained persons. 3. Tools
are dangerous in the hands of untrained users.
Maintain tools with care. 4. Properly maintained tools are less likely to malfunction
and are easier to control. Do not use a damaged tool. Tag damaged tools “Do not
use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any 5.
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
For technical questions, please call 1-800-444-3353.
Page 3SKU 94191
Use only accessories that are recommended by the manufacturer for your 6.
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
Tool service must be performed only by qualified repair personnel. 1. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-2.
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury.
SPECIFIC SAFETY RULES AND PRECAUTIONS
Your Warranty is voided if1. you do not put engine oil in the Engine’s crankcase
prior to its first use. Before each use, check the oil level. Never run the Engine
with low or no engine oil. Running the Engine with low or no oil will permanently
damage the unit.
Maintain labels and nameplates on the Generator. 2. These carry important infor-
mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Make sure the Generator is located on a flat, level, sturdy surface capable of 3.
supporting the weight of the Generator and any additional tools and equip-
ment.
Industrial applications must follow OSHA guidelines.4.
Never stand on the Generator. 5. Serious injury could result if the Generator is
tipped.
Never leave the Generator unattended when it is running. 6. Turn off the Engine
before leaving.
Do not allow children and other unauthorized people to handle or play with 7.
the Generator.
8. This Generator is designed for outdoor use only. Do not operate the
Generator in a closed area or in a poorly ventilated area. When running,
the Engine of this Generator produces carbon monoxide, a color-
less, odorless, toxic fume that, when inhaled, can cause serious
personal injury or death. Whenever possible, use a carbon monoxide detector (not included) to detect excessive carbon monoxide fumes in the work
area and in the surrounding area.
For technical questions, please call 1-800-444-3353.
Page 4SKU 94191
Do not force the Generator. 9. This tool will do the work better and safer at the speed
and capacity for which it was designed. Do not overload the generator. Know the
total running wattage necessary to power the desired items.
FIRE AND EXPLOSION PRECAUTIONS
Gasoline fuel and fumes are flammable, and potentially explosive. 1. Use proper
fuel storage and handling procedures. Always have multiple ABC class fire extinguishers nearby.
Keep the Generator, its Engine, and surrounding areas clean at all times.2.
When spills of fuel or oil occur, they must be cleaned up immediately. 3. Dispose
of fluids and cleaning materials as per any local, state, or federal codes and regulations. Store oil rags in a covered metal container.
Never store fuel or other flammable materials near the Generator.4.
Do not smoke, or allow sparks, flames, or other sources of ignition around 5.
the Generator.
Keep grounded conductive objects, such as tools, away from exposed, live 6.
electrical parts and connections to avoid sparking or arcing. These events
could ignite fumes or vapors.
Do not refill the Fuel Tank while the Engine is running or while the Engine is 7.
still hot. Do not operate the Generator with known leaks in the fuel system.
Use only Engine manufacturer recommended fuel and oil.8.
MECHANICAL PRECAUTIONS
Prior to performing service, maintenance, or cleaning procedures, always 1.
make sure the Engine’s Ignition (2) is in its “OFF” position. Allow the Engine
and Generator to completely cool. Then, remove the spark plug from the
Engine.
Do not alter or adjust any part of the Generator or Engine that is assembled 2.
and supplied by the manufacturer.
Always follow and complete scheduled Generator and Engine maintenance.3.
CHEMICAL PRECAUTIONS
Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.1.
Avoid body contact with fuels, oils, and lubricants used in the Generator and 2.
Engine. If swallowed, seek medical treatment immediately. Do not induce vomiting
For technical questions, please call 1-800-444-3353.
Page 5SKU 94191
if fuel is swallowed. For skin contact, immediately wash with soap and water. For
eye contact, immediately flush eyes with clean water.
NOISE PRECAUTIONS
Prolonged exposure to high noise levels is hazardous to hearing. Always wear
ANSI approved hearing protection when operating or working around the Generator
when it is running.
ELECTRICAL PRECAUTIONS
All connections and conduits from the Generator to the load must only be 1.
installed by trained and licensed electricians, and in compliance with all
relevant local, state, and federal electrical codes and standards, and other
regulations where applicable.
The Generator must be earth-grounded in accordance with all relevant electri-2.
cal codes and standards before operation.
If an extension cord (not included) is used, make sure to use only UL listed 3.
cords having the correct gauge and length. (See Figure A, next page.)
Do not attempt to connect or disconnect load connections while standing in 4.
water, or on wet or soggy ground.
Do not touch electrically energized parts of the Generator and interconnect-5.
ing cables or conductors with any part of the body, or with any non-insulated
conductive object.
Connect the Generator only to a load or electrical system (120 volt, 240 volt, 6.
or 12 volt) that is compatible with the electrical characteristics and rated capacities of the Generator.
Be sure the Engine’s Ignition (2) is in its “OFF” position before moving the 7.
Generator and before performing any service, maintenance, or cleaning procedures on the unit.
Keep all electrical equipment clean and dry. 8. Replace any wiring where the in-
sulation is cracked, cut, abraded, or otherwise degraded. Replace terminals that
are worn, discolored, or corroded. Keep terminals clean and tight.
Insulate all connections and disconnected wires.9.
Guard against electric shock. 10. Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerator enclosures.
Use only Class BC or Class ABC fire extinguishers on electrical fires.11.
Unconditioned electrical output can damage sensitive equipment. 12. Do not use
to power sensitive electronic equipment without appropriate line conditioner (sold
separately).
For technical questions, please call 1-800-444-3353.
07k
Page 6SKU 94191
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 OR 240 VOLT)
NAMEPLATE
EXTENSION CORD LENGTH
AMPERES
(at full load)
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A
25 Feet 50 Feet 75 Feet 100 Feet 150 Feet
* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.
MISC. PRECAUTIONS
WARNING! 1. People with pacemakers should consult their physician(s) before using
this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference to or failure of the pacemaker.
WARNING! 2. The warnings and precautions discussed in this manual cannot cover
all possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
For technical questions, please call 1-800-444-3353.
Page 7SKU 94191
UNPACKING
POSITIVE BATTERY CABLE
(63)
NEGATIVE BATTERY CABLE
(64)
BATTERY GUARD PLATE (44)
(FACTORY PRE-INSTALLED)
BATTERY TRAY (48)
(FACTORY PRE-INSTALLED)
BATTERY
(45)
Not included
BATTERY BRACKET
(47)
BOLT W/LOCK WASHER
(46)
FIGURE B
When unpacking, check to make sure all the parts shown on the Parts Lists on
pages 20 and 22 are included. If any parts are missing or broken, please call Harbor
Freight Tools at the number shown on the cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
CAUTION! Make sure Engine’s Ignition (2) is in its “OFF” position prior to performing
any service, maintenance, or cleaning of Generator or Engine. Always wear ANSIapproved safety impact eye goggles when assembling and using the Generator.
To Install The Battery (not included):
NOTE: For proper operation, you must install a DC 12V, 18-35 Amp-hour Battery.
1. Remove the packing from the Battery (45). Then, locate the factory pre-installed
Battery Guard Plate (44) and Battery Tray (48) beneath the Control Panel (4) of the
Generator unit. (See Figure B, previous page.)
Slide the Battery (45) into the Battery Guard Plate (44), with the Battery’s terminals 2.
facing outward and with the Battery’s negative (--) terminal facing left.
(See Figure B.)
Align the two mounting holes in the Battery Bracket (46) with the two threaded mount-3.
ing holes in the Battery Guard Plate (44). Then secure the Battery Bracket to the
Battery Guard Plate, using two Bolts with Lock Washers (46). (See Figure B.)
Connect the end of the Positive Battery Cable (63) to the Battery’s positive 4. (+) terminal. Then connect the Negative Battery Cable (64) to the Battery’s negative (–)
terminal. (See Figure B.)
For technical questions, please call 1-800-444-3353.
REV 07h
Page 8SKU 94191
Electrical and other permits may be required for the installation of emergency or 1.
portable power systems. Investigate the local building and electrical codes before
installing this unit.
Prior to providing Generator power to tools and equipment, make sure the Gen-2.
erator’s rated voltage, wattage, and amperage capacity is adequate to supply all
electrical loads the unit will power. If powering exceeds the Generator’s capacity,
it may be necessary to group one or more of the tools/equipment for connection to
a separate Generator.
General Location:
It is recommended to locate the Generator (outdoors only) where cooling air is 1.
readily available. Locate the Generator so that the air inlets and outlets are not
blocked by obstructions such as bushes, trees, or snow drifts. Locating it in the path
of heavy winds or snowdrifts may require the placement of a barrier for protection.
The air inlet (on Air Filter Cover 18a), in normal weather conditions, should face
the prevailing wind direction.
Locate the Generator on a concrete slab or other area where rain drainage or flood 2.
waters can not reach it.
INSTALLATION INSTRUCTIONS
Generator placement should allow four feet of access to all sides for maintenance 3.
and for proper air cooling.
Place the Generator as close as possible to the electrical tools and equipment be-4.
ing powered to reduce the length of extension cords.
For technical questions, please call 1-800-444-3353.
Page 9SKU 94191
Grounding The Generator:
GROUNDING TERMINAL
(9)
#6 AWG GROUNDING WIRE
(NOT INCLUDED)
GROUNDING ROD
(NOT INCLUDED)
FIGURE C
Note: It is recommended that only a trained and licensed electrician perform this proce-
dure.
Connect a #6 AWG grounding wire (not included) from the Grounding Terminal (9)
on the Generator to a grounding rod (not included) that has been driven at least 24
inches deep into the earth. The grounding rod must be an earth-driven copper or
brass rod (electrode) which can adequately ground the Generator.
(See Figure C.)
CONTROL PANEL FEATURES
Engine Ignition (2): 1. Starts and stops the Gasoline Engine. To start the Engine
using power from the Battery (45), insert the Ignition Key (65) and turn the Engine
Ignition to its “START” position. To start the Engine manually using the Starter Rope
(40A) and Starter Handle (41A), insert the Ignition Key and turn the Engine Ignition
to its “RUN” position. Then pull briskly on the Starter Handle. To stop the Engine,
turn the Engine Ignition to its “OFF” position. Always remove the Ignition Key
when the Generator is not in use. (See Figure D, next page.)
Fuel Tank Cap (34): 2. NEVER run the Engine with the Fuel Tank Cap removed.
(See Figure D.)
120 Volt AC Outlets (5): 3. The Generator is equipped with two 3-hole 120 volt AC
outlets to power 120 volt tools and equipment. (See Figure D.)
For technical questions, please call 1-800-444-3353.
Page 10SKU 94191
(65)
(2)
(34)
(3)
(8)
(10)
(5)
(6)
(7)
FIGURE D
4. 120 Volt AC Circuit Breakers (3): Each of the two 120 Volt AC Outlets have a
Circuit Breaker to protect the Generator from overloading. Should a Circuit Breaker
“trip”, unplug all electrical loads from the Generator. Allow the Circuit Breaker to
cool down. Then, push the 120 volt Circuit Breakers. (See Figure D.)
240 Volt AC Outlet (6): 5. The Generator is equipped with one 4-blade twist lock 240
Volt AC Outlet to power 240 volt tools and equipment. (See Figure D.)
240 Volt AC Circuit Breaker (3): 6. The 240 Volt AC Outlet has two Circuit Break-
ers to protect the Generator from overloading. Should the Circuit Breakers “trip”,
unplug all electrical loads from the Generator. Allow the Circuit Breakers to cool
down. Then, push the 240 volt Circuit Breakers. (See Figure D.)
12V DC Terminal (7): 7. Supplies voltage to 12 volt DC appliances such as radios,
emergency lights, etc. To power a 12 volt DC appliance, connect the positive (+)
lead from the appliance to the positive (Red +) 12V DC Terminal on the Generator. Then connect the negative (--) lead from the appliance to the negative (Black
--) 12V DC Terminal on the Generator. IMPORTANT: This Outlet is designed for
operating 12 volt DC appliances only. Do not attempt to charge batteries with this
Outlet. (See Figure D.)
For technical questions, please call 1-800-444-3353.
Page 11SKU 94191
12 Volt DC Fuse (8): 8. The 12 Volt DC Outlet has one Fuse (8) to protect the Genera-
OIL DIPSTICK
(65A)
FUEL TANK
(31)
FUEL GAUGE
(35)
FUEL FILTER
(32)
FUEL TANK CAP
(34)
FIGURE E
tor from overloading. The Generator is equipped with the following size and type of
Fuse: F10A250V. Should a 12 VDC output exceed the fuse’s rating, always check
to see if the Fuse has “blown” (a melted filament within the Fuse). If necessary,
unplug all electrical loads from the Generator, replace with a new Fuse, and reattach a reduced load to the generator. (See Figure D.)
Power-On Light (10): 9. Indicates voltage is being provided by the Generator.
(See Figure D.)
To Add Engine Oil:
CAUTION! 1. Your warranty is voided if you do not put engine oil in the Engine’s
crankcase prior to its first use. Before each use, check the oil level. Never run the
Engine with low or no engine oil. Running the engine with low or no oil will permanently damage the Engine.
PRE-START INSTRUCTIONS
2. The Engine MUST be filled with a high quality grade engine oil. If the Engine will
be run in temperatures above 32 degrees Fahrenheit, use SAE 30 weight oil. If the
For technical questions, please call 1-800-444-3353.
Page 12SKU 94191
Engine will be run in temperatures below 32 degrees Fahrenheit, use SAE 5W-30
weight oil. (See Figure E, prior page.)
To do so, 3. unscrew and remove the Oil Dipstick (65A). Pour engine oil into the Dipstick Hole until the level of oil is even with top edge of the Dipstick Hole.
(See Figure E.)
Make sure to screw the Oil Dipstick (65A) firmly back into its Dipstick Hole. 4.
(See Figure E.)
To Fill The Fuel Tank:
Prior to first using the Generator, the Fuel Tank (31) 1. must be filled with high octane
unleaded gasoline. (See Figure E.)
To do so, remove the Fuel Tank Cap (34) and fill the Fuel Tank (31) with unleaded 2.
gasoline. Then, replace the Fuel Tank Cap. Thereafter, check the Fuel Gauge (35)
for the amount of unleaded gasoline. When necessary, refill the Fuel Tank.
(See Figure E.)
NOTE: 3. Periodically, make sure to check the Fuel Filter (32) for excessive dirt and
debris. If necessary, remove the Fuel Filter and clean with compressed air.
(See Figure E.)
OPERATING INSTRUCTIONS
Check to make sure the Engine Ignition (2) is in its 1. “OFF” position.
(See Figure D.)
CAUTION! 2. Make sure to unplug any load from the Generator before starting to
prevent permanent damage to any appliances, tools, or equipment.
CAUTION! Engine oil MUST be added to the Engine’s crankcase prior to start-3.
ing and running the Engine. Failure to add oil will damage the Engine and void
its warranty. (See pages 12 and 13, and Figure E.)
Before the first use, the Fuel Tank (31) must be filled with a high octane, unleaded 4.
gasoline. (See pages 12 and 13, and Figure E.)
WARNING! a. Never fill the Fuel Tank (31) completely. Fill the Fuel Tank to 1/2”
below the bottom of the filler neck to provide space for fuel expansion. Wipe any
fuel spills from the Engine and Generator before starting the Engine.
WARNING! b. Never fill the Fuel Tank (31) when the Engine is running or hot. Do
not smoke when filling the Fuel Tank.
For technical questions, please call 1-800-444-3353.
Page 13SKU 94191
To Start The Engine/Generator:
FUEL VALVE
(41)
CHOKE LEVER (21A)
(IN “CHOKE” POSITION)
CHOKE LEVER (21A)
(IN “RUN” POSITION)
FIGURE F
ON
OFF
1. Turn the Engine Fuel Valve (41) to its “OPEN” position. Then, turn the Engine Choke
Lever (21A) to its “CHOKE” position. NOTE: No choke is required if the Engine is
warm. Make sure the Engine Choke Lever is in the “RUN” position when starting
a warm Engine. (See Figure F.)
To start the Engine, using the Battery (45) for cranking power, insert the Ignition Key 2.
(65) and turn the Engine Ignition (2) to its “START” position. NOTE: To prolong
starter life, use short starting cycles (5 seconds maximum, then wait one minute
before attempting to again start). (See Figure D.)
To start the Engine manually, using the Starter Handle (41A) and Starter Rope 3.
(40A), insert the Ignition Key (65) and turn the Engine Ignition (2) to its “RUN” po-
sition. Grasp the Starter Handle (41A) on the Starter Rope (40A) and pull slowly
until resistance is felt. Allow the Rope to rewind slowly. Then, pull the Handle with
a rapid, full arm stroke. Allow the Rope to rewind slowly. If necessary, repeat this
procedure until the Engine starts.
When the Engine starts, slowly move the Choke Lever (21A) to its 4. “RUN” position.
(See Figure F.)
IMPORTANT: 5. Allow the Generator to run at no load for five minutes after each
start-up so that the Engine and Generator can stabilize.
To Connect Electrical Loads:
Start the Engine, and allow the Engine and Generator to run and warm up for five 1.
minutes after starting with no electrical load.
2. WARNING! Connect 120V AC appliances, tools, and equipment only to the
two 120V AC Outlets (5). Connect 240 AC appliances, tools, and equipment only
For technical questions, please call 1-800-444-3353.
Page 14SKU 94191
to the one 240V AC Outlet (6). Connect 12V DC appliances, tools, and equipment
only to the 12V DC Terminal (7). (See Figure D.)
3. CAUTION! Never exceed the rated capacity for this Generator, as serious
damage to the Generator and/or appliances, tools, and equipment could result
from an overload. Starting and running wattage requirements should always be
calculated when matching this Generator’s wattage capacity to the appliance, tool,
or equipment.
Most appliances, tools, and equipment will list on the motor nameplate the start-4.
ing and running voltage and amperage requirements. Use the following formula to
convert voltage and amperage to wattage:
Volts x Amps = Watts (example: 120 volts x 3 amps = 360 watts)
To determine the approximate wattage requirement for most appliances, tools, and 5.
equipment with “inductive” type motors, multiply the wattage that was calculated by
2 times to ensure adequate Generator capacity for motor load starting current.
NOTE: 6. The starting and running wattage for “resistant” loads are the same. Ex-
ample: a 100 Watt light bulb requires only 100 Watts to start. Most resistant loads
will be listed in wattage.
Always power the largest electric motor first. Then, plug in other appliances, tools, 7.
and equipment one at a time.
Connect “inductive” load appliances, tools, and equipment first. Inductive loads a.
consist of small hand tools and some small appliances. Connect the items that
require the most wattage first.
Connect any lights next.b.
Voltage sensitive appliances, tools, and equipment should be the last to be con-c.
nected to the Generator and the first to be disconnected. Plug voltage sensitive
items such as T.V.’s, VCR’s, microwaves, and cordless telephones into a UL
listed voltage surge protector (not included). Then, connect the UL Listed surge
protector into the Generator.
8. CAUTION! Failure to connect and operate appliances, tools, and equipment in
this sequence can cause damage to the Generator, appliances, tools, and equipment and will void the warranty on this Generator.
Once the Engine is running, simply connect the 120 volt appliances, tools, and 9.
equipment into the 120V AC Outlets (5). Connect a 240 volt appliance, tool, or
equipment into the 240V AC Outlet (6). Or connect a 12 volt appliance, tool, or
equipment into the 12V DC Outlet (8). (See Figure D.)
IMPORTANT: 10. If Engine speed or voltage fluctuates with a load below 250 Watts,
move the Engine Choke Lever (21A) to the “HALF-CHOKE” position.
(See Figure F.)
For technical questions, please call 1-800-444-3353.
Page 15SKU 94191
When finished using the Generator, disconnect all electrical loads. Turn the Engine 11.
Ignition (2) to its “OFF” position to stop the Engine. Then, close the Engine Fuel
Valve (41). (See Figures D and F.)
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always make sure the Engine’s Ignition (2) is in its “OFF” posi-
tion prior to performing any service, maintenance, or cleaning of the Generator or
Engine. (See Figure D.)
Before each use,2. inspect the general condition of the Generator and Engine. Check
for loose screws, misalignment or binding of moving parts, cracked or broken parts,
loose hose connections, and any other condition that may affect the safe operation of the Generator and Engine. If abnormal noise or vibration occurs, have the
problem corrected before further use.
Do not use damaged equipment.
Generator maintenance:3.
Keep the Generator clean and dry at all times.a.
The Generator should not be operated or stored in locations that include exces-b.
sive moisture, dust, flammable or corrosive vapors. If these substances are on
the Generator, clean with a cloth or soft brush.
Do not use a garden hose or anything with liquid to clean the Generator. Liquid c.
may enter the cooling air slots and could damage the interior workings of the
Generator.
For technical questions, please call 1-800-444-3353.
Page 16SKU 94191

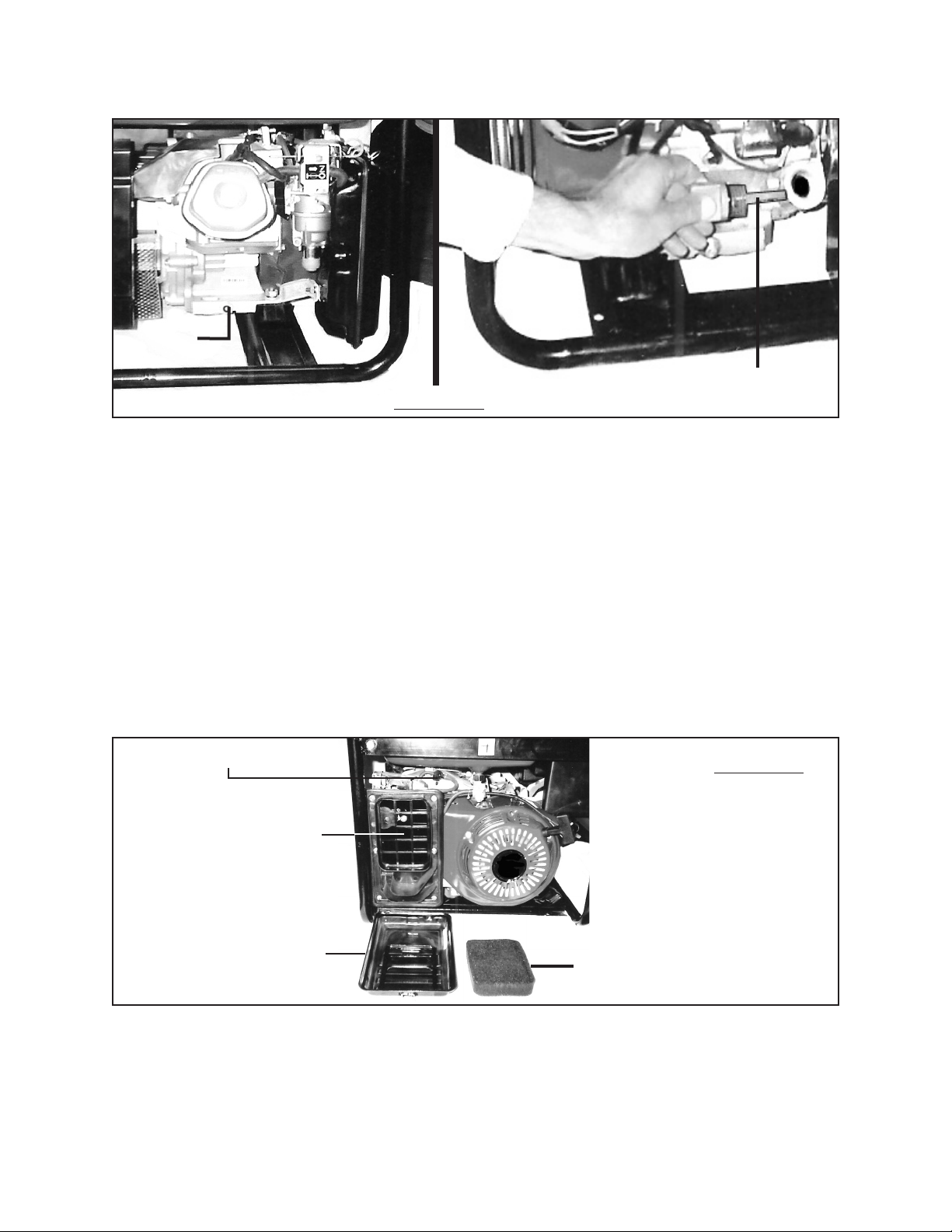

FIGURE G
OIL DIPSTICK
(65A)
PLUG
(59A)
4. Engine maintenance:
AIR FILTER COVER
(18A)
AIR FILTER ELEMENT
(19A)
AIR FILTER SEPARATOR
(20A)
FIGURE H
SPARK PLUG (28A)
SPARK PLUG WIRE (36A)
After first 5 to 8 hours of use: a. Change oil. Then, change oil every 50 hours
of use. Change oil every 25 hours of use when operating the Engine under a
heavy load or in high temperatures. To change the oil, remove the Plug (59A)
and allow the old oil to drain in a proper container. Once drained, replace the
Plug. If the Engine will be run in temperatures above 32° Fahrenheit, use SAE
30 weight oil. If the Engine will be run in temperatures below 32° Fahrenheit,
use SAE 5W-30 weight oil. To fill the Engine crankcase with new oil, unscrew
and remove the Oil Dipstick (65A). Pour engine oil into the Dipstick Hole until the
level of oil is even with the top edge of the Dipstick Hole. Make sure to screw the
Oil Dipstick (65A) firmly back into its Dipstick Hole. Also, make sure to dispose
of the old oil according to local waste disposal requirements.
(See Figure G.)
b. After every 25 hours of use: Service the Air Filter Element (19A) and Air Filter
Separator (20A). To do so, remove the Air Filter Cover (18A). Remove the Air
Filter Element. Immerse the Air Filter Element in a mild solvent and squeeze
the Element several times to clean. Remove the Element from the solvent and
For technical questions, please call 1-800-444-3353.
Page 17SKU 94191
squeeze thoroughly to dry. Then, squirt several drops of a light weight oil onto
FUEL FILTER
(32)
FUEL TANK CAP
(34)
FUEL TANK
(31)
FIGURE I
the Element. Use compressed air to clean the Air Filter Separator. Then replace
the Air Filter Separator, Air Filter Element, and Air Filter Cover. Clean more often
under dusty conditions or when airborne debris is present. Replace Air Filter
parts if necessary. (See Figure H.)
After every 100 hours of use: c. Replace the Spark Plug (28A). To do so, remove
the Spark Plug Wire (36A). Use the accessory Spark Plug Wrench Kit (86A) to
remove the old Spark Plug. Install a new Spark Plug. Then, replace the Spark
Plug Wire. (See Figure H.)
d. Daily: Inspect the Fuel Filter (32): To do so, remove the Fuel Tank Cap (34).
Remove the Fuel Filter from the Fuel Tank (31). If necessary, use compressed
air to remove any dirt and debris from the Fuel Filter. Then replace the Fuel
Filter and Fuel Tank Cap. (See Figure I.)
When storing the Generator, 5. make sure to store the unit in a clean, dry, safe loca-
tion out of reach of children and other unauthorized people.
6. CAUTION! All maintenance, service, or repairs not mentioned in this
manual must only be performed by a qualified service technician.
For technical questions, please call 1-800-444-3353.
Page 18SKU 94191

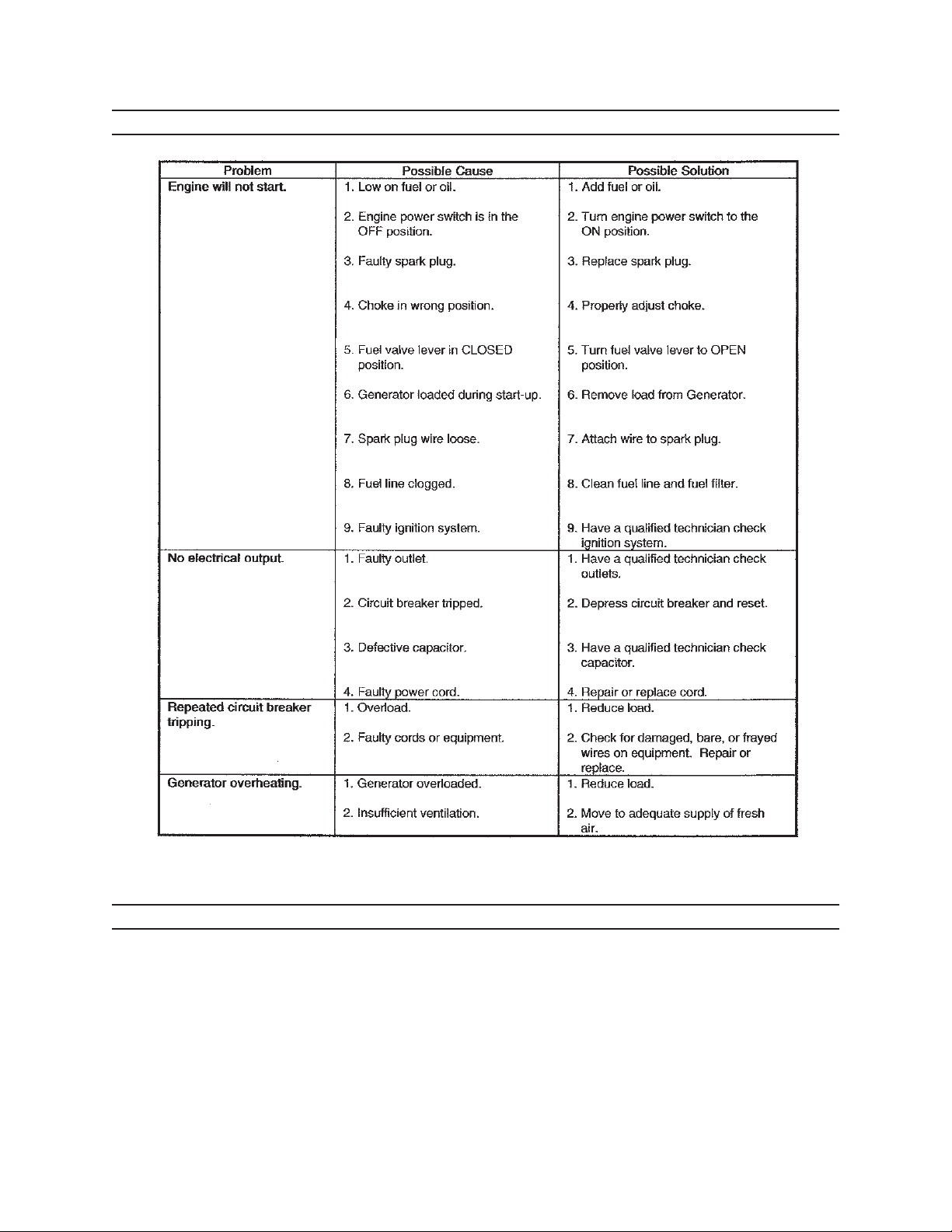

TROUBLESHOOTING
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER.
THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
For technical questions, please call 1-800-444-3353.
Page 19SKU 94191

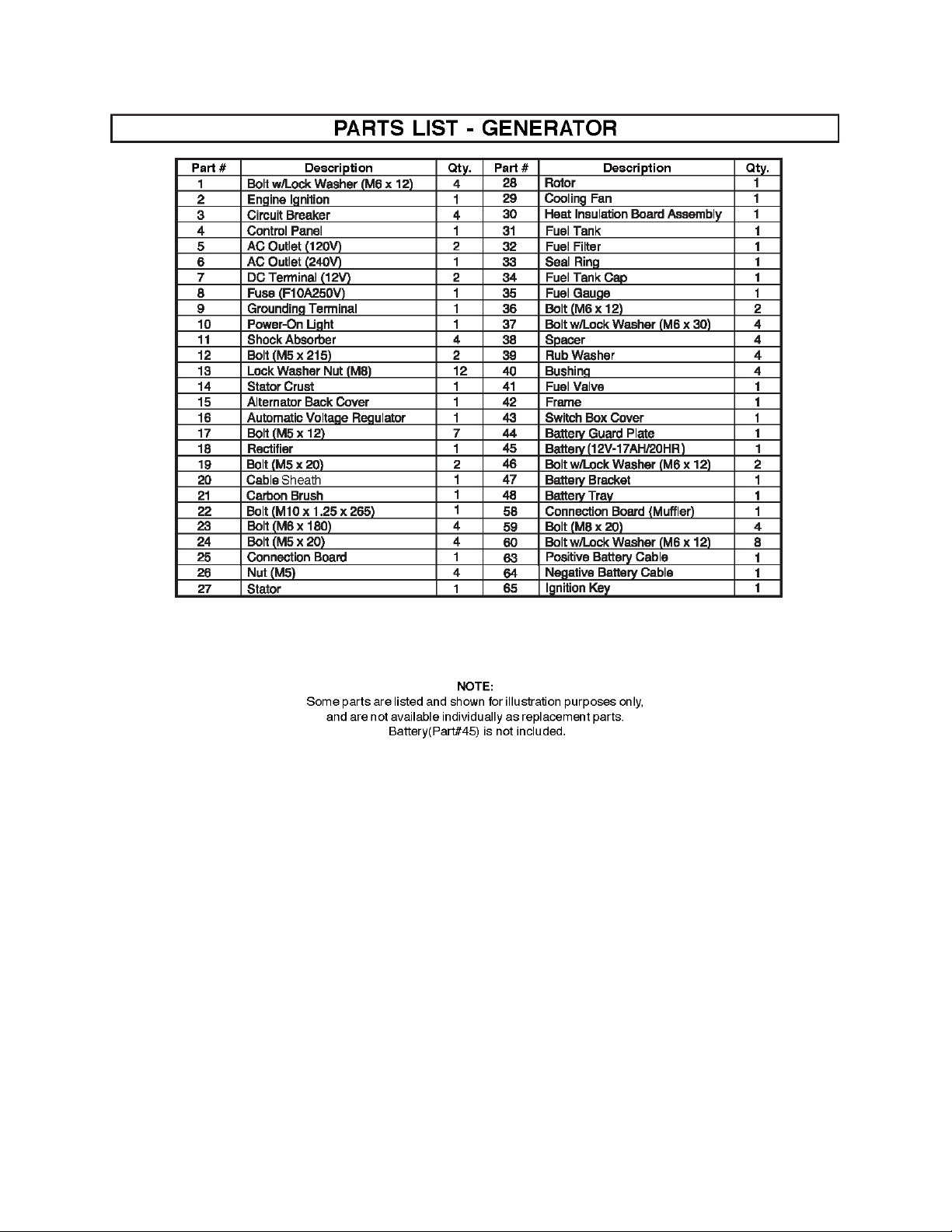

PARTS LIST - GENERATOR
For technical questions, please call 1-800-444-3353.
Page 20SKU 94191
ASSEMBLY DIAGRAM - GENERATOR
For technical questions, please call 1-800-444-3353.
Page 21SKU 94191
PARTS LIST - ENGINE
Part Description Qty.
1A Muffler 1
2A Cylinder Head Bolt 4
3A Cylinder Head Cover Bolt 4
4A Cylinder Head Cover 1
5A Lock Nut 2
6A Adjusting Screw 2
7A Rocker Arm 3
8A Rocker Arm Bolt 2
9A Valve Push Rod Guiding Board 1
10A Valve Push Rod 2
11A Cylinder Head 1
12A Carburetor Shield 1
13A Carburetor Packing 1
14A Carburetor Assembly 1
15A Air Filter Case 1
16A Air Filter Seal 1
17A Bolt (M6) 4
18A Air Filter Cover 1
19A Air Filter Element 1
20A Air Filter Separator 1
21A Choke Lever 1
22A Carburetor Packing (II) 1
23A Stud Bolt (M6 x 109) 2
24A Intake Valve 1
25A Exhaust Valve 1
26A Cylinder Head Gasket 1
27A Exhaust Pipe Stud 2
28A Spark Plug 1
29A Valve Guide 2
30A Valve Spring 2
31A Rocker Shaft Circlip 2
32A Anti-Wear Valve Stem Protector 2
33A Cylinder Head Cover Packing 1
34A Governor Spring 1
35A Bolt 1
36A Spark Plug Wire 1
37A Ignition Coil 1
38A Nut (Special 14mm) 1
39A Starter Ratchet Spring 2
40A Starter Rope 1
41A Starter Handle 1
42A Starter Case Assembly 1
43A Spiral Spring 1
Part Description Qty.
44A Starter Wheel 1
45A Circlip 1
46A Starter Ratchet 2
47A Friction Plate Screw 1
48A Cover 1
49A Starter Pulley 1
50A Cooling Fan 1
51A Flywheel Magneto 1
52A Cylinder Block 1
53A Speed Control Lever 1
54A Governor Arm 1
55A Governor Spring 1
56A Governor Support 1
57A Bolt (M6 x 15) 2
58A Oil Alert Nut 1
59A Plug (M10 x 15) 2
60A Plug Washer 2
61A Oil Alert 1
62A Bolt (M6) 2
63A Crankshaft 1
64A Crankshaft Gear 1
65A Oil Dipstick 2
66A Oil Dipstick Seal Ring 2
67A Gear Casing 1
68A Bolt (M8 x 35) 6
69A Gear Case Packing 2
70A Bearing 2
71A Camshaft Assembly 1
72A Locating Pin 4
73A Oil Seal 2
74A Connecting Rod Bolt 2
75A Connecting Rod Cap 1
76A Connecting Rod 1
77A Piston 1
78A Compression Ring (I) 1
79A Compression Ring (II) 1
80A Oil Scraper Ring 1
81A Piston Pin 1
82A Piston Pin Circlip 1
83A Starter 1
84A Gear 1
85A Fuel Pipe 1
86A Spark Plug Wrench Kit 1
For technical questions, please call 1-800-444-3353.
Page 22SKU 94191

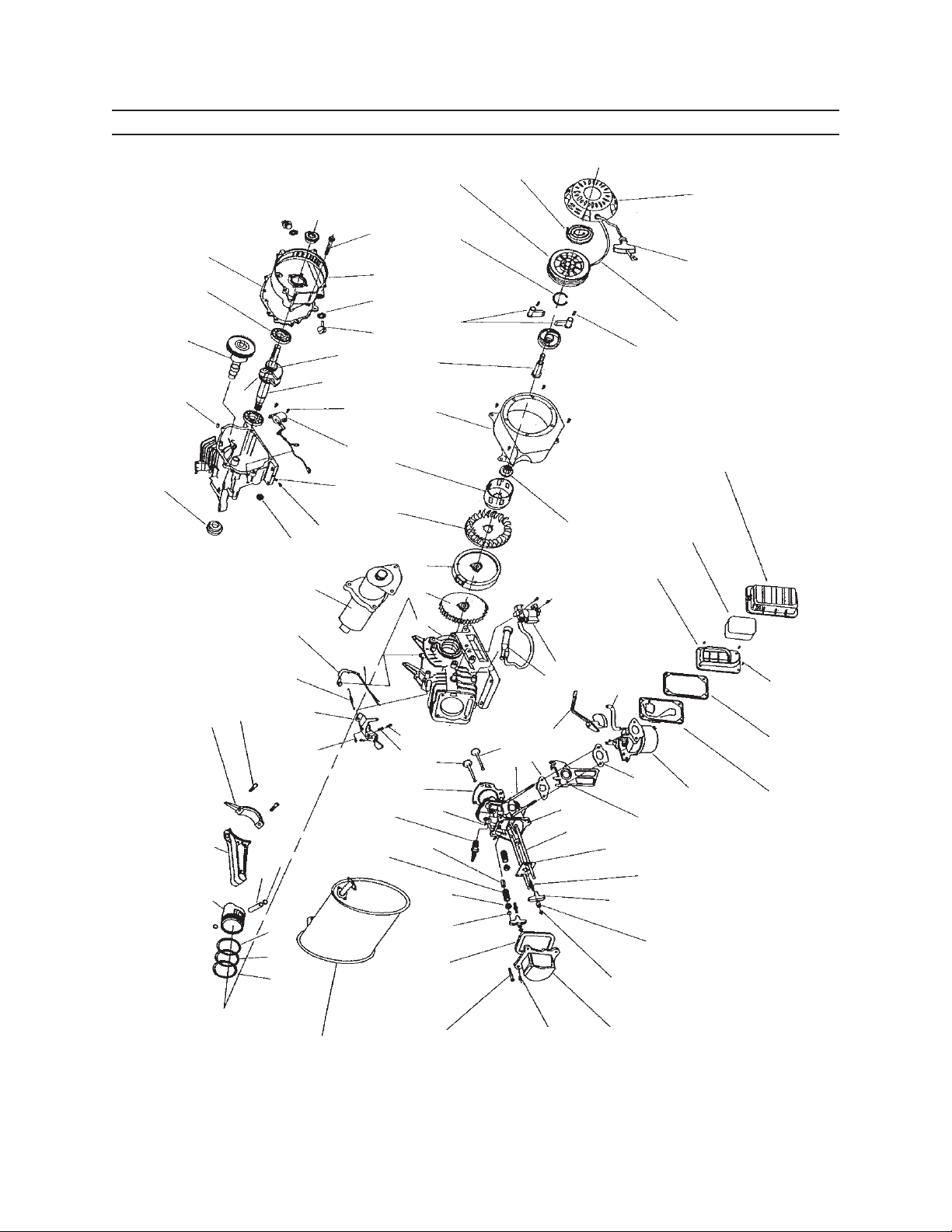

ASSEMBLY DIAGRAM - ENGINE
73A
71A72A
69A
70A
76A
77A
75A
74A
81A
82A
80A
79A
78A
58A
54A
55A
83A
56A
57A
63A
59A
64A
60A
62A
61A
53A
68A
67A66A
65A
30A
49A
50A
28A
35A
34A
51A
84A
52A
26A
29A
47A
48A
25A
27A
31A
32A
33A
44A
45A46A
24A
43A
23A
22A
36A
21A
37A
11A
38A
10A
85A
9A
7A
5A
39A
20A
13A
12A
8A
6A
40A
19A
42A
41A
14A
86A: Spark Plug Wrench Kit Not Shown.
18A
17A
16A
15A
2A
1A
3A
4A
For technical questions, please call 1-800-444-3353.
Page 23SKU 94191
LIMITED 1 YEAR WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials
and workmanship for the period of one year from the date of purchase (90 days if used by a professional
contractor or if used as rental equipment). See engine manufacturer’s warranty which covers engine. This
warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents,
repairs or alterations outside our facilities, normal wear and tear, or to lack of maintenance. We shall in no
event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential
damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
Emission Control System Warranty
California and United States Emission
Control Defects Warranty Statement
The California Air Resources Board (herein CARB), the
United States Environmental Protection Agency (herein
EPA), and Harbor Freight Tools® (herein HFT) are pleased
to explain the emission control system warranty on your
1995 and later Small Off-Road Engine (herein engine). In
California, the engine must be designed, built and equipped
to meet the State’s stringent anti-smog standards. Elsewhere within the United States, new off-road, spark-ignition
engines certified for model year 1997 and later, must meet
similar standards set forth by the EPA. HFT must warrant
the emission control system on your engine for the periods
of time described below, provided there has been no abuse,
neglect or improper maintenance of your engine.
Your emission control system may include parts such as the
carburetor or fuel-injection system, and the ignition system.
Also included may be hoses, belts, connectors and other
emission-related assemblies.
Where a warrantable condition exists, HFT will repair your
engine at no cost to you including diagnosis, parts and
labor.
Manufacturer’s Warranty Coverage
The 1995 and later engines are warranted for two (2) years.
If any emission-related part on your engine is defective, the
part will be repaired or replaced by HFT.
Harbor Freight Tools Emission Control
Defects Warranty Coverage
Engines are warranted for a period of two (2) years relative
to emission control parts defects, subject to the provisions
set forth below. If any emission related part on your engine
is defective, the part will be repaired or replaced by HFT.
Owner’s Warranty Responsibilities
- As the engine owner, you are responsible for the performance of the required maintenance listed in your
Owner’s Manual. HFT recommends that you retain
all receipts covering maintenance on your engine,
but HFT cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance
of all scheduled maintenance.
- As the engine owner, you should, however, be aware
that HFT may deny you warranty coverage if your
engine or a part has failed due to abuse, neglect,
improper maintenance, or unapproved modifications.
- You are responsible for shipping your engine to a HFT
warranty station as soon as a problem exists. Contact
the HFT Customer Service department at the number
below to make shipping arrangements. The warranty
repairs should be completed in a reasonable amount
of time, not to exceed 30 days.
If you have any questions regarding your warranty rights
and responsibilities, you should contact the Harbor Freight
Tools Customer Service Department at 1-800-444-3353.
For technical questions, please call 1-800-444-3353.
Page 24SKU 94191
Emission Control System Warranty - continued
Harbor Freight Tools Emission Control Defects Warranty Provisions
1. Length of Coverage
HFT warrants to a first retail purchaser and each subsequent purchaser that the engine is free from defects
in materials and workmanship that cause the failure of
warranted parts for a period of two (2) years after the
date of delivery to the first retail purchaser.
2. No Charge Repair or Replacement
Repair or replacement of any warranted part will be
performed at no charge to the owner if the work is
performed through a warranty station authorized by
HFT. For emissions warranty service, contact the HFT
Customer Service Department at 1-800-444-3353.
3. Consequential Damages Coverage
Coverage under this warranty shall also extend to
the failure of any engine components caused by the
failure of any warranted part while it is still covered
under this warranty.
4. Coverage Exclusions
Warranty claims shall be filed in accordance with the
provisions of the HFT warranty policy explained in the
box at the top of the previous page. HFT shall not be
liable for any loss of use of the engine, for any alternative usage, for any damage to goods, loss of time,
or inconvenience. Warranty coverage shall also be
excluded for any part which fails, malfunctions, or is
damaged due to failure to follow the maintenance and
operating instructions set forth in the Owner’s Manual
including, but not limited to:
(a) use of parts which are not authorized by HFT
(b) improper installation, adjustment or repair of the
engine or of any warranted part unless performed
by an authorized warranty center
(c) failure to follow recommendations on fuel use
contained in the Owner’s Manual
(d) improper or inadequate maintenance of any war-
ranted parts
(e) repairs performed outside of the authorized war-
ranty service dealers
(f) alterations by changing, adding to or removing
parts from the engine.
5. Service and Maintenance
Component parts which are not scheduled for replacement as required maintenance or are scheduled only
for regular inspection to the effect of “repair or replace
as necessary” are warranted for the warranty period.
Any warranted part which is scheduled for replacement as required maintenance is warranted for the
period of time up to the first scheduled replacement
point for that part. Any replacement part, provided it
is equivalent in durability and performance, may be
used in performance of maintenance or repairs. The
owner is responsible for commissioning a qualified
technician/mechanic to perform all required maintenance, as outlined in the Inspection, Cleaning, and
Maintenance section on page 17 of this manual.
6. Warranted Parts
1) Fuel Metering System
i) Carburetor and its internal parts.
ii) Fuel pump (if so equipped).
iii) Cold start enrichment system.
2) Air Induction System
i) Intake pipe/manifold.
ii) Air cleaner.
3) Ignition System
i) Spark plug.
ii) Magneto ignition system.
4) Catalyst System (if so equipped)
i) Exhaust pipe stud.
ii) Muffler.
iii) Catalytic converter (if so equipped).
5) Miscellaneous items Used in Above Systems
i) Vacuum, temperature and time sensitive
valves and switches.
ii) Hoses, belts, connectors, and assemblies.
For technical questions, please call 1-800-444-3353.
Page 25SKU 94191
Electrical Diagram
Please note: All electrical work should be performed by
a qualified service technician.
REV 07c, 07h
For technical questions, please call 1-800-444-3353.
Page 26SKU 94191
Loading...
