Specifications

Item 69624, 93861 60597, 95974

Power Source 12 VDC only (Negative Ground Only)

Features

Light Type

Safety
Requirements Met

2 combination stop, tail, turn signals, two amber side marker lights,

Tail Lights: 12V 21/5W

Marker Lights: 12V 5W

DOT, if installed properly

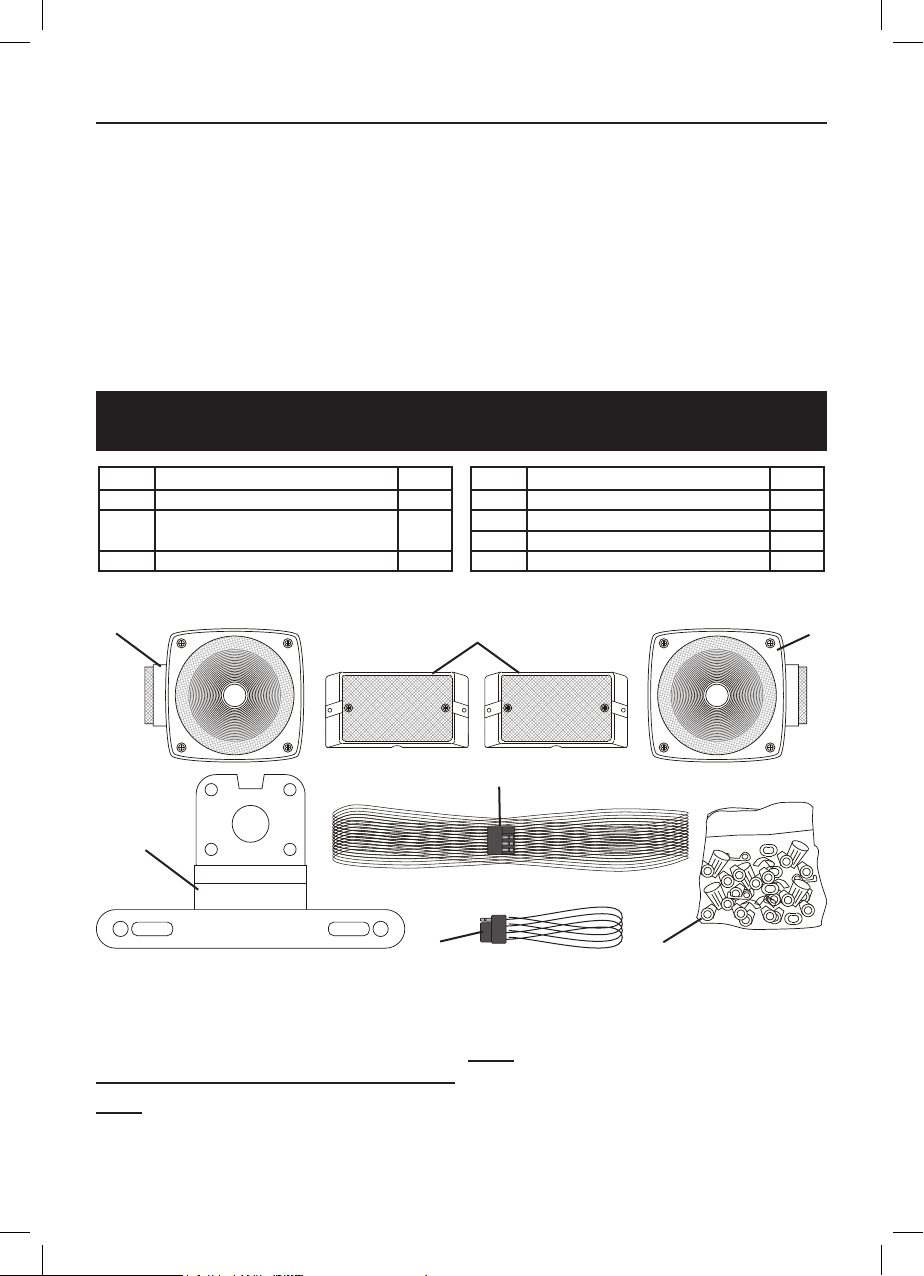

license plate light, and Y-Harness.

Right Tail Light: 12 rear facing LED’s

Left Tail Light: 16 LED’s
12 rear facing LED’s,
4 white LED’s facing down (for plate illumination)

DOT and Federal Vehicle Safety (FMVSS),
if installed properly

Page 2 For technical questions, please call 1-800-444-3353. Trailer Light Kit

Important Safety Information

Installation Precautions

1. Install only according to these
instructions. Improper installation
can create hazards.

2. Wear ANSI-approved safety goggles
and heavy-duty work gloves
during Installation.

3. Keep installation area clean and well lit.

4. Keep bystanders out of the
area during Installation.

5. Do not install when tired or when under
the influence of drugs or medication.

6. Read all instructions and safety
precautions in the vehicle’s manual onto
which the Light Kit will be installed.

7. Install on negative ground
12 VDC systems only.

8. Do not install this product yourself
unless you are technically competent

to do so. If necessary, have a qualied

technician install the Light Kit.

Use Precautions

9. Use the correct lights and electrical
set-up for your trailer.
If the vehicle is OVER 80" wide, install
three additional Red Marker Lights*
(not included) onto the rear of the
unit to comply with DOT standards.

10. If the towing vehicle has rear
turn signals separated from its
stop lights, additional hardware
and installation procedures will
be needed. Contact a qualified
technician for guidance.

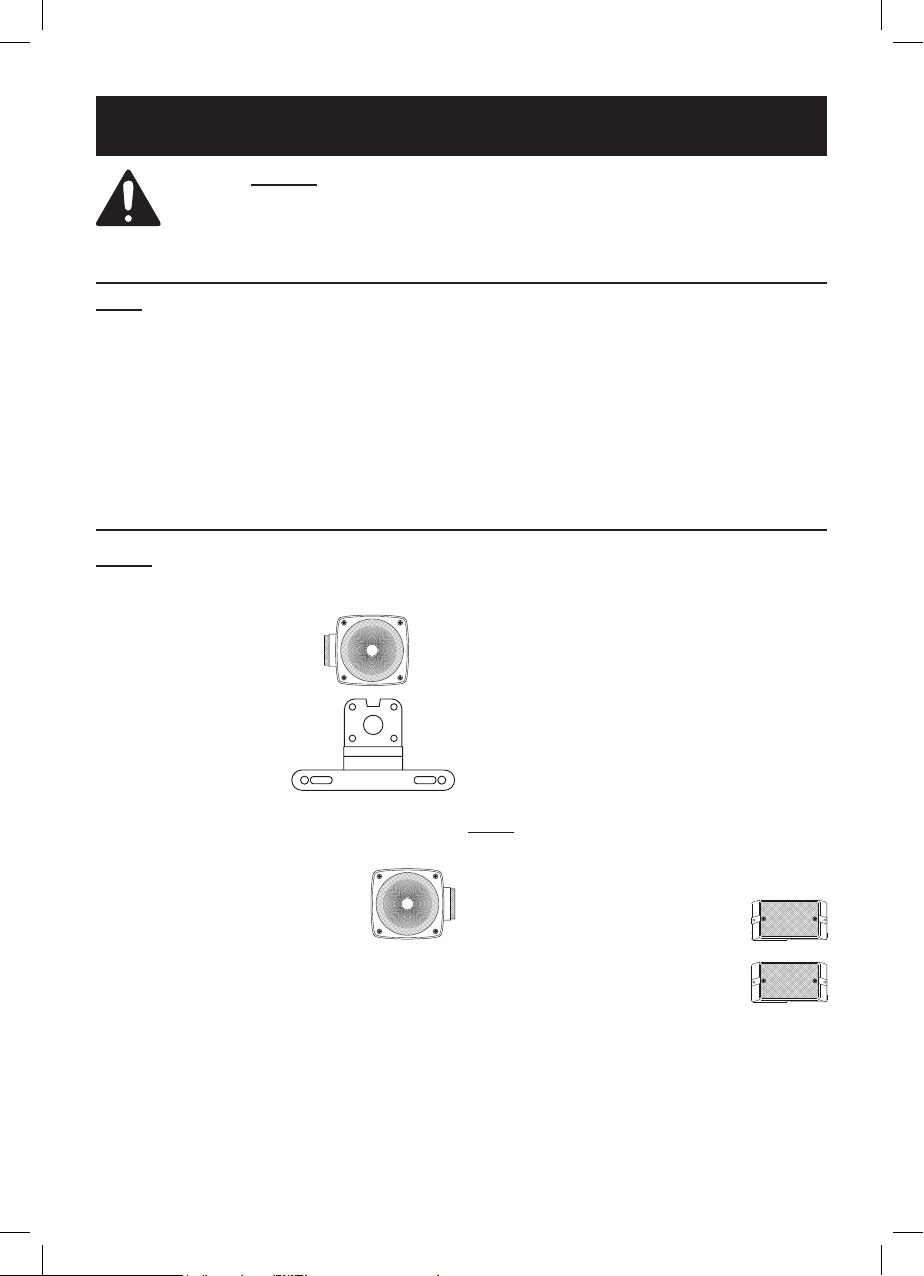

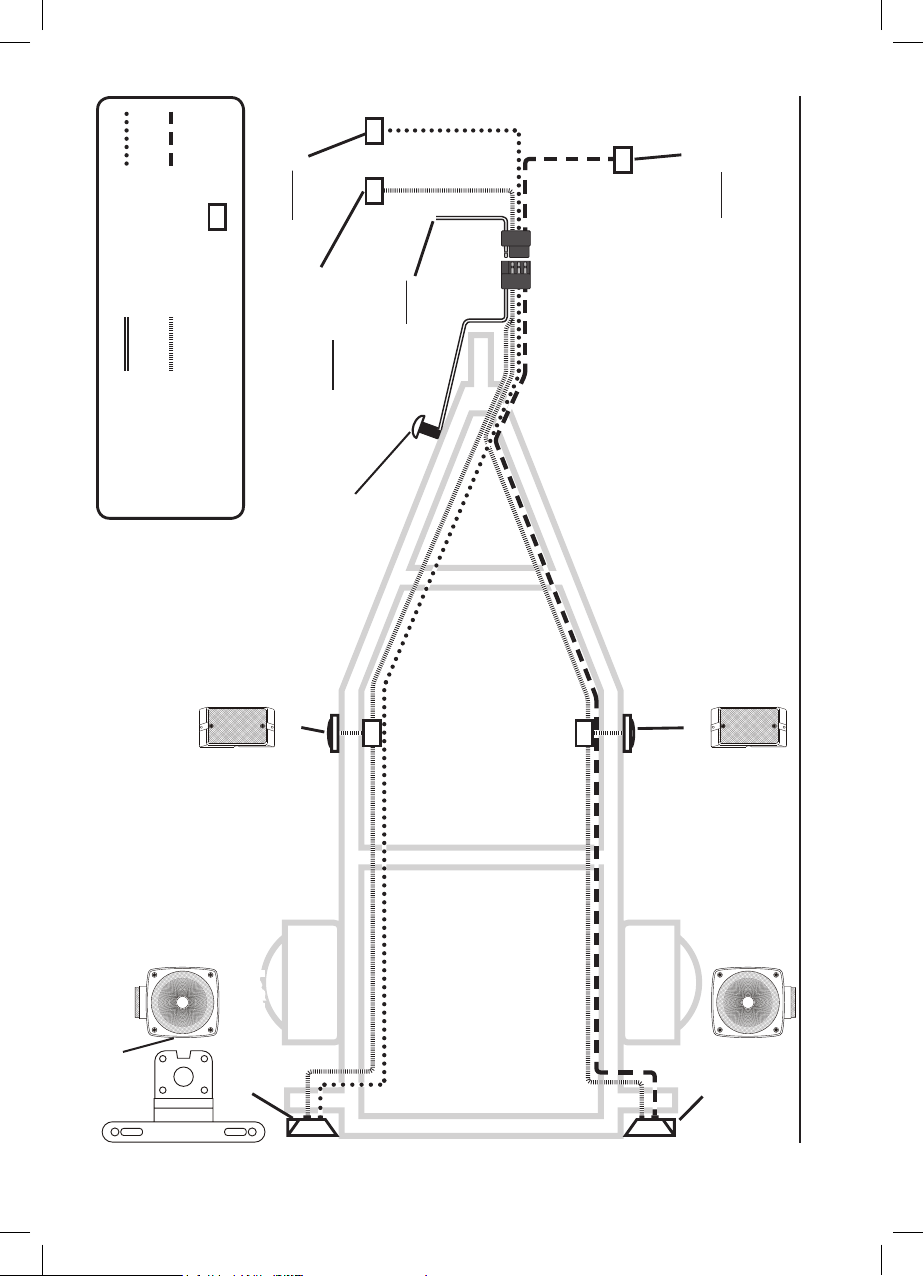

* Example additional marker light locations:

Mount the three Red Marker Lights to the rear of
the vehicle, making sure the Lights are no closer
than 6" and no farther away than 12" from each
other center to center. After mounting, use wire nut
connectors (not included) to connect all three leads
together. Then connect to the Brown wire in the back
of one Tail Light (either side) provided in this Kit.

1. This product is not a toy. Do not
allow children to play with this item.

2. Use as intended only. Not for
marine use. Do not submerge.

3. Inspect before every use; do not use
if parts are loose or damaged.

4. Maintain product labels and
nameplates. These carry
important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
