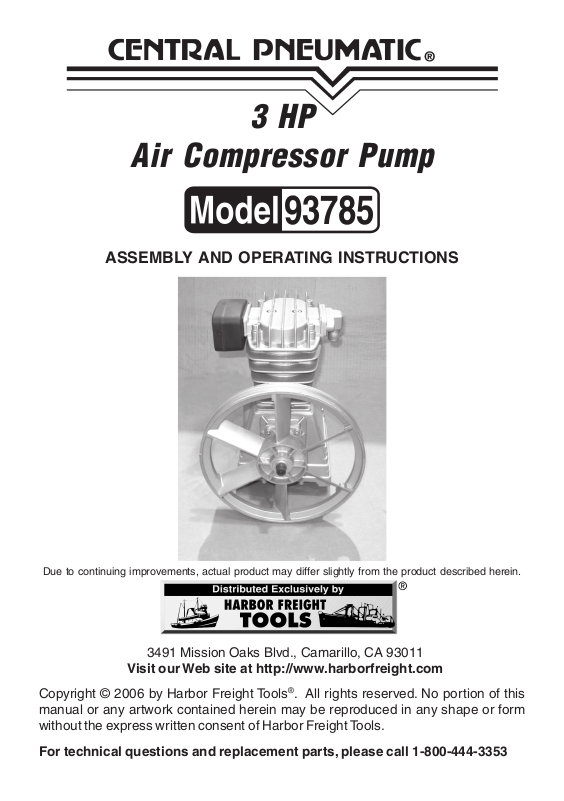

Harbor Freight Tools 93785 User Manual

3 HP

Air Compressor Pump

93785

ASSEMBLY AND OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

Copyright © 2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

Specifications

:noitcurtsnoC

:erusserPmumixaMi

:noitacirbuL

:snoisnemiDyelluP

:snoisnemiDllarevOH"¼-21xW"¼-01xL"¼-21:thgieWteN.sbl32

sp041:deepSmumixaMmpr0021

,pmuPmunimulAtsaC

.daeHdnaleehwylF

leveLliOhtiwepytliOhsalpS

gniraeBllaBdnawodniW

evlaVesaeleRkcehC

W"8/3-1x.aiD"¼-01

tlebr

ofevoorg-Vhtiw

:epyTrosserpmoC

:mpr

0501taetaRyrevileDriA

:snoisnemiDnotsiPekortsmm05x.aiDmm56

,egatSelgniS

rednilyCniwT

isp04tamfc7.8
isp09tamfc7.7

isp511tamfc59.6

Caution: Before operating, fill the oil reservoir with a premium quality,
30-weight, nondetergent oil before operating. Running the Air
Compressor Pump with little or no oil will cause damage to the pump
and void the warranty.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice
with this manual. Write the invoice number on the inside of the front cover. Keep the
manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in
damp or wet locations. Don’t expose to rain. Keep work area well lighted. Do
not use electrically powered tools in the presence of flammable gases or
liquids.

3. Keep children away. Children must never be allowed in the work area. Do
not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry
location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or
attachment to do the work of a larger industrial tool. There are certain
applications for which this tool was designed. It will do the job better and more
safely at the rate for which it was intended. Do not modify this tool and do not
use this tool for a purpose for which it was not intended.

SKU 93785

For technical questions please call 1-800-444-3353

Page 2

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught
in moving parts. Protective, electrically non-conductive clothes and non-skid
footwear are recommended when working. Wear restrictive hair covering to
contain long hair.

7. Use eye and ear protection. Always wear ANSI approved impact safety
goggles. Wear a full face shield if you are producing metal filings or wood
chips. Wear an ANSI approved dust mask or respirator when working around
metal, wood, and chemical dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times. Do not reach
over or across running machines.

9. Maintain tools with care. Keep tools maintained and clean for better and
safer performance. Follow instructions for lubricating and changing
accessories. Inspect tool cords periodically and, if damaged, have them
repaired by an authorized technician.

10. Disconnect power. Unplug drive motor when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting
wrenches are removed from the tool or machine work surface before starting work.

12. Avoid unintentional starting. Be sure the drive motor power switch is in the
Off position when not in use and before plugging in.

13. Stay alert. Watch what you are doing, use common sense. Do not operate
any tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears
damaged should be carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment and binding of moving
parts; any broken parts or mounting fixtures; and any other condition that may
affect proper operation. Any part that is damaged should be properly repaired
or replaced by a qualified technician. Do not use the tool if any switch does
not turn On and Off properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces
such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use
accessories intended for use with this tool. Approved accessories are
available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read
warning labels if taking prescription medicine to determine if your judgment or
reflexes are impaired while taking drugs. If there is any doubt, do not operate
the tool.

SKU 93785

For technical questions please call 1-800-444-3353

Page 3
