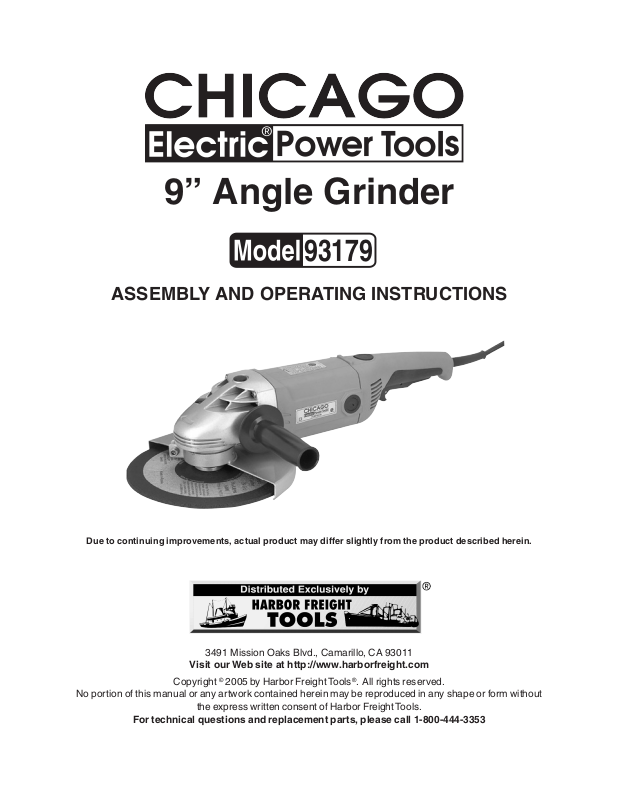

Harbor Freight Tools 93179 User Manual

9” Angle Grinder

93179

ASSEMBLY AND OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

No portion of this manual or any artwork contained herein may be reproduced in any shape or form without

For technical questions and replacement parts, please call 1-800-444-3353

SKU 93179

For technical questions, please call 1-800-444-3353

the express written consent of Harbor Freight Tools.

Page 1

Specifications

:noitcurtsnoC

:retemaiDleehW

:snoisnemiDllarevOH"2/1-5

gnisuoHrotoMSBAdedloM

gnisuoHraeGmunimulAtsaC

eldnipSrobrAIPT11x"8/5htiw"9

dedulcnirotpadArobrA"8/7lanoitpo

xW"8/3-4xL"2/1-81:droCrewoPdeziralopgnorp2GWA41xL"28

:tnemeriuqeRrewoP

:deepSrotoMMPR0056

esahPelgnISzH06,CAV021

sttaW

0231,spmAdaolon0.11

Save This Manual

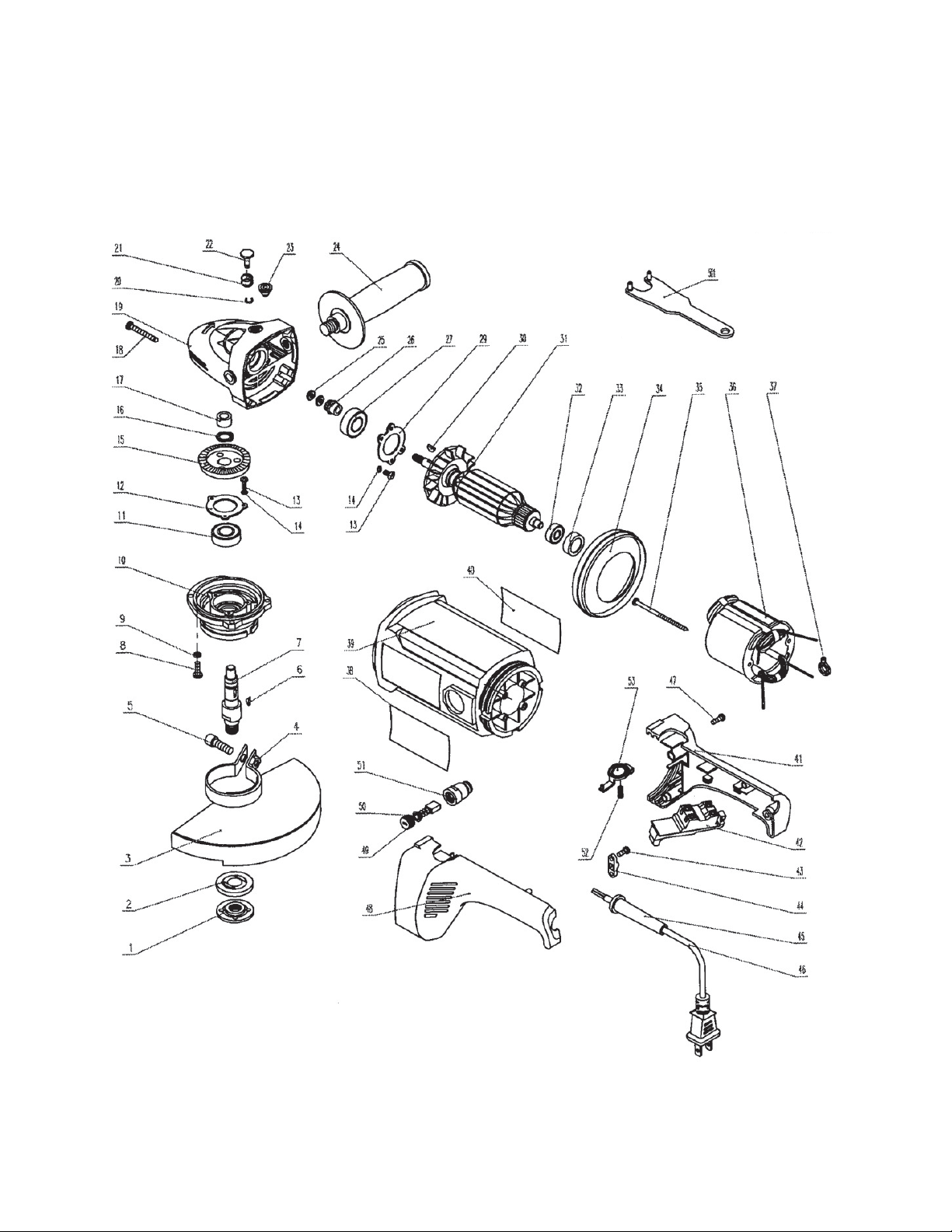

You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep the manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. Protect others in the work area from debris such as chips and sparks. Provide barriers or shields as needed.

4. Grounded tools must be plugged into an outlet properly installed and grounded in accordance

with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt whether the outlet is properly grounded. If the tool should electrically malfunction or break down, grounding provides

a low resistance path to carry electricity away from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is wider than the other).

This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded

power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tool or pull the Plug from an

outlet. Keep the Power Cord away from heat, oil, sharp edges, or moving parts. Replace damaged Power Cords immediately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”. These extension cords are rated for outdoor use, and reduce the risk of electric shock.

SKU 93179

For technical questions, please call 1-800-444-3353

REV 02/06

Page 2

Personal Safety

10. Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment

of inattention while operating power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

12. Avoid accidental starting. Be sure the Power Switch is off before plugging in. Carrying power tools with your finger on the Power Switch, or plugging in power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a key that is left attached to a rotating part of the power tool may result in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the power tool in unexpected situations.

15. Use safety equipment. Always wear eye protection. Dust mask, nonskid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities, contain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement or other masonry products, arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code § 25249.5, et seq.)

Tool Use and Care

16. Use clamps (not included) or other practical ways to secure and support the work piece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off. Any tool that cannot be controlled with the Power Switch is dangerous and must be replaced.

19. Disconnect the Power Cord Plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools maintained and clean. Properly maintained tools are less likely to bind and are easier to control. Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.

SKU 93179

For technical questions, please call 1-800-444-3353

Page 3

Service

23. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.

24. When servicing a tool, use only identical replacement parts. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury.

Specific Safety Rules

1. Maintain labels and nameplates on the tool. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

2. Always wear ANSI approved safety impact eye goggles and heavy work gloves when using the tool. Using personal safety devices reduce the risk for injury. Safety impact eye goggles and heavy work gloves are available from Harbor Freight Tools.

3. Always use the proper guard with grinding wheel. The guard protects operator from broken wheel

fragments.

4. When starting a hand-held power tool, always maintain a firm grip on the tool with both hands to resist starting torque.

5. Always keep the extension cord away from moving parts on the tool.

6. Always use 2 hands during use.

7. WARNING! All accessories for this tool must be rated for at least 6500 RPM. Grinding wheels and

other accessories running over their rated speed can fly apart and cause injury.

8. Use only 9” diameter grinding wheels having a 5/8” or ( 7/8” if using included arbor adaptor) center mounting hole. Never disable or modify the wheel guard.

9. WARNING! Never install a carbide tipped or steel circular saw blade for use in this tool. Never install a wood carving blade, carving disc with chain saw cutters, or a cutting carving disc on this tool.

10. For safest operation, it is recommended that only these accessories be used with this tool: Abrasive cut-off discs and wheels, flap wheels, wire brushes, wire wheel brushes.

11. Never lay the tool down until the motor has come to a complete stop. The tool may create unforeseen risk while the motor cycles down.

12. Never leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.

13. WARNING! People with pacemakers should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

SKU 93179

For technical questions, please call 1-800-444-3353

Page 4
