Harbor Freight Tools 92923 User Manual

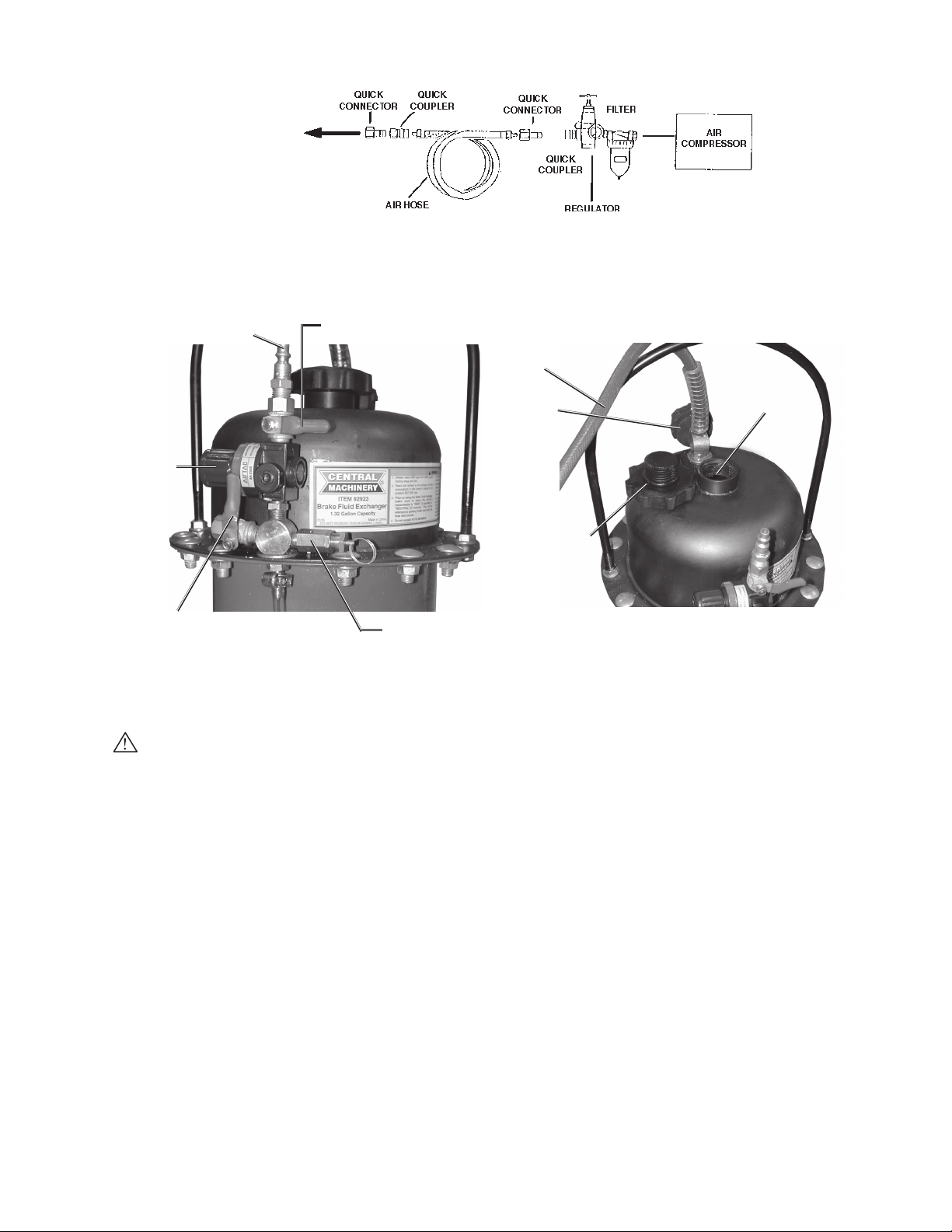

BRAKE FLUID EXCHANGER
®
92923
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright© 2005 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or
form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Specifications
Item Description
Functions Remove and replace fluid from most types and models of
vehicle brake systems, Also removes trapped air.
Working Air Pressure 10 to 30 PSI; 40 PSI Max.; Consumption: 4.5 CFM@30 PSI
Air Inlet 1/4” – 18 NPT
Tank Fluid Capacity 1.32 Gallons (5.25 quarts)
Pressure Regulator Manual control dial, locking
Pressure Gauge 0~140 PSI, 20 PSI increments; within 20 PSI increments,
marked in 2 increments
Drain Tubes 2 – 12-1/2 (L) x 0.316 (dia.) inches clear polyurethane with
rubber bleeder adapter tip
Brake Fluid Filler Hose 10 feet, 3 inches (L) x ½ inch (dia.); reinforced polyurethane
with ball valve and quick coupler at one end
Overall Dimensions 11 (dia.) x 8.5 (H) x 6.5 (base dia.) inches
Overall height with handle: 18 inches
Collection Bottles 2 – 9 (H) x 4-3/4 (L) x 2-1/4 (W) inches; one quart each
Weight 19.6 lbs.
Accessories Master Cylinder Adapters kit: 11 adapters – for domestic
and import vehicles in plastic toolbox. See Parts List at the
end of this manual for details.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
SKU 92923 For technical questions, please call 1-800-444-3353
Page 2
5. Use the right tool for the job. Do not attempt to force a small tool or attachment to do
the work of a larger industrial tool. There are certain applications for which this tool
was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically nonconductive clothes and nonskid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.
Wear an ANSI approved dust mask or respirator when working around chemical dusts
and mists.
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines.
9. Maintain tools with care. Inspect tool cords and hoses periodically and, if damaged,
have them replaced, or repaired by an authorized technician. The handles must be
kept clean, dry, and free from oil and grease at all times.
10. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches
are removed from the tool or machine work surface before operating.
11. Avoid unintentional starting. Be sure the air pressure is in the Off position when not
in use and before making hose connections.
12. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
13. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified
technician. Do not use the tool if any control or switch does operate properly.
14. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor
Freight Tools.
15. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels if taking prescription medicine to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.
16. Pacemaker safety warning. People with pacemakers should consult their
physician(s) before using this product. Electromagnetic fields in close proximity to a
heart pacemaker could cause interference to, or failure of the pacemaker. In addition,
people with pacemakers should adhere to the following:
- Caution is necessary when near the coil, spark plug cables, or distributor of a
running engine. The engine should always be off if adjustments are to be made to the
distributor.
SKU 92923 For technical questions, please call 1-800-444-3353
Page 3
