Harbor Freight Tools 92421 User Manual

1” EARTHQUAKE

®

IMPA CT WRENCH

Model 92421

ASSEMBLY and OPERATING

INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

Copyright© 2005 by Harbor Freight Tools® . All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

Specifications

Maximum Torque 1800 Ft. Lbs.
Drive Size 1”
Air Inlet 1/2”-14 NPT
Recommended Air Pressure 90 PSI
Average Air Consumption 8 CFM
Tool Weight 24.6 Lbs.
Impact Mechanism Twin Hammer

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.

3. Keep children aw ay. Children m ust never be allowed in the w ork area. Do not let
them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain applications for
which this tool was designed. It will do the job better and more safely at the rate for
which it was intended. Do not modify this tool and do not use this tool for a purpose for
which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically nonconductive clothes and nonskid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.

Page 2SKU 92421 For technical questions, please call 1-800-444-3353

7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.

Wear a full face shield if you are producing metal filings or wood chips. Wear
an ANSI approved dust mask or respirator when working around metal, wood,
and chemical dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines or air hoses.

9. Maintain tools with care. Keep tools clean for better and safer performance. Follow
instructions for lubricating and changing accessories. Inspect tool cords and air hoses
periodically and, if damaged, have them repaired by an authorized technician. The
handles must be kept clean, dry, and free from oil and grease at all times.

10. Disconnect air supply. Disconnect air hose when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches
are removed from the tool or machine work surface before plugging it in.

12. Avoid unintentional starting. Be sure the switch is in the Off position when not in
use and before plugging in. Do not carry any tool with your finger on the trigger,
whether it is plugged in or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified technician.
Do not use the tool if any switch does not turn On and Off properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor Freight
Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels if taking prescription medicine to determine if your judgement or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the Impact Wrench.

18. Use proper size and type extension cord. If an extension cord is required, it must be
of the proper size and type to supply the correct current to the compressor without
heating up. Otherwise, the extension cord could melt and catch fire, or cause electrical
damage to the compressor. Check your air compressor’s manual for the appropriate
size cord.

19. Maintenance. For your safety, maintenance should be performed regularly by a
qualified technician.

Page 3SKU 92421 For technical questions, please call 1-800-444-3353

20. Compressed air only. Nev er use combustible gas as a power source.

21. This Impact Wrench should only be used with impact rated sockets and
extensions. Using any other accessories can cause the accessories to break,
causing permanent damage to the unit and severe injury to the operator.

Note: Performance of the compressor (if powered by line voltage) may vary depending on
variations in local line voltage. Extension cord usage may also affect tool performance.

Warning: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under­stood by the operator that common sense and caution are factors which cannot be
built into this product, but must be supplied b y the operator.

Unpacking

When unpacking, check to make sure that the tool is intact and undamaged. If any parts are
missing or broken, please call Harbor Freight Tools at the number on the cover of this
manual as soon as possible.

Air Connection

Impact
Wrench

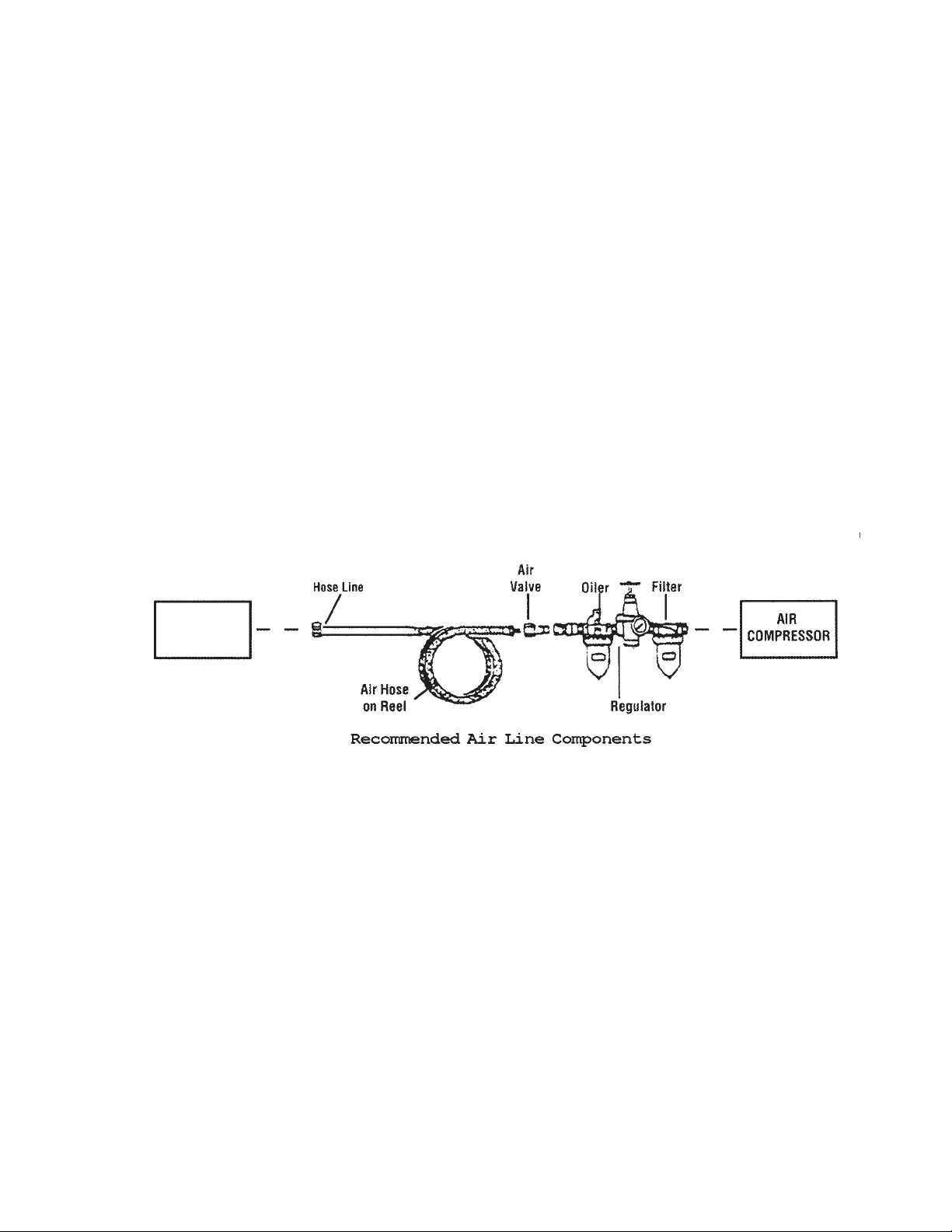

For best service you should incorporate an oiler, regulator, and inline filter, as shown in the
diagram above. Hoses, couplers, oilers, regulators, and filters are all available at Harbor
Freight Tools. For optimal perf ormance, use an air compressor of 15 Horsepower or more and
limit the total air line length to 30’ or less.

1. You will need to prepare a 1/2” air connector (not included) to connect to the Air Inlet

(10B) on the Impact Wrench. First, wrap the 1/2” air connector with pipe thread seal
tape before threading it into the Air Inlet (10B). Connect the 1/2” (or more) ID air source
hose to a quick connect coupler (not included), and then to the Impact Wrench.

Note: If y ou are not using an automatic oiler system, before operation, add a fe w drops
of Pneumatic Tool Oil to the airline connection. Add a fe w drops more after each hour
of continual use.

2 . Set the air pressure on the regulator to 90 PSI. Do not exceed the recommended air

pressure of 90 PSI.

3. Check the air connection for leaks. Disconnect from the air source.

Page 4SKU 92421 For technical questions, please call 1-800-444-3353

Assembly

Place the Handle (45) onto the side of the Hammer Case (43) and secure it with four Screws
(46) and Washers (46A). See FIGURE 1.

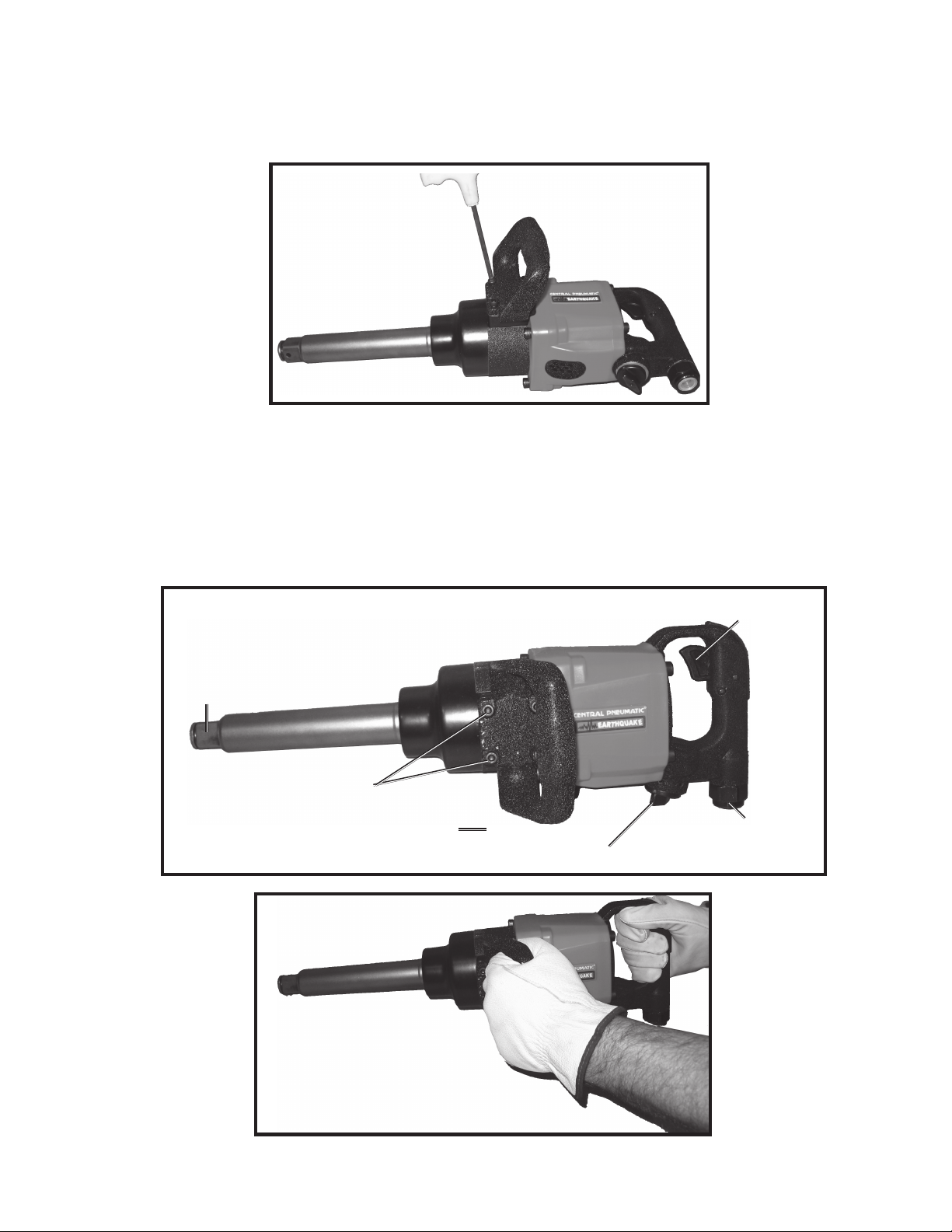

FIGURE 1

Securing with
Screws (46) and
Washers (46A)

(Hex Wrench not included)

Operation

Warning!! This Impact Wrench supplies pow erful torque and is designed to be operated with

two hands. Failure to operate the Impact Wrench with two hands may result in serious, per­manent injury. See FIGURE 3 belo w.

FIGURE 2

Anvil (38)

Screw (46) and
Washer (46A)

Side Handle (45)

FIGURE 3

Proper way
to hold the
Impact Wrench

Tr igger (13)

Air Inlet (10B)

Forward/Re v erse Valve (17)

Page 5SKU 92421 For technical questions, please call 1-800-444-3353

Operation (continued)

Refer to FIGURES 2 and 3 on page 5, and the Assembly Drawing on page 9.
Note: Turn off your air compressor and disconnect the air hose when you are changing

sockets. After you attach the socket, attach the air hose and turn the air compressor
on.

1. Select the appropriate size 1” drive socket for your needs.

2. Push and snap the socket (not included) onto the An vil (38).

3. To operate the Forward/Reverse Valve (17) follow the directions in FIGURE 4 below.

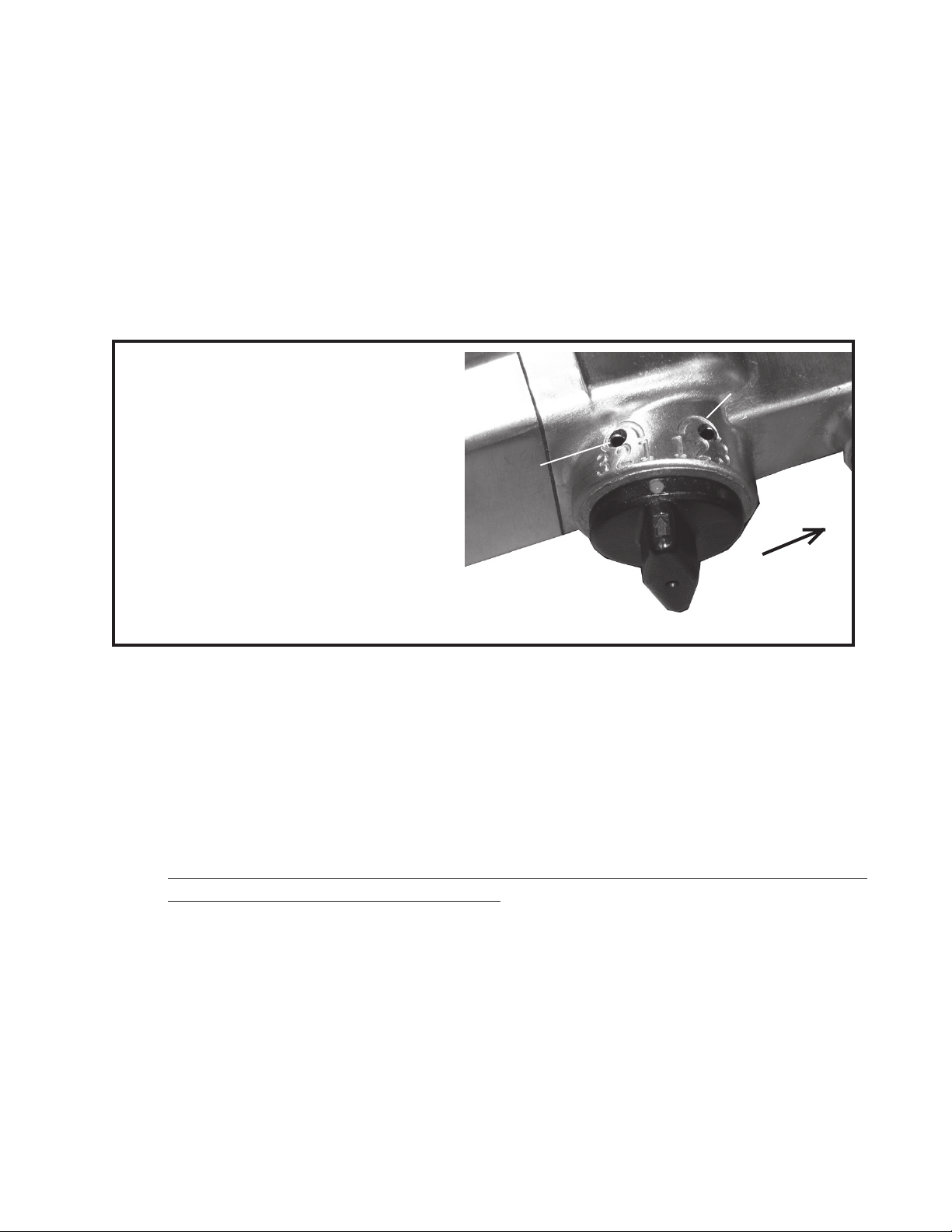

FIGURE 4

Forward

The Forward/Reverse Valve (17) has
three forward and three reverse speeds.
Turn the Valve to the right toward the

Reverse

clockwise arrow to tighten, and to the
left, toward the counterclockwise
arrow to loosen.

(Shown without protective coating for clarity.)

Handle

Tightening
Note: Set the Forward/Reverse Valve (17) so that the anvil turns clockwise (forward).

7. Tighten the nut as tight as you can by hand.

8. Place the socket (not included) o ver the nut you wish to tighten.

9. Grip the Impact Wrench firmly with two hands and gently squeeze the Trigger (13).

Note: If the Impact Wrench cannot tighten the nut to your satisfaction, do not raise the air

pressure on the compressor over 90 PSI. Pressures above 90 PSI will strip the work­piece and damage the tool, potentially causing the tool to fail, causing serious injury.
Use other appropriate methods and tools to tighten the nut.

10. When the nut is tightened, release the Trigger (13). Turn off the air compressor and

disconnect the hose.

11. Always check the recommended torque specification for the nut. Use a torque

wrench to tighten the nut to the proper setting after using the Impact Wrench.

Page 6SKU 92421 For technical questions, please call 1-800-444-3353

Operation (continued)

Loosening
Note: Set the Forward/Re v erse Valve (17) so that the anvil turns counterclockwise (re v erse).

12. Place the socket (not included) over the nut you wish to loosen.

13. Grip the Impact Wrench firmly with two hands and gently squeeze the Trigger (13).

Note: If the Impact Wrench cannot loosen the nut, do not raise the air pressure on the

compressor over 90 PSI. Do not attempt to loosen the nut with the Impact Wrench.
Use other appropriate methods and tools to loosen the nut.

14. When the nut is loosened, release the Trigger (13). Turn off the air compressor and

disconnect the hose.

15. If needed, remove the nut from the socket.

Maintenance

1. Make sure your Impact Wrench is disconnected from the air hose before attempting

any maintenance.

2. Wipe the Impact Wrench down with a lint-free cloth after each use.

3 . Mak e sure the An vil (38) is clear of dirt or debris. If possib le , spra y it with compressed

air before each use.

4. If you do not use an inline oiler/filter system, lubricate the tool daily by holding it so that

the Air Inlet (10B) is facing up . Squeeze the Trigger (13), and place one or two drops of
oil into the Air Inlet (10B). Squeezing the Tr igger (13) allows the oil to circulate in the
motor.

5. Repairs to this tool should be performed only by a qualified technician.

Page 7SKU 92421 For technical questions, please call 1-800-444-3353

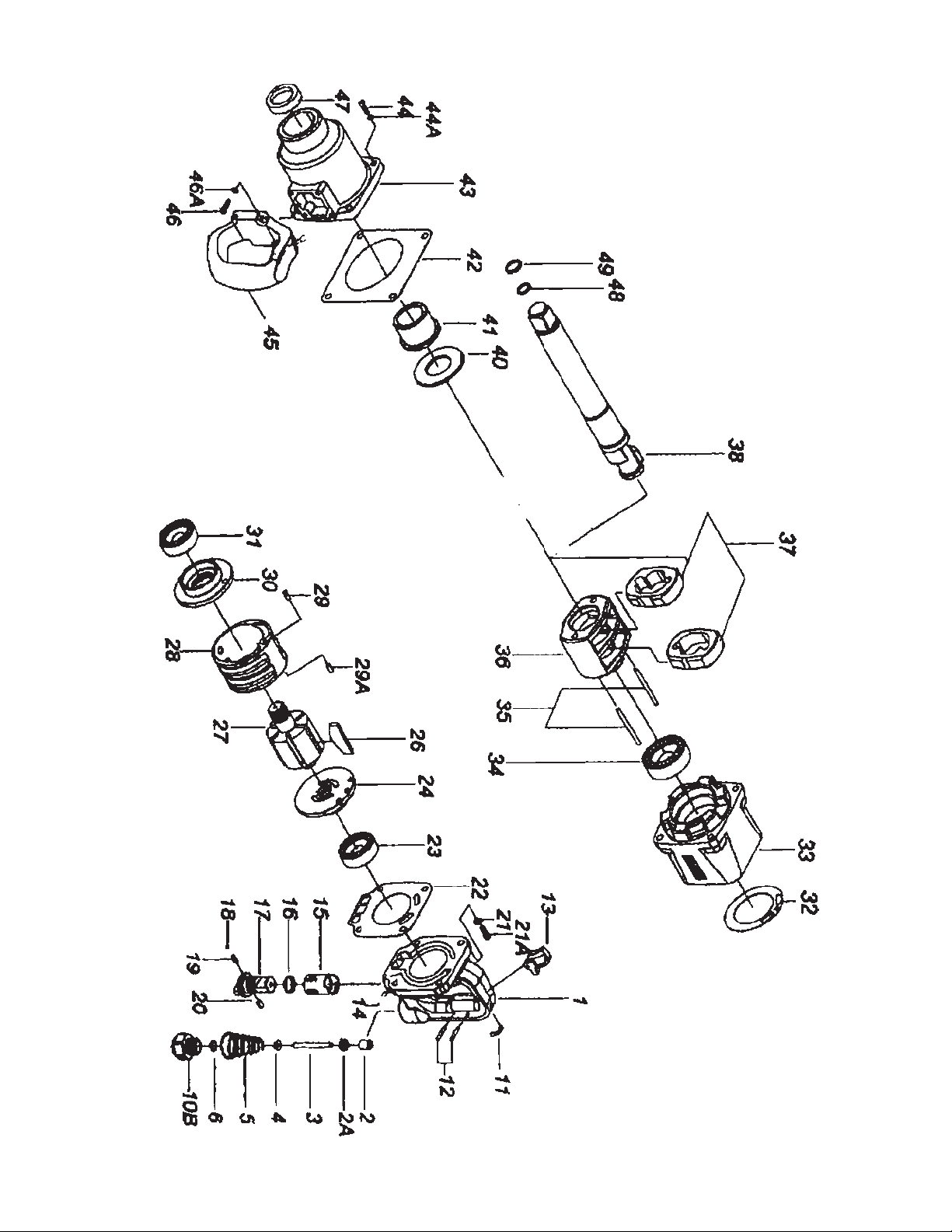

Parts List

Part No. Description Qty. Part No. Description Qty.
1 Tr igger Handle 1 28 Cylinder 1
2 Throttle Valv e Bushing 1 29 Pin 1
2A Throttle V alve Seat 1 29A Pin 1
3 Throttle Valve Plunger 1 3 0 Front End Plate 1
4 Throttle Valve 1 31 Front End Bearing 1
5 Throttle Valve Spring 1 32 End Plate Gasket 1
6 0-ring 1 33 Motor Housing 1
10B Air Inlet 1 34 Bearing 1
11 Rubber Cap 1 35 Hammer Pin 2
12 Tr igger Pin 2 36 Hammer Frame 1
13 Trigger 1 37 Hammer 2
14 Pin 1 38 Anvil 1
15 F/R V alve Bushing 1 40 Thrust W asher 1
16 0-ring 1 41 Hammer Case Bushing 1
17 Forward/Reverse Valve 1 42 Hammer Case Gasket 1
18 Steel Ball 1 43 Hammer Case 1
19 Spring 1 44 Hammer Case Cp. Scr. 4
20 Pin 1 44A Washer 4
21 Washer 4 45 Handle 1
21A Screw 1 46 Screw 4
22 Handle Gasket 1 46A Washer 4
23 Rear Motor Bearing 1 47 Hammer Case Seal 1
24 Rear End Plate 1 48 Socket Retainer 0-ring 1
26 Rotor Blade 6 49 Socket Retainer 1
27 Rotor 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUF ACTURER AND/OR DISTRIBUT OR HAS PRO VIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU­TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS T O THE PRODUCT OR THAT HE OR SHE
IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACE­MENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NO T
BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR
HER REP AIRS TO THE ORIGINAL PRODUCT OR REPLA CEMENT P AR TS THERETO , OR ARIS­ING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.

Page 8SKU 92421 For technical questions, please call 1-800-444-3353

Assembly Drawing

Page 9SKU 92421 For technical questions, please call 1-800-444-3353
