Harbor Freight Tools 92281 User Manual

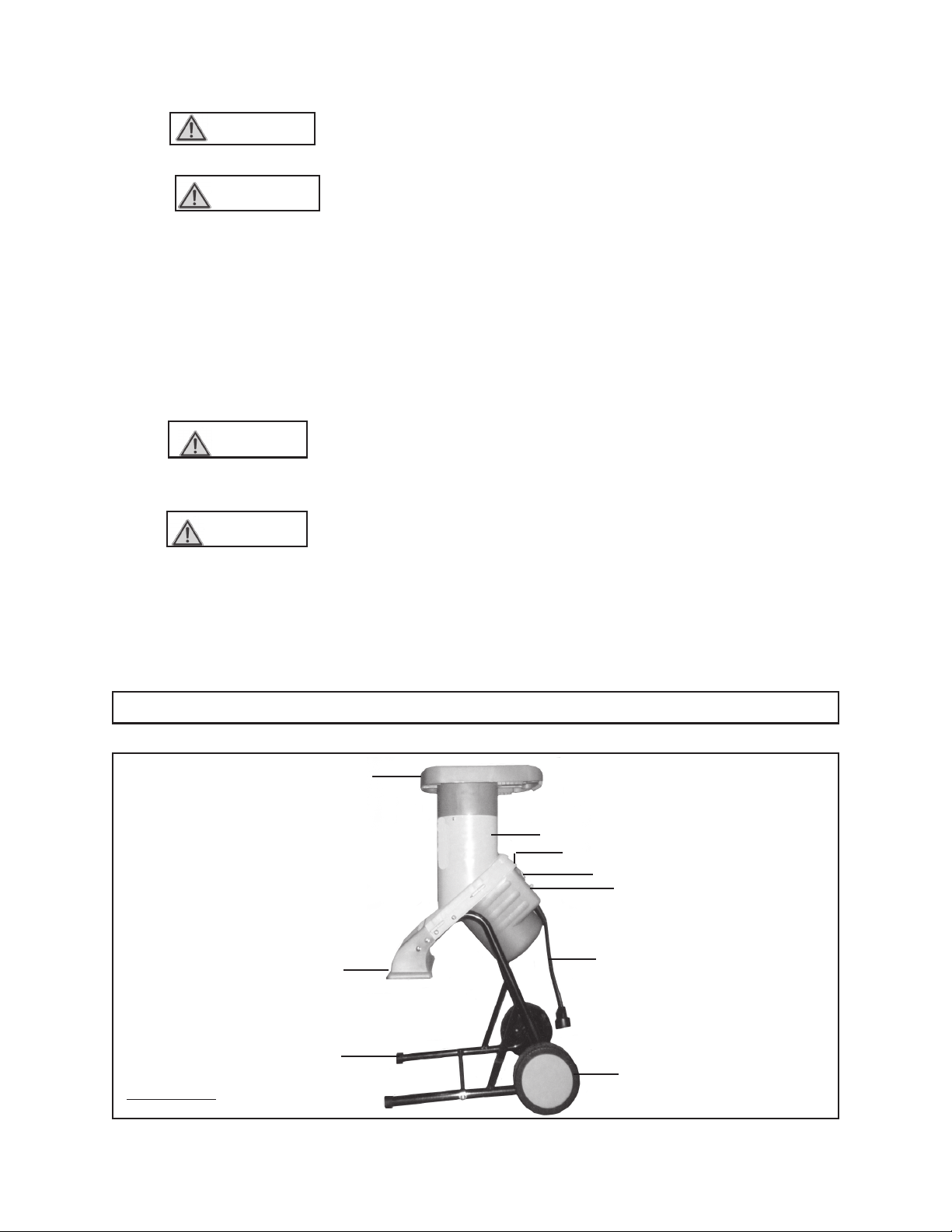

2.5 HP CHIPPER/SHREDDER
®
Model 92281
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright 2004 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
©
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
Item Description
Electrical Requirements
Chipper/Shredder Capacity Tree Limbs Up To 1-1/4” Diameter
Blade Quantity/Type 2 / Reversible / High Speed Steel Construction
Discharge Chute Size 11-3/8” L x 4-3/4” W
Opening Size 11” L x 8-3/4” W
Wheel Size 7” Diameter x 1-3/4” W
Accessories Feed Stick (Qty. 1)
Wrenches Included 5mm Allen Wrench (Qty. 1) / 6mm Allen Wrench (Qty. 1)
Overall Dimensions 36-5/8” H x 18” W x 21-1/2” L
Weight 50 Pounds
115 V / 60 Hz / 2000 Watt
4.15 AMPs (No Load) / 5.20 AMPs (With Load)
2.5 HP / Single Phase / 3460 RPM
3-Prong Power Plug / Power Cord Length: 15”
Power Switch Type: ON/OFF Sliding
Safety Shut-Off Switch Equipped: Yes
Circuit Breaker Type: Push Button
13mm Double End Wrench (Qty. 1) / 16mm Double End Wrench (Qty. 1)
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on page 16
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
GENERAL SAFETY RULES
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SKU 92281
SAVE THESE INSTRUCTIONS
PAGE 2For technical questions, please call 1-800-444-3353.
WORK AREA
1. Keep your work area clean and well lit. Cluttered and dark work areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tool should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
2. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
4. Do not abuse the Power Cord. Never use the Power Cord to pull the Plug
from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or
moving parts. Replace damaged Power Cords immediately. Damaged
Power Cords increase the risk of electric shock.
5. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.
SKU 92281 For technical questions, please call 1-800-444-3353. PAGE 3
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Plugging in power tools with the Power Switch on invites accidents.
4. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
6. Always wear eye, hearing, breathing protection, and heavy duty
work gloves. Wear ANSI approved safety impact goggles, ANSI ap proved hearing protectors, ANSI approved dust mask or respirator, and
heavy duty work gloves when using this product. Also, non-skid safety
shoes and a hard hat must be used for appropriate conditions.
TOOL USE AND CARE
1. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
2. Do not use the power tool if the Power Switch or Safety Shut-Off Switch
does not turn it on or off. Any tool that cannot be controlled with the Power
Switch or Safety Shut-Off Switch is dangerous and must be replaced.
3. Disconnect the Power Cord Plug from the power source before
making any adjustments, changing accessories, or storing the tool.
Such preventive safety measures reduce the risk of starting the tool
accidentally.
4. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
5. Maintain tools with care. Keep tools clean. Properly maintained tools are
easier to control. Do not use a damaged tool. Tag damaged tools “Do not use”
until repaired.
6. Check for misalignment or binding of moving parts, breakage of parts, and
SKU 92281 For technical questions, please call 1-800-444-3353. PAGE 4
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
7. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
“Inspection, Maintenance, And Cleaning”
section of this
GROUNDING
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. Do not modify the power cord plug provided with
the tool. Never remove the grounding prong from the plug. Do not use the
tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If the
tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of electric
shock. (See Figure A, next page.)
SKU 92281 For technical questions, please call 1-800-444-3353 PAGE 5
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure A.)
3. Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like that in the following illustration. (See Figure A.)
3-PRONG PLUG
ELECTRICAL OUTLET
FIGURE A
EXTENSION CORDS
1.
2. As the distance from the supply outlet increases, you must use a heavier gauge
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
4. When using more than one extension cord to make up the total length, make
5. If you are using one extension cord for more than one tool, add the nameplate
Grounded
tools require a three wire extension cord.
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure B, next page.)
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure B.)
sure each cord contains at least the minimum wire size required.
(See Figure B.)
amperes and use the sum to determine the required minimum cord size.
(See Figure B.)
SKU 92281 For technical questions, please call 1-800-444-3353 PAGE 6
