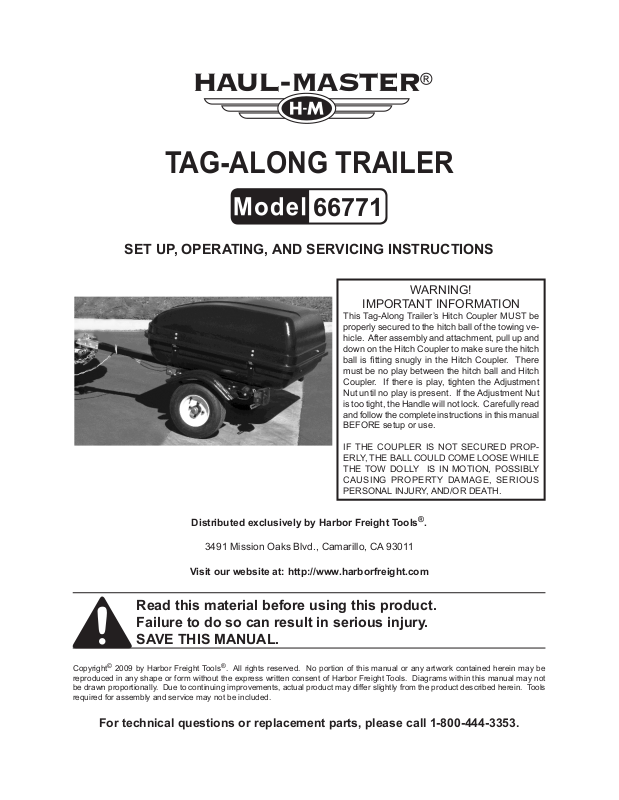

TAG-ALONG TRAILER
SET UP, OPERATING, AND SERVICING INSTRUCTIONS
66771
WARNING!
IMPORTANT INFORMATION
This Tag-Along Trailer’s Hitch Coupler MUST be
properly secured to the hitch ball of the towing vehicle. After assembly and attachment, pull up and
down on the Hitch Coupler to make sure the hitch
ball is tting snugly in the Hitch Coupler. There
must be no play between the hitch ball and Hitch
Coupler. If there is play, tighten the Adjustment
Nut until no play is present. If the Adjustment Nut
is too tight, the Handle will not lock. Carefully read
and follow the complete instructions in this manual
BEFORE setup or use.
IF THE COUPLER IS NOT SECURED PROPERLY, THE BALL COULD COME LOOSE WHILE
THE TOW DOLLY IS IN MOTION, POSSIBLY
CAUSING PROPERTY DAMAGE, SERIOUS
PERSONAL INJURY, AND/OR DEATH.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be
reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not
be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Page 2
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
WARNING! Read all instructions.
Failure to follow all instructions
listed below may result in re,
serious injury and/or DEATH.
The warnings and precautions
discussed in this manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into
this product, but must be supplied
by the operator.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY RULES
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 2
Keep work area clean and dry.1.
Cluttered, damp, or wet work areas
invite injuries.
Keep children away from assem-2.
bly area. At NO time should children
play in, climb on or ride in this product.
Do not use this Tag-Along Trailer if 3.
under the inuence of medication,
alcohol or drugs. Read warning
labels on prescriptions to determine if
your judgement or reexes are impaired while taking drugs. If there is
Work Area
Page 3
any doubt, do not attempt to use this
product.
Use eye protection. 4. Wear ANSI-ap-
proved safety goggles when assembling this product. ANSI-approved
safety impact eye goggles are available from Harbor Freight Tools.
this Tag-Along Trailer. Approved accessories are available from Harbor
Freight Tools.
Maintain this Tag-Along Trailer 3.
with care. Keep this product clean
and dry for better and safer performance.
Dress safely.5. Do not wear loose
clothing or jewelry, as they can become caught in moving parts. Wear
a protective hair covering to prevent
long hair from becoming caught in
moving parts. If wearing a longsleeve shirt, roll sleeves up above
elbows.
Do not overreach. 6. Keep proper
footing and balance at all times to
prevent tripping, falling, back injury,
etc.
Industrial applications must follow 7.
OSHA requirements.
Stay alert. 8. Watch what you are do-
ing at all times. Use common sense.
Do not use this Tag-Along Trailer
when you are tired or distracted from
the job at hand.
Equipment Use and Care
Check for damaged parts.1. Before
using this product, carefully check
that it will operate properly and perform its intended function. Check for
damaged parts and any other conditions that may affect the operation of
this product. Replace or repair damaged or worn parts immediately.
Use the right equipment for the 4.
job. Do not attempt to force small
equipment to do the work of larger
industrial equipment. There are
certain applications for which this
product was designed. It will do the
job better and more safely at the capacity for which it was intended. Do
not modify this Trailer, and do not use
it for a purpose for which it was not
intended.
Service
Service on this Tag-Along Trailer 1.
must be performed only by quali-
ed repair personnel. Service or
maintenance performed by unquali-
ed personnel could result in a risk of
injury.
When servicing this Tag-Along 2.
Trailer, use only identical replacement parts. Follow instructions in
the “Inspection, Maintenance, and
Cleaning” section of this manual.
Use of unauthorized parts or failure to
follow maintenance instructions may
create a risk of personal injury.
Replacement parts and acces-2.
sories: When servicing, use only
identical replacement parts. Only
use accessories intended for use with
SKU 66771 For technical questions, please call 1-800-444-3353. Page 3
Page 4
SPECIFIC WARNINGS AND
PRECAUTIONS
DANGER! TO PREVENT TRAFFIC HAZARD AND/OR DEATH, ATTACH
SAFETY CHAIN AND PROPERLY SECURE HITCH BEFORE LOADING OR
TOWING.
Along Trailer, even if minor damage
appears.
Before each use, attach the Safety 8.
Chains (8) to the towing vehicle.
Make sure the Safety Chains are
adjusted to the same length on each
side. Do not allow the Safety Chains
to drag on the ground.
WARNING! TO PREVENT SERIOUS INJURY AND/OR DEATH, DO NOT
EXCEED MAXIMUM PAYLOAD CAPACITY OF 600 LB. OR 55 MPH MAXIMUM
SPEED.
Wear ANSI-approved safety gog-1.
gles and heavy-duty work gloves
during assembly.
Do not allow adults, children, or 2.
pets to ride in or play around, on,
or under the Tag-Along Trailer’s
storage container.
Do not use Tag-Along Trailer with-3.
out Fenders in place.
Keep Shell top locked while driv-4.
ing. Do not drive with Trailer’s Shell
top unlocked or open.
Use for intended purpose only; not 5.
for aircraft purposes.
Inspect this Tag-Along Trailer be-6.
fore each use. Do not use if dam-
aged in any way.
Before each use, always examine 7.
the Trailer for proper Tire air pres-
sure (60 PSI, cold), damaged tail
lights, worn or damaged Safety
Chains, damaged side running
lights, loose bolts and nuts, struc-
tural cracks and bends, and any
other condition that may affect its
safe operation. Do not use the Tag-
Always check to make sure the 9.
items being transported are properly and safely secured in the TagAlong Trailer.
Pinch hazard; use care when latch-10.
ing. Keep hands and ngers away
from shell edges.
Prior to using the Trailer, make 11.
sure to read and understand all instructions and safety precautions
as outlined in the owner’s manual
for the towing vehicle. Make sure
the towing vehicle is capable of towing the Trailer and its contents. Make
sure the hitch on the towing vehicle
is capable of towing the Tag-Along
Trailer and it’s contents. The towing capacity of the hitch is typically
stamped on the hitch bar.
Make sure the Hitch Coupler and 12.
the vehicle’s ball hitch (not included) are of equal mating size
(1-7/8”) and are rated equal to or
greater than the weight of the TagAlong Trailer and its contents.
Do not exceed 55 miles per hour 13.
when towing the Tag-Along Trailer.
Excess speed is a major cause of
vehicle accidents. Poor road conditions, such as pot-holes and uneven,
wet, or unstable surfaces, will create further hazards if driven on too
quickly. Reduce speed to a safe level
SKU 66771 For technical questions, please call 1-800-444-3353. Page 4
Page 5
when driving in poor driving condi-
tions.
The Tail Light Bulbs supplied with 14.
this Trailer are for a 12 volt DC
electrical system only (or a 6 volt
electrical system for motorcycles.)
Do not attempt to power the Light
Bulbs with any other type of electrical
current.
Whenever possible, park the Tag-15.
Along Trailer on a at, level, paved,
surface and chock both Tires to
keep it from accidently moving.
CAUTION! This Trailer should 16.
never be backed while loaded. Use
extreme caution and back up ONLY
if another person (outside the tow
vehicle) is watching for people, trafc,
and other obstacles. DO NOT BACK
UP IF YOU ARE ALONE.
Maintain labels and nameplates on 17.
the Tag-Along Trailer. These carry
important information. If unreadable
or missing, contact Harbor Freight
Tools for a replacement.
Reporting safety defects: If you 18.
believe your Trailer has a defect
which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Trafc Safety Ad-
ministration (NHTSA) in addition to
notifying the manufacturer, Chang-
zhou Nanxiashu Tool Company. If
NHTSA receive similar complaints,
it may open an investigation, and
if it nds that a safety defect exists
in a group of vehicles, it may or-
der a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, Harbor Freight Tools,
or the manufacturer. To contact
NHTSA, you may either call the
Auto Safety Hotline toll-free at
1-800-424-9393 or 202-366-0123 or
write NHTSA, U.S. Department, 400
7th Street SW NSA-11, Washington, D.C. 20590. You may also obtain other information about motor
vehicle safety from the Hotline.
Tag-Along Trailer licensing notice: 19.
Some states may consider this
Tag-Along Trailer a vehicle requiring registration, licensing, and
titling. Check with your State De-
partment of Motor Vehicles for information and guidance on registering,
licensing, and titling the Tag-Along
Trailer.
When loading, place heaviest 20.
articles at the front end of the
Trailer’s Shell and distribute load
evenly across the width of the
Shell. There should be a positive
tongue weight to hold the coupler on
the tow ball.
WARNING! The warnings, precau-21.
tions, and instructions discussed
in this manual cannot cover all
possible conditions and situations
that may occur. The operator must
understand that common sense
and caution are factors, which cannot be built into this product, but
must be supplied by the operator.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 5
Page 6
SPECIFICATIONS
Tow Ball (Required) 1-7/8” (not supplied)
Tire Air Pressure Maximum 60 PSI (cold)
Maximum Payload
Capacity
Overall Dimensions 78” L x 44-1/2” W x 38” H
Storage Space 16.6 Cubic Feet
Ship Weight 154 lb.
Net Weight 144 lb.
600 lb. Load Capacity
Front
2
ASSEMBLY INSTRUCTIONS
NOTE: For additional references to the
parts listed on the following pages,
refer to the Assembly Diagram toward
the end of this manual.
NOTE: It is recommended that only a
qualied technician perform the elec-
trical service that may be needed to
enable your particular make/model
vehicle to power the Trailer’s 12 volt
DC lighting system.
1
25
Figure 2
2. Use the Bolts (25) and Lock Nuts (33)
to fasten the Leaf Springs (2) onto
the sides of the Trailer Body.
WARNING! Mount the Leaf Springs with
the mounting eye facing towards the
front of the Trailer. See Figure 2,
above.
3
2
Figure 1
1. Place the Trailer Body (1) upside
down, as shown in Figure 1, above.
Figure 3
3. Place the Axle (3) on top of the Leaf
Springs. See Figure 3, above.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 6
Page 7
2
13
36
22
36
Figure 4
3
4. Fasten the Axle to the Leaf Plates.
Do this by placing the Spring Plates
(22) under the Leaf Springs. Then
slide the U-Bolts (36) over the Axle
and through the holes in the Spring
Plates. Lock U-Bolts into place by
using the Lock Nuts (34). See Fig-
ure 4, above.
23
30
Figure 5
8. Once the Trailer is in the correct
upright position, use the Bolts (23),
Lock Nuts (32) and Washer (30) to
Mount the Fenders (13) to the tabs
that extend out in behind the Wheels.
See Figure 5, above.
Place Wheels (5) onto the Hubs (4) at 5.
the end of the Axle. Lock Wheels into
place using the Lug Nuts (38).
Note: Use two jack stands (not included)
to support the Axle while the Wheels
are being attached.
Insert the Bolt (26) into Tang and pull 6.
through the Drawbar (6). Attach Lock
Nut (17) from underside of Drawbar.
See Assembly Diagrams on page
17 of this manual.
With assistance, turn the Trailer over 7.
so that Axle is under Trailer Body.
Block both Wheels in front and back
Figure 8
9. Left Tail Light (10) and Right Tail Light
(11) are pre-wired but need to be attached to back of Fenders, along with
License Plate Bracket (12). The Tail
Light wire pigtails run from the Fenders, through the Trailer Body and
connect to the wiring at the back of
the Drawbar. See Figure 8, above.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 7
Page 8
WARNING! Use care to secure the tail
light wiring inside the Fenders and
away from the Tires.
Use Bolt (27) and Lock Nut (34) to 10.
mount the Coupler (7) to the front of
the Drawbar. See Assembly Dia-
grams on page 17.
Use Bolts (26), Nuts (34), Rubber 11.
Pads (39) and Washers (29) to fasten
Body Bracket (19) to Bottom Shell
(15) and then Bottom Shell to top of
Trailer Body.
WARNING! Make sure the Rubber Pads
are placed between the underside
of the Body Bracket and surface of
Trailer during assembly.
Use Bolts (23), Lock Nuts (32) and 12.
Washers (30) to fasten Snap Latches
(18) to the top inside of the Upper
Shell (14). The Snap Latches will be
used to keep the Top Shell shut during use. See Assembly Diagrams
on page 17.
Use Lock Nuts (32) and Washers 14.
(30) to fasten the ends of the Gas
Springs (17) to the bottom front and
back sides of the Bottom Shell and
the front and back sides of the Upper
Shell. See Assembly Diagram on
Page 17.
Once assembly is complete, test 15.
the Trailer. Do this by rolling several times to make sure the Tires roll
smoothly and are in proper alignment.
Open and close the Upper Shell to
make sure it is properly aligned and
closes and locks securely. Make sure
all hardware is fastened tight. Once
these safety checks have been done,
the Trailer is ready for use.
Use Bolts (28), Lock Nuts (35) and 13.
Washers (30) to fasten the Hinge
Brackets (16) to the side interior of
the Upper Shell.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 8
Page 9
OPERATING PRECAUTIONS
OPERATIONAL DO’S AND
Only use a 1-1/2” ball hitch (not sup-1.
plied) on the tow vehicle. NOTE: To
reduce friction between the ball hitch
and the hitch coupler (not supplied),
apply a layer of heavy weight grease
over the hitch ball.
Insert a ball mount into the Coupler 2.
and secure in place using the Safety
Chains (8). WARNING! If the Cou-
pler coupler is not secured properly, the ball mount could come
loose while the Tag-Along Trailer is
in motion, possibly causing property damage, SERIOUS PERSONAL
INJURY AND/OR DEATH!
Make sure the Safety Chains are se-3.
cured safely to the Trailer and the tow
vehicle. Do not let the Safety Chains
come in contact with the ground while
towing the railer.
Connect the Tail Light wiring to the 4.
tow vehicle, then test all functions
(turn signals, on/off status, and brake
lights) after connecting, and before
towing. The blue and white wires
plug into the Tail Lights by pushing them through the existing holes
on the back of the Lights. They are
held in place by a spring. To remove
them, push a large paper clip through
one of the holes to remove the spring
tension and pull the wires out. At the
front of the Trailer the wires are contained inside a female electrical plug
that connects to a male outlet on the
tow vehicle.
DON’TS
DON’T:1. This Tag-Along Trailer was
not designed for use in commercial
applications. Commercial use will
void warranty. DO NOT USE FOR
AIRCRAFT PURPOSES.
DO:2. Make wide turns when towing
a loaded Tag-Along Trailer avoiding
sharp turns, and U-turns. Turning
too sharply can cause damage to the
Trailer and/or the tow vehicle.
DON’T: NEVER ATTEMPT TO 3.
BACK A LOADED TAG-ALONG
TRAILER. This can overstress the
Trailer and possibly bend the Frame.
DO:4. Before each use, check the Lug
Nuts for tightness and security.
DO:5. Before towing, always check
tire pressure. See instructions in this
manual.
DO:6. Always check tire pressure on
the tow vehicle before using. Check
the manufacturer’s manual for the
tow vehicle you are using.
DO:7. Always hitch the Tag-Along
Trailer to the tow vehicle before loading the items to be towed.
DO:8. ALWAYS LOAD THE TAG-
ALONG TRAILER BEING TOWED
FACE FORWARD. Make sure the
Upper Shell (14) is locked, the Key is
in a secure location and the Trailer is
secure before towing.
NOTE: If there is no female plug for the
wires, you must have one installed by
a qualied service technician.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 9
Page 10
TIRE INFORMATION
c.
Vehicle capacity weight.
Tire Terminology Glossary
Accessory weight means• - the com-
bined weight of any extra accessories
added to the basic frame of the motorcycle.
Carcass means• - the tire structure
except for the tread which provides the
major portion of the tire’s capability to
deect in response to the vertical loads
and tractive forces that the tire transmits from the roadway to the non-pneumatic rim, the wheel center member, or
the motorcycle and which attaches to
the motorcycle or attaches, either integrally or separably, to the wheel center
member or non-pneumatic rim.
Carcass separation means• - the pull-
ing away of the carcass from the nonpneumatic rim or wheel center member.
Chunking means• - the breaking away of
pieces of the carcass or tread.
Cracking means• - any parting within the
carcass, tread, or any components that
connect the tire to the wheel center
member.
Curb weight means• - the weight of a
motorcycle with standard equipment
including the maximum capacity of fuel,
oil, and coolant, and, if so equipped,
additional weight optional engine.
Load rating means• - the maximum load
a tire is rated to carry.
Maximum loaded vehicle weight •
means- the sum of:
Curb weight;
Accessory weight;
Maximum tire width means• - the greater
of either the linear distance between
exterior edges of the carcass or linear
distance between the exterior edges of
the tread, both being measured parallel
to the rolling axis of the tire.
Normal occupant weight means• - 68
kilograms times number of occupants.
Occupant distribution means• - distribu-
tion of occupants in a vehicle.
Production options weight means• - the
combined weight of those installed
regular production options weighing
over 2.3 kilograms in excess of those
standard items which they replace, not
previously considered in curb weight or
accessory weight, including heavy duty
brakes, heavy duty battery, and special
trim.
Tread means• - that portion of the tire
that comes in contact with the road.
Tread separation means• - pulling away
of the tread from the carcass.
Vehicle capacity weight means• - the
rated cargo and luggage load plus 68
kilograms times the vehicle’s designated seating capacity.
Vehicle maximum load on the tire •
means- that load on an individual tire
that is determined by distributing to
each axle its share of the maximum
loaded vehicle weight and dividing by
two.
Vehicle normal load on the tire means• -
that load on an individual tire that is
determined by distributing to each axle
a.
its share of the curb weight, accessory
weight, and normal occupant weight
b.
and dividing by 2.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 10
Page 11
Section width
Tire ply
composition
and materials
used
Maximum
permissible
ination
pressure
Maximum
load rating
Inner diameter
in inches
in inches
Load index and
Speed rating*
European tire
certicate*
U.S. DOT tire
identication
number
Trailer
tire
Tire Markings
Section width• - This number gives the width of
the tire in inches. The larger the number, the
wider the tire. (The markings on the example
tire diagram show 4.80. The markings on your
tire may differ.)
Inner diameter• - This number gives the inner
diameter of the tire in inches. This is also the
rim diameter in inches. (The markings on the
example tire diagram show 12. The markings
on your tire may differ.)
U.S. DOT tire identication number• - This
begins with the letters “DOT” and indicates
that the tire meets all federal standards. The
next two numbers or letters are the plant code
where it was manufactured, and the last four
numbers represent the week and year that
the tire was built. For example, the numbers
2107 mean the 21st week of 2007. Any other
numbers used are marketing codes used at
the manufacturer’s discretion. This information
is used to contact consumers if a tire defect
requires a recall.
*Information not required by U.S. DOT
Maximum Load Rating• - This number indi-
cates the maximum load in kilograms and
pounds that can be carried by the tire.
Load Index Rating Codes
Code Pounds
71 761
72 783
73 805
74 827
75 853
76 882
77 908
78 937
79 963
80 992
81 1,019
82 1,047
83 1,074
84 1,102
• Load index- This is a measurement of how
much weight each tire can support. See chart
above. (The markings on the example tire diagram show 71. The markings on your tire may
differ.) Note: You may not nd this information
on all tires because it is not required by law.
Code Pounds
85 1,135
86 1,168
87 1,201
88 1,235
89 1,279
90 1,323
91 1,356
92 1,389
93 1,433
94 1,477
95 1,521
96 1,565
97 1,609
98 1,653
Code Pounds
99 1,709
100 1,764
101 1,819
102 1,874
103 1,929
104 1,984
105 2,039
106 2,094
107 2,149
108 2,205
109 2,271
110 2,337
SKU 66771 For technical questions, please call 1-800-444-3353. Page 11
Page 12
Tire Speed Rating Codes
Code MPH
F 50
G 56
J 62
K 68
L 75
M 81
• Speed Rating- The speed rating denotes the
speed at which a tire is designed to be driven
for extended periods of time. This does not
indicate that the vehicle or rims can safely
reach or maintain that speed. These ratings
are listed to the right. (The markings on the
example tire diagram show M. The markings
on your tire may differ.) Note: You may not nd
this information on all tires because it is not
required by law.
Tire Ply Composition and Materials Used• -
The number of plies indicates the number of
layers of rubber-coated fabric in the tire. In
general, the greater the number of plies, the
more weight a tire can support. Tire manufacturers also must indicate the materials in the
tire, which include steel, nylon, polyester, and
others.
Code MPH
N 87
P 94
Q 100
R 106
S 112
T 118
Code MPH
U 124
H 130
V 149
Z 149
W 168
Y 186
Maximum Permissible Ination Pressure• -
This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.
The Tire and Loading Information
Placard displays the cold tire
ination pressure and the load limit
for this vehicle. See the Tire Care
section on the next page for an
explanation of tire pressure and
see the Vehicle Load Limit section
following that for an explanation of
load limit.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 12
Page 13
TIRE CARE
Checking Tire Pressure
Note: Under-inated tires can decrease
handling, stopping performance,
traction, tire life, and load-carrying
capability, in addition to causing other
negative and hazardous effects,
including tire failure. Overinated
tires are at greater risk of an impact
break, where the tread and casing
break when striking a hard edge,
often opening a huge gash across
the tread. Incorrect ination pressure also increases tires wear rate.
Therefore, it is important to keep tires
inated properly.
Check all tires’ pressure at least
monthly, due to the following factors:
Most tires naturally lose air gradu-•
ally.
Tires can lose air if tire strikes pot-•
hole, curb, or other object.
It is usually not possible to deter-•
mine under inflation of radial tires
by visual inspection.
Steps for Maintaining Proper Tire
Pressure
Locate recommended tire pressure 1.
on vehicle’s tire information placard,
certication label, or in owner’s manual. This trailer has 60 PSI recom-
mended cold tire ination pressure.
Measure and record the tire pressure 2.
of all tires.
If tire pressure is too high in any of 3.
the tires and the tires have not been
driven for at least three hours, slowly
release air by gently pressing on the
tire valve stem with the edge of your
tire gauge until you get to the correct
pressure. If the vehicle have been
driven within the past three hours and
the tire pressure is too high on any
tires, then recheck the pressure once
the tires have been allowed to sit motionless for at least three hours.
If tire pressure is too low, note the dif-4.
ference between measured tire pressure and the correct tire pressure.
These “missing” pounds of pressure
are what you will need to add.
This vehicle has 60 PSI recom-
mended cold tire ination pressure. The
term “cold” in this manual does not refer
to the temperature outside, but it refers to
the fact that a tire that has not been driven
for a period is cooler (and therefore has
lower pressure) than a tire that has been
driven on. Tires heat up while being driven
on. To check (or ll to) a tire’s cold ination, the tire must have not been driven for
more than a mile or two for at least three
hours. If you check a tires pressure when
it is not “cold”, the pressure will appear
higher than the actual cold tire ination.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 13
At a service station, add the missing 5.
pounds of air pressure to each tire
that is under inated.
Check all the tires to make sure they 6.
have the same air pressure.
If the tires’ pressure was not mea-7.
sured “cold”, then the pressure
should be rechecked with the tires
cold as soon as possible.
Page 14
Tire Size
Tire Balance and Alignment
To maintain safety, only purchase
new tires of same size as original tires.
Look at Tire and Loading Information Plac-
ard, Specications Chart in this manual,
or the sidewall of the tire being replaced.
If you have any doubt about selecting the
correct size, consult a tire dealer.
Tire Tread
The tire tread provides traction that
prevents your vehicle from slipping, especially if the road is wet or icy. Tires are
unsafe and should be replaced when the
tread is worn down to 1/16”. Measure
tread depth using a tread depth indicator
(not included).
Tire Rotation
Every 5,000 miles left and right tires
should be switched. This will cause the
tires to wear more evenly and last longer.
The tires need to be balanced to prevent vibration when driving. This involves
attaching small weights to the rim to offset
small differences in rim and tire weight.
The tires also need to be aligned properly.
Alignment is the orientation of the tires to
the road surface and their being parallel.
This helps the tires to wear evenly, and
provide better traction. Both tire balance
and alignment require specialized equipment that is not provided with this vehicle.
Tire Repair
To properly repair a punctured tire,
the hole needs to be properly plugged
and patched from inside of the tire. Tread
punctures can be repaired if they are not
too large. Sidewall punctures should not
be repaired, the tire needs to be replaced
if sidewall is damaged. Tires should be
removed from rim to be inspected before
being plugged and patched. A qualied
mechanic should remove tire from rim,
perform the repair, and remount the tire.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 14
Page 15
Tire ination and load limit
The weight of cargo should never exceed 271 kg or 600 lb.
TIRE SIZE COLD TIRE PRESSURE
SEE OWNER’S
MANUAL FOR
ADDITIONAL
INFORMATION.
FRONT 4.80/4.00-8 410 kPa, 60 PSI
REAR NONE NONE
SPARE NONE NONE
TIRE AND LOADING INFORMATION
09g
MODEL 66771
Tire and Loading Information Placard
VEHICLE LOAD LIMIT
Steps for Determining Correct
Load Limit
Locate the statement “The weight 1.
of cargo should never exceed XXX
kilograms or XXX pounds” on your
vehicle’s placard.
That gure equals available amount 2.
of cargo and luggage load capacity.
Determine the combined weight of 3.
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity.
If the trailer’s load exceeds the cargo 4.
and luggage load capacity, then the
trailer be unsafe resulting in hazard-
ous effects, such as: Trailer’s tires
will not be able to maintain traction
properly, and stopping distance will
be increased signicantly.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 15
REV 09g
Page 16
INSPECTION,
MAINTENANCE, SERVICE,
AND CLEANING
Allow all parts to dry completely.b.
Make sure your hands are clean and c.
bearing packer (not supplied) is also
clean.
HUB BEARING MAINTENANCE
WARNING!1. If the following proce-
dure is not followed, it may result in
wheel locking and tire blowout, causing an automobile accident or road
hazard. Whenever a Hub on a new
unit requires assembly (or a Hub is
disassembled for maintenance), the
following procedures MUST be followed:
Using a suitable solvent, thoroughly a.
clean the Bearings, Dust Hub Cap,
and the rest of the parts of the Hub
assembly of all grease, dirt, metal
shavings, or any other foreign object.
The parts must be cleaned even if
they are new or appear clean.
Place fresh, clean bearing grease in d.
the bearing packer.
With the grease-lled bearing packer e.
in one hand and the Bearing in the
other, press the Bearing into the
grease, forcing the grease inside the
slots in the Bearing. Continue doing
this until every slot in the Bearing is
completely full of grease.
2. As you nish assembling the Hub, be
careful not to get any dirt or debris on
any part of the assembly.
3. Replace the Dust Hub Cap over each
Bearing.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 16
Page 17
Maintenance Chart
The following Chart serves as a basic guideline for scheduling your trailer main-1.
tenance. Maintenance may be different based on your local conditions, type of
trailer, and frequency of trailer use.
CAUTION! All maintenance, service, or repairs listed in this manual are only to be 2.
attempted by a qualied service technician.
Maintenance
Type
Hitch Coupler
Ensure Proper Fit X
Check Lubrication X X X
Wheels & Hubs
Check Lug Nuts X X X X
Grease Bearings X X
Repack Bearings X X
Tires
Check Pressure
(60 PSI) and
Visual Inspection
Check Tread
Depth X X X
Electrical
Check Tail and
Brake Light
Operation
Check Electrical
Ground Wiring X
Before
Use
X X X
X
Before
Long
Storage
After
Storage
X
After
First
50
Miles
Every 3
Months
Every 6
Months
Yearly
SKU 66771 For technical questions, please call 1-800-444-3353. Page 17
Page 18
PARTS LIST
Part Description Q’ty
1 Trailer Body 1
2 Leaf Spring 2
3 Axle 1
4 Hubs 2
5 Wheels 2
6 Drawbar 1
7 Coupler 1
8 Safety Chain 1
9 Side Running Light 2
10 Left Tail Light 1
11 Right Tail Light 1
12 License Plate Bracket 1
13 Fenders 2
14 Upper Shell 1
15 Bottom Shell 1
16 Hinge Bracket 2
17 Gas Spring 2
18 Snap Latch 2
19 Body Bracket 2
20 Lock Bracket 1
Part Description Q’ty
21 Key 2
22 Spring Plate 2
23 Bolt (M6 x 20) 14
24 Bolt (M10 x 40) 4
25 Bolt (M12 x 80) 4
26 Bolt (M10 x 70) 1
27 Bolt (M10 x 90) 2
28 Bolt (M6 x 45) 2
29 Washer (Ø10) 8
30 Washer (Ø6) 14
31 Washer (Ø8) 8
32 Lock Nut (M6) 14
33 Lock Nut (M8) 4
34 Lock Nut (M10) 17
35 Lock Nut (M12) 4
36 U-Bolt (Ø10-100*53) 4
37 U-Bolt (Ø10-85*78) 1
38 Lug Nut 8
39 Rubber Pad 4
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/
OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
SKU 66771 For technical questions, please call 1-800-444-3353. Page 18
Page 19
ASSEMBLY DIAGRAMS
23, 32, 30
13
34
7
6
8
27 34
37
11
3
34
36
4
33
26, 17
5
14
1
22
10
12
2
9
24
27
38
32
35
28
30
30
32
32
21
16
23, 32, 30
17
15
20
18
19
Please note: Rubber Pads (29) not shown
SKU 66771 For technical questions, please call 1-800-444-3353. Page 19
Page 20
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from
the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities,
criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of our product. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection veries the defect, we will either repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
SKU 66771 For technical questions, please call 1-800-444-3353. Page 20
