Harbor Freight Tools 60570 Owner's Manual

Specifications

Tires 10″ Pneumatic
Age Range 5 and up
Weight Capacity 330 lb.
Deck Size 33-5/8″ x 15-3/4″ x 5-1/2″
Inside Dimensions 31-7/8″ x 13-3/4″ x 4″
Replacement Wheels Harbor Freight Item 30900

IMPORTANT SAFETY INFORMATION

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in serious injury.

Save all warnings and instructions for future reference.

1. AGES 5 AND UP ONLY.
Do not allow younger children to use.

2. WEAR PROPER SAFETY HELMET AND
COMPLETE SAFETY GEAR WHEN RIDING.
Responsible adult must supervise during use.
Use as intended only.
Rider must stay seated at all times during use.
Do not allow more than one child
to play with tricycle at once.

3. Do not use in unstable or dangerous area.
Tipping over can cause injury.
Do not use in areas where vehicles may be present,
such as parking areas, driveways, or roads.

4. Wear ANSI-approved safety goggles
and work gloves during assembly.

5. Read manual before assembly and/or use.

6. Do not exceed 330 lb. capacity.

7. Inspect before every use;
do not use if parts loose or damaged.
Check and tighten hardware periodically.

8. Assemble completely according to instructions
before allowing a child to play with this product.

Assembly

Note: For additional information regarding the parts listed in the following

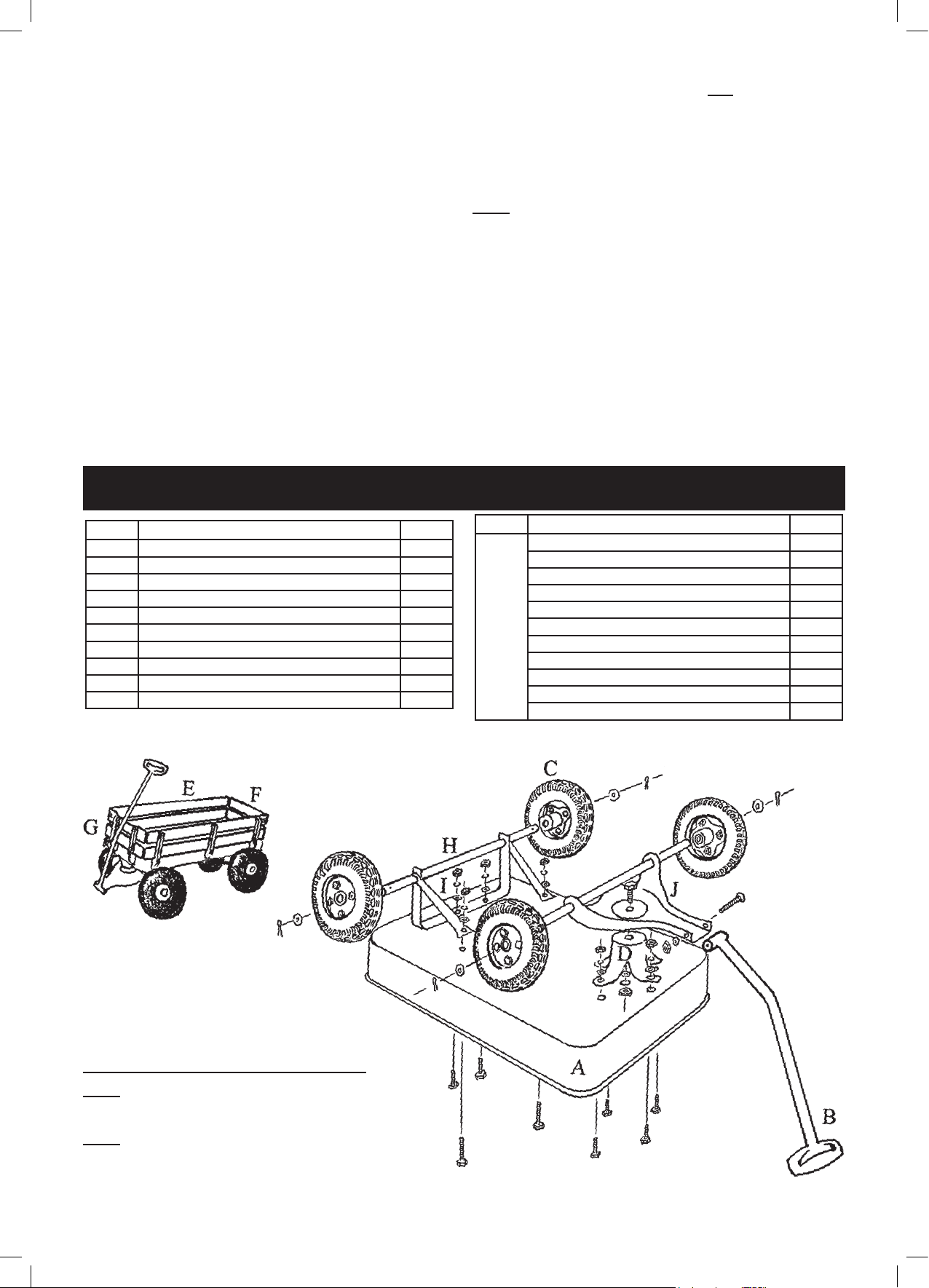

pages, refer to the Assembly Diagram on facing page.

Note: Do not overtighten hardware.

1. With the Tray (A) upside down so the bottom is facing
upward, place it over saw horses or sturdy cartons.

2. Attach the Rear Axle Assembly (H) to the Tray

(A) using two 1/2″ Bolts. Line up the Rear Axle

Assembly with the holes located at the very back

of the Wagon. Insert the Bolt so that the small

washers, small lock washers and cap nuts (K) are
screwed on from the underside of the wagon.

3. Slide each of the Rear Axle Braces (I) over the end
of each Rear Axle until they sit firmly to the inside

of the Rear Axle Assembly (H). Line up the end of
the Braces with the holes in the wagon. Using two
1/2″ Bolts, insert the bolts from the top of the wagon

so that the small washers, lock washers and the nut
(K) are secured on the underside of the wagon.

Page 2 For technical questions, please call 1-800-444-3353. Item 60570

4. Attach the Turntable (D) to the Steering Assembly
(J). Attach the Steering Assembly to the Turntable

using the 1-1/8″ Bolt with Hole. Slide the Bolt

through the underside of the Steering Assembly
(J) and into the Turntable (D). Secure it from

inside the Turntable with the 7/8″ Washer, the
Large Lock Washer and the Hex Nut. Loosely
thread the Hex Nut onto the Bolt. Insert the

Cotter Pin through the hole and spread it open.

5. Attach both parts (now one assembled unit as
shown in Step 4) – the Steering Assembly (J) and
the Turntable (D), to the Tray (A). Insert each of the

four 1/2″ Bolts from the top of the wagon and tighten

it into place from the bottom of the Tray with four (4)
small washers, four small lock washers and four nuts.
