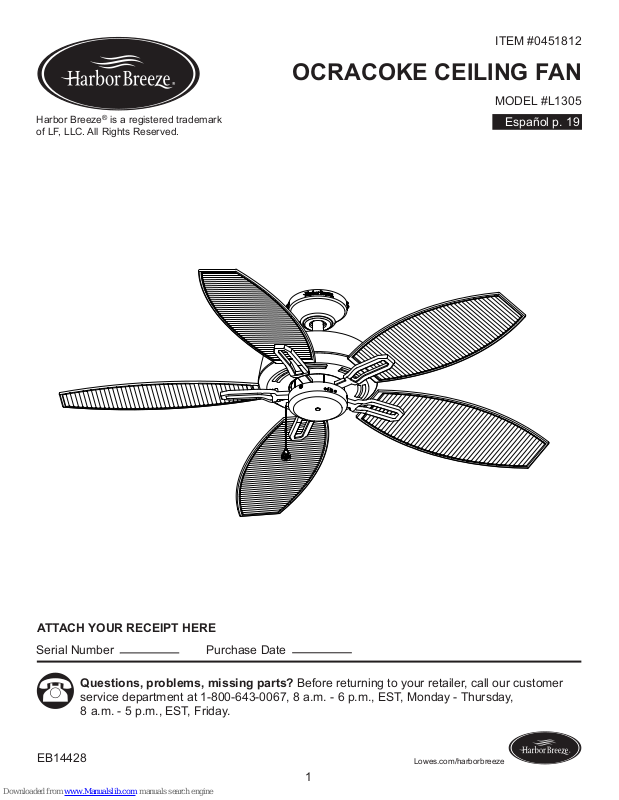

Harbor Breeze L1305 Instruction Manual

1

OCRACOKE CEILING FAN

ITEM #0451812

MODEL #L1305

Español p. 19

Serial Number

Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.

EB14428

ATTACH YOUR RECEIPT HERE

Lowes.com/harborbreeze

Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

2

TABLE OF CONTENTS

Package Contents...............................................................................................................

Hardware Contents.............................................................................................................

Safety Information...............................................................................................................

Preparation .........................................................................................................................

Initial Instructions ................................................................................................................

Standard/Angle-Mounting Instructions ................................................................................

Flushmount Instructions ......................................................................................................

Wiring Instructions ...............................................................................................................

Final Instructions .................................................................................................................

Operating Instructions ........................................................................................................

Care and Maintenance .......................................................................................................

Troubleshooting...................................................................................................................

Limited Lifetime Warranty....................................................................................................

Replacement Parts List ......................................................................................................

3

4

4

5

6

7

9

10

11

14

14

15

17

18

Lowes.com/harborbreeze

3

PACKAGE CONTENTS

Lowes.com/harborbreeze

A

B

E

O

K

N

M

F

D

C

J

I

S

R

Q

P

L

H

G

A Mounting Bracket 1 K

Coupling

(preassembled on the Motor Housing (F))

1

B Downrod Assembly 1 L

Mounting Bracket Screw

(preassembled on Mounting Bracket (A))

4

C Canopy 1 M

Clevis Pin

(preassembled on Coupling (K))

1

D

Canopy Cover

(preassembled on

Canopy (C))

1 N

Hairpin Clip

(preassembled on Coupling (K))

1

E Coupling Cover 1 O

Coupling Screw

(preassembled on Coupling (K))

2

F Motor Housing 1 P Balance Kit 1

G Blade Iron 5 Q

Mounting Screw

(preassembled on Motor Housing (F))

3

H Blade 5 R

Switch Housing Screw

(preassembled on Switch Ho

using (I))

3

I Switch Housing 1 S

Motor Screw

(preassembled on the Motor Housing (F))

10

J Switch Cover 1

PART PARTDESCRIPTION

QUANTITY

QUANTITYDESCRIPTION

4

Lowes.com/harborbreeze

HARDWARE CONTENTS

SAFETY INFORMATION

(not shown actual size)

Wire Connector
Qty. 4

Blade Screw

Qty. 15 + 1 extra

Fob

Qty. 1

Extra Motor Screw

Qty. 2

AA BB CC DD

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, operate or install the product.
．　　All electrical connections must comply with local codes, ordinances or the National Electric Code (NEC).

Contact your municipal building department to inquire about your local codes, permits and/or inspections.
．　　Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse or

by removing th fuse or by switching off circuit breaker.
．　　Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.

Never use a fixture in a two-wire system that is not grounded.
．　　If you are not sure your lighting system has a grounding means, do not attempt to install this fixture. Contact

a qualified, licensed electrician for information regarding proper grounding methods as required by the local
electrical code in your area.

．　　Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the floor
and at least 30 in. from the ends of the blades to any obstruction.

．　　If a dimmer control switch is used with this fixture, obtain professional advice to determine the correct type
and electrical rating required.

．　　The lighting fixture must be positioned so there is at least 1.64 ft. between the bulb and any illuminated
surface.

．　　Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires
to have contact with any surface having a sharp edge. Doing so may damage or cut the wire insulation,
which could cause serious injury or death from electric shock.

．　　Connection of the bare or green fixture ground wire to the black or white house wires may allow metal parts
of the fixture to carry electrical currents. Under this condition anyone coming in contact with the fixture will
receive electrical shock, which could cause serious injury or death.

．　　Installing a fixture into an electrical system without a proper grounding means could allow metal parts of the
fixture to carry electrical currents. If any of the fixture wires, wire connections or splices are b ut or loose
during the mounting or normal operation of the fixture, under such conditon, anyone coming in contact with
the fixture is subject to electrical shock, which could cause serious injury or death.

．　　For supply connections, if the conductor of a fan is identified as a grounded conductor, then it should be
connected to a grounded conductor power supply. If the conductor of a fan is identified as an ungrounded
conductor, then it should be connected to an ungrounded conductor power supply. If the conductor of a fan
is identified for equipment grounding, then it should be connected to an equipment-grounding conductor.

DANGER

SAFETY INFORMATION

PREPARATION

WARNING

DANGER

5

Lowes.com/harborbreeze

. Risk of fire. Most dwellings built before 1985 have supply wire rated for 140°F. Consult a qualified
electrician before installation.

. Wire connectors will not support the weight of a fixture; suspending a fixture by the house wires
and wire connectors will result in the fixture falling, with the possibility of personal injury and the
danger of electrical shock or fire.

. To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed device
or variable speed control.

. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing or cleaning the fan.

. Before servicing or cleaning the unit, switch power off at the service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.

. Do not insert foreign objects in between rotating fan blades.

. Do not install or use the fan if any part is damaged or missing.

. Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not
permit wires to have contact with any surface having a sharp edge. Doing so may damage or cut
the wire insulation, which could cause serious injury or death from electric shock.

Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.

Estimated Assembly Time: 45 minutes

Tools Required for Assembly (not inclueded): Philips Screwdriver, Step Ladder, Tape, Pliers and Wire
Cutters.

. Connection of the bare or green fixture ground wire to the black or white house wires may allow
metal parts of the fixture to carry electrical currents. Under this condition anyone coming in contact
with the fixture will receive electrical shock, which could cause serious injury or death.

. Installing a fixture into an electrical system without a proper grounding means could allow metal
parts of the fixture to carry electrical currents. If any of the fixture wires, wire connections or splices
are broken, cut or loose during the mounting or normal operation of the fixture, under such
conditon, anyone coming in contact with the fixture is subject to electrical shock, which could cause
serious injury or death.

. To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked
'ACCEPTABLE FOR FAN SUPPORT OF 35LBS OR LESS' and use mounting screws provided
with the outlet box and/or support directly from building structure. Most outlet boxes commonly
used for the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

INITIAL INSTRUCTIONS

6

Lowes.com/harborbreeze

1. Turn off circuit breakers and wall switch to the fan supply
line leads.

2a. Choose the desired mounting method:

A. Standard Mounting: Standard mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings you
may want to use a longer downrod (not included).
B. Angle Mounting: Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade clearance.
If using the angle mount, make sure the ceiling angle is
not steeper than 20°.
C. Flush Mounting: Flushmount installation is used for
ceiling less than 8 feet high.

DANGER: Failure to disconnect power supply prior to
installation may result in serious injury of death.

1

OFF

OFF

ON

2a

A

B

C

2b. It is required at least 30 inch from blade tip to nearest
wall or obstruction. Check downrod length to ensure 7
feet from bottom edge of blade to the floor.

7 ft. MIN.

30 in. MIN.

2b
