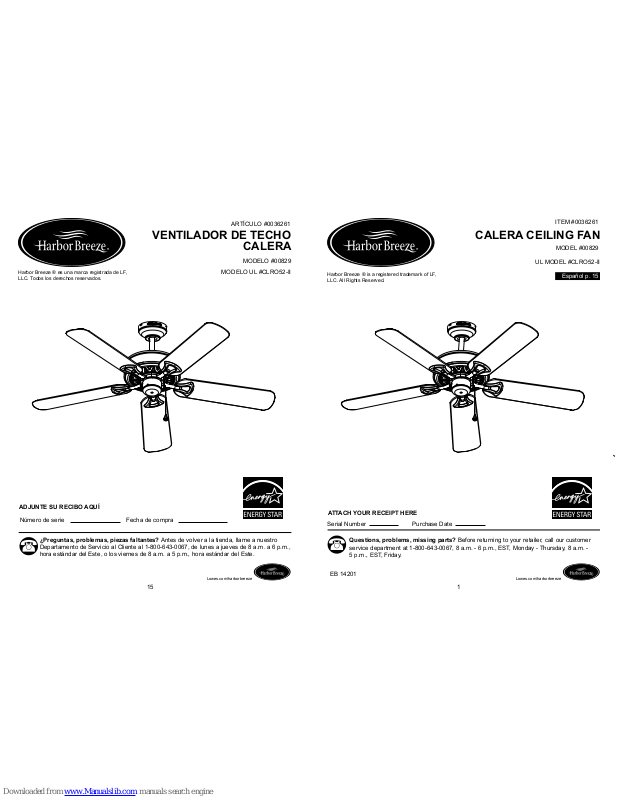

Harbor Breeze 00829 User Manual

115

CALERA CEILING FAN

ITEM #0036261

ARTÍCULO #0036261

MODEL #00829

MODELO #00829

Español p. 15

Serial Number

Purchase Date

Harbor Breeze ® is a registered trademark of LF,
LLC. All Rights Reserved.

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. ­5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Lowes.com/harborbreezeLowes.com/harborbreeze

UL MODEL #CLRO52-II

MODELO UL #CLRO52-II

Harbor Breeze ® es una marca registrada de LF,
LLC. Todos los derechos reservados.

VENTILADOR DE TECHO

CALERA

¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro

Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.,
hora estándar del Este, o los viernes de 8 a.m. a 5 p.m., hora estándar del Este.

ADJUNTE SU RECIBO AQUÍ

Número de serie

Fecha de compra

EB 14201

32

TABLE OF CONTENTS

Safety Information............................................................................................................... 3

Package Contents............................................................................................................... 4

Hardware Contents............................................................................................................. 5

Preparation.......................................................................................................................... 5

Initial Installation.................................................................................................................. 6

Downrod Style Fan Mounting.............................................................................................. 7

Closemount Style Fan Mounting......................................................................................... 8

Wiring ..................................................................................................................................... 10

Final Installation.................................................................................................................. 10

Operating Instructions.......................................................................................................... 13

Care and Maintenance........................................................................................................ 13

Troubleshooting................................................................................................................... 13

Warranty.............................................................................................................................. 14

Replacement Parts List ...................................................................................................... 14

Lowes.com/harborbreeze

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, operate or install the
product.

• When using an existing outlet box, be sure the box is securely attached to the building structure and
can support the full weight fo the fan, so as to avoid potential serious injury or death.

• All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and
local electrical codes. Electrical installation should be performed by a qualied licensed electrician.

• Electrical diagrams are for reference only.

• Suitable for use in wet locations when installed in a GFCI protected branch circuit.

• The net weight of this fan is: 17.16 lbs.

WARNING

CAUTION

WARNING

WARNING

WARNING

Lowes.com/harborbreeze

FIRE, ELECTRIC SHOCK OR PERSONAL INJURY HAZARD

To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked
“ACCEPTABLE FOR FAN SUPPORT OF 15.9 KG OR LESS” and use mounting screws

provided with the outlet box. Most outlet boxes commonly used for the support of lighting

xtures are not acceptable for fan support and may need to be replaced. Consult a
qualied electrician if in doubt.

ELECTRIC SHOCK HAZARD

To reduce the risk of electric shock, do not use this fan with any solid-state speed
control device.

ELECTRIC SHOCK HAZARD

To reduce the risk of electric
shock, make sure electricity has
been turned off at the circuit
breaker or fuse box before
beginning installation.

PERSONAL INJURY HAZARD

To reduce the risk of injury to persons, install

fan so that the blade is at least 7 ft. above the

oor.

PERSONAL INJURY HAZARD

Reduce the risk of personal injury, do not bend the blade brackets when installing the
brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in

between rotating fan blades.

54

PACKAGE CONTENTS

PREPARATION

Lowes.com/harborbreeze Lowes.com/harborbreeze

PART DESCRIPTION QUANTITY

A Mounting Bracket (preassembled to canopy (B)) 1
B Canopy 1
C Canopy Cover (preassembled to canopy (B)) 1
D Yoke Cover 1
E Downrod 1
F Blade Bracket 5
G Blade 5
H Motor Housing Assembly 1

I

Rubber Piece (preassembled to motor housing assembly (H))

5

J Plastic Block (preassembled to motor housing assembly (H)) 5

A

B

C

D

H

G

F

E

HARDWARE CONTENTS (shown actual size)

BB

CC

AA

Wire Connector
Qty. 4

Fan Pull Chain
Extension
Qty. 1
(NOT TO SCALE)

Rubber Gasket
Qty. 1
(NOT TO SCALE)

I

J

Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.

Estimated Assembly Time: 20 minutes

Tools Required for Assembly (not included): Phillips screwdriver, step ladder, electrical tape, pliers,
wire cutter, wire stripper.
