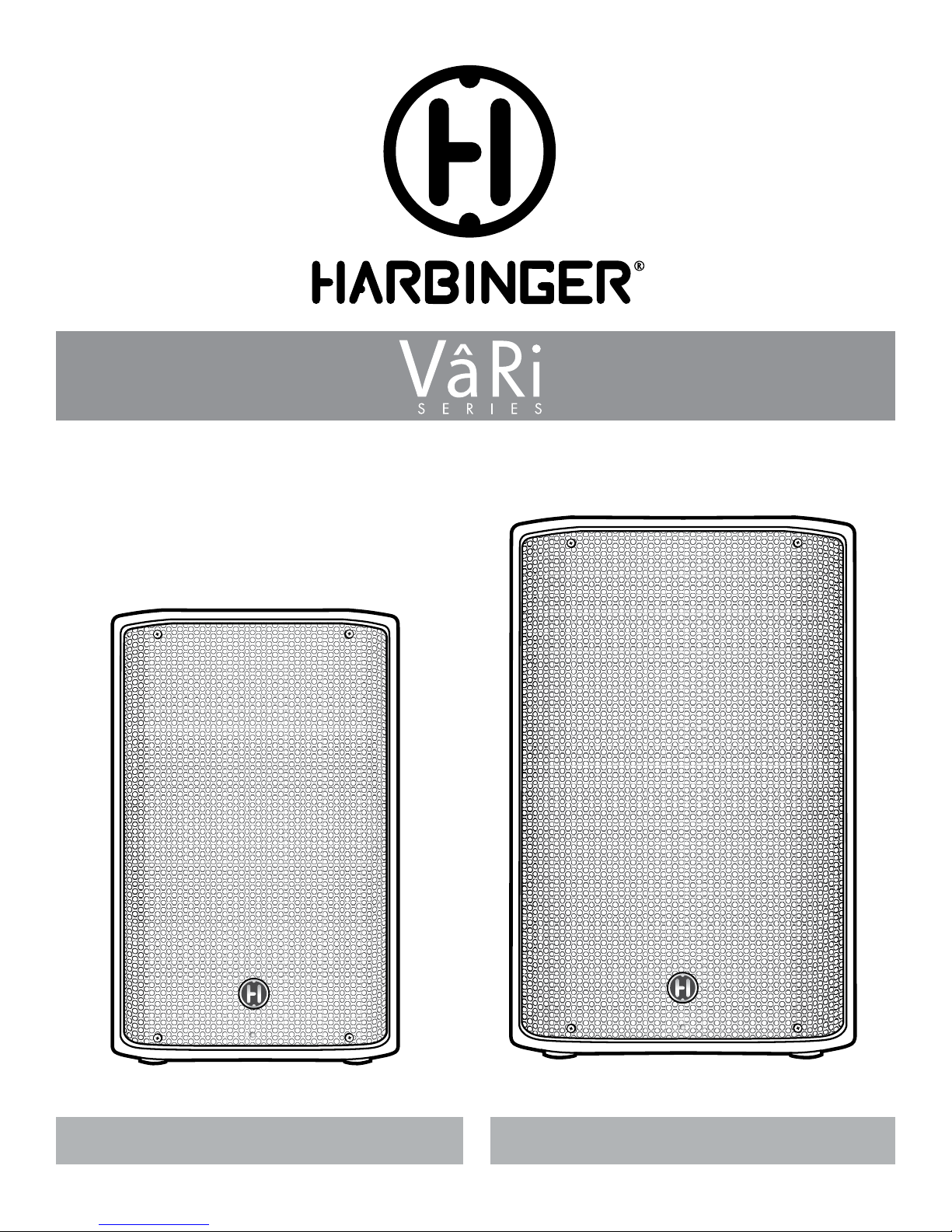

Page 1
TM
POWERED LOUDSPEAKERS
V2212
V2215
Page 2
V2212 & V2215
Customer & Warranty support
TM
TABLE OF CONTENTS
Important Safety Instructions..............................................................3
Quick Start Guide .............................................................................. 5
VâRi Series Back Panel ......................................................................6
Specifications .....................................................................................7
Warranty/FCC Statements .................................................................8
WELCOME
CONGRATULATIONS on your purchase of a Harbinger
VâRi Series 600 Watt powered speaker. By following
these guidelines and suggestions, your new Harbinger
loudspeaker will provide you with many years of great
sound and reliable service.
VâRi Series speakers are perfect for musicians, DJs, and
presenters needing a flexible portable loudspeaker. The
VâRi series can be used as a main speaker mounted on
a stand, or a monitor speaker on the floor. Also, multiple
VâRi Series speaker can be linked together to form a
larger system.
POWERED LOUDSPEAKERS
Your new VâRi Series powered loudspeaker includes:
• Two-way, full-range powered speaker
° V2215 15” driver and 1.35˝ compression driver
or
V2212 12” driver and 1.35˝ compression driver
°
• 600 Watt Class-D amplifier with built-in Limiter
• 3-Channel Mixer with Line Out
° Mic/instrument input
Line input
°
Aux input
°
Line output
°
• Dual band EQ
3
• Built-in 1
• LED indicators for power and limiter
/
” stand mount
8
MISSING
damaged
parts?
OR VISIT OUR WEBSITE AT: harbingerproaudio.com
2
CALL
888-286-1809
assembly
TOLL FREE
questions?
V2212 and V2215 Owner's Manual
Page 3
V2212 & V2215
TM
IMPORTANT SAFETY INSTRUCTIONS
Please keep this instruction manual for future reference and for the duration
of owning the VâRi powered loudspeaker. Please carefully read and
understand the instructions inside this owner’s manual before attempting to
operate your new powered loudspeaker.
This instruction manual includes essential safety information regarding the
use and maintenance of the amplifier. Take special care to heed all warning
symbols and signs inside this manual and those printed on the amplifier on
the back of the loudspeaker.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE AMPLIFIER
TO WATER/MOISTURE, NOR SHOULD YOU OPERATE THE AMPLIFIER
NEAR ANY WATER SOURCE.
The exclamation point triangular symbol is intended to alert the user to the
presence of important operating and maintenance(servicing) instructions in
the user manual accompanying the Amplifier.
The lightning flash with an arrow triangular symbol is intended to alert
the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure, and may be of sufficient magnitude to constitute a risk
of electric shock.
WARNING
Handle the power supply cord with care.
Do not damage or deform it as it may cause electric shock or malfunction
when used. Hold the plug attachment when removing from wall outlet. Do
not pull on the power cord.
IMPORTANT SAFETY PRECAUTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions. DO NOT turn on the VâRi amplifier module
before connecting all other external devices.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only the cart, stand, tripod, bracket or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
POWERED LOUDSPEAKERS
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. POWER SOURCES – This product should be operated only from the
type of power source indicated on the rating label. If you are not sure
of the type of power supply to your home, consult your product dealer
or local power company.
16. WALL OR CEILING MOUNTING – The product should never be
mounted to a wall or ceiling.
17. Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
18. OBJECT AND LIQUID ENTRY – Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through openings.
19. Water and Moisture: This product should be kept away from direct
contact with liquids. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
20. Keep the speaker system out of extended or intense direct sun light.
21. No containers filled with any type of liquid should be placed on or near
the speaker system.
22. SERVICING – The user should not attempt any service to the speaker
and/or amplifier beyond that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
23. VENTILATION – Slots and openings in the amplifier are provided
for ventilation and to ensure reliable operation of the product and to
protect it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing the product
on a bed, sofa, rug, or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or rack.
24. Protective earthing terminal: The apparatus should be
connected to a main socket outlet with a protective earthing
connection.
25. ACCESSORIES – Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury to
a child or adult, and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product.
26 When moving or not using the appliance, secure the power cord
(e.g., wrap it with a cable tie). Be careful not to damage the power
cord. Before using it again, make sure the power cord has not been
damaged. If the power cord has been damaged at all, bring the unit
and cord to a qualified service technician for repair or replacement as
specified by the manufacturer.
27. LIGHTNING – For added protection during a lightning storm, or when
it is left unattended and unused for long periods of time, unplug it from
the wall outlet. This will prevent damage to the product due to lightning
and power-line surges.
28 REPLACEMENT PARTS – When replacement parts are required, be
sure the service technician has used replacement parts specified by
the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
V2212 and V2215 Owner's Manual
3
Page 4
V2212 & V2215
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
TM
To prevent electric shock, do not use a polarized plug with an extension
cord, receptacle or other outlet unless the blades can be fully inserted to
prevent blade exposure.
RISK OF
CAUTION: To reduce the risk of electric shock, do not
remove chassis. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
AVERTISEEMENT: Pour réduire les risques d’incendie et
d’électrocution, ne pas exposer ce matérial à la pluie ou
à l’humidité.
ELECTRIC SHOCK
DO NOT OPEN
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE UNIT.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
POWERED LOUDSPEAKERS
HEARING DAMAGE AND PROLONGED EXPOSURE TO
EXCESSIVE SPLs
Harbinger VâRi Series powered loudspeakers are capable of producing
extremely loud volume levels that can cause permanent hearing damage
to performers, production crews or the audience. Hearing protection is
recommended during long-term exposure to high SPLs (sound pressure
levels).
Remember, if it hurts, it is definitely too loud! Long term exposure
to high SPLs first causes temporary threshold shifts; limiting your
ability to hear the actual loudness and exercise good judgment.
Repeated long term exposure to high SPLs will cause permanent
hearing loss.
Please note the recommended exposure limits in the accompanying table.
More information about these limits is available on the US government
Occupational Safety and Health (OSHA) website at: www.osha.gov.
Permissible Noise Exposures (1)
Duration per day, hours Sound level dBA slow response
8 90
6 92
4 95
3 97
2 100
1.5 102
1 105
0.5 110
0.25 or less 115
4
V2212 and V2215 Owner's Manual
Page 5
V2212 & V2215
TM
QUICK START GUIDE
SETTING UP / HELPFUL TIPS
• Position the VâRi speaker in the desired location, and ensure the
speaker is stable.
• Make sure the Power Switch is OFF.
• Make certain Input Gain 1 & 2, and Master Volume are down.
MAKING THE CONNECTIONS
• Plug connections to Input 1. Check that the Mic/Line switch
matches the source (Mic for microphones and instruments, Line for
mixers, keyboards, or instruments with active pickups).
• Plug connections to Input 2. Note that Input 2 is a Line Input, and
will not work well with a microphone.
• Plug connection to Aux In on mobile audio device or computer.
POWERING UP
• Turn on the power to any devices plugged into Input 1, Input 2, or
Aux Input.
• Power ON the speaker.
• Slowly turn the Master Volume to 12 o’clock.
• Slowly turn up the volume of the mobile audio device to the
desired level.
• Turn Input 1 to the desired level.
• Turn Input 2 to the desired level.
POWERED LOUDSPEAKERS
VâRi Series speakers can be used as Main Speakers
or Monitor Speakers.
Monitor
CLIP LIGHT - LOCATED ON FRONT BEHIND GRILLE
• The SIG/CLIP LED will light up BLUE when the speaker is receiving
a signal. If it is distorting, the LED will turn RED and the MASTER
VOLUME should be turned down.
FLOOR MONITOR APPLICATIONS
• Turn the Low EQ down slightly to reduce unwanted rumble and
low-frequency build-up. This will reduce feedback and make
vocals clearer.
LINKING MULTIPLE SPEAKERS
• If linking multiple speakers, plug the Line OUT connection of
Speaker 1 to the Line In connection of Speaker 2, and continue
the daisy chain to the last speaker. (This is common where multiple
monitor mixers share the same feed from the mixing board.)
• Turn the Power On in the order of the audio signal to prevent
unwanted “pops”. First On / Last Off.
V2212 and V2215 Owner's Manual
Main
Speaker stand not included
5
Page 6
V2212 & V2215
TM
POWERED LOUDSPEAKERS
VâRi SERIES BACK PANEL
1
9
2
3
4
5 6
10
7
8
11
FRONT LED
1
The front-mounted LED has two functions. This switch toggles between
those functions.
– ON position = Front-mounted LED indicates when power is on.
– S/L position = Front-mounted LED indicates when the limiter is
engaged. (If LED turns red in this position, the
speaker is distorting.)
2
MIC/LINE INPUT
The Mic/Line input features a balanced XLR jack, and balanced/
unbalanced TRS (tip/ring/sleeve) ¼” jack. Set the Mic/Line
button to match the input device to prevent distortion. Unbalanced
¼” instrument jacks may be used here (start with the button in Line
setting. If the gain is too low, turn the volume down, select Mic, and
slowly raise the volume). For best results, use only the XLR or ¼” jack,
not both.
3
LINE INPUT
The Line input features a balanced XLR jack, and an unbalanced RCA
jack. For best results, use only the XLR or RCA jack, not both.
4
2 BAND EQ
The LOW EQ will provide +/- 12dB of boost or cut below 100Hz.
Turn the LOW EQ up to add bass or warmth to the speaker. Turn
the LOW EQ down to remove rumble and noise when the program
material does not contain low frequencies, or when using the speaker
as a floor monitor.
The HIGH EQ will provide +/- 12dB of boost or cut above 10kHz.
Turn the HIGH EQ up to add clarity and definition to vocals, acoustic
instruments, or backing tracks. Turn the HIGH EQ down to reduce hiss
or feedback.
5
SIG/CLIP LED
The SIG/CLIP LED will light up BLUE when the speaker is receiving
a signal. If it is distorting, the LED will turn RED and the MASTER
VOLUME should be turned down.
6
POWER LED
The Power LED indicates that the VâRi speaker’s AC power cord is
connected to an electrical outlet, and the Power Switch is turned on.
MASTER VOLUME
7
The Master Volume controls the overall volume of all 3 inputs.
8
LINE OUTPUT
The Line Output is used to link multiple speakers together using the
same audio signal. Connect the Line Output of the first speaker to the
Line Input of the next speaker in the signal path.
9
AUX INPUT
1
/
”
Stereo input for connecting mobile audio devices to VâRi 2000
8
Series speaker. Note the Aux Input feeds directly to the Master
Volume control, and does not have an input gain adjustment. For best
results, adjust the volume on the device to the desired level, then set
the Mic/Instrument, Line Inputs, and Master Volume level.
POWER SWITCH
10
Turn the VâRi speaker ON or OFF.
IEC POWER INPUT AND FUSE CARRIER
11
The IEC AC cable plug inserts into this jack. This is also where the main
fuse housing is located.
6
V2212 and V2215 Owner's Manual
Page 7
V2212 & V2215
TM
POWERED LOUDSPEAKERS
SPECIFICATIONS
HARBINGER VâRi Series V2212 V2215
Amplifier
XLR / TRS Balanced input with Mic/Line
Input 1
Input 2
AUX Input
Line Output XLR line output +4dB XLR line output +4dB
Power Output RMS @ 180 watts / 600 watts Peak RMS @ 180 watts / 600 watts Peak
Low EQ +/-12dB Shelf, 100Hz +/-12dB Shelf, 100Hz
High EQ +/-12dB Shelf at 10kHz +/-12dB Shelf at 10kHz
Switch (-45dB/-10dB) and Input Gain
Control
XLR +4dB Balanced jack, RCA -10dB
Unbalanced Jacks and Input Gain Control
1
/
” Mini TRS Unbalanced Jack(-10dB) For
8
mobile audio devices. Direct To Master
Volume Control
XLR / TRS Balanced input with Mic/Line
Switch (-45dB/-10dB) and Input Gain
Control
XLR +4dB Balanced jack, RCA -10dB
Unbalanced Jacks and Input Gain Control
1
/
” Mini TRS Unbalanced Jack(-10dB) For
8
mobile audio devices. Direct To Master
Volume Control
Speaker
Volume
Power Input 115V/60 Hz 115V/60 Hz
Features
Type 12˝ 2- way vented design 15˝ 2-way vented design
Frequency Response 55-20K Hz 45-20K Hz
Max SPL 118dB (at max amp output) 120dB (at max amp output)
HF Driver 1.35˝ Compression Driver, 8 Ohm 1.35˝ Compression Driver, 8 Ohm
LF Driver 12˝ Driver With 2" Voice Coil, 4 Ohm 15˝ Driver With 2.5" Voice Coil, 4 Ohm
Cabinet
Grille 1.2mm steel 1.2mm steel
Suspension Points V2212 Is Not Designed For Suspension V2215 Is Not Designed For Suspension
Pole Mount 35mm stand pole with M6 screw 35mm stand pole with M6 screw
volume control per channel / main volume
control
Class-D Amplifier Design Class-D Amplifier Design
Removable AC Power Cord Removable AC Power Cord
Signal / Clip LED Signal/Clip LED
Power LED Power LED
Molded Plastic Construction with Top and
Side Handles
volume control per channel / main volume
control
Molded Plastic Construction with Top and
Side Handles
Product Dimensions 385x348x596mm 460x415x702mm
Packaging Size 445x415x680mm 520x470x775mm
Packaging
Information
V2212 and V2215 Owner's Manual
Net Weight 16kg 19kg
Gross Weight 17.5kg 20.5kg
7
Page 8
V2212 & V2215
TM
WARRANTY
Have a question about service, warranty or parts?
Call 888-286-1809 (Toll Free)
So we may serve you better, please register on-line at www.HarbingerProAudio.com
2 YEAR HARBINGER LIMITED WARRANTY
Harbinger provides, to the original purchaser, a two (2) year limited warranty
on materials and workmanship on all Harbinger cabinets, loudspeaker and
amplifier components from the date of purchase.
For warranty support, please visit our website at www.HarbingerProAudio.com,
or contact our Support Team at 888-286-1809 for assistance. Harbinger
will repair or replace the unit at Harbinger’s discretion.
This warranty does not cover service or parts to repair damage caused
by neglect, abuse, normal wear and tear and cosmetic appearance to the
cabinetry not directly attributed to defects in materials or workmanship. Also
excluded from coverage are damages caused directly or indirectly due to
any service, repair(s), or modifications of the cabinet, which has not been
authorized or approved by Harbinger. This two (2) year warranty does
not cover service or parts to repair damage caused by accident, disaster,
misuse, abuse, burnt voice-coils, over-powering, negligence, inadequate
packing or inadequate shipping procedures.
The sole and exclusive remedy of the foregoing limited warranty shall be
limited to the repair or replacement of any defective or non-conforming
component. All warranties including, but not limited to, the express
warranty and the implied warranties of merchantability and fitness for a
particular purpose are limited to the two (2) year warranty period. Some
POWERED LOUDSPEAKERS
states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. There are no express warranties
beyond those stated here. In the event that applicable law does not allow
the limitation of the duration of the implied warranties to the warranty
period, then the duration of the implied warranties shall be limited to
as long as is provided by applicable law. No warranties apply after
that period.
Retailer and manufacturer shall not be liable for damages based upon
inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages
including but not limited to lost profits, downtime, goodwill, damage to
or replacement of equipment and property, and any costs of recovering,
reprogramming, or reproducing any program or data stored in equipment
that is used with Harbinger products. This guarantee gives you specific
legal rights; you may have other legal rights, which vary from state to
state.
Harbinger P.O. Box 5111, Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are
recognized as the property of their respective holders.
1602 16108336
FCC STATEMENTS
1. Caution: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
2. Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate, uses, and can radiate radio
frequency energy and , in not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
8
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
V2212 and V2215 Owner's Manual
Loading...
