HANYOUNG NUX ED6 Instruction Manual

4 5 6

Power supply

P3 : 10 - 24 V d.c/a.c, 50 - 60 Hz
P4 : 100 - 240 V a.c, 50 - 60 Hz

Power consumption

5.5 VA

Input K, Pt100 Ω, 4 - 20

㎃

d.c, 1 - 5 V d.c

Display accuracy

± 0.5 % of F.S ±1 Digit

Control output

Relay

Contact composition : 1 c, 250 V a.c,
5 A (resistive load)

S.S.R

Approx. 5 V d.c (resistive load min 500 Ω),

Approx. 50 mA max

Alarm & defrost

Relay

Contact composition : 1 c, 250 V a.c,
5 A (resistive load)

Control operation

Two Position Operation (ON/OFF)
Proportional Operation (P)

Setting method

Digital method by setting, up and down keys

Other functions

Auxiliary output(Alarm & Defrosting Timer) Heating/
cooling

Resistance

between wires

Thermocouple

Below 100 Ω for each wire

R.T.D

Below 10 Ω for each wire

(Resistance of 3 wires should be the same.)

Operating ambient

temperature/humidity

0 ~ 50 ℃/ below 35 ~ 85 % R.H (With no condensation)

Model Code Description

ED6 -

☐ ☐ ☐ ☐ ☐

Digital Temperature Controller

Control
type

F ON/OFF Control

P Proportional control

Input

K Thermocouple (K Type)

P R.T.D Pt100 Ω (IEC)

C

4 - 20 ㎃ d.c (attach 250 Ω of external
resistance), 1 - 5 V d.c

Control output

M Relay

S S.S.R (Voltage pulse output 5 V d.c)

Optional

A Alarm or defrosting timer

N NONE

Power supply voltage

P3

10 - 24 V d.c/a.c, 50 - 60 Hz

P4

100 - 240 V a.c, 50 - 60 Hz

Digital Temperature Controller

ED6

Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time

INSTRUCTION MANUAL

Safety information

DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious injury

CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury

Alerts declared in the manual are classified to Danger, Warning and Caution by their criticality

DANGER

WARNING

CAUTION

There is a danger of occurring electric shock in the input/output terminals so
please never let your body or conductive substance is touched.

• If the user use the product with methods other than specified by the

manufacturer, there may be bodily injuries or property damages.

• If there is a possibility of an accident caused by errors or malfunctions of this

product, install external protection circuit to prevent the accident.

• To prevent defection or malfunction of this product, apply a proper power

voltage in accordance with the rating.

• Since this product is not designed with explosion-protective structure, do

not use it any place with flammable or explosive gas.

• Reassemble this product while the power is OFF. Otherwise, it may be a

cause of malfunction or electric shock.

• There is a possibility of occurring electric shock so please use this product

after installing it to a panel while it is operating.

• Before using a temperature controller, there could be a temperature

differ ence be tween PV of the te mpe rature controll er and the actual
temperature so please operate the temperature controller after
compensating the temperature difference appropriately.

• The contents of this manual may be changed without prior notification.

• Make sure that there is no damage or abnormality of the product during

delivery.

• Do not use this product at any place with direct vibration or impact.

• Do not use this product at any place with liquid, oil, medical substances,

dust, salt or iron contents.(Use at Pollution level 1 or 2)

• Do not use this product at any place with a large inductive difficulty or

occurring static electricity or magnetic noise.

• In case of inputting thermocouple, use a compensating cable. (If using a

normal wire, there is a possibility of occurring temperature error.)

• For R.T.D input, use a cable which is a lead wire has small resistance and

resistances of three wires shall be the same. (If the three wires have
different resistances then there will be a temperature error.)

• Separate an input signal cable from an output signal cable. If separating is

not possible, please use the input signal cable after shielding it.

• Use non-earth sensor with thermocouple. (In case of using earth sensor,

there is a possibility of occurring malfunction caused by a short circuit.)

• If there is excessive noise from the power supply, using insulating

transformer or noise filter is recommended. The noise filter must be
attached to a panel which is already connected to a ground and the wire
between the filter output and power supply terminal must be short as
possible.

• When attaching this product to a panel, use an approved switch or circuit

breaker from IEC947-1 or IEC947-3.

• The warranty period for this product including parts is one year if this

product is properly used.

• When the power is on, the preparation period of contact output is required.

In case of using for signals of external interlock circuit, use with a delay
relay.

DANGER

WARNING

CAUTION

Suffix Code

Specification

MA0602KE120813

1381-3, Juan-Dong, Nam-Gu Incheon, Korea.
TEL:[phone]
FAX:[phone]
http://www.hynux.net

Jl. cempaka blok F16, No.02 Delta Silicon II
Cikarang Bekasi Indonesia
TEL : [phone]~4
FAX : [phone]

HANYOUNGNUX CO.,LTD

PT. HANYOUNG ELECTRONIC INDONESIA

HEAD OFFICE

INDONESIA

FACTORY

Present

Temperature

To Enter Setting Mode
Press it for more than 3 sec.

Decimal Point Function

Decimal Point Function

High Scale

Low Scale

Adjusting Operation
Setting

+

Lock

Cancellation

•Save SV

•Save SV

1 ℃ Resolution

0.1 ℃ Resolution

ON/OFF Control

P (Proportional) Control

Present

Temperature

•Save SV/ Return to the initial menu.
※To enter menu press key

for more than 3 sec.

•Save SV

•Save SV

※Input : 1 ~ 5 V DC

※Input : Pt100, K

Change a position
of decimal point (0 ~ 2)
0: 200 1: 20.0
2: 2.00

-1000(L-Sc)~H-Sc

L-Sc ~ 5000(H-Sc)

At the same time,
press them for more
than 3 sec.

※Default : 0

※Default : 0

※Default : 0

※Default : 200

※Default : -200

Control Method Setting

SV Lock Function

Present

Temperature

Present

Temperature

Present

Temperature

Temperature Setting (SV)

Proportional Band Setting(P.B)

•Save SV

•Output Capacity (%)

Flickering Display for 1 sec

•Setting Value (SV)
Flickering Display for 1 sec

•Save SV

•Function Selection

Present

Temperature

Present

Temperature

※PorF='0' when setting P (Proportional Control)

※PorF='0' when setting P

(Proportional Control)

※Default : 25 ℃

Setting Range : 1~100 ℃
※Default : 20 ℃

Offset Elimination (M.R)

Setting Range : 1~100 %
※Default : 50 %

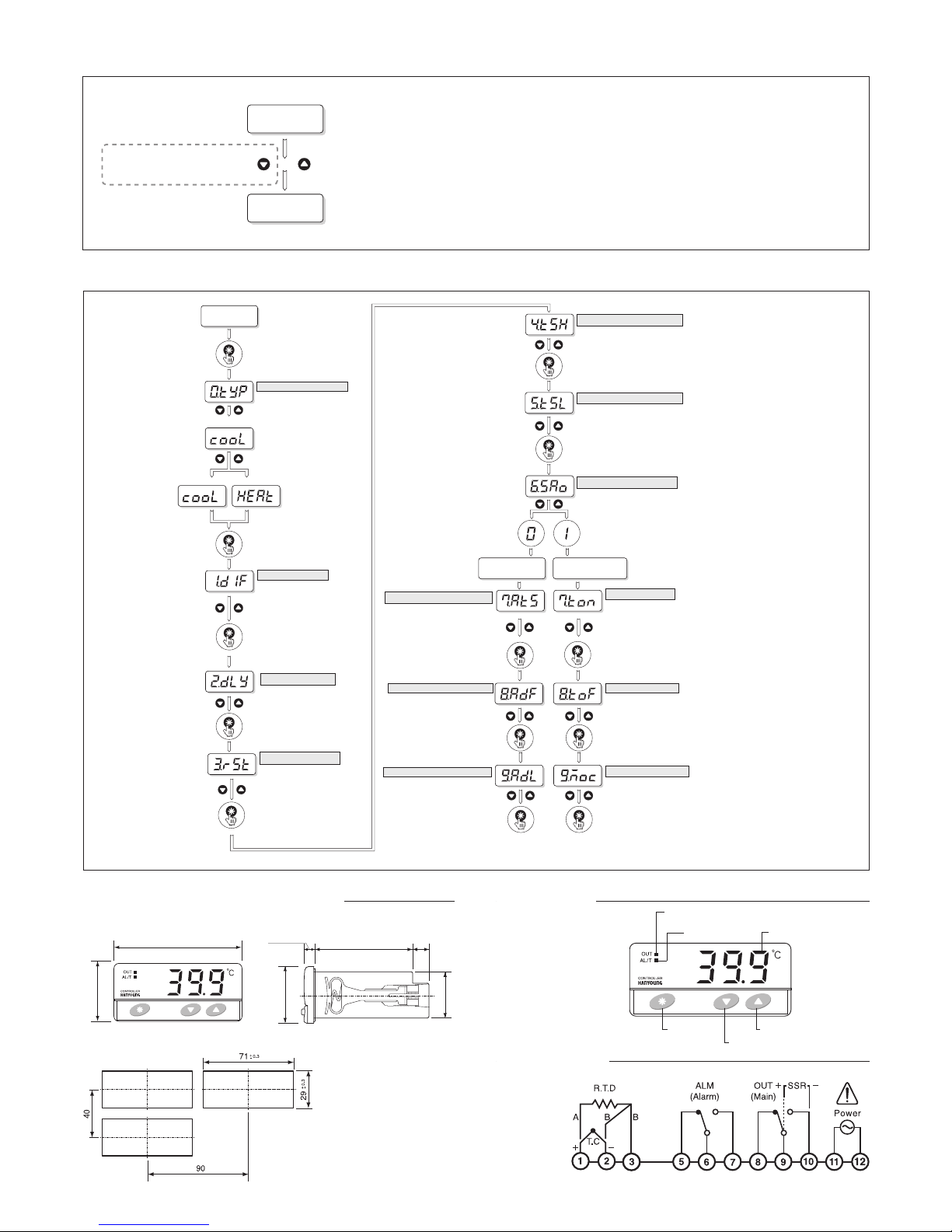

Controlling Temperature Method Setting Menu

※ SV : Setting Value P.B : Proportional Band M.R : Offset Elimination

※ SV : Setting Value

●Cooling Control (ON/OFF)
PV=Present Temperature, SV=Setting Temperature
PV > SV → Main Output Relay ‘ON’
PV < SV → Main Output Relay ‘OFF’

[ ]

: Heating Control
: Cooling Control

Main output

[setting=-25 ℃, dlf=5, dLy=0, tyP=CoL]

Alarm Output (Low Limit Alarm)

[AtS=-40, AdF=5, AdL=0, SAo=0]

Main output

[setting=50 ℃, dlf=5, dLy=0, tyP=HEt]

Alarm Output (High Limit Alarm)

[AtS=70, AdF=5, AdL=0, SAo=0]

●Heating Control (ON/OFF)
PV=Present Temperature, SV=Setting Temperature
PV < SV → Main Output Relay ‘ON’
PV > SV → Main Output Relay ‘OFF’

-20 -35

-25 -40

50 70

45 65

ON OFF ON OFF

OFF

ON

OFF

ON

ON OFF ON OFF

OFF ON OFF ON

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

6.보조출력 기능선택

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

6.보조출력 기능선택

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

▒ Normal User Setting Mode

▒ Setting of SV Lock function, Decimal Point

function & Adjusting Operation Setting

Item SV Description

Lock

0 Lock cancellation, User Setting is possible

1 Lock and User Setting are not possible

trSL (Pt100, CA)

0 Decimal point function (0.1 ℃)

1 No Decimal point function (1 ℃)

trSL (1 ~ 5 V DC) 0~2 Decimal point function (Ex. 0:200, 1:20.0, 2:2.00)

PorF

0

Proportional Control

(P.B value/ M.R value setting is possible)

1 ON/OFF Control

▒

Cooling/Heating Control Setting

※ SV : Setting Value

▒ Auxiliary Output (Timer Mode) Setting

and Operation Description

When using as a freezer, Timer Mode can be used as Defrosting Function.

0 : Alarm Mode

※ min. : minute

1 : Timer Mode (Setting)

•설정값 저장

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

6.보조출력 기능선택

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

0 : Main Output Control Cancellation

1 : Main Output Control

•설정값 저장

•설정값 저장

타이머 설정 메뉴알람 설정 메뉴

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

7.알람 온도조절

•알람 온도조절
A: -40 ~ +100 ℃
B: -40.0 ~ +100.0 ℃

6.보조출력 기능선택

•설정값 저장

•설정값 저장

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

•편차설정
A: 1 ~ 20 ℃
B: 1.0 ~ 20.0 ℃

1.편차 설정

2.지연시간 설정

7.ON 시간설정

•타이머 ON 시간 설정
(0 ~ 999분)

If ‘MOC’ is 1 then Timer is ON as Main Output is automatically OFF. When using

MOC function, you can effectively use Timer Output as Defrosting Function.

0 S 5 S 10 S 15 S 20 S

15 min OFF

Relay OFF Relay ON

Relay OFF Relay ON

15 min OFF

ton = 5 min, tof = Timer Output at 15 min

5 min

ON

5 min

ON

▒

Delay Timer Setting

At present temperature,

1. Press [ ] key for more than 3 sec

2. Go to ‘ ’ by pressing [ ] key

3. Change the setting by using [ ] / [ ] key

4. Save it by pressing [ ] key
[ ]→[ ]→[ ] (0 ~ 240 sec.)

●Operation Description of Delay
① Delay Time ‘dLy’ = 0

② Delay Time ‘dLy’ = 5

※ In case of Delay Time=0, Relay is immediately ON when output signal

is generating. In case of Delay Time=5, Relay is ON after 5 sec. when
output signal is gene rating. In the inte rval of 5 sec, the ou tput
indicator is flickering during Delay Timer Operation. After the delay
time, the output indicator lights as the relay is on.

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

6.보조출력 기능선택

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

(초기설정값 표시)

(저장)

현재온도

현재온도

온도설정(SV)

현재온도

(3초이상 누른다)

0. 제어 방식 설정

기능선택(설정값 변경)

설정값 변경(증가/감소)

설정값 저장

5.설정범위 제한 하한

•설정 온도 범위 제한 하한
A: -40 ℃ ~ TSH(상한)
B: -40.0 ℃ ~ TSH(상한)

6.보조출력 기능선택

•설정값 저장

•설정값 저장

4.설정범위 제한 상한

•설정온도 범위제한 상한
A: TSL(하한) ~ +100 ℃
B: TSL(하한) ~ +100.0 ℃

가열제어

냉각제어

0 S 5 S 10 S 15 S 20 S

Relay OFF Relay ON

Relay OFF Relay ON
