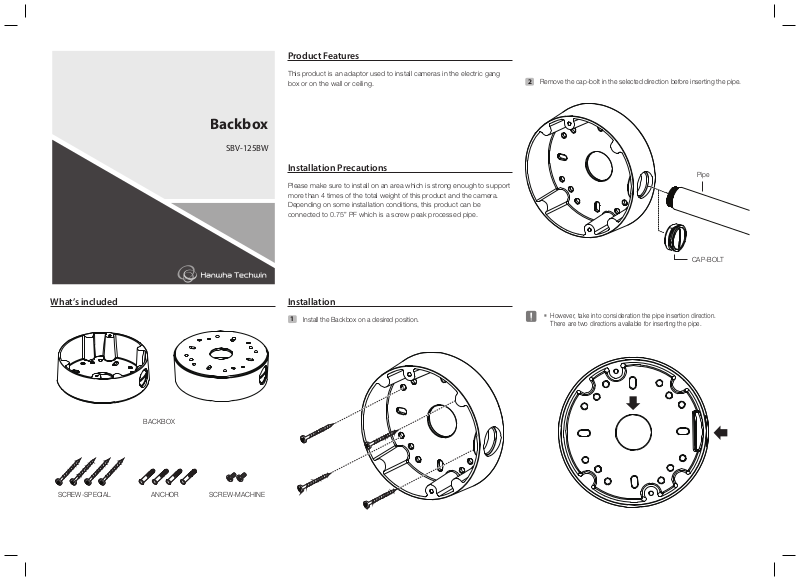

Hanwha Techwin SBV-125BW User Manual
Product Features
This product is an adaptor used to install cameras in the electric gang
box or on the wall or ceiling.
Backbox
SBV-125BW
Installation Precautions
Please make sure to install on an area which is strong enough to support
more than 4 times of the total weight of this product and the camera.
Depending on some installation conditions, this product can be
connected to 0.75” PF which is a screw peak processed pipe.
What’s included Installation
1
Install the Backbox on a desired position.
2
Remove the cap-bolt in the selected direction before inserting the pipe.
Pipe
CAP-BOLT
` However, take into consideration the pipe insertion direction.
J
There are two directions available for inserting the pipe.
BACKBOX
SCREW-SPECIAL SCREW-MACHINEANCHOR
3
Attach the case-bottom to the Backbox.
Specication
Product Overview
mm[inch]
Ø 30 [1.18]
Product Name
Supported product
Color / Material
RAL Code
Product dimensions
/ weight
SBV-125BW
QNE-8011R/8021R
* models can be added without notice
White / Aluminum
RAL9003
Ø128.95 x 40 mm (Ø5.08 x 1.57"),
345 g (0.76Ib)
PT01-005441A
