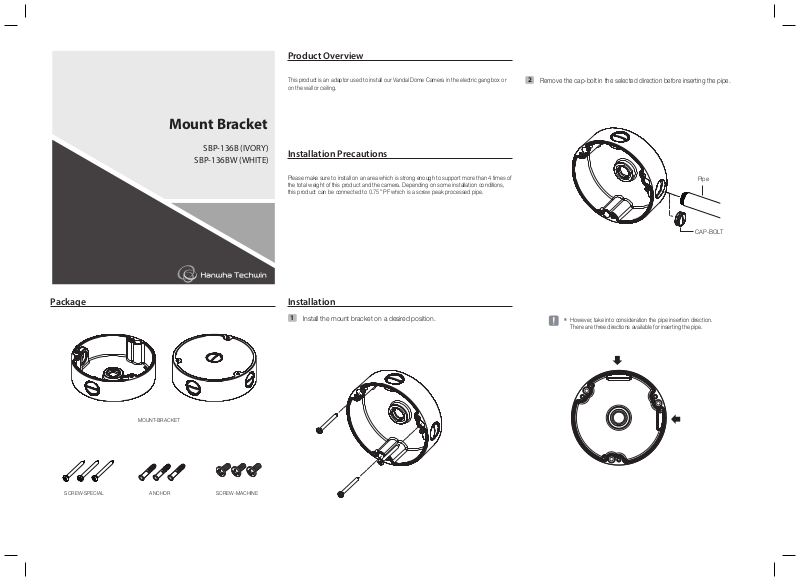

Hanwha Techwin SBP-136B, SBP-136W User Manual
Product Overview
Package
Mount Bracket
SBP-136B (IVORY)
SBP-136BW (WHITE)
This product is an adaptor used to install our Vandal Dome Camera in the electric gang box or
on the wall or ceiling.
Installation Precautions
Please make sure to install on an area which is strong enough to support more than 4 times of
the total weight of this product and the camera. Depending on some installation conditions,
this product can be connected to 0.75” PF which is a screw peak processed pipe.
Installation
1
Install the mount bracket on a desired position.
2
Remove the cap-bolt in the selected direction before inserting the pipe.
Pipe
CAP-BOLT
` However, take into consideration the pipe insertion direction.
J
There are three directions available for inserting the pipe.
MOUNT-BRACKET
SCREW-SPECIAL SCREW-MACHINEANCHOR
3
Attach the case-bottom to the mount bracket.
Product Outline
MEMO
Product Specications
Weight
Material
Operating
Temperature
Operating
Humidity
345g
Aluminum
-50°C~60°C
0~100%
