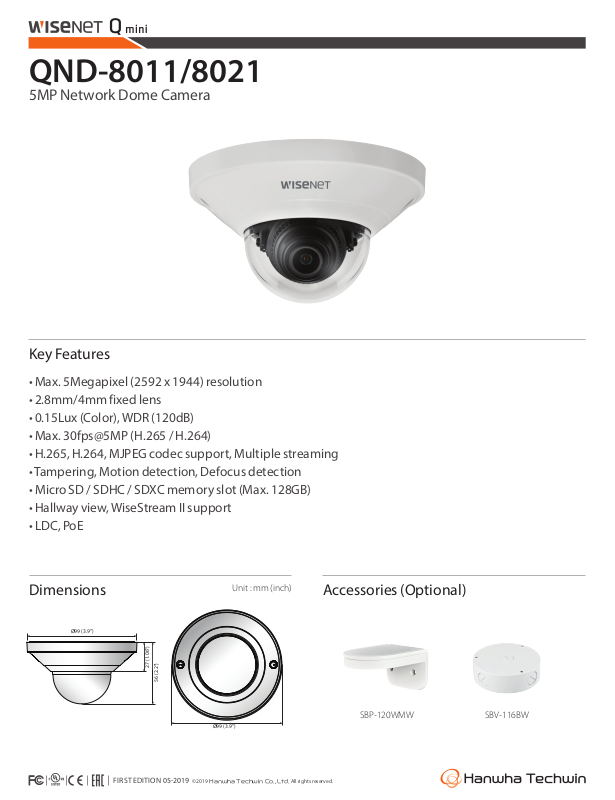

QND-8011/8021
5MP Network Dome Camera
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 2.8mm/4mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
Dimensions Accessories (Optional)
Ø99 (3.9")
27 (1.06")
56 (2.2")
Unit : mm (inch)
Ø99 (3.9")
FIRST EDITION 052019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.
SBP-120WMW SBV-116BW
Page 2
QND-8011 QND-8021
VIDEO
Imaging Device 1/2.8" 5MP CMOS
Eective Pixels 2592(H) x 1944(V)
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec) Color : 0.15Lux (F1.6, 1/30sec)
Video Out Micro HDMI (Type D) : 1080p@30/25fps (60/50Hz)
LENS
Focal Length (Zoom Ratio) 2.8mm xed focal 4mm xed focal
Max. Aperture Ratio F2.0 F1.6
Angular Field of View H : 104.4°/ V : 76.7°/ D : 136.1° H : 80.1°/ V : 58.0°/ D : 105.8°
Focus Control Fixed
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~69˚ / 0˚~355˚
OPERATIONAL
Camera Title Displayed up to 85 characters
Day & Night Auto (Electrical)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti icker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90˚/270˚)
Analytics Defocus detection, Motion detection, Tampering
Business Intelligence People counting
Alarm Triggers Analytics, Network disconnect
File upload via FTP and e-mail
Alarm events
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Resolution
Max. Framerate
Smart Codec WiseStream
Video Quality Adjustment
Bitrate Control
Streaming
Protocol
Security
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Application Programming Interface
Notication via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480,
640 x 480, 640 x 360
H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz)
MJPEG : Max. 15fps/12fps (60Hz/50Hz)
Ⅱ
H.264/H.265 : Target bitrate level control
MJPEG : Quality Level control
H.264/H.265 : CBR or VBR
MJPEG : VBR
Unicast (6 users) / Multicast
Multiple streaming (Up to 3 proles)
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
HTTPS (SSL) login authentication, Digest login authentication,
IP address ltering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
ONVIF Prole S/G/T
SUNAPI (HTTP API)
Wisenet open platform
FIRST EDITION 052019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.
Page 3
QND-8011 QND-8021
Webpage Language
Web Viewer
Memory 512MB RAM, 256MB Flash
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +40°C (+14°F ~ +104°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Certication IP42, IK08
ELECTRICAL
Input Voltage PoE (IEEE802.3af, Class2)
Power Consumption PoE : Max 5W, typical 4W
MECHANICAL
Color / Material White / Plastic
RAL Code RAL9003
Product dimensions / weight Ø99 x 56mm (Ø3.9 x 2.2"), 165g (0.364 Ib)
* The lastest product information / specication can be found at hanwha-security.com
* Design and specications are subject to change without notice.
* Wisenet is the proprietary brand of Hanwha Techwin.
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS : Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser : Google Chrome
Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only),
Apple Safari (Mac OS X only)
