Hanwha Techwin PNM-9080VQ Service Manual

NETWORK CAMERA

User Manual

PNM-9080VQ/PNM-9081VQ

Network Camera

User Manual

Hanwha Techwin

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Techwin

provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. right to change the contents of this document without prior notice.

Design and specications are subject to change without prior notice.

The initial administrator ID is “admin” and the password should be set when logging in for the rst time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be

Co., Ltd. All r ights reser ved.

Hanwha Techwin

reserves the

overview

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth.

(Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from 12 Vdc, 1.8 A or PoE(42-57 Vdc), 0.6 A. (PNM-9080VQ)

16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from 12 Vdc, 2.4 A or PoE(42-57 Vdc), 0.8 A. (PNM-9081VQ)

17. Do not use DC power and HPoE injector at the same time. (PNM-9081VQ)

18. If you use excessive force when installing the product, the camera may be damaged and malfunction.

If you forcibly install the product using non-compliant tools, the product may be damaged.

19. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table. This may cause damage to the product.

20. When installing the product, be careful not to allow the surface of the product to be stained with chemical substance. Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface.

21. If you install/disassemble the product in a manner that has not been recommended, the production functions/ performance may not be guaranteed. Install the product by referring to “Installation & connection” in the user manual.

22. Installing or using the product in water can cause serious damage to the product.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

●● OVERVIEW

English _3

overview

Class construction

An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

Please use the input power with just one camera and other devices must not be connected.

The ITE is to be connected only to PoE networks without routing to the outside plant.

Please read the following recommended safety precautions carefully.

yDo not place this apparatus on an uneven surface. yDo not install on a surface where it is exposed to direct sunlight, near heating equipment or

heavy cold area. yDo not place this apparatus near conductive material. yDo not attempt to service this apparatus yourself. yDo not place a glass of water on the product. yDo not install near any magnetic sources. yDo not block any ventilation openings. yDo not place heavy items on the product. yPlease wear protective gloves when installing/removing the camera.

The high temperature of the product surface may cause a burn.

User’s Manual is a guidance book for how to use the products. The meaning of the symbols are shown below.

yReference : In case of providing information for helping of product’s usages yNotice : If there’s any possibility to occur any damages for the goods and human caused by

not following the instruction

 Please read this manual for the safety before using of goods and keep it in the safe place.

4_ overview

CONTENTS

overview

3 Important Safety Instructions 6 Product Features 6 Recommended PC Specifications 6 Recommended Micro SD/SDHC/SDXC

Memory Card Specifications

7 What’s Included 8 At a Glance

web viewer

23 Connecting to the Camera 24 Password setting 24 Login 24 Plug-in support specifications for each

browser

25 Installing WebViewer Plugin 25 Using a Plug-in Free Webviewer 25 Using the Live Screen 27 Playing the recorded video

●● OVERVIEW

installation & connection

network connection and

setup

10 Installation 14 Inserting/Removing a Micro SD Memory

Card

14 Memory Card Information (Not Included) 15 Connecting with other Device

17 Connecting the Camera Directly to Local

Area Networking

17 Connecting the Camera Directly to a DHCP

Based DSL/Cable Modem

18 Connecting the Camera Directly to a

PPPoE Modem

18 Connecting the Camera to a Broadband

Router with the PPPoE/Cable Modem

19 Buttons used in IP Installer 19 Static IP Setup 21 Dynamic IP Setup 21 Port Range Forward (Port Mapping) Setup 22 Connecting to the Camera from a Shared

Local PC

22 Connecting to the Camera from a Remote

PC via the Internet

setup screen

appendix

29 Setup 29 Basic Setup 33 Video & Audio setup 39 Network Setup 42 Event Setup 45 Configure analysis settings 49 System Setup 50 Open Platform Setup

51 Specification 53 Product Overview 54 Troubleshooting 55 Open Source Announcement

English _5

overview

PRODUCT FEATURES

• 4 cameras The 4 camera lenses show different directions.

• Dustproof/Waterproof (IP66) The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing

it to rain.

• 4K video supported

• Multi-Streaming This network camera can display videos in different resolutions and qualities simultaneously using different

CODECs.

• Web Browser-based Monitoring Using the Internet web browser to display the image in a local network environment.

• Alarm When an event occurs, related images are sent to the user’s registered e-mail and FTP server, stored on the

micro SD memory card, or signaled to the alarm output terminal.

• Tampering Detection Detects tempering attempts on video monitoring.

• Defocus detection function Detects the defocus phenomenon of the camera lens.

• Motion Detection Detects motion from the camera’s video input.

• IVA (Intelligent Video Analysis) function Detects a motion or situation that meets the configured event rules.

• Smart Codec Adaptively applies codecs for a portion of the camera’s field of view to improve the quality of such area specified

by user.

• Auto Detection of Disconnected Network Detects network disconnection before triggering an event.

• ONVIF Compliance This product supports ONVIF Profile S.

For more information, refer to www.onvif.org.

RECOMMENDED PC SPECIFICATIONS

• CPU : Intel(R) Core(TM) i7 3.4 GHz or higher

• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11, 10.12

• Plug-in free web viewer Supported web browsers : Google Chrome 54, MS Edge 38, Mozilla Firefox 49(Windows 64bit only), Apple Safari 9 (Mac OS X only)

• Plug-in Webviewer Supported web browsers : MS Explore 11 , Mozilla Firefox 43, Apple Safari 9 * Mac OS X only

• VGA : To play a 4K (4096 x 2160) resolution video at 30fps, a GPU that supports 4096 x 2160 resolution and 4K/H.264 decoding is required

RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS

• Recommended capacity : 16GB to 256GB (MLC type)

• The following types of memory cards from the following manufacturers are recommended for this camera.

- Manufacturer : SanDisk, Transcend

- Product family : High endurance

• It is recommended to use a memory card of 16GB or more that conforms to the UHS-3 class (MLC type) specification.

6_ overview

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.)

Appearance Item Name Quantity Description Model Name

Camera

Use for all models

Appearance Item Name Quantity Description Model Name

Alarm cable

Cable bush

Used to connect the alarm port Use for all models

Used to connect the LAN cable with a

diameter of Ø7~8.5.

Use for all models

●● OVERVIEW

Instruction book, Installer S/W CD

Quick Guide

(Optional)

Use for all models

Tapping Screw

Plastic Anchor

Used for installation on the wall or

For fixing a screw, Inserted in a hole

ceiling

(reinforced anchoring force)

Use for all models

Used for assembling the dome case

Warranty card

(Optional)

Cable for the testing monitor

Power Terminal Block

L Wrench

CAUTION: Be ware of the Rated Voltage and Polarity

of the power connection.

Power Cable

Used to test the camera connection to

a portable display device

Plugged in the power plug Use for all models

Used to remove and replace the dome

cover

Used to plug into the power port Use for all models

Use for all models

DATA

DATA PWR

OUT

DATA PWR

DATA

OUT

Machine Screws

Card-type moisture absorbent

Drill bit

HPoE injector

Power cord

when installing the product on the

pipe, wall mount, etc. or blocking a

Attached when installed. Use for all models

Used for dome cover disassembly, assembly and camera installation.

Used for power connection PNM-9081VQ

Connect to power adapter PNM-9081VQ

hole.

Use for all models

English _7

overview

AT A GLANCE

Appearance

Dome cover

Camera Case

Item Description

Case cover used to protect the lens and the main unit.

Housing part that covers the camera body.

Components

c d

e f

8_ overview

Item Description

Shield cover (side) Camera lens protection cover.

DIP switch for changing the

channel

Lens 4 camera lenses show different directions.

Reset Button

Change the DIP switches to specify the channel you want to use to view the installation video.

The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system.

If you reset the camera, the network settings will be adjusted so that DHCP can be

enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

Item Description

Network Port Used to connect the PoE+ or Ethernet cable for network connection.

Port to connect audio and alarm cables.

Alarm in/out port

Power Port Port for power terminal block.

Test Monitor Out

Zoom/Focus Control Button

Micro SD Memory Card

Compartment

ARM-IN Used to connect the alarm input sensor or external day/night sensor.

ARM-OUT Used to connect the alarm output signal.

GND These are common ports to connect alarm input/output signals.

Output port for test monitoring the video output. Use the test monitor cable to connect to a mobile display and check the test video.

T Zoom in (Tele)

W Zoom out (Wide)

N Focusing on a near object (Near)

F Focusing on a far object (Far)

Focus Control Press this button for automatic focus control.

Compartment for the Micro SD memory card.

●● OVERVIEW

English _9

installation & connection

INSTALLATION

This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are

recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation bracket.

• Stuck-in or peeled-off cables can cause damage to the product or a fire.

• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.

• If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.

• If the shield cover is not used, diffuse reflection may occur.

Disassembling

1. Remove the dome cover by loosening the fastening

bolt of the dome cover. This can be done by turning it counterclockwise using the Allen key or drill bit provided.

Fastening bolt

Camera Body

Dome cover

00:CH1

00:CH1 01:CH2

01:CH2

10:CH3

10:CH3 11:CH4

11:CH4

Mount plate

Attaching to the unbundled adapter

Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation site or for your convenience.

1. Connect the mounting plate and the hanging mount.

The hanging mount is sold separately.

2. Install the hanging mount.

3. Connect the safety cable.

LINK

ACT

4. Insert the camera body into the mount plate.

Fit it to the hinge as shown in the figure.

5. Connect the necessary cable to the terminal inside the camera.

6. Push in the pin spring.

2. Loosen the fastening screw on the camera body.

3. Remove the camera body and mounting plate by pulling the plate

spring, as shown in the figure.

10_ installation & connection

00:CH1

10:CH2 01:CH3 11:CH4

LINK

ACT

How to install using the perpendicular falling method

LINK

ACT

ALARM

DC 12 V

12 3

RESET

You can move the CH2 lens only to view the video by installing it in the perpendicular falling method. In this case, the CH2 lens can tilt up to 90 degrees only.

1. Remove the shield cover from the CH2 lens.

As shown in the picture, put your fingers into the rear of the hood,

and open and lift it in order to disassemble it easily.

2. Manually dismount the CH2 lens.

3. Align the groove with the center of the rotating part.

4. Adjust the lens to the desired direction by referring to

“Adjusting the monitoring direction for the camera”. (Page

13)

If you tilt the lens, you may need to adjust the lens as this may block the

screen.

5. Assemble the dome cover.

Align the arrows when assembling the dome cover.

To ensure there are no issues with waterproofing, tighten the fastening bolts tightly using the

Allen key or drill bit.

How to install using the tilting method

You can move the lenses of CH1 - CH4 along the bottom rail to view videos by installing them using the tilting method. In this case, the orientation of the lens cannot be tilted by 90 degrees.

1. If you want to install a vertical-type lens to tilt-type, you have to tilt the lens that is in the vertical direction before detaching it from the center of the rotating part to enable easy removal.

2. Adjust the lens to the desired direction by referring to “Adjusting the monitoring direction for the camera”. (Page 13)

If you tilt the lens, you may need to adjust the lens as this may block the

screen.

3. Assemble the dome cover.

Align the arrows when assembling the dome cover.

To ensure there are no issues with waterproofing, tighten the fastening bolts

tightly using the Allen key or drill bit.

Connecting waterproof power cable and LAN cable

1. Remove the dome cover and the case.

2. Pull out the long projected part of the rubber plug on the

bottom and remove it as shown in the figure.

Use an appropriate cable bush for the LAN cable to be connected.

- Basic camera : Use the cable with a diameter of Ø5~6.5.

- Components provided : Use the cable with a diameter of

Ø7~8.5.

00:CH1

10:CH2

01:CH3

11:CH4

LINK

ACT

●● INSTALLATION & CONNECTION

English _11

installation & connection

00 : CH 1

01 : CH 2

10 : CH 3

11 : CH 4

LINK

ACT

LINK

ACT

ALARM

DC 12 V

12 3

RESET

LINK

ACT

ALARM

DC 12 V

12 3

RESET

LINK

ACT

ALARM

DC 12 V

12 3

RESET

LINK

ACT

ALARM

DC 12 V

12 3

RESET

3. Insert the power cable into the small hole made by removing the projected part of the rubber plug in step 2 above, and lay the cable along the long groove.

4. Connect the power cable with the power terminal block.

5. Insert the LAN cable into the large hole made by removing the projected

part of the rubber plug in step 2 above.

6. Remove the sheath with a cable cutter, and align the cables.

7. Connect the LAN cable with a LAN connector, and insert it into the LAN

tool.

8. Connect the finished cable to the Ethernet port.

Connecting the alarm cable

1. Remove the dome cover and the case.

2. Pull out the rubber plug on the bottom as shown in the

figure.

3. Insert the alarm cable through the hole created by removing the rubber cap in No. 2, and connect the cable to the alarm terminal.

4. Align the cable so that it should not be damaged or jammed when installing the camera.

5. Put the rubber cap located on the alarm cable in the hole.

6. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring direction for the camera” section.

7. Attach the dome cover.

12_ installation & connection

How to set up channels to monitor for installation

The camera body has a channel DIP switch, as shown in the figure.

You can change the channel of the camera using the channel DIP switches.

CH1 CH2 CH3 CH4

00 10 01 11

If a DIP switch is not fully On/Off, the product may malfunction. After installation, check the DIP switches at the back.

Be careful, as you will risk damaging a DIP switch if you manipulate it using a sharp tool.

Be careful, as a DIP switch may be damaged if you operate it with excessive force.

00:CH1

10:CH2

01:CH3

11:CH4

LINK

ACT

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

00:CH1

10:CH2

01:CH3

11:CH4

LINK

ACT

(page 13)

1. Connect the power, BNC, and LAN cables.

2. Wrap the black cable jacket (Area A) and the cable connection area

with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.

If the cable jacket is not waterproofed properly, then it can directly cause

leakage. Make sure to protect the cable with a dense layer of taping.

Waterproof butyl tape is made of butyl rubber that can be stretched to twice

its normal length.

Camera

System

Optional Accessories for Installation

For your easier installation, you can purchase appropriate optional accessories available.

1. WALL MOUNT ADAPTOR(SBP-300VM)/HANGING MOUNT(SBP-300HM6) This adaptor is used when installing the dome camera onto a wall.

2. CEILING MOUNT ADAPTOR(SBP-300CM)/HANGING MOUNT(SBP300HM6) This adaptor is used when installing the dome camera on a concrete ceiling.

3. The POLE MOUNT ADAPTOR(SBP-300PM) is the adapter to be used when installing the WALL MOUNT ADAPTOR (SBP-300WM or SBP300WM1) on an 80mm or larger column.

Adjusting the monitoring direction for the camera

Pan

ACT

LINK

Tilt

`Adjusting the monitoring direction

You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

- Pan rotation angle - Quad mode: +/-30˚, Center mode: +/-60˚.

- Rotation angle - Quad mode: +-90˚, Center mode: +-90˚.

- Tilt rotation angle: Quad mode: 10˚ ~ 41˚, Center mode: CH2 = 10˚ ~ 90˚, CH 1,3,4 = 10˚ ~ 41˚.

The image can be covered up by the camera case depending on the angle.

Do not forcefully turn the focus/zoom lens after the dome case is disassembled.

Otherwise, it may cause an incorrect focus due to a motor failure.

If the shield cover is not used, diffuse reflection may occur.

11:CH4

01:CH3

10:CH2

00:CH1

●● INSTALLATION & CONNECTION

4. CORNER MOUNT ADAPTOR (SBP-300KM)

This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on the corner of wall joint.

`Methods of adjustment

1. After attaching the camera, adjust the pan angle along the rails of the floor considering the monitoring

direction.

2. Adjust the horizontal angle so that the image does not appear to be reversed during rotation.

3. Adjust the tilt angle so that it points in the direction to be monitored.

4. The screen may be covered by the shield cover.

Make sure there is no black area on the screen through Zoom and Tele adjustment.

English _13

installation & connection

00 : CH 1

01 : CH 2

10 : CH 3

11 : CH 4

CH 4

LINK

ACT

CH 2

CH 1 CH 2 CH 3 CH 4

00 : CH 1

01 : CH 2

10 : CH 3

11 : CH 4

CH 4

LINK

ACT

CH 2

CH 1 CH 2 CH 3 CH 4

INSERTING/REMOVING A MICRO SD MEMORY CARD

Disconnect the power cable from the camera before inserting the Micro SD memory card.

Do not insert the Micro SD memory card while it’s upside down by force.

Otherwise, it may damage the Micro SD memory card.

When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.

Disassembly of the product cover should be finished within 5 minutes, or there will be the risk of internal dew condensation.

Inserting a Micro SD Memory Card

1. Separate the Dome cover of the camera.

2. Insert a Micro SD card in the arrow direction shown in the figure.

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

You need to save the SD card for each channel.

Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably from the slot when released.

Before removing the Micro SD memory card, in <Storage>, set the device to <Off> and press the [Apply] button and turn

the camera off. (Page 43)

If you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or

damaged.

MEMORY CARD INFORMATION (NOT INCLUDED)

What is a memory card?

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that’s suitable for you

Your camera supports Micro SD/SDHC/SDXC memory cards. You may, however, experience compatibility issues depending on the model and make of the memory card.

The following types of memory cards from the following manufacturers are recommended for this camera.

- Manufacturer : SanDisk, Transcend

- Product family : High endurance

It is recommended to use a 16GB to 256GB (MLC type) memory card for this camera.

Playback performance can be affected depending on the speed of memory card.

It is recommended to use a memory card of 16GB or more that conforms to the UHS-3 class (MLC type) specification.

Memory Card Components

Contacts

14_ installation & connection

Micro SD/SDHC/SDXC

CONNECTING WITH OTHER DEVICE

LINK

ACT

ALA RM

DC 12 V

12 3

RESET

LINK

ACT

ALA RM

DC 12 V

12 3

RESET

Ethernet

Power

The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

Ethernet Connection

Connect the Ethernet cable to the local network or to the Internet.

Power Supply

Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera.

If both PoE+ and DC12V are applied simultaneously, the product will be supplied with power from PoE+. (PNM-9080VQ)

- You can also use a router featuring PoE+ to supply power to the camera.

- Use PoE+ that is compliant with the IEEE 802.3af protocols.

It is advisable to use only one power source from PoE+ and DC 12V. (PNM-9080VQ)

Adapter with DC 12V 3A class or higher is recommended. (PNM-9081VQ)

We recommend using HPoE injectors for powering the unit. (PNM-9081VQ)

Do not use DC power and HPoE injector at the same time. (PNM-9081VQ)

Be careful not to reverse the polarity when you connect the power cable.

If you want to connect an external device, you must turn off the external device before proceeding.

Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.

Network Cable Specification

Item Contents Remark

Connector RJ45 (10/100/1000BASE-T)

To operate with 1000BASE-T, a cable of

Ethernet 10/100/1000BASE-T

UTP-6 or higher should be used for the

Giga hub.

Cable UTP Category 6

Max Distance 100M DC Resistance ≤ 0.188 Ω/m

PoE Support IEEE 802.3af PNM-9080VQ

HPoE Support HPoE PNM-9081VQ

Connecting to the I/O port box

Connect the Alarm I/O cable to the corresponding port of the port box.

Sensor Alarm (Warning lamp)

• ALARM-IN : Used to connect the alarm input sensor or external day/night sensor.

• ALARM-OUT : Used to connect the alarm output signal.

• GND : Common port for alarm in/output signal.

If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open

collector method, it may cause malfunction. Refer to the “Alarm Out Wiring Diagram” when connecting devices that exceed the voltage and current specifications. (page 16)

●● INSTALLATION & CONNECTION

Power Cable Specification

DC 12V input :

Wire Type (AWG) #22 #20 #18

Cable Length (Max.) 24m 38m 60m

English _15

installation & connection

To connect the external sensor

Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the other strand to the [GND] port.

Alarm In Wiring Diagram

External

connection

Sensor

To connect the alarm out

If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.

Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and current specifications.

N.C. (Normal Close) method is not supported.

Alarm Out Wiring Diagram

Inside of the camera

GND

VCC_3.3V

RESISTOR RESISTOR

RESISTORALARM IN (5mA SINK)

TRANSISTOR

MLCC

GND

DIODE

Warning lamp /

Siren power

(-) (+)

Warning lamp /

Siren

External connection Inside of the camera

DC 5V or 3.3V

DIODE

RELAY

16_ installation & connection

RESISTOR 10K ohm

TRANSISTOR

GND

ALARM OUT (12VDC 20mA MAX)

RESISTOR

TRANSISTOR

GND

network connection and setup

You can set up the network settings according to your network configurations.

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

Connecting to the camera from a local PC in the LAN

1. Launch an Internet browser on the local PC.

2. Enter the IP address of the camera in the address bar of the browser.

Camera

INTERNET

Camera

Local PC

A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet

if the port-forwarding is not properly set or a firewall is set. In this case, to resolve the problem, contact your network administrator.

In the IP installer, you can use the initial password, “4321” to set IP Address, Subnet Mask, Gateway, HTTP Port, VNP Port, IP

type. After changing the network interface, for better security, access the web viewer and change the password.

By factory default, the IP address will be assigned from the DHCP server automatically.

If there is no DHCP server available, the IP address will be set to 192.168.1.100. To change the IP address, use the IP Installer. For further details on IP Installer use, refer to “Static IP Setup”. (Page 19)

External Remote PC

DDNS Server (Data Center, KOREA)

CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM

Camera

1. Connect the user PC directly with the network camera.

2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on

your desktop to connect to the Internet.

3. Use the Internet browser to connect to the web viewer.

4. Move to [Setup] page.

5. Move to [Network] – [DDNS] and configure the DDNS settings.

6. Move to [Basic] – [IP & Port], and set the IP type to [DHCP].

7. Connect the camera, which was removed from your PC, directly to the modem.

8. Restart the camera.

For configuring the DDNS settings, refer to “DDNS”. (page 39)

For registering the DDNS settings, refer to “Registering with DDNS”. (page 39)

Refer to “IP & Port” for how to setup IP. (page 32)

DSL/Cable Modem

INTERNET

DDNS Server (Data Center, KOREA)

External Remote PC

●● NETWORK CONNECTION AND SETUP

English _17

network connection and setup

CONNECTING THE CAMERA DIRECTLY TO A PPPoE MODEM

Camera

PPPoE Modem

1. Connect the user PC directly with the network camera.

2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on

your desktop to connect to the Internet.

3. Use the Internet browser to connect to the web viewer.

4. Move to [Setup] page.

5. Move to [Network] – [DDNS] and configure the DDNS settings.

6. Move to [Basic] – [IP & Port] Setup Page, set the IP type to [PPPoE], and enter the network service’s ID

and password.

7. Connect the camera, which was removed from your PC, directly to the modem.

8. Restart the camera.

For configuring the DDNS settings, refer to “DDNS”. (page 39)

For registering the DDNS settings, refer to “Registering with DDNS”. (page 39)

Refer to “IP & Port” for how to setup IP. (page 32)

INTERNET

DDNS Server (Data Center, KOREA)

External Remote PC

CONNECTING THE CAMERA TO A BROADBAND ROUTER WITH THE PPPoE/CABLE MODEM

This is for a small network environment such as homes, SOHO and ordinary shops.

Camera

PPPoE or

Broadband

Cable Modem

Camera

Local PC

Router

Configuring the network settings of the local PC connected to a Broadband Router

Configuring the network settings of the local PC connected to a Broadband Router, follow the instructions below.

• Select : <Network>  <Properties>  <Local Area Connection>  <General>  <Properties>  <Internet Protocol (TCP/IP)>  <Properties>  <Obtain an IP address automatically> or <Use the following IP address>.

• Follow the instructions below if you select <Use the following IP address>: ex1) If the address (LAN IP) of the Broadband Router is 192.168.1.1

IP address : 192.168.1.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.1.1

ex2) If the address (LAN IP) of the Broadband Router is 192.168.0.1

IP address : 192.168.0.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.0.1

ex3) If the address (LAN IP) of the Broadband Router is 192.168.xxx.1

IP address : 192.168.xxx.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.xxx.1

For the address of the Broadband Router, refer to the product’s documentation.

For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.

(Page 21)

INTERNET

PPPoE or

Cable Modem

DDNS Server (Data Center, KOREA)

External Remote PC

18_ network connection and setup

BUTTONS USED IN IP INSTALLER

a b c d e f g

Item Description

Device Name

Alias This function is not currently implemented.

Mode

MAC(Ethernet) Address

IP Address

Protocol

URL

IPv4 Scans for cameras with the IPv4 setting.

Model name of the connected camera. Click the column to sort the list by model name. However, search will be stopped if clicked during the search.

Displays either <Static>, <Dynamic> or <PPPoE> for the current network connection status.

Ethernet address for the connected camera. Click the column to sort the list by Ethernet address. However, search will be stopped if clicked during the search.

IP address. Click the column to sort the list by IP address. However, search will be stopped if clicked during the search.

Network setting for the camera. The factory default is “IPv4”. Cameras with the IPv6 setting will be displayed “IPv6”.

DDNS URL address enabling access from the external Internet. However, this will be replaced with the <IP Address> of the camera if DDNS registration has failed.

h i

j k l m

Item Description

IPv6

Auto Set The IP Installer automatically configures the network settings.

Manual Set You should configure the network settings manually.

Exit Exits the IP Installer program.

For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download

the latest version from the Hanwha Techwin web site.

If the supporting OS is Windows 8.1, it is recommended that you use the Wisenet Device Manager instead of the IP Wisenet.

The Wisenet Device Manager Program can be downloaded by visiting the Hanwha Techwin website (http://www.hanwhasecurity.com) under the menu <Customer Support> - <Technical Guides> - <Online Tool>.

Scans for cameras with the IPv6 setting. Activated in an IPv6 compliant environment only.

Scans for cameras that are currently connected to the network. However, this button will be grayed out if neither IPv4 nor IPv6 is checked.

STATIC IP SETUP

Manual Network Setup

Run <IP Installer_v2.XX.exe> to display the camera search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera’s label. Both the [Auto Set] and [Manual Set] buttons will be activated.

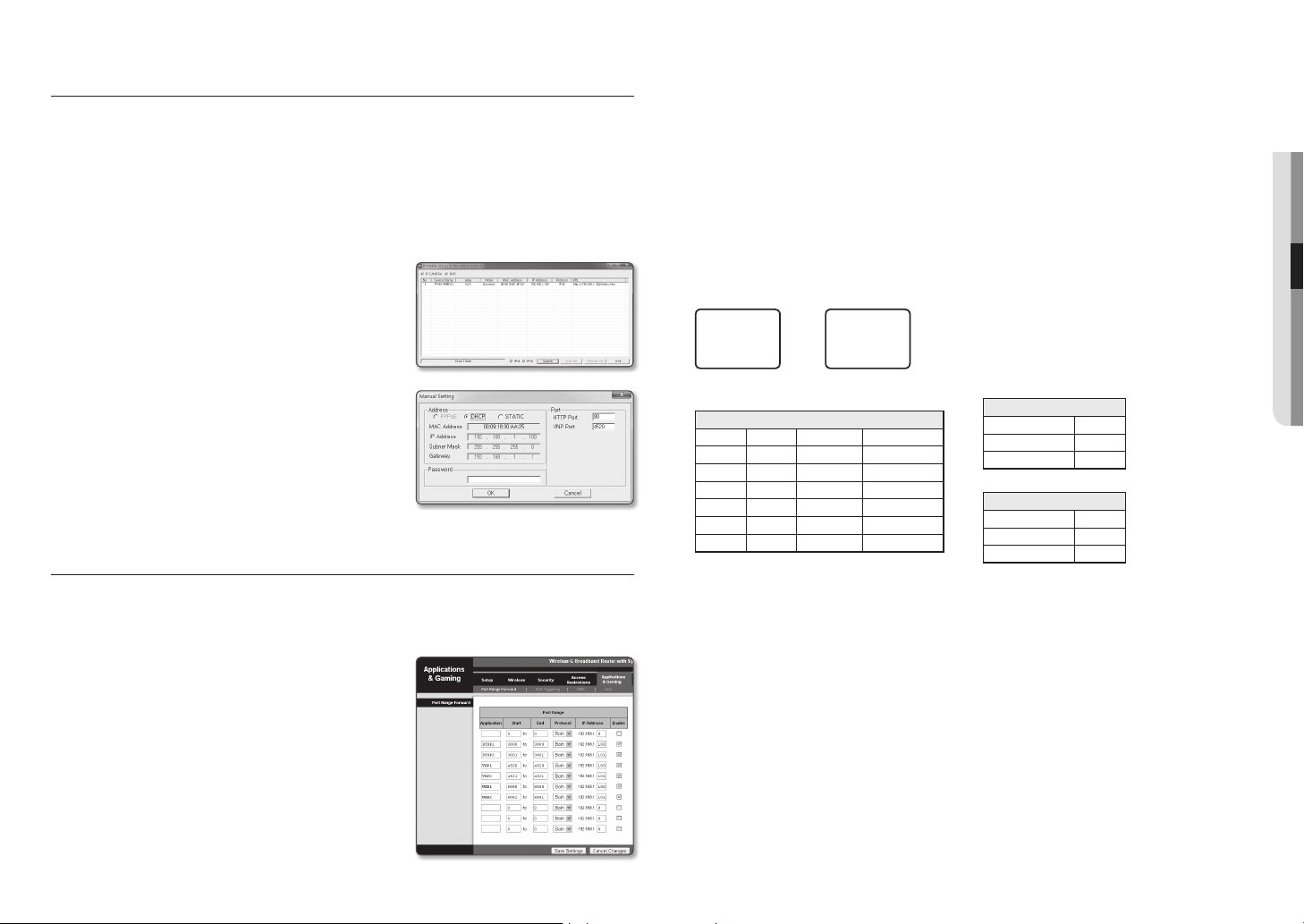

2. Click [Manual Set]. The Manual Setting dialog appears. <IP Address>, <Subnet Mask>, <Gateway>, <HTTP Port>, and <VNP Port> of the camera are displayed in the preset values.

3. In the <Address> pane, provide the necessary information.

• MAC (Ethernet) Address : The MAC address imprinted on the camera label is automatically displayed and requires no user setting.

IP related parameters can be set only when DHCP is not checked.

●● NETWORK CONNECTION AND SETUP

English _19

network connection and setup

If not using a Broadband Router

For setting <IP Address>, <Subnet Mask>, and <Gateway>, contact your network administrator.

4. In the <Port> pane, provide necessary information.

• HTTP Port : Used to access the camera using the Internet browser, defaulted to 80.

• VNP Port : Used to control the video signal transfer, defaulted to 4520.

5. Enter the password. Enter the password of “admin” account, which was used to access the camera.

For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and

special characters for your password.

If you want to change the password, refer to “Administrator password change” of the user setup. (page 31)

6. Click [OK]. Manual network setup will be completed.

If using a Broadband Router

• IP Address : Enter an address falling in the IP range provided by the Broadband Router. ex) 192.168.1.2~254, 192.168.0.2~254,

192.168.XXX.2~254

• Subnet Mask : The <Subnet Mask> of the Broadband Router will be the <Subnet Mask> of the camera.

• Gateway : The <Local IP Address> of the Broadband Router will be the <Gateway> of the camera.

The settings may differ depending on the connected Broadband

Router model. For more information, refer to the user manual of the applicable router.

For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.

(Page 21)

If the Broadband Router has more than one camera connected

Configure the IP related settings and the Port related settings distinctly with each other.

ex)

Category Camera #1 Camera #2

IP related settings

Port related settings

If the <HTTP Port> is set other than 80, you must provide the <Port> number in the address bar of the Internet browser

before you can access the camera. ex) http://IP address : HTTP Port

http://192.168.1.100:8080

IP Address Subnet Mask Gateway

HTTP Port VNP Port

192.168.1.100

255.255.255.0

192.168.1.1

8080 4520

192.168.1.101

255.255.255.0

192.168.1.1

8081 4521

Auto Network Setup

Run <IP Installer_v2.XX.exe> to display the camera search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera’s label. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Auto Set]. The Auto Setting dialog appears. The <IP Address>, <Subnet Mask>, and <Gateway> will be set automatically.

3. Enter the password. Enter the password of “admin” account, which was used to access the camera.

20_ network connection and setup

For the security purposes, you are recommended to use a

combination of numbers, alphabets uppercase and lowercase and special characters for your password.

If you want to change the password, refer to “Administrator

password change” of the user setup. (page 31)

4. Click [OK]. Auto network setup will be completed.

+ 46 hidden pages
