INSTALLATION BOX
User Manual
SBP-300NB
INSTALLATION BOX
User Manual
Copyright
©2014 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
The name of thi s product is the reg istered tradema rk of Samsung Techwin C o., Ltd.
Other trad emarks mention ed in this manual are th e registered trad emark of their resp ective company.
Restriction
Samsung Techwi n Co., Ltd shall reser ve the copyrigh t of this document. U nder no circumst ances, this docu ment shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwi n makes the best to ver ify the integri ty and correct ness of the conten ts in this document , but no
formal guar antee shall be provi ded. Use of this do cument and the subse quent results sha ll be entirely on the u ser’s own
responsib ility. Samsung Techwi n reserves the ri ght to change the con tents of this docum ent without prio r notice.
Design and specifications are subject to change without prior notice.
is the regist ered logo of Samsun g Techwin Co., Ltd.
overview
CONTENTS
OVERVIEW
3
INSTALLATION & CONNECTION
6
APPENDIX
12
4 What’s Included
6 Installation
12 Specification
12 Product Overview
English _3
overview
WHAT’S INCLUDED

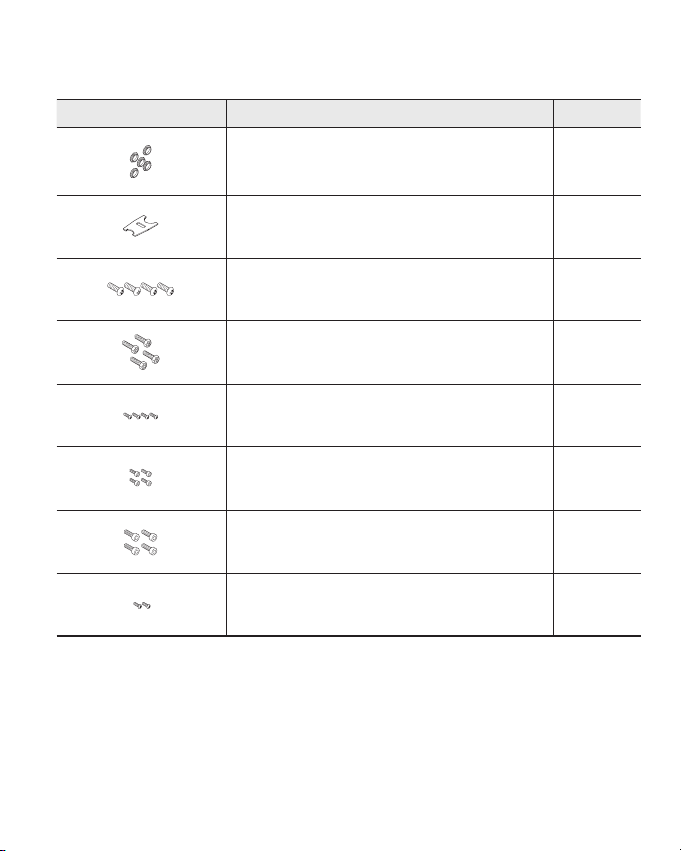

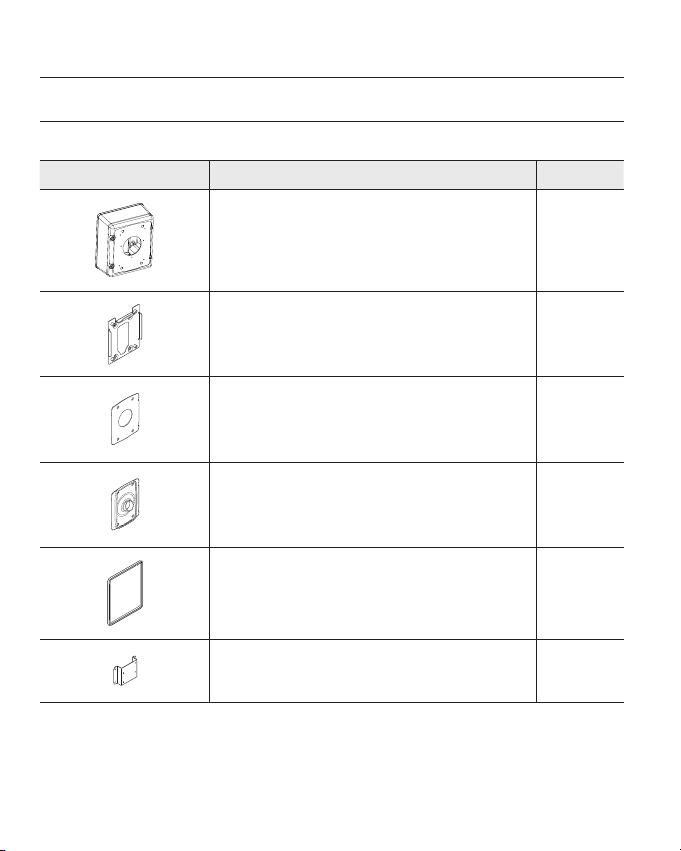

Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity
4_ overview
INSTALLATION BOX
INSTALL BRACKET
Gasket (for SBP-300WM1)
Gasket (for SBP-300WM)
RUBBER HOUSING
BRACKET ADAPTOR
1
1
1
1
1
1
Appearance Item Name Quantity
MOUNT CAP
MOUNT CAP fastener 1
M10 x L22 screw (to attach the install bracket)
M8 x L20 screw (to attach the housing)
M3 x L6 screw
(to attach the bracket adaptor and media convert)
M10 x L12 wrench bolt (to attach SBP-300WM) 4
M10 x L20 wrench bolt (to attach SBP-300WM1) 4
M4 x L8 screw (to attach the media convert) 2
5
4
4
4
English _5
installation & connection
INSTALLATION

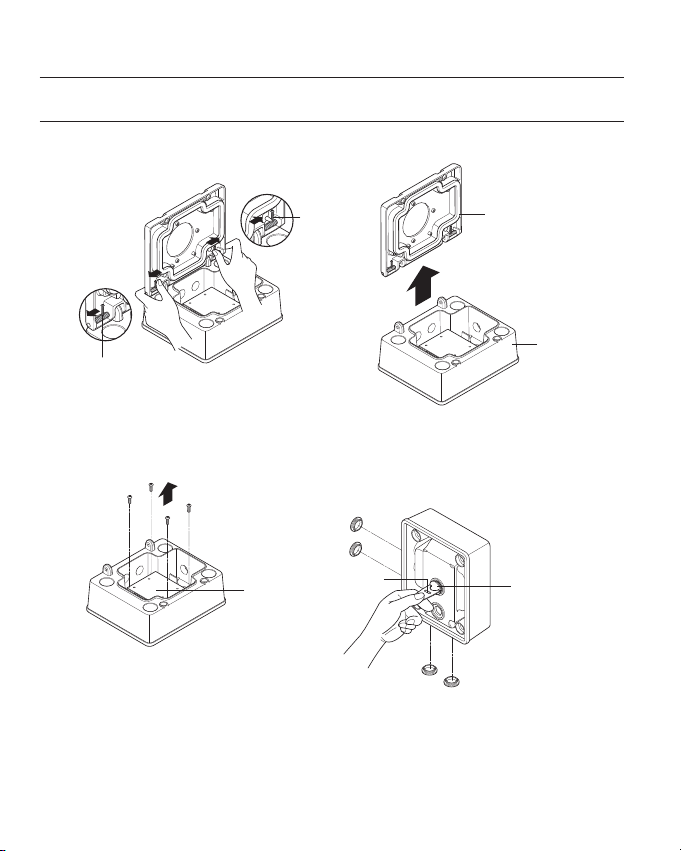

1. Push the locking lever on the door to separate the housing and door.
LOCKING
LEVER
LOCKING LEVER
2. Undo the four screws to separate the bracket adaptor.
Lock the unused piping hole with the attached mount cap.
Use a mount cap fastener to attach the mount cap.
Mount cap
BRACKET
ADAPTOR
fastener
DOOR
HOUSING
Mount cap
6_ installation & connection

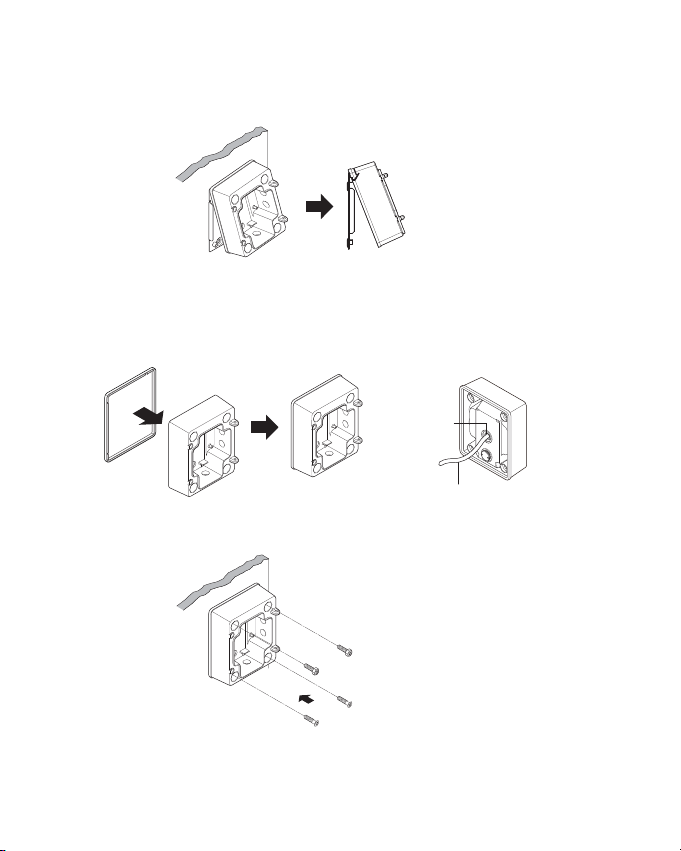

3. Remove the double-sided tap on the rear side of the gasket and affix it to the door.

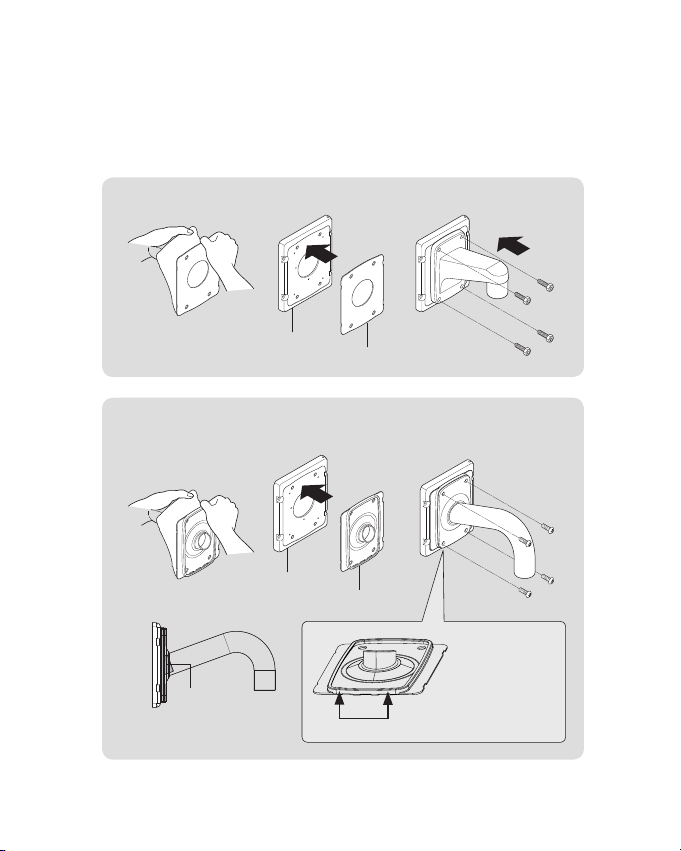

Attach the wall mount to the door using the four M10 screws.
< Tighten each of the four screws a little at a time so that the wall mount is evenly pressed
to the gasket. >
• Use of SBP-300WM1 wall mount (with M10 x L20 screws)
DOOR
• Use of SBP-300WM wall mount (evenly securing the wall mount inside the
gasket groove as shown in the image below.) (with M10 x L12 screws)
DOOR
GASKET
GASKET
GASKET
J
Please assemble
the set in such a
way that the lock tab
faces down into the
slot in the installation
direction.
English _7
installation & connection

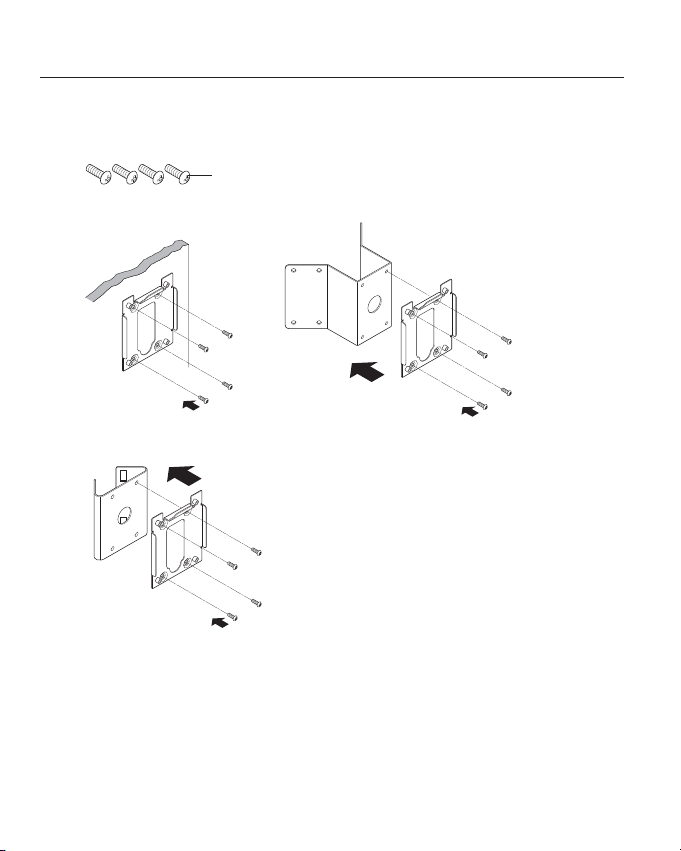

4. Attach the install bracket to the wall, corner mount (SBP-300KM) or pole mount (SBP-300PM)
using the M10 screws.
Only use the 4 screws included in the accessories as shown in the image below.
Screw (circular head, with M10 x L22 screw)
• Installation on the wall
• Pole Mount
• Corner Mount
8_ installation & connection
5. Place the housing on the install bracket as shown in the image.
To install it on the wall, attach the rubber housing as shown in the figure.
`
The rubber is not waterproof. It is decorative only, serving to hide a gap.
Therefore, if the cable is inserted into the main body separately and not through the duct on the wall, the insertion
point of the cable must be completely waterproof.
If this is not done, any water leaks may cause problems.
Waterproofing
needed
Cable
6. Secure the housing to the install bracket using 4 M8 screws in the same ways as "No. 4" in the
installation procedure.
English _9
installation & connection

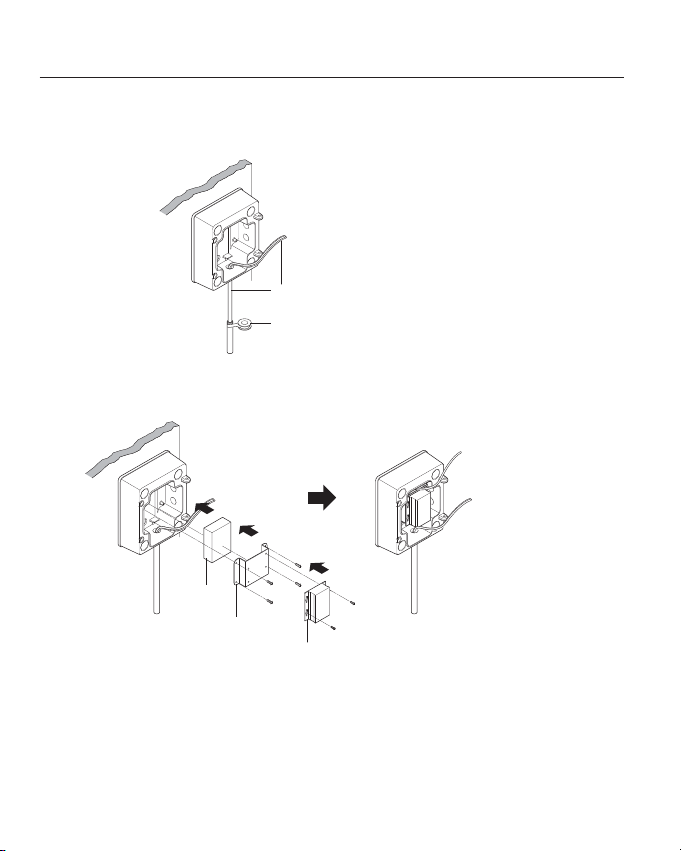

7. Insert the external cable into the main body using a pipe.
Wrap the thread of the pipe screw with Teflon tape to protect against water leakage problems.
(Make sure that water leaks will not cause a problem at the cable insertion point.)
CABLE
Teflon tape
8. Install the power adaptor and media convert using the bracket adaptor, and connect the external
cable.
Power
adaptor
BRACKET ADAPTOR
MEDIA COVERT
10_ installation & connection

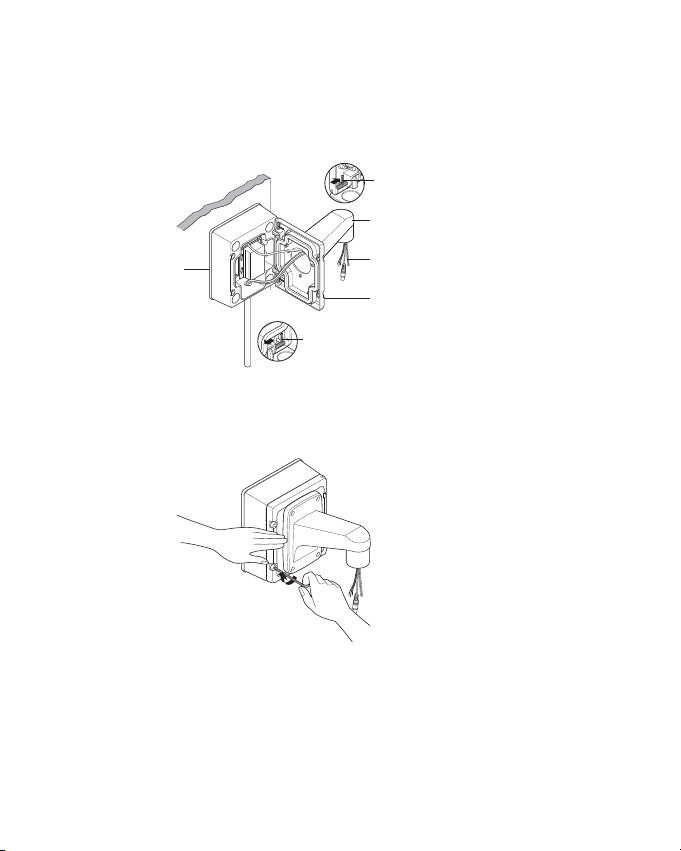

9. Pull the cable out through the door and wall mount and mount the door on the housing.
(Return the locking lever to its original position and check that the hinge is properly attached to the
housing.)
LOCKING LEVER
Wall Mount
HOUSING
LOCKING LEVER
10. Fasten the door to the housing using a hexagonal wrench. (Tighten the screws while pressing the
door with your hand as shown in the image below. Then tighten each of the screws a little at a
time to make sure that the door is tightly pressed to the housing.)
Cable
DOOR
English _11
appendix
SPECIFICATION
Items Description
Dimensions (mm) W185.0 x D221.0 x H94.3 (mm)
Weight 3.4kg
Material STEEL, ALUMINUM, SILICON
Color IVORY

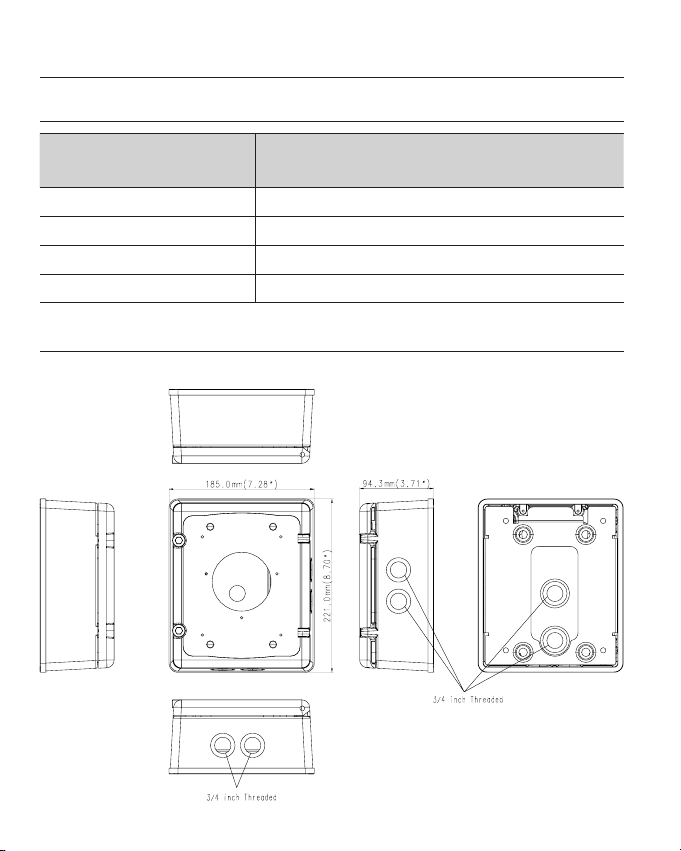

PRODUCT OVERVIEW
Unit : mm (inch)
12_ appendix
