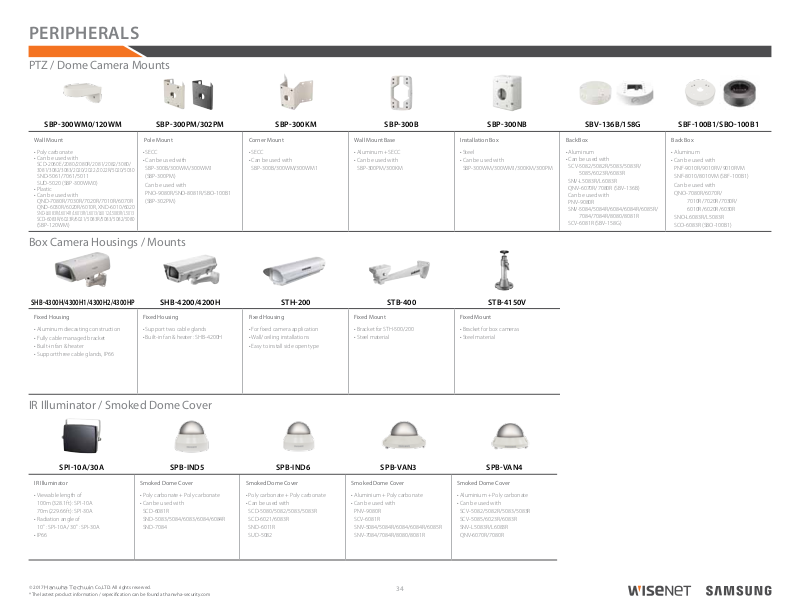

PeRiPHeRaLS
PTZ / Dome Camera Mounts
SBP-300WM0/120WM SBP-300PM/302PM SBP-300KM SBP-300B SBP-300NB SBV-136B/158G SBF-100B1/SBO-100B1
Wall Mount
• Poly carbonate
• Can be used with
SCD-2060E/2080/2080R/2081/2082/3080/
3081/3082/3083/2020/2022/2022R/5020/5030
SND-5061/7061/5011
SUD-5020 (SBP-300WM0)
• Plastic
• Can be used with
QND-7080R/7030R/7020R/7010R/6070R
QND-6030R/6020R/6010R, XND-6010/6020
SND-L6083R/L6014R/L6013R/L6013/L6012/L5083R/L5013
SCD-6083R/6023R/6021/5083R/5083/5082/5080
(SBP-120WM)
Pole Mount
• SECC
• Can be used with
SBP- 300B/300WM/300WM1
(SBP-300PM)
Can be used with
PNO-9080R/SNO-8081R/SBO-100B1
(SBP-302PM)
Box Camera Housings / Mounts
Corner Mount
• SECC
• Can be used with
SBP- 300B/300WM/300WM1
Wall Mount Base
• Aluminum + SECC
• Can be used with
SBP-300PM/300KM
Installation Box
• Steel
• Can be used with
SBP-300WM/300WM1/300KM/300PM
Back Box
• Aluminum
• Can be used with
SCV-5082/5082R/5083/5083R/
5085/6023R/6083R
SNV-L5083R/L6083R
QNV-6070R/7080R (SBV-136B)
Can be used with
PNV-9080R
SNV-5084/5084R/6084/6084R/6085R/
7084/7084R/8080/8081R
SCV-6081R (SBV-158G)
Back Box
• Aluminum
• Can be used with
PNF-9010R/9010RV/9010RVM
SNF-8010/8010VM (SBF-100B1)
Can be used with
QNO-7080R/6070R/
7010R/7020R/7030R/
6010R/6020R/6030R
SNO-L6083R/L5083R
SCO-6083R (SBO-100B1)
SHB-4300H/4300H1/4300H2/4300HP
Fixed Housing
• Aluminum diecasting construction
• Fully cable managed bracket
• Built-in fan & heater
• Support three cable glands, IP66
SHB-4200/4200H STH-200 STB-400 STB-4150V
Fixed Housing
• Support two cable glands
• Built-in fan & heater : SHB-4200H
IR Illuminator / Smoked Dome Cover
SPi-10a/30a SPB-iNd5 SPB-iNd6 SPB-VaN3 SPB-VaN4
IR Illuminator
• Viewable length of
100m (328.1ft) : SPI-10A
70m (229.66ft) : SPI-30A
• Radiation angle of
10˚ : SPI-10A / 30˚ : SPI-30A
• IP66
© 2017 Hanwha Techwin Co.,LTD. All rights reserved.
* The lastest product information / sepecication can be found at hanwha-security.com
Smoked Dome Cover
• Poly carbonate + Poly carbonate
• Can be used with
SCD-6081R
SND-5083/5084/6083/6084/6084R
SND-7084
Fixed Housing
• For fixed camera application
• Wall/ceiling installations
• Easy to install side open type
Smoked Dome Cover
• Poly carbonate + Poly carbonate
• Can be used with
SCD-5080/5082/5083/5083R
SCD-6021/6083R
SND-6011R
SUD-5082
Fixed Mount
• Bracket for STH-500/200
• Steel material
Smoked Dome Cover
• Aluminium + Poly carbonate
• Can be used with
PNV-9080R
SCV-6081R
SNV-5084/5084R/6084/6084R/6085R
SNV-7084/7084R/8080/8081R
34
Fixed Mount
• Bracket for box cameras
• Steel material
Smoked Dome Cover
• Aluminium + Poly carbonate
• Can be used with
SCV-5082/5082R/5083/5083R
SCV-5085/6023R/6083R
SNV-L5083R/L6083R
QNV-6070R/7080R
