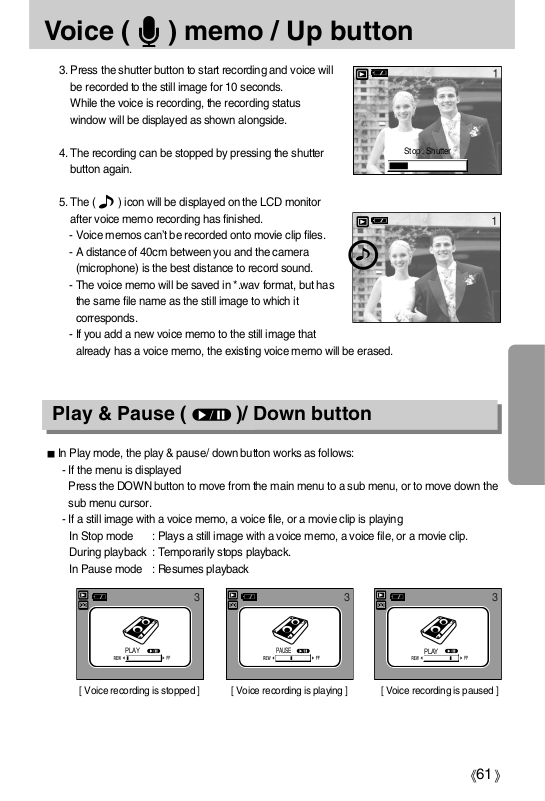

Voice ( ) memo / Up button

3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside.

4. The recording can be stopped by pressing the shutter button again.

5. The ( ) icon will be displayed on the LCD monitor after voice memo recording has finished.

- Voice memos can’t be recorded onto movie clip files.

- A distance of 40cm between you and the camera

(microphone) is the best distance to record sound.

- The voice memo will be saved in *.wav format, but has

the same file name as the still image to which it corresponds.

- If you add a new voice memo to the still image that

already has a voice memo, the existing voice memo will be erased.

Play & Pause ( )/ Down button

In Play mode, the play & pause/ down button works as follows:

- If the menu is displayed Press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor.

- If a still image with a voice memo, a voice file, or a movie clip is playing In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip. During playback : Temporarily stops playback. In Pause mode : Resumes playback

[ Voice recording is stopped ] [ Voice recording is paused ][ Voice recording is playing ]

Stop : Shutter

PLAY

PAUSE

PLAY

3 3

LEFT/ RIGHT/ MENU/ OK button

LEFT / RIGHT/ MENU/ OK buttons activate the following.

- LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor.

- RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move an secondary menu.

- MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- OK button : When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.

The shooting information will be displayed on the LCD monitor.

The last image stored in the memory is displayed on the LCD monitor by pressing the play mode button. Pressing the LCD( ) button in the PLAY mode will change the display as shown below. [Image & Icons] [Image & Information] [Image only]

[ Image & Icons ] [ Image & Information ] [ Image only ]

Pressing the LCD button

Pressing the

LCD button

Pressing the

LCD button

LCD ( ) button

Size :

2592X1944 Av : F2.8 Tv : 1/60

ISO : 100

Flash : Off

Date : 2005/01/01

Album button (M button)

All A1 A2

A3 A4 A5

A6 A7 A8

Select

Slide

Add

Remove

Exit:MENU Move :

 

All A1 A2

A3 A4 A5

A6 A7 A8

Select

Slide

Add

Remove

Exit:MENU

Select

Slide

Add

Remove

Exit:MENU Move :

 

You can organise the captured still images into albums by using the M button.

This camera has 8 albums and each album can take up to 100 images.

How to use the album

Selecting the album

1. In the play mode, press the M button.

2. Select [Select] menu by pressing the Up/Down button and press the Right button.

3. Select a desired album by pressing the Up/Down/Left/Right buttons and press the OK button.

Inserting still images into the album

1. After selecting an album, press the menu button.

2. Select the [Add] menu by pressing the Up/Down button and press the Right button.

Album button (M button)

No Image!

Add

Cancel

Confirm:OK

Remove

Cancel

Confirm:OK

Select

Slide

Add

Remove

Exit:MENU Move :

Select

All Pics

 

3. Select the still images you wish to add by pressing the Up/Down/Left/Right buttons and press the Zoom T button. V marks are displayed on the selected images. * To cancel the selection, press the Zoom T button again.

4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

- [Add] : Inserts the selected images into the album.

- [Cancel] : Cancels the inserting images.

Removing still images from the album

1. Select a desired album and press the menu button.

2. Select [Remove] menu by pressing the Up/Down button and press the Right button.

3. Select a desired sub menu and press the OK button.

- [All] : All of the still images in the album will be

removed.

- [Select] : Specific still images in the album can be

removed.

If [Select] is selected

- Select images that you want to remove by pressing

the Up/Down/Left/Right buttons and press the Zoom T button. V marks are displayed on the selected images.

4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

- [Remove]: Removes the selected images from the

album.

- [Cancel] : Cancels the removing images. * The removed images are not deleted from the

memory, but just removed from the album.

Album button (M button)

If a an image is deleted from the memory, the image doesn’t display on an album. An image can’t be added twice into the same album. An image can be added into the different albums.

INFORMATION

Select

Slide

Add

Remove

Exit:MENU Move :

Select

All Pics

 

Select

Slide

Add

Remove

Exit:MENU Move :

 

Select

Slide

Add

Remove

Exit:MENU Move :

Start

Interval

Repeat

Effect

3 Sec

Off

Cancel

 

Start

Interval

Repeat

Effect

3 Sec

Off

Cancel

Playing back the albums

Playing back all of the albums

1. Select [All] menu and press the OK button. All of the albums will be selected.

2. Press the menu button.

3. Select [Slide] menu by pressing the Up/Down button and press the Right button.

You can select [Start], [Interval], [Repeat] and [Effect] menus.

- [Start] : Start the slide show

- [Interval] : Set the slide show play interval

- [Repeat] : Choose to repeat the slide show after finishing the first cycle.

- [Effect] : Unique screen effects can be used for the slide show.

4. Select [Start] menu by pressing the Up/Down button and press the OK button to start the slide show.

Playing a desired album

1. Select a desired album and press the OK button.

2. Press the menu button.

3. Select [Slide] menu by pressing the Up/Down button and press the Right button.

You can select [Start], [Interval], [Repeat] and [Effect] menu.

4. Select the [Start] menu and press the OK button to start the slide show.

Select:T Set:OK

Delete( ) button

This deletes images stored on the memory card.

Before deleting images from the camera, you should protect or download images to your computer that you wish to keep.

INFORMATION

Deleting Images in Thumbnail Display Mode

1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete, and then press the DELETE ( ) button.

2. The following message will be displayed on the LCD monitor.

3. Select the submenu values by pressing the UP/DOWN button and then press the OK button. If [Delete] is selected : deletes the selected images. If [Cancel] is selected : cancels "Delete Image".

Deleting Images in Play Mode

1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press the DELETE( ) button.

2. A message will display as shown alongside on the LCD monitor.

3. Select the submenu values by pressing the UP/DOWN button and then press the OK button. If [Delete] is selected: deletes the selected images. If [Cancel] is selected: cancels "Delete Image".

Press the

DELETE button.

Delete?

Delete

Cancel

Confirm:OK

Delete?

Delete

Cancel

Confirm:OK

Setting up the play back function using the LCD monitor

PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY button.

Menu tab Main menu Sub menu Secondary menu Page

Slide

p. 56

p. 55

1, 3, 5, 10sec

Off / On

Cancel

Effect 1, 2, 3, 4

Right 90

Left 90

180

Horizontal

Vertical

Start

Interval

Repeat

DPOF

Standard

Index

Size

Select/ All Pics/ Cancel

No/ Yes

Select/ All Pics/ Cancel

Protect

Delete

Effect

Select

All Pics

Select

All Pics

Unlock / Lock

Resize

Rotate

p. 57

2272 x 1704

2048 x 1536

1600 x 1200

1024 x 768

640 x 480

User Image

Setting up the play back function using the LCD monitor

Menu tab Main menu Sub menu Secondary menu Page

Auto

PostCard

4X6

Auto

Full

Auto

Plain


FastPhoto

Auto Set

Custom Set

Images

p. 75

p. 74

Yes

Size

Layout

Type

One Pic

All Pics

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Setting up the play back function using the LCD monitor

Quality

Menu tab Main menu Sub menu Secondary menu Page

Auto

Draft

Normal

Fine

Auto

Off

Auto

Off

Standard

Index

Cancel

Yes

No -

Yes -

Custom Set

p. 76

p. 77

p. 75

File Name

Date

DPOF Print

Reset

Menus are subject to change without prior notice.

Starting the slide show

Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor.

1. Press the play mode button and press the menu button.

2. Press the LEFT/ RIGHT button and select the [Slide] menu tab.

Start the slide show: The slide show can start only in the

[Start] menu.

1. Use the Up/Down buttons to select the [Start] menu.

2. Press the OK button to start the slide show.

- Press the Pause button to pause the slide show.

- Press the Pause button ( ) again to resume the slide show.

- To stop the slide show, press the play & pause button, and then press the LEFT or RIGHT button.

Setting play interval: Set the slide show play interval.

1. Select the [Interval] sub menu by pressing the UP/DOWN button and press the RIGHT button.

2. Use the Up/Down buttons to select the desired interval.

3. Press the OK button to save the configuration.

Repeat setting : setting the slide show to repeat after the first cycle.

1. Use the Up/Down buttons to select the [Repeat] menu and press the Right button.

2. Use the Up/Down buttons to select the desired sub menu. [On] selected : The slide show is repeated until cancelled. [Off] Selected : The slide show is closed after one cycle.

3. Press the OK button to save the configuration.

The loading time depends on the image size and quality. The slide show will start from an image that was displayed on the LCD monitor. The [Power Off] function can’t be activated. While the slide show is playing, only the first frame of a MOVIE file is displayed.

INFORMATION

Slide

Exit: MENU Move :

Start

Interval 1 sec Repeat Off

 

Starting the slide show

Protecting images

Configure slide show effects: Unique screen effects can be used for the slide show.

1. Select the [Effect] sub menu by pressing the UP/ DOWN button and press the RIGHT button.

2. Use the Up/Down Button to select the type of effect.

[Cancel] : Normal display. [Effect 1] : Image is displayed slowly. [Effect 2] : Image is displayed slowly from the centre

outwards. [Effect 3] : Image moves from the top left. [Effect 4] : The image slides diagonally from top left to

bottom right.

3. Press the OK button to confirm the setting.

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

Protecting Images

1. Press the play mode button and press the menu button.

2. Press the LEFT/ RIGHT button and select the [Protect] menu tab.

3. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

[Select ] : Selection window for an image to be

protected/released is displayed.

- Up/Down/Left/Right : Select an image

- Zoom W/T Button : Protect/release the image

- Menu Button : Your changes will be saved and the menu will disappear.

[All Pics] : Protect/release all saved images

- Zoom W/T Button : Protect/release the images

- Menu Button : Your changes will be saved and the menu will disappear.

Back:



Set : OK

Interval Cancel Repeat Effect1

Effect Effect2

Slide

Protect

Exit: MENU Move :

Select

All Pics

 

Set:OK

W Unlock T

Set:OK

Unlock T

Protecting images

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

Deleting images

Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

Deleting images

1. Press the play mode button and press the menu button.

2. Press the LEFT/ RIGHT button and select the [Delete]

menu tab.

3. Select a desired sub menu by pressing the UP/ DOWN

button and press the OK button. [Select ]: Selection window for an image to delete is

displayed.

- Up/Down/Left/Right : Select an image

- Zoom T Button : Select the image for deletion. (V mark)

- OK Button : Press the OK Button to display confirmation message. Select the [Delete] menu and press the OK button to delete V marked images.

[All Pics] : Displays confirmation window. Select the

[Delete] menu and press the OK button to delete all unprotected images. If there aren’t protected images, all the images are deleted and a [No Image!] message will display.

4. After deletion, the screen will be changed to the play mode screen.

Del:OK

Select:T

Del:OK

Delete?

Delete

Cancel

Confirm:OK

Delete

Exit: MENU Move :

Select

All Pics

 

Resize

Change the resolution (size) of pictures taken. Select [[User image]] to save an image to be the start-up image. The resized image will have a new file name.

1. Press the play mode button and press the menu button.

2. Press the LEFT/ RIGHT button and select the [Resize]

menu tab.

3. Select a desired sub menu by pressing the UP/ DOWN

button and press the OK button.

A large sized image can be resized to a smaller sized image, but not vice versa. Only JPEG images can be resized. Movie clip(AVI) and Voice recording(WAV) files can’t be resized. You can change the resolution of only those files compressed in the JPEG 4:2:2 format. The resized image will have a new file name. The [User Image] image is stored not on the memory card but on the internal memory. Only two [User Image] images can be saved. If you save a new [User Image] image, the existing startup image will be deleted in order. If the memory capacity is insufficient to store the resized image, a [Card Full!] message will display on the LCD monitor and the resized image will not be stored.

INFORMATION

Resize

2272X1704 2048X1536 1600X1200

1024X768

640X480

User image

2592 O O O O O O

2272 X O O O O O

2048 X X O O O O

1600 X X X O O O

1024 X X X X O O

640 X X X X X O

Image Resize Types

Exit: MENU Move :

2272X1704 2048X1536 1600X1200

Resize

 

+ 30 hidden pages
