Hanwha Techwin DIGIMAXU CA3 User Manual

Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax U-CA 3, including taking images, downloading images and using the MGI PhotoSuite III SE software. Please read this manual before using your new camera.

ENGLISH

Instructions

Use this camera in the following order

Insert the

USB cable

Set up the

camera driver

Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in the Application S/W CD-ROM.(p.98)

Take a picture (p.27)

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal.(p.82)

Check the camera’s power

If the power is turned off, press the camera button to power it on.(p.30)

Take a picture

Check the

camera’s power

Check

[Removable Disk]

Open Window s EXPLORER and search for [Removable Disk].(p.85)

To play back a video shot with this camera, be sure to use the QuickTime player supplied on the software CD-ROM. Applications that do not support the MPEG-4 codec (e.g., Windows Media Player) may not be able to play back the video.

READY

RECORDING

PLAY / SETUP

•Getting to know your camera ------------ 5

•About the icons ------------------------------ 5

•Danger ---------------------------------------- 6

•Warning --------------------------------------- 6

•Caution ---------------------------------------- 7

•An FCC warning ----------------------------- 7

•This digital camera can be used for -----8

•Manufacturer's contents ----------------- 10

•Identification of features ------------------11

•Front & Top --------------------------------- 11

•Back & Bottom ----------------------------- 11

•Side/ 5-function button ------------------- 12

•Mode switch -------------------------------- 12

•Lamp ------------------------------------------ 13

•Connecting to a Power Source -------- 13

•Using the AC power adapter (3.3V 2.0A) ---------------------------------- 14

•Using the batteries -------------------------15

•Removing the battery --------------------- 15

•Using the Digimax battery pack  (Optional : SBP-3603, 3.3V) ------------- 15

•Precautions on Using the Memory Stick Duo ------------------------------------- 16

•Inserting the memory card --------------- 18

•Removing the memory card ------------- 18

•When Using the Camera for the First Time ------------------------------------- 19

•LCD monitor indicator --------------------- 20

•Starting the recording mode ------------- 21

•Things to watch out for when taking pictures ---------------------------------------23

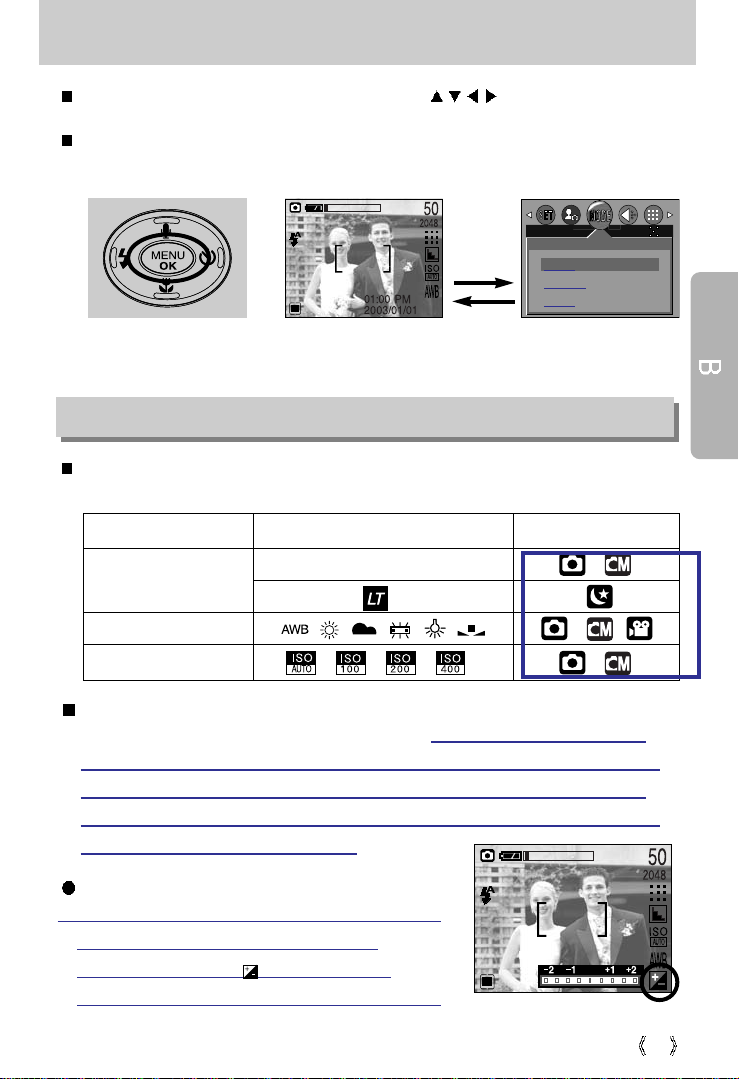

•Using the camera buttons to adjust  the camera ---------------------------------- 24

•POWER button ----------------------------- 24

•SHUTTER button -------------------------- 24

•WIDE / TELE button ---------------------- 24

•Voice memo/UP button ------------------ 26

•Macro/Down button (Focusing) -------- 27

•Fixed focus --------------------------------- 28

•FLASH/LEFT button --------------------- 28 

•Self-timer/Right button ------------------ 30 

•MENU/ OK button ---------------------- 31

•+/- button --------------------------------- 31

•LCD button ------------------------------- 35

•Using the LCD monitor to adjust  the camera ------------------------------- 36

•How to use the menu ------------------ 37

•Mode --------------------------------------- 38

•Size ----------------------------------------- 38

•Quality ------------------------------------- 39

•Metering ----------------------------------- 40

•Effect --------------------------------------- 40

•Sharpness --------------------------------- 41

•Starting play mode ---------------------- 42

•LCD monitor indicator ------------------ 44

•Using the camera buttons to  adjust the camera ----------------------- 45

•Thumbnail/Enlargement button ------ 46

•Voice memo / Up button ---------------- 47

•Play & Pause/Down button ------------ 47

•LEFT/RIGHT/ MENU/ OK button ---- 48

•LCD button -------------------------------- 48

•Delete button ------------------------------ 49

•Setting up the play back function using the LCD monitor ------------------ 50

•Deleting all images ---------------------- 52

•Protecting images ----------------------- 53

•Starting the slide show ----------------- 53

•Resize -------------------------------------- 54

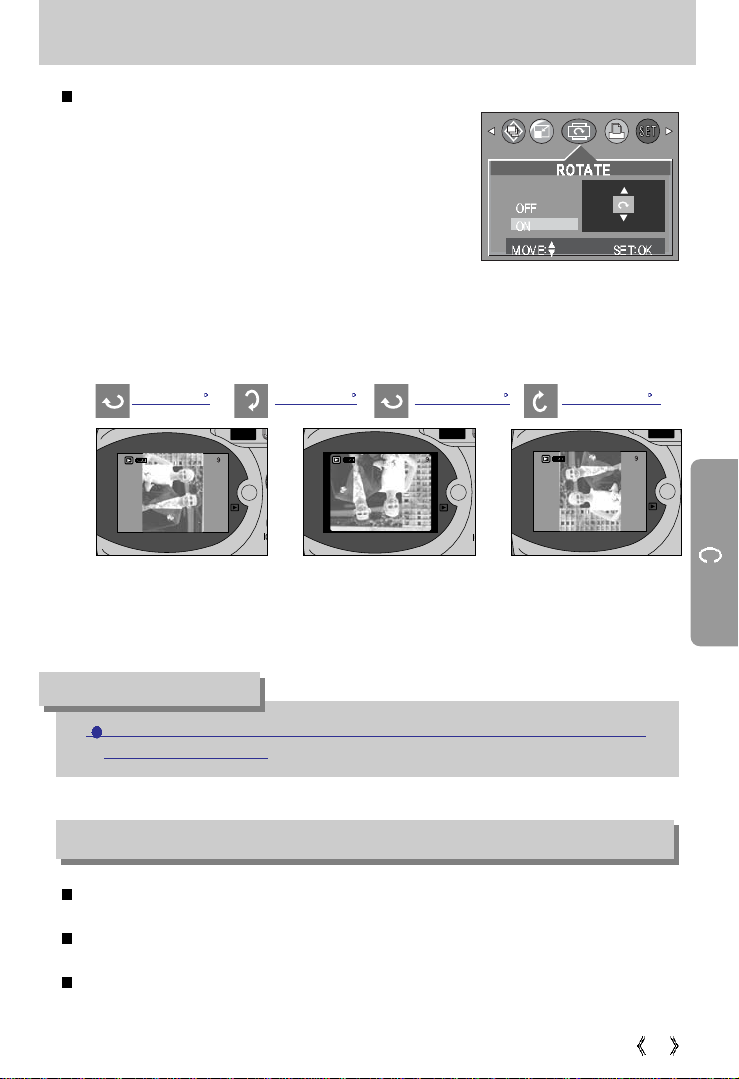

•Rotating an image ----------------------- 55

•DPOF : PRINT ORDER ---------------- 55

•DPOF : STANDARD -------------------- 56

•DPOF : INDEX --------------------------- 56

•DPOF : PRINT SIZE -------------------- 57

•DPOF : CANCEL ------------------------ 57

•PictBridge ---------------------------------- 58

•PictBridge: Picture Selection ---------- 59

•PictBridge: Print Setting ---------------- 60

•PictBridge: Picture Printing ------------ 61

•PictBridge : DPOF AUTO PRINT ---- 62

•PictBridge : RESET --------------------- 62

•Setup menu ------------------------------- 63

•File name ---------------------------------- 65

•Auto power off ---------------------------- 65  

Contents

SOFTWARE

•Language ------------------------------------- 66

•Formatting a memory card --------------- 66

•Setting up the Date/Time/Date type --- 67

•Imprinting the recording date ------------ 67

•Function lamp ------------------------------- 68

•Sound ----------------------------------------- 69

•LCD brightness ----------------------------- 69

•Selecting Video out type ----------------- 70

•Quick view ----------------------------------- 71

•Connecting an External Device(USB)- 72

•Initialization(RESET ALL) ---------------- 72

•Setting up the MYCAM menu ----------- 73

•Avatar ----------------------------------------- 73

•Start up image ------------------------------ 74

•Start up sound ------------------------------ 75

•Shutter sound ------------------------------- 75

•List of camera functions ------------------ 76

•Starting PC mode -------------------------- 82

•Important notes ----------------------------- 85

•Warning indicator -------------------------- 86

•Before contacting a service center ---- 87

•Specifications ------------------------------- 90

•Software Notes ---------------------------- 92 

•About the software ------------------------ 92 

•Setting up the application software --- 94

•Removing the USB Driver for  Windows 98SE --------------------------- 102

•Removable Disk -------------------------- 103

•Removing the removable disk --------- 104

•Setting up the USB Driver for MAC -- 105

•Using the USB Driver for MAC -------- 105

•Digimax Viewer 2.1 ----------------------- 106

•MGI PhotoSuite III SE ------------------- 107

•Get -------------------------------------------- 109

•Prepare -------------------------------------- 111

•Compose ------------------------------------ 112

•Organize ------------------------------------- 113

•Share ----------------------------------------- 116

•Print ------------------------------------------- 116

•FAQ ------------------------------------------- 117

Thank you for buying a Samsung Digital Camera.

Prior to using this camera, please read the user manual thoroughly. When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as Batteries, Memory card etc.) to the A/S center. Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. Keep the manual in a safe place. Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. Apple, Mac and QuickTime logo are registered trademarks of Apple computer. Memory Stick Duo is a registered trademark of Sony Corporation. All brand and product names appearing in this manual are registered trademarks of their respective companies.

Getting to know your camera

This manual contains instructions on using this camera that will help you to use this camera safely and correctly. This will help prevent danger and injury to others.

About the icons

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a minor or moderate injury.

Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service Center. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source (batteries or AC Power Adapter). You must contact your dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a fire or electric shock. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock.

Danger

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes, may cause eyesight damage. When taking photographs, never point the lens of the camera directly into very strong light. This may result in permanent damage to your eyesight. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

Swallowing batteries or small camera accessories. If an accident should occur, please consult a doctor immediately.

There is the possibility of injury from the camera’s moving parts. Batteries and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not recharge non rechargeable batteries. This may cause an explosion. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera s internal components and could cause a fire. When in use, do not cover the camera or AC Power Adapter. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Warning

Leaking, overheating, or burst batteries could result in fire or injury.

Use batteries with the correct specification for the camera.

Do not short circuit, heat or dispose of batteries in fire.

Do not insert the batteries with the reverse polarities. Remove the batteries when not planning to use the camera for a long period of time. Batteries may leak corrosive electrolyte and irreparably damage the camera's components. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Do not move the camera while it is switched on, if you are using the AC Power Adapter. After use, always switch off the camera before unplugging the adapter from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock.

Caution

An FCC warning

This device has been tested in accordance with the limits of a class B digital device under

item 15 of the FCC rules. These limits are designed to provide protection against harmful

interference in commercial installation. This equipment generates, absorbs and can emit

radio frequency energy. If it is not installed and used in accordance with the instructions, it

may cause harmful interference to radio communication. There is however, no guarantee

that interference will not occur in some situations. Should any interference occur when this

device is in operation, please try one or more of the following measures.

Change the location and direction of any aerial. Increase distance between the camera and the affected device. Use a different socket away from the affected device. Please contact a Samsung agent or a radio/TV engineer.

This device complies with part 15 of the FCC Rules.

CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void user's authority to operate the equipment.

This digital camera can be used for

Printing images using a dedicated printer, DPOF and PictBridge compatible printer or a DPOF-equipped photo lab. (refer to page 63)

Down loading image files from camera to computer. (refer to page

83)

Editing images on a PC. (refer to page 111)

Viewing images on a TV. (refer to page 79)

Taking a picture. (refer to page 25~50)

This digital camera can be used for

Inserting images directly into any electronic document.

Taking a self-portrait and using the image to personalize name cards.

You can even create your own unique gift wrap paper by using your digital images.

Creation of a digital photo album.

Recording your voice.

(refer to page 36/58)

Recording a movie clip

(refer to page 27)

Manufacturer's contents

Please check that you have the correct contents before using this product.

marked contents are optional.

Digital Camera USB cableAV cablePouch

Camera strap

Software CD DigiStudioProduct warrantyUser manual

Duracell CP-1

battery

AC adapter (3.3V)

Battery pack

(SBP-3603)

Memory Stick Duo/

adapter/ Case

Battery charger User manualCigar jack for a carRechargeable battery

Digimax Battery Pack : SLB-1037 KIT

Identification of features

Front & Top

Back & Bottom

Mode switch

Viewfinder

Auto Focus lamp

Microphone Strap eyelet

Speaker

Lens

Power button

Flash

Shutter button

Function lamp

LCD

monitor

Viewfinder

Camera status lamp

WIDE/THUMBNAIL button

TELE/Digital zoom button

+&-/ DELETE button

USB/ AV connection terminal

DC input connection point

Tripod socket

LCD button

PLAY mode

button

Identification of features

Voice recording mode

A movie clip can be recorded for as long as the available recording time of the memory capacity allows. Image size and type are listed below.

- Image size : 320X240,160X120

- Movie clip file type : *.mov (MPEG4)

A voice recording can be recorded for as long as the available recording time of the memory capacity allows. (Max: 1 hour)

- File type : *.wav(G. 711)

Movie clip mode

You can select the desired working mode by using the mode switch located on the top of the camera. This digital camera has 3 recording modes. These are listed below.

FLASH/

LEFT

button

MENU/ OK button

MACRO/PLAY&PAUSE/

DOWN button

SELF-TIMER/ RIGHT button

Voice memo/ UP button

Side/ 5-function button

Mode switch

Battery chamber

Battery holder

Memory card slot

Battery chamber cover

Identification of features

Still image mode

There are two ways in which to provide the camera with power. You can use batteries or alternatively, you can use an AC(100 ~ 250V) Adapter (DC 3.3V 2.0A). We recommend using batteries for a digital camera.(use batteries that are within a year of their date of manufacture) The batteries are listed below.

Non rechargeable batteries : Duracell CP-1 battery Rechargeable batteries : Digimax power pack (SLB-1037) Battery pack : Digimax Battery Pack (SBP-3603)

Lamp

Connecting to a Power Source

You can select from Auto, Manual, or Night mode. In Myset mode, any changes made to settings other than Self-Timer and Voice Recording will be maintained even after the camera is turned off.

Type Operation Lamp Camera Status Lamp LCD Monitor

When turning on the

power

7 color lights blink and then turns off when

the camera is ready to take a picture

Blinks orange once

When the camera is in focus (when the

SHUTTER button is pressed halfway)

Green lamp lights up

Autofocus mark

lights up green

When the camera is out of focus (when the

SHUTTER button is pressed halfway)

Green lamp blinks

Autofocus mark

lights up red

While the flash is charging

Red lamp blinks

While saving an image

X Green lamp blinks X

While shooting a video

Purple lamp blinks at a 1-second interval

X White

During voice recording

Blue lamp blinks at a 1-second interval

While the camera is connected to a PC

Green lamp lights up

While transferring data between the camera and a PC

X Green lamp blinks X

When shooting an image

Green lamp blinks once for 0.3 second

Flash is ready (when the SHUTTER

button is pressed halfway)

Red lamp lights up X

While the self-timer is

running

Red lamp blinks for 7 seconds at a 1-second interval/blinks

for 3 seconds at a 0.25 second interval

When the LCD monitor is

turned off in Still Image mode

Green lamp lights up XX

Connecting to a Power Source

Important information about battery usage

Do not recharge the non rechargeable batteries. This may cause an explosion. Please remove the batteries if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera. Low temperatures (below 0 ) can affect the performance of the batteries and you may experience reduced battery life. Batteries will usually recover at normal temperatures. During extended use of the camera, the camera body may become warm. This is perfectly normal. If you are planning to use this camera for long periods of time, it is advisable to use an AC adapter (3.3V 2.0A).

Always turn off the power before taking the AC adapter out of the mains supply. As with all mains powered devices, safety is important. Ensure that neither the camera nor adapter comes into contact with water or metallic materials. Please ensure that you use an AC adapter (3.3V 2.0A) with the correct specification for the camera. Failure to do so may affect your warranty.

INFORMATION

DANGER

If you have access to a mains supply, using an AC Adapter (3.3V 2.0A) allows the camera to be used for long periods of time. Plug the adapter into the connection point (DC IN

3.3V) on the camera. Remove the batteries from the camera when using an AC adapter.

Using the AC power adapter (3.3V 2.0A)

Connecting to a Power Source

Using the batteries

If the camera does not turn on after you have inserted batteries, please check whether the batteries are inserted with the polarity(+ and-).

The Digimax Battery Pack is a rechargeable external Li-ion battery for use with most digital cameras. These optional battery packs provide long lasting power and their operating performances are much improved over Ni-MH and Alkaline batteries. This is due to the mass storage lithium ion cell. Refer to the illustrations

Using the Digimax battery pack ( Optional : SBP-3603, 3.3V)

Battery status

Battery indicator

The batteries are fully

charged.

Prepare new batteries.

There is no battery

capacity. Replace with

new batteries.

There are 3 indicators for battery condition that are displayed on the LCD monitor.

Removing the battery

1. Turn off the camera power. Open the battery chamber cover and move the battery holder aside. The battery will be released.

2. Take out the battery and close the battery chamber cover.

1. Open the battery chamber cover by pushing in the direction of the arrow.

2. Insert the batteries according to the polarity marks (+ and -) on the back of the battery chamber cover.

3. To close the battery chamber cover, push it until it clicks.

Precautions on Using the Memory Stick Duo

Do not insert the Memory Stick Duo on its own into a Memory Stick-compatible device. Do not insert the Memory Stick Duo adapter into a Memory Stick-compatible device without attaching the Memory Card Duo to the adapter. Using it without the Memory Stick Duo may adversely affect the device into which it is inserted. Be sure to check the proper direction of insertion before use . Insert the Memory Stick Duo all the way into the Memory Stick Duo adapter. If the Memory Stick Duo is not inserted correctly into the adapter, it may not operate properly. Do not attach labels to any part of the Memory Stick Duo and Memory Stick Duo adapter. The labels may come off as you insert the Memory Stick Duo into the adapter or into a Memory Stick-compatible device. When inserting the Memory Stick Duo into the slot, do not force or bend it. Do not touch the Memory Stick Duo adapter's card pins with your fingers or with metal objects. Do not allow dirt or foreign material to get into the Memory Stick Duo adapter slot. Do not leave the Memory Stick Duo with its adapter in areas subject to high temperatures. Those models with the write-protect switch on the back of the card prevents accidental erasure of data from deletion or formatting. By sliding the switch to the top of the memory card, the data will be protected. By sliding the switch to the bottom of the memory card, the data protection ability will be canceled. Please use a pointed object to move the write-protect switch. Check the switch position before taking an image.

Card pins(A)

Write

protect

switch(B)

Label(C)

[ Memory Stick Duo ]

Front

Back

This camera operates only with a Memory Stick Duo. Some models of Memory Stick Duo media do not have the write-protect switch (B).

Do not touch the card pins (part A) with your fingers or with metal objects. Do not press hard when writing on the label (part C). If you insert the Memory Stick Duo into the Memory Stick Duo adapter, you will be able to use it with a Memory Stickcompatible device.

Precautions on Using the Memory Stick Duo

Maintenance of the Memory Stick Duo(Hereafter the Memory Stick Duo is referred to as the "Memory Card".)

Turn off the camera power whenever the memory card is being inserted or removed. Repeated use of the memory card will eventually reduce the memory card's performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty. The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact. Do not store the memory card in an environment with strong electronic or magnetic fields, e.g. near loud speakers or TV receivers. Please do not use or store in an environment where there are extremes in temperature. Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth. Please keep the memory card in its case when not in use. During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal. Do not use a memory card that has been used in another digital camera or memory card reader. Do not use a memory card formatted by another digital camera or memory card reader.

Preserving the memory card data

Do not remove the memory card while the camera status lamp (green) is blinking.

Doing so will corrupt the data on the memory card. Samsung cannot be held responsible for lost data. It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard disks, CD etc. If there are no shots remaining When you press the shutter button, a [CARD FULL !] message is displayed and the camera will not operate. To optimize the amount of memory in the camera, replace the memory card or delete unnecessary images stored in the memory.

Inserting the memory card

1. Turn off the camera’s power and pull the memory card cover in the direction of the arrow to open.

2. Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor), and then push the memory card into the card slot until you hear a click.

3. To close, push the card cover until you hear a click. If the memory card does not slide in smoothly, do not attempt to insert it by force. Check the direction of insertion, and then insert it correctly.

1. Turn the power off using the power button. Open the battery chamber cover and press the memory card as shown in the image and release.

2. Remove the memory card and close the memory card cover.

Do not insert the memory card the wrong way round . Doing so may damage the memory card slot.

INFORMATION

Removing the memory card

When Using the Camera for the First Time

If the camera is turned on for the first time, a menu will be displayed to set date, time and language in the LCD monitor. This menu will not be displayed after setting up the date, time and language. Set up the date, time and language before using this camera.

Setting up the date, time and date type

1. Select the [DATE.TIME] menu by pressing the UP/DOWN button and press the RIGHT button.

2. Select the desired sub menu by pressing the UP/ DOWN/ LEFT/ RIGHT button.

RIGHT button : selects YEAR/ MONTH/ DAY/ HOUR /

MINUTE/DATE TYPE

LEFT button : Moves the cursor to the [DATE/TIME]

main menu if the cursor is at the first item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position.

UP/ DOWN button : changes the value of each item.

Date setting range : 2003/01/01 ~ 2050/12/31

(Leap years and months are corrected automatically)

You will need to check and select the correct Date / Time when the batteries have been

removed for a period longer than 1 hour.

INFORMATION

You can select 16 languages. These are listed below.English, Korean, T. Chinese, S. Chinese, Japanese, Russian, Germany, Spanish, French, Italian, Danish, Dutch, Swedish, Finnish, Portuguese, Thai. Even if the camera is restarted, the language setting will be maintained.

INFORMATION

Setting up the language

1. Select the [LANGUAGE] menu by pressing the UP/DOWN button and press the RIGHT button.

2. Select the desired sub menu by pressing the UP/ DOWN button and press the OK button. ,

2 .

LCD monitor indicator

The LCD monitor displays information about the shooting functions and selections.

[ Image & Full Status ]

No. Description Icons Page

Battery

p.20

Recording mode

p.18

Camera shake warning

p.29

Flash

p.38

Self-timer

p.40

Voice memo

p.33

Macro

p.49

Metering

p.37

Auto focus frame

p.36

Time

01:00 PM p.74~76

Date

2003/01/01 p.74~76

Exposure compensation

White Balance

p.43

LCD monitor indicator

Starting the recording mode

Recording a Movie clip

1. Insert the batteries (p.16). Insert the batteries taking note of the polarity (+ / -).

2. Insert the memory card (p.22).

3. Close the memory card cover.

4. Press the power button to turn on the camera.

5. Select the MOVIE CLIP( ) mode by sliding the mode switch.

6. Point the camera towards the subject and compose the image by using either the viewfinder or LCD monitor.

7. Press the shutter button to take a movie clip. Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again. Image size and type are listed below.

- Image size : 320X240, 160X120(Selectable)

- File type : *.mov (MPEG4)

The available recording time may vary depending on shooting conditions and camera settings.

INFORMATION

14 ISO p.46 15

Sharpness

p.46

Image quality

p.42

Image size

2048, 2048P, 1600, 1024, 640

Number of available shots remaining

Remaining time( Movie clip/ Voice recording)

00:05:00 p.34~35

Digital Zoom rate

X3.0 p.34~35

Optical zoom

[ MOVIE CLIP mode ]

Starting recording mode

Recording a still image Steps from 1-4 are the same as those for recording a movie clip.

5. Select the STILL IMAGE( ) mode by sliding the mode switch.

6. Point the camera towards the subject and compose the image by using either the viewfinder or LCD monitor.

7. Press the shutter button to capture an image.

A [DELETE?] message may be displayed after taking a picture. Refer to p.93 for more information about this [DEL. ANSWER].

Recording Voice Steps from 1-4 are the same as those for recording a movie clip.

5. Select the VOICE RECORDING( ) mode by sliding the mode switch.

6. Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for

as long as the available recording time allows. The recording time will be displayed on the LCD monitor.

- Voice will still be recorded if the shutter button is

released.

- If you wish to stop recording, press the shutter button

again.

- File type : *.wav

A distance of 40cm between you and the camera (microphone) is the best distance to record sound.

INFORMATION

Manner mode: Pressing the power button for more than 2 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON. To turn

on the startup sound and operation sound, set the startup sound (MyCAM mode) and operation sound (Setup mode) to a submenu other than [OFF].

INFORMATION

[ STILL IMAGE mode ]

[ VOICE RECORDING mode ]

Things to watch out for when taking pictures

If the camera is in focus, when you press the SHUTTER button halfway, the camera status lamp (green) will light up and the LCD monitor's autofocus mark will turn green. If the camera is out of focus, when you press the SHUTTER button halfway, the camera status lamp (green) will blink and the LCD monitor's autofocus mark will turn red. If the camera status lamp (orange) lights up when you press the SHUTTER button halfway, the camera is in focus and you can use the flash also. The camera status lamp (red) blinks while the flash is charging. The camera status lamp (green) blinks while saving a picture to the memory card and turns off when saving is finished.

When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera shake warning indicator ( ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change the flash mode to flash shot mode. Backlight compensated shots : When taking an outdoor shot, avoid facing the sun, as the image may be dark because of the strong backlight. In backlight conditions, please use exposure compensation. (refer to page 51). Avoid obstructing the lens or the flash when you capture an image. As there can be some differences between what is seen through the Viewfinder and the resulting image when taken at a range closer than 1.5m, it is recommended that you use the LCD monitor to compose these shots. Using the LCD monitor extensively will drain the batteries. We recommend turning off the LCD monitor and using the optical viewfinder as often as possible in order to extend battery life. Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reflective or shiny.

- If the subject is moving at high speed.

- When there is strong reflected light, or when the background is very bright.

- When the subject matter has only horizontal lines or the subject is very narrow (such as a stick or flagpole).

- When the surroundings are dark

- If the subject is the same colour as the background

INFORMATION

Using the camera buttons to adjust the camera

The RECORDING(STILL IMAGE, VOICE RECORDING, MOVIE CLIP) mode function can be set up by using the camera buttons.

Used for turning the camera’s power on / off. If there is no operation during the specified time, the camera’s power will be turned off automatically to save battery life. Pressing the power button for over 2 seconds will deactivate the buzzer sound function.

POWER button

Used for taking an image or recording voice in the RECORDING (STILL IMAGE, VOICE RECORDING, MOVIE CLIP) mode. In MOVIE CLIP mode : Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again. In STILL IMAGE mode Pressing the shutter button down halfway activates the autofocus and checks the condition of the flash. Pressing the shutter down fully takes the image and stores the relevant data regarding the shot. If you select voice memo recording, the recording will start after the camera has finished storing the image data.

SHUTTER button

If the menu is displayed in Still Image mode, pressing the WIDE(W)/TELE(T) button will skip 5 menu tabs at a time. If the menu is not displayed, this button works as the OPTICAL ZOOM or DIGITAL ZOOM button. This camera has a 3X optical zoom and a 3X digital zoom function. Using both will offer a total zoom ratio of 9X. When you press the zoom (W/T) button, the zoom bar will display in the upper center part of the LCD monitor.

WIDE / TELE button

TELE Zoom

Optical zoom TELE : Pressing the zoom button T. This will zoom into the subject i.e. the

subject will appear nearer.

Digital zoom TELE : When the maximum (3X) optical zoom is selected, pressing the zoom

button T activates the digital zoom software. Releasing zoom button T stops the digital zooming at the required setting. Once the maximum digital zoom (3X) is achieved, pressing the zoom button T will have no effect. You can check the digital zoom rate with the [X1.5 ~ X 3.0] numerical mark next to the zoom bar.

[ WIDE zoom ] [ TELE zoom ] [ Digital zoom 2.0X ]

Pressing the TELE button

WIDE Zoom

Optical zoom WIDE : Pressing the zoom button W. This will zoom out from the subject

i.e. the subject will appear further away. Pressing the W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the camera.

Digital zoom WIDE : When the digital zoom is in operation, pressing the zoom button

W will reduce the digital zooming in steps. Releasing zoom button W stops digital zooming. Pressing the W button will reduce the digital zoom and then it will continue to reduce the optical zoom until the minimum setting is reached.

[ TELE zoom ] [ Optical zoom 2X ] [ WIDE zoom ]

Pressing the WIDE button

[ Digital zoom 3.0X ] [ Digital zoom 2.0X ] [ Optical zoom 3X ]

Pressing the WIDE button

Optical zoom

Digital zoom

WIDE / TELE button

To use the digital zoom the LCD monitor has to be turned on. Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place. The digital zoom cannot be used in movie clip shots. You may notice a decrease in image quality when using the digital zoom. When the maximum(3X) optical zoom is selected, pressing the zoom button T increases the digital zoom ratio by 0.5 steps. If the movie clip is being recorded, the zoom operation cannot be activated. Take care not to touch the lens to avoid taking an unclear image and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position. Take care not to press the lens as this may cause a camera malfunction. When the camera is turned on, take care not to touch the camera s moving lens parts as this may cause the resulting image to be dim and unclear. Take care not to touch the lens during zoom operation as this may cause damage.

INFORMATION

Voice memo( )/ UP button

While the menu is showing, press the UP button to move up the submenu cursor. When the menu is not displayed on the LCD monitor, the UP button operates as the voice memo( ) button. You can add your voice-over to a stored still image.

Recording a voice memo

1. Select the STILL IMAGE mode by sliding the mode switch.

2. Press the VOICE MEMO( ) button. If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

[ Preparing for Voice Memo ] [ Recording Voice Memo ]

Voice memo( )/ UP button

3. Press the shutter button and take a picture. The picture is stored on the memory card.

4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

A distance of 40cm between you and the camera (microphone) is the best distance to record sound. The voice memo function will operate only once, and then it will automatically be cancelled.

INFORMATION

Auto (Auto Shooting Mode) : The changed Focus mode will be maintained until the

camera is turned off.

Myset (Myset Shooting Mode) : The changed Focus mode will be maintained even

after the camera is turned off.

Night (Night Shooting Mode) : The MACRO button will not work.

When the macro mode is selected, it is possible that camera shake will occur. If this is the case, use a tripod to eliminate this. When the macro mode is selected, it is recommended that you use the LCD monitor to compose these shots.

INFORMATION

Macro( ) / Down button (Focusing)

While the menu is showing, press the DOWN button to move from the main menu to a submenu, or to move down the submenu cursor. When the menu is not showing, you can use the MACRO ( )/DOWN button to take macro pictures (within the distance range of 5-80 cm for WIDE and 50-80 cm for TELE) in the STILL IMAGE mode.

[ Macro ][ Autofocus ]

Pressing the

MACRO button

Fixed focus

To focus on the subject positioned outside of the center, use the focus lock function.

Using the Focus Lock

1. Ensure the subject in the center of the autofocus frame.

2. Press the SHUTTER button halfway. The camera status lamp (green) will light up, indicating that the camera is in focus. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.

With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the SHUTTER button completely to take the picture. If you release your finger from the SHUTTER button, the focus lock function will be canceled.

[ The image to be captured ] [ Press the SHUTTER button

halfway and focus on the subject ]

[ Recompose the picture and fully

depress the SHUTTER button ]

FLASH( ) / LEFT button

AUTO

FOCUS

MACRO

AUTO 100 200 400

WIDE 0.8~3 0.8~2.6 1~3.7 1~5.2

TELE 0.8~2 0.8~1.5 1~2.1 1~2.9

WIDE 0.2~0.8 0.2~0.8 0.2~0.8 0.2~0.8

TELE 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8

(Unit : m)

[ Selecting the Auto flash ]

Flash range

When the menu is displayed on the LCD monitor, pressing the LEFT( ) button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT( ) button operates as the FLASH ( ) button. Selecting the flash mode

1. Slide the mode switch to the STILL IMAGE mode.

2. Press the Flash( ) button until the desired flash mode indicator displays on the LCD monitor.

3. A flash mode indicator will be displayed on the LCD monitor. Use the correct flash to suit the environment.

ISO

FLASH( ) / LEFT button

ICON Flash mode Description

Flash mode indicator

If the subject or background is dark, the camera flash will operate automatically.

Auto flash

Red eye reduction

Slow synchro

Fill in flash

Flash off

If a subject or background is dark, the camera flash will work automatically and will reduce the red-eye effect by using the redeye reduction function.

The flash will operate in conjunction with a slow shutter speed in order to obtain the correct exposure. We recommend using a tripod for this function. When you take an image in a condition with poor light, the camera shake warning indicator ( ) will display on the LCD monitor.

The flash fires regardless of available light. The intensity of the flash will be controlled, according to the prevailing conditions. The brighter the background or subject is, the less intense the flash will be.

The flash does not fire. Select this mode when capturing images in a place or situation where flash photography is prohibited. When you capture an image in a poorly lit condition, the camera shake warning indicator ( ) will display on the LCD monitor.

Using the flash frequently will reduce the life of the batteries. Under normal operating conditions the charging time for the flash is normally within 7 seconds. If the batteries are weak, the charging time will be longer. During the movie clip mode, the flash function will not operate. Take photographs within the flash range. The image quality is not guaranteed if the subject is too close or highly reflective. The LCD monitor is turned off for a while after using the flash to recharge it.

INFORMATION

Self-timer( ) / Right( ) button

Selecting the self-timer

1. Slide the mode switch to the STILL IMAGE mode.

2. Press the SELF-TIMER( ) button until the desired mode indicator displays on the LCD monitor. A 2 second self-timer or 10 second self-timer icon appears on the LCD monitor. 2SEC self-timer( ) : Pressing the shutter button will allow an interval of 2

seconds before the image is taken. 10SEC self-timer( ) : Pressing the shutter button will allow an interval of 10

seconds before the image is taken.

3. Press the SHUTTER button. The picture will be taken after the specified time has elapsed.

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the sub tab. When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Selftimer( ) button. This function is used when the photographer would also like to be in the image.

[ Selecting the 10SEC self-timer ]

The default is OFF. When taking a picture using the self-timer, the function lamp works as follows:

2 second self-timer setting : The function lamp blinks at 0.25 second interval for 2

seconds.

10 second self-timer setting : The function lamp blinks at 1 second interval for the first 7

seconds. It blinks at 0.25 second interval for the remaining

3 seconds. If you operate the Power button, Mode switch, and Self-timer button during the self-timer operation, the self-timer function is cancelled. Use a tripod to prevent the camera from shaking.

INFORMATION

+ 89 hidden pages
