USB-Serial Cable

User Guide

1. Product Features

2. System Requirements

3. Driver Installation (WIN2000)

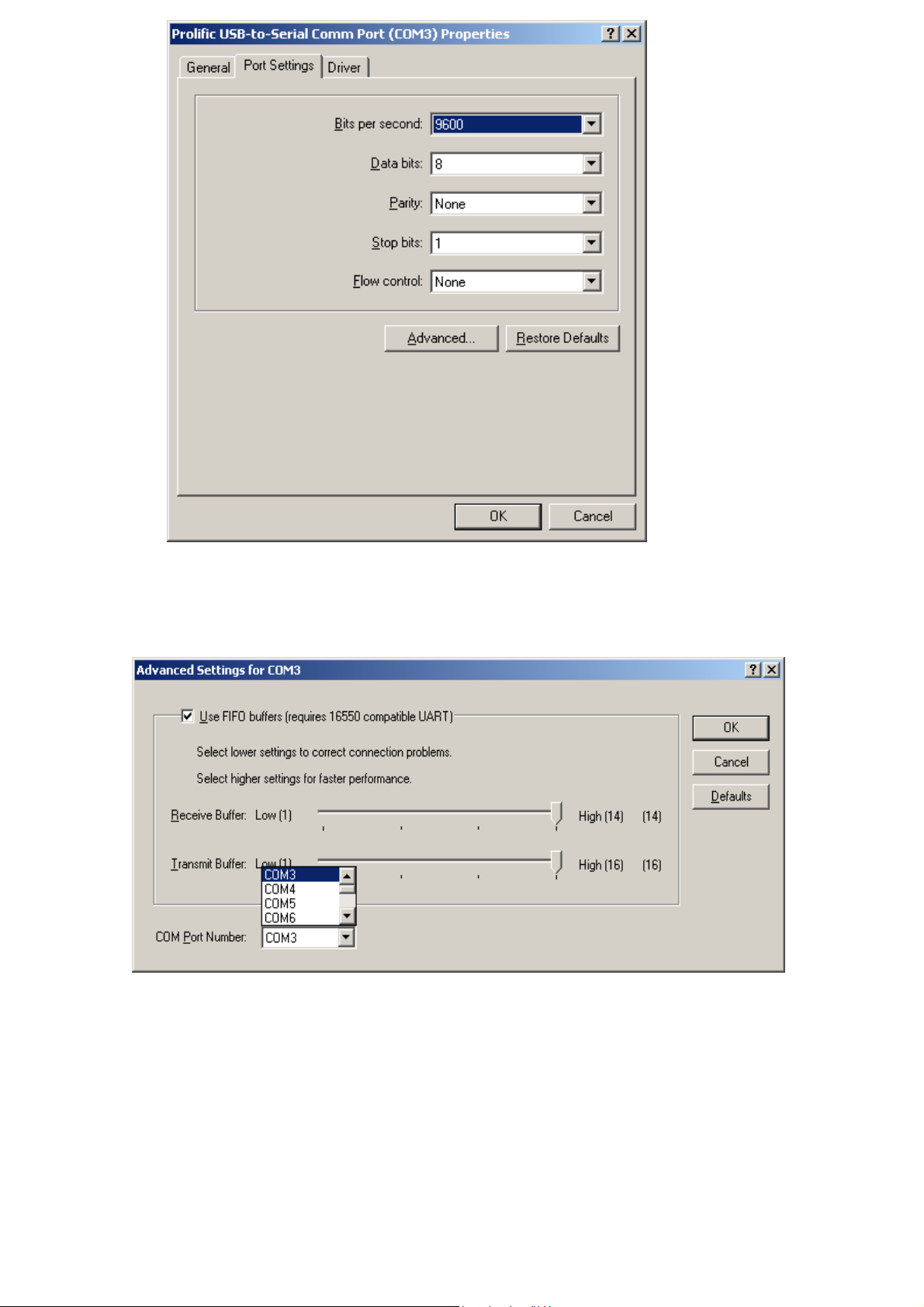

4. Changes COM Port

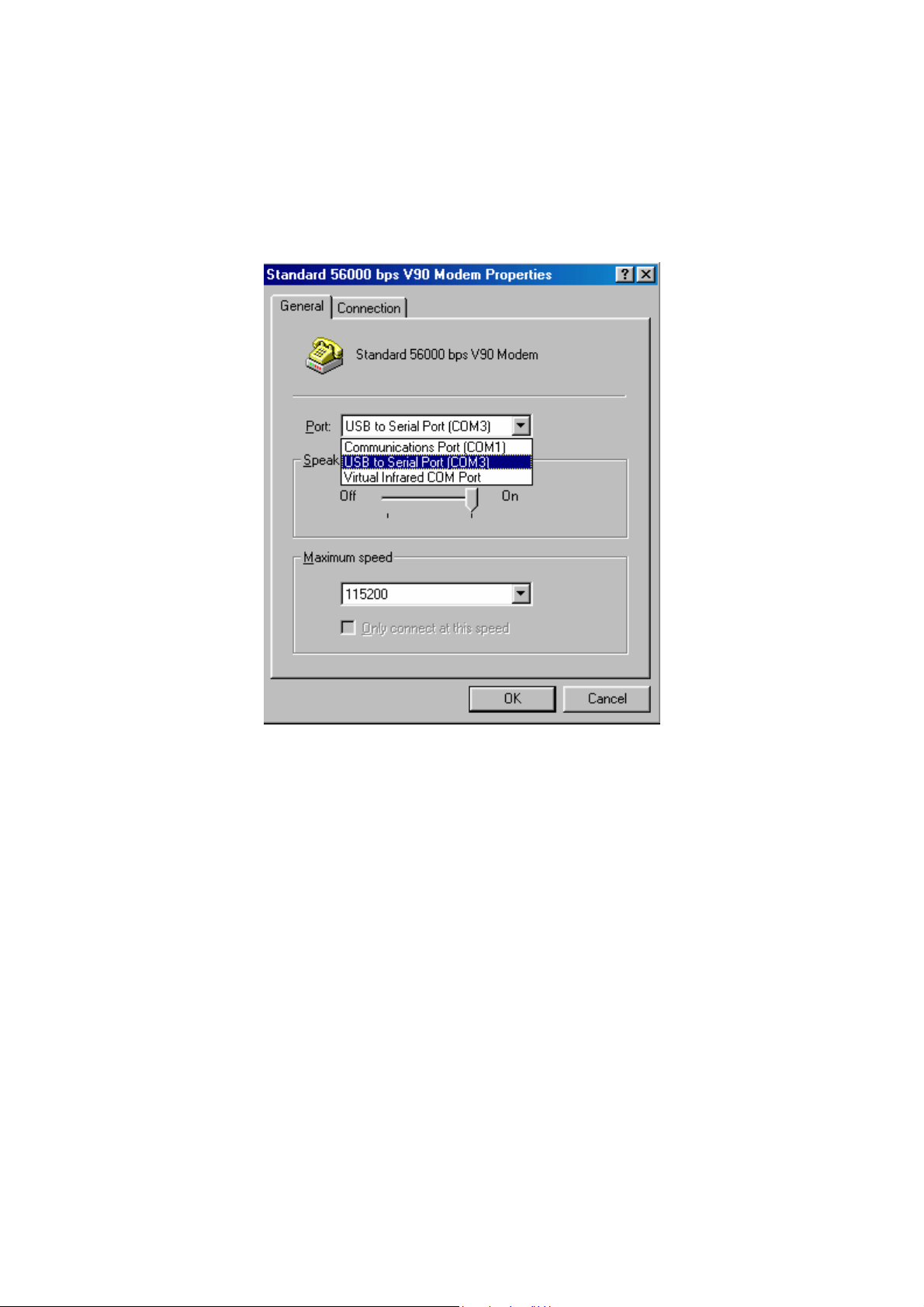

5. Setting Up the RS232 Serial Device

Product Features

• USB Specification Rev. 1.1 compliant

• Support the RS232 Serial interface

• Over 1Mbps data transfer rate

• Support remote wake-up and power management

System Requirements

• IBM PC 486DX4-100 MHz CPU or higher or compatible system

• Available USB port

• CD-ROM drive

• Windows 2000

Driver Installation (WIN2000)

Follow the steps below to install Window 2000 driver of USB-Serial cable:

1. Power on your computer and make sure that the USB port is enabled and working properly.

2. During installation , please don’t link USB-Serial cable with your computer .

3. Double click ‘ PL2303_Prolific setup.exe ’ , then it will start install

4. After installation , click ‘ OK ’

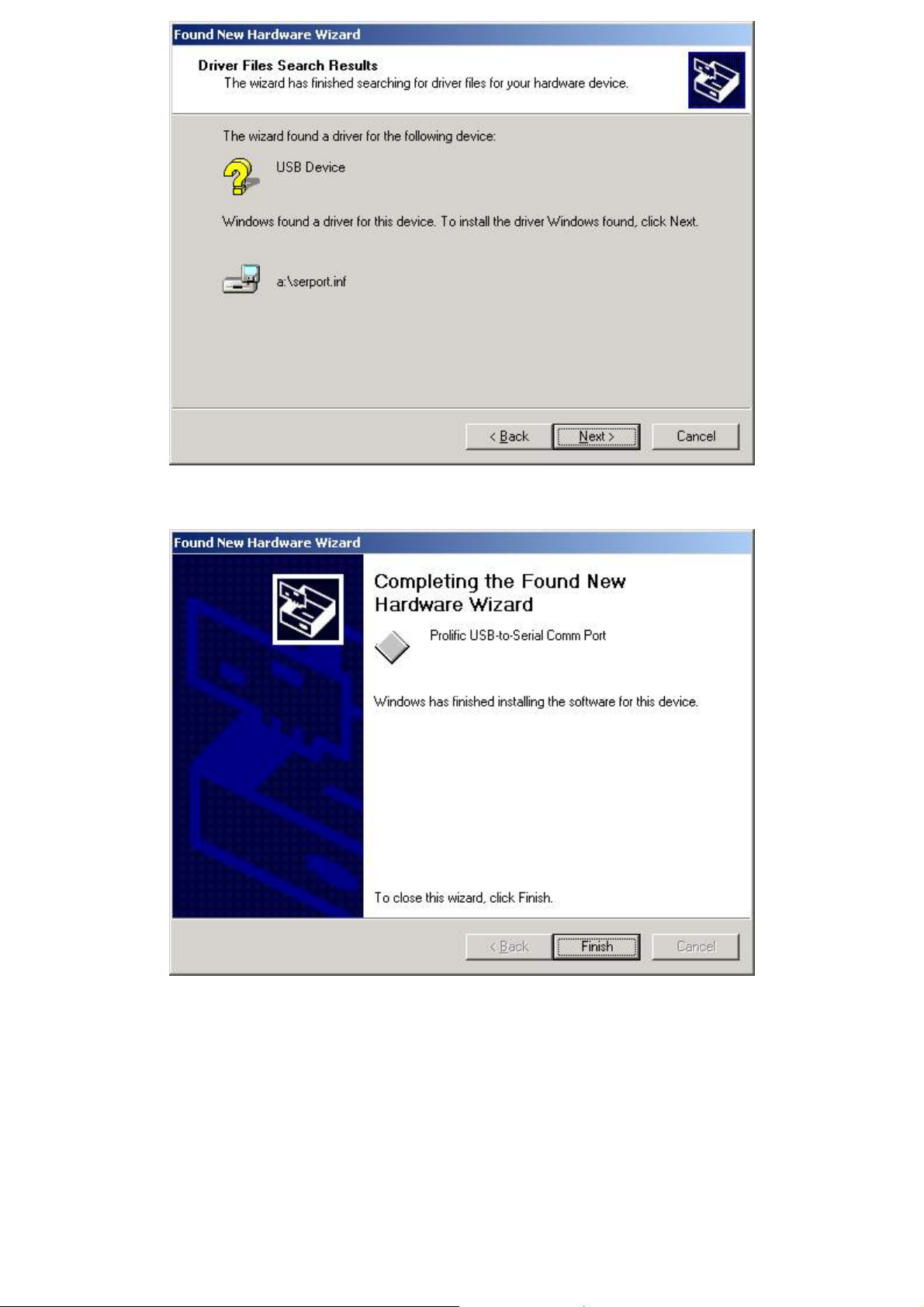

5. Plug in the USB-Serial cable into the USB port and run the Found New Hardware Wizard to assist
you in setting up the new device. Click Next to continue.

6. click Next to continue. Select the “ Search for a suitable driver for my device(recommand) “

7. Windows will detect the driver and Click Next to continue installation.
