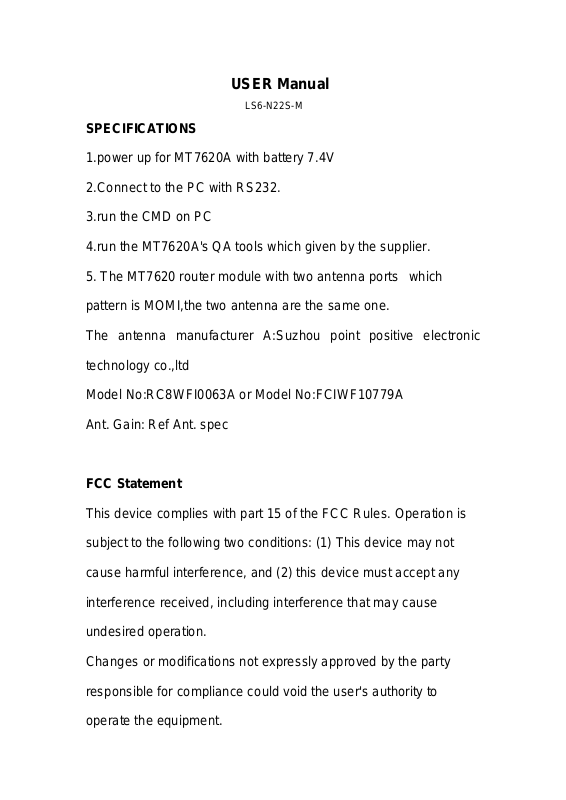

Page 1
USER Manual
LS6-N22S-M
SPECIFICATIONS
1.power up for MT7620A with battery 7.4V
2.Connect to the PC with RS232.
3.run the CMD on PC
4.run the MT7620A's QA tools which given by the supplier.
5. The MT7620 router module with two antenna ports which
pattern is MOMI,the two antenna are the same one.
The antenna manufacturer A:Suzhou point positive electronic
technology co.,ltd
Model No:RC8WFI0063A or Model No:FCIWF10779A
Ant. Gain: Ref Ant. spec
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Page 2
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
FCC Radiation Exposure Statement The modular can be installed
or integrated in mobile or fix devices only. This modular cannot be
installed in any portable device, for example, USB dongle like
Page 3
transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or
transmitter. This modular must be installed and operated with a
minimum distance of 20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into
which the module is installed must also display a label referring to
the enclosed module. This exterior label can use wording such as
the following: Contains Transmitter Module FCC ID: XCO-LS6 and
IC: 7756A-LS6
when the module is installed inside another device, the user
manual of this device must contain below warning statements;
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Page 4
The devices must be installed and used in strict accordance with
the manufacturer's instructions as described in the user
documentation that comes with the product.
Information for the OEM Integrators
This device is intended for OEM integrators only. Please see the full
grant of equipment document for restrictions.
Label Information to the End User by the OEM or Integrators
If the FCC ID of this module is not visible when it is installed inside
another device, then the outside of the device into which the
module is installed must be label with Contains FCC ID: XCO-LS6
and IC: 7756A-LS6”.
Page 5
LS6-N22S
1. Introduction
Libre LS6-N22S is a complete network media module. It includes an 802.11n MAC and baseband, a
2.4 GHz 2x2 MIMI radio and FEM, a 580MHz MIPS® 24K™ CPU core, with supporting FLASH and
DRAM memory. The module also includes all the necessary I/O and control interfaces required to
build feature rich networked media products, yet cost effective with very little additional electronic
design.
The embedded high performance CPU can process many advanced applications, such as network
media streaming, rendering, routing, security and special advanced Libre technology features. The
LS6-N22S also includes a selection of interfaces to support a variety of applications, such as I2S audio
interface, a USB port and SD port for accessing external storage, SPI and UART for data and control.
Combined with the extensive LibreSync software, this small form factor and low cost design provide
excellent Wi-Fi and processing performance for the wireless connectivity required in today CE
products.
2. Module Feature Summary
Key Features
Embedded MIPS24KEc (580 MHz) with 64 KB I-Cache and 32 KB D-Cache
2T2R 2.4 GHz with 130 Mbps PHY data rate
Legacy 802.11b/g and HT 802.11n modes
20 MHz channel bandwidth
Libre’s advanced multi-zone audio streaming technology
Reverse Data Grant (RDG)
Maximal Ratio Combining (MRC)
Space Time Block Coding (STBC)
16-bit DDR2 64Mbytes
Serial Flash 16Mbytes
SPI, SD-XC
1x USB 2.0
An optimized PMU
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 2 of 18
Libre Confidential
Page 6
LS6-N22S
Green AP
Intelligent Clock Scaling (exclusive)
DDR2: ODT off, Self-refresh mode
I2C, I2S, SPI, UART, JTAG, GPIO
I2S interface supports 16-bit/96kHz (slave mode)
Hardware NAT with IPv6
WEP64/128, TKIP, AES, WPA, WPA2, WAPI
QoS: WMM, WMM-PS
WPS: PBC, PIN
3. LibreSync Features
LibreSync modules have extensive software features for connected media streaming and control
applications. These include system level control and interface features as well as networking
features.
Please refer to the full “LibreSync Feature List” for details of supported features.
Platform features can vary based on module configuration/derivatives
and commercial engagement details.
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 3 of 18
Libre Confidential
Page 7

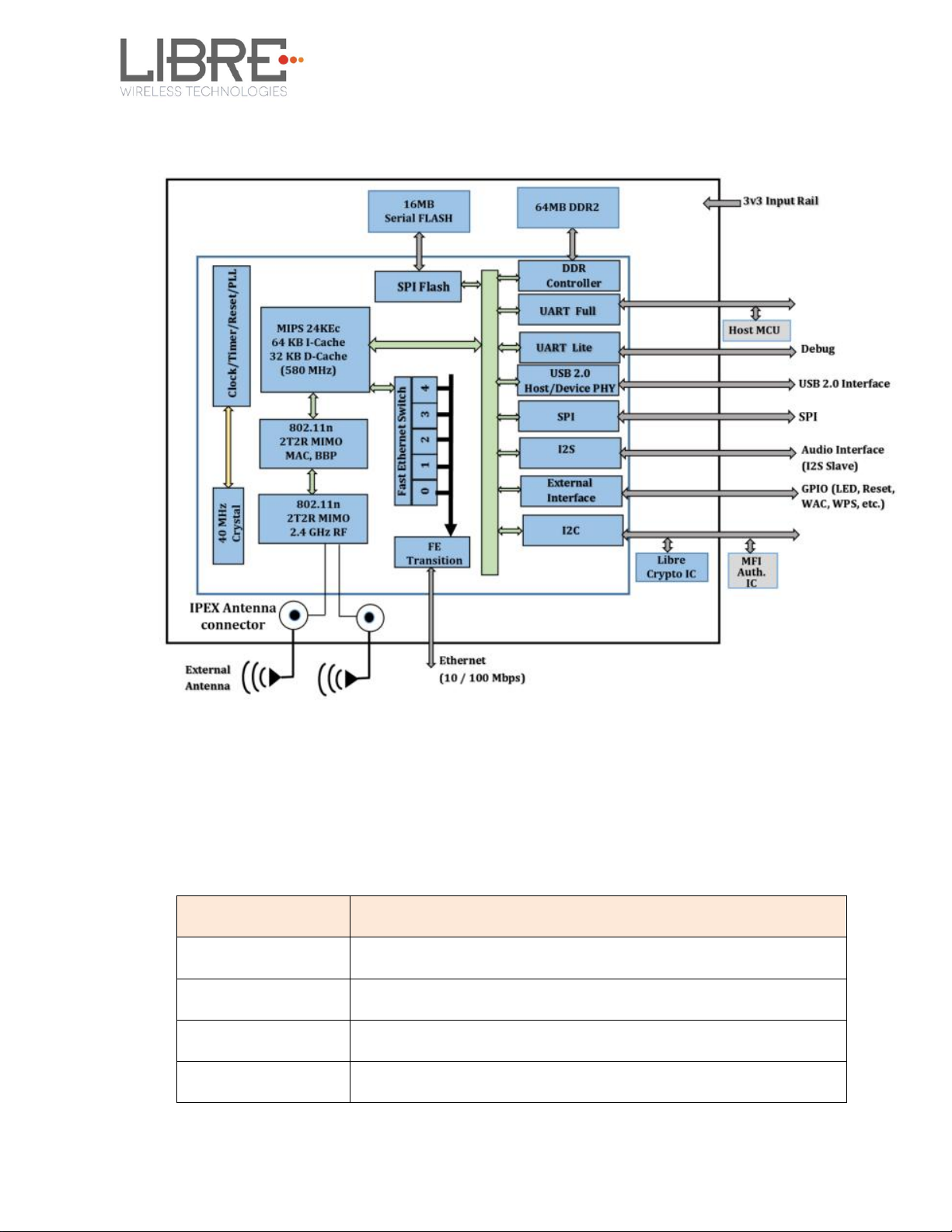

4. Block Diagram
LS6-N22S
Figure 4-1: LS6-N22S Block Diagram
5. Specifications
5.1.
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 4 of 18
General Specification
Parameter Description / Values
Model LS6-N22S
Product Name LibreSync LS6 Network Media Module
Chipset MT7620A
Standard Wi-Fi – IEEE802.11b, IEEE802.11g, IEEE802.11n, standards
Libre Confidential
Page 8
LS6-N22S
Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120, and
maximum of physical layer rate of 130Mbps
Frequency Band 2.4 GHz
Input Voltage 3.3 V ± 5 %
5.2.
Operating
Temperature
Dimensions 40mm X 26mm X 5.1mm (L x W x H) ± 0.2mm
-20˚C to + 55˚C
Wi-Fi Specification
Parameter Description / Values
Standard IEEE802.11b, IEEE802.11g, IEEE802.11n standards
Data Rate
Modulation
802.11b : 11, 5.5, 2, 1 Mbps
802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n : MCS 0 to 7 for HT20MHz
802.11b : CCK, DQPSK, DBPSK
802.11g : 64QAM, 16QAM, QPSK, BPSK
802.11n : 64QAM, 16QAM, QPSK, BPSK
Network
Architecture
Operation Channel 2.4GHz
Frequency Range 2.412 ~ 2.483 GHz
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 5 of 18
Ad-hoc mode (Peer-to-Peer)
Infrastructure Mode
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
Libre Confidential
Page 9
LS6-N22S
Transmit Output
Power
Receiver
Sensitivity
Security WEP 64&128 bit, WPA, WPA-PSK, WPA2, WPA2-PSK,
Current
Consumption
802.11b : < 19.5 dBm at 11Mbps
802.11g : < 16.5 dBm at 54Mbps
802.11n : < 15.5 dBm at MCS7
802.11b : -84 dBm at 11Mbps
802.11g : -73 dBm at 54 Mbps
802.11n : -64 dBm at 130 Mbps (MCS7)
WPS, IEEE 802.1x, IEEE 802.11i
TX Mode : 420 mA
RX Mode : 220 mA

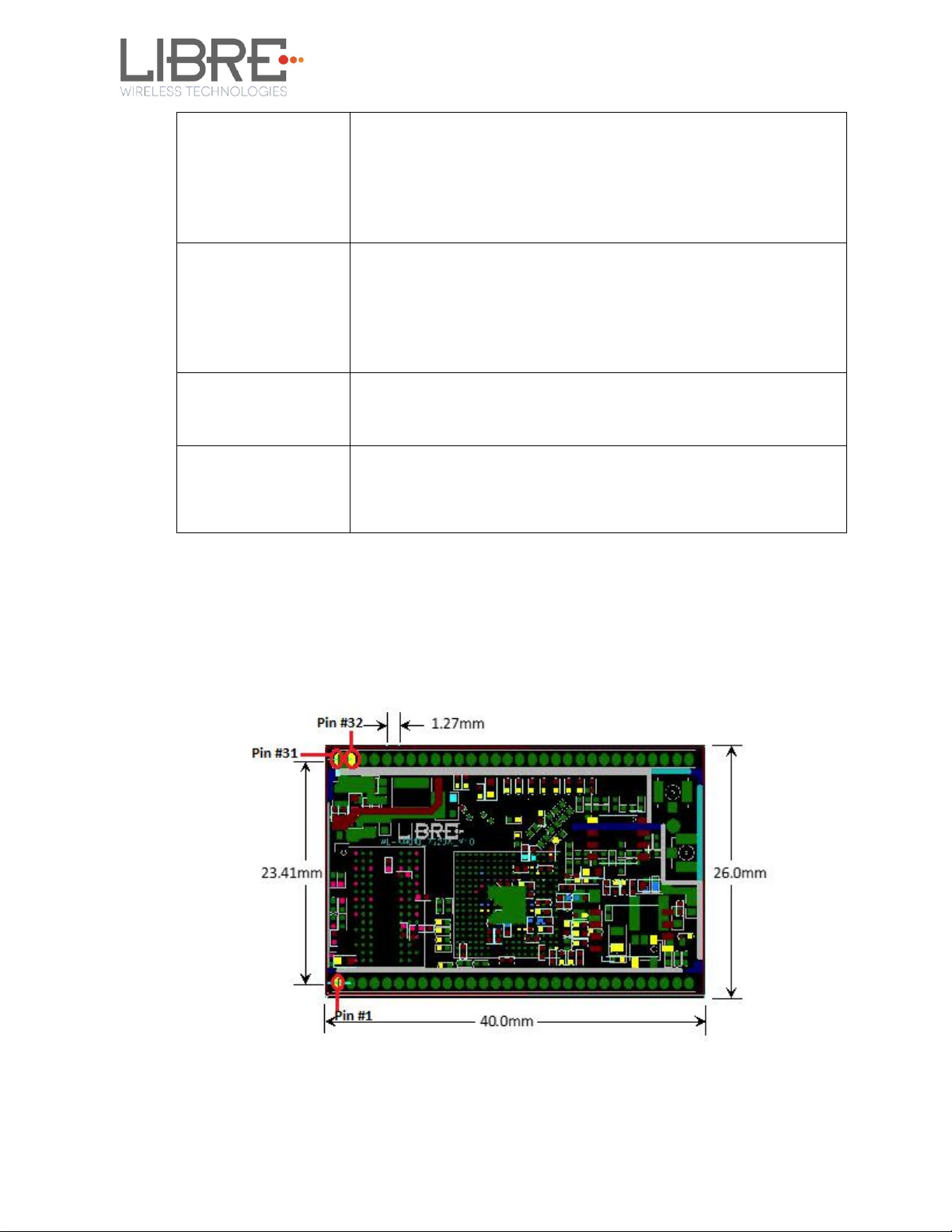

6. Mechanical, Connectors and Interfaces
6.1.
Estimated at 40mm x 26mm x 5.1mm (L x W x H) ± 0.2mm
Physical Module
Figure 6-1: LS6-N22S Physical Dimensions
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 6 of 18
Libre Confidential
Page 10
LS6-N22S

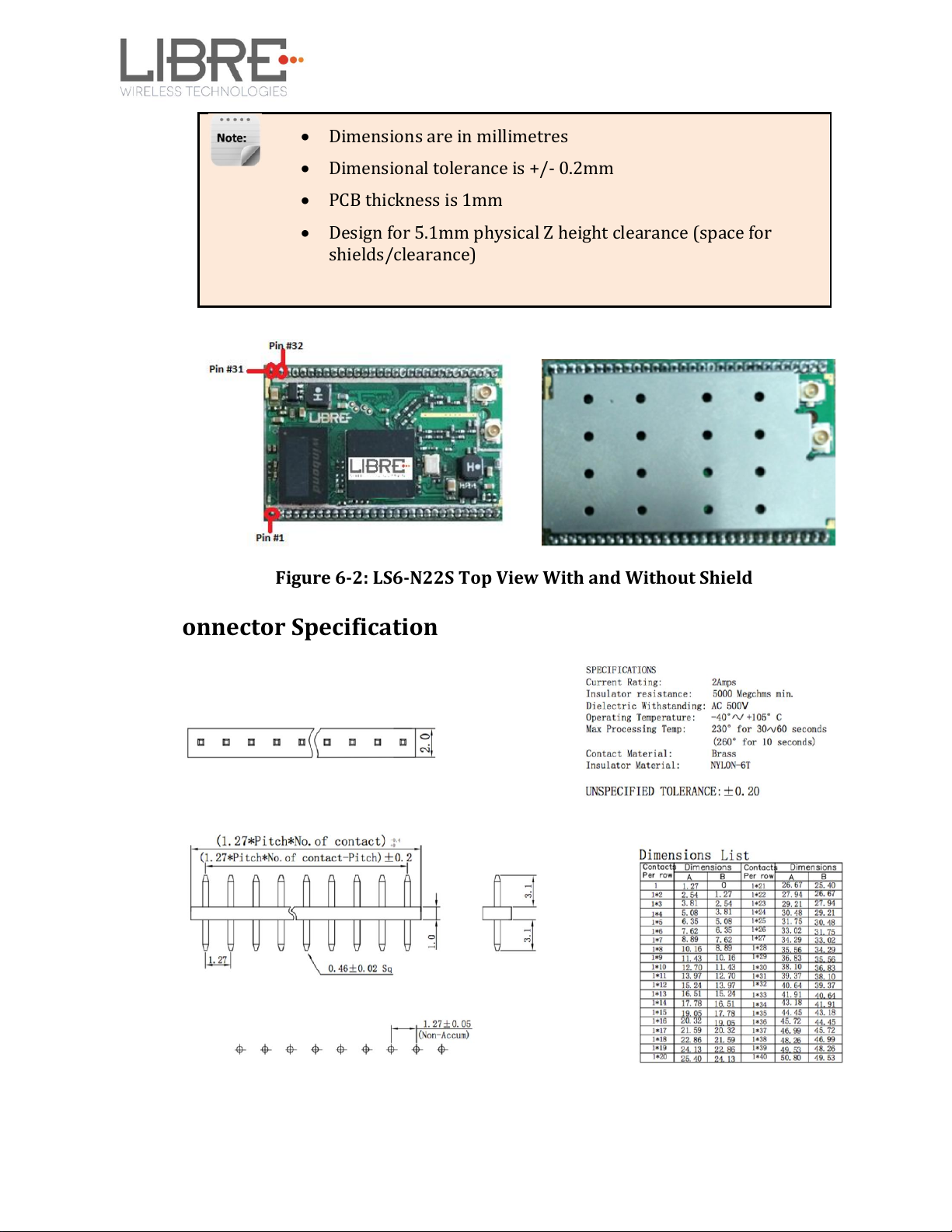

Dimensions are in millimetres
Dimensional tolerance is +/- 0.2mm
PCB thickness is 1mm
Design for 5.1mm physical Z height clearance (space for
shields/clearance)
6.2.
Figure 6-2: LS6-N22S Top View With and Without Shield
Connector Specification
Figure 6-3: LS6-N2SS Connector Specification
Libre Wireless Technologies Data Sheet: Network Media Module, Ver. 3.7 Page 7 of 18
Libre Confidential
