Hansol 710A User Manual

User’s Manual2

User’s Manual 3

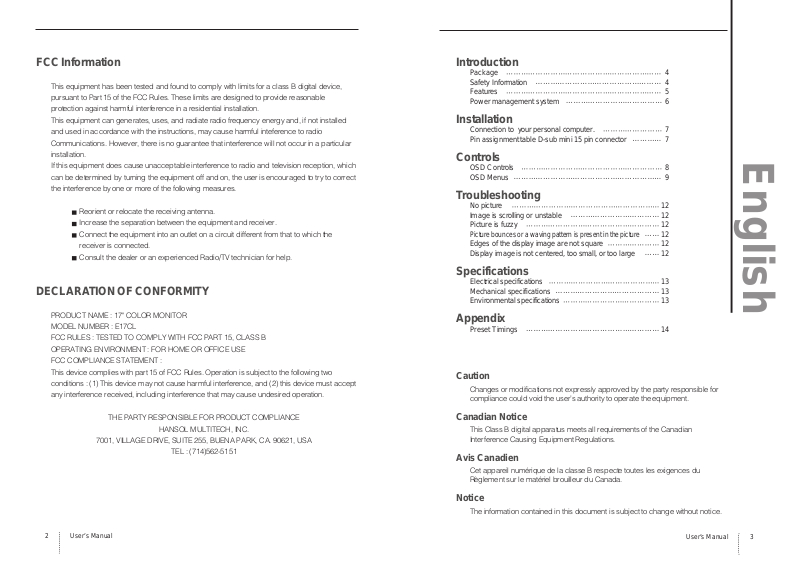

FCC Information

This equipment has been tested and found to comply with limits for a class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment can generates, uses, and radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful inteference to radio

Communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause unacceptable interference to radio and television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced Radio/TV technician for help.

DECLARA TION OF CONFORMITY

PRODUCT NAME : 17" COLOR MONITOR

MODEL NUMBER : E17CL

FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B

OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT :

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions : (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

HANSOL MULTITECH, INC.

7001, VILLAGE DRIVE, SUITE 255, BUENA PARK, CA. 90621, USA

TEL : [phone]

Introduction

Package 4
Safety Information 4
Features 5
Power management system 6

Installation

Connection to your personal computer. 7
Pin assignment table D-sub mini 15 pin connector 7

Controls

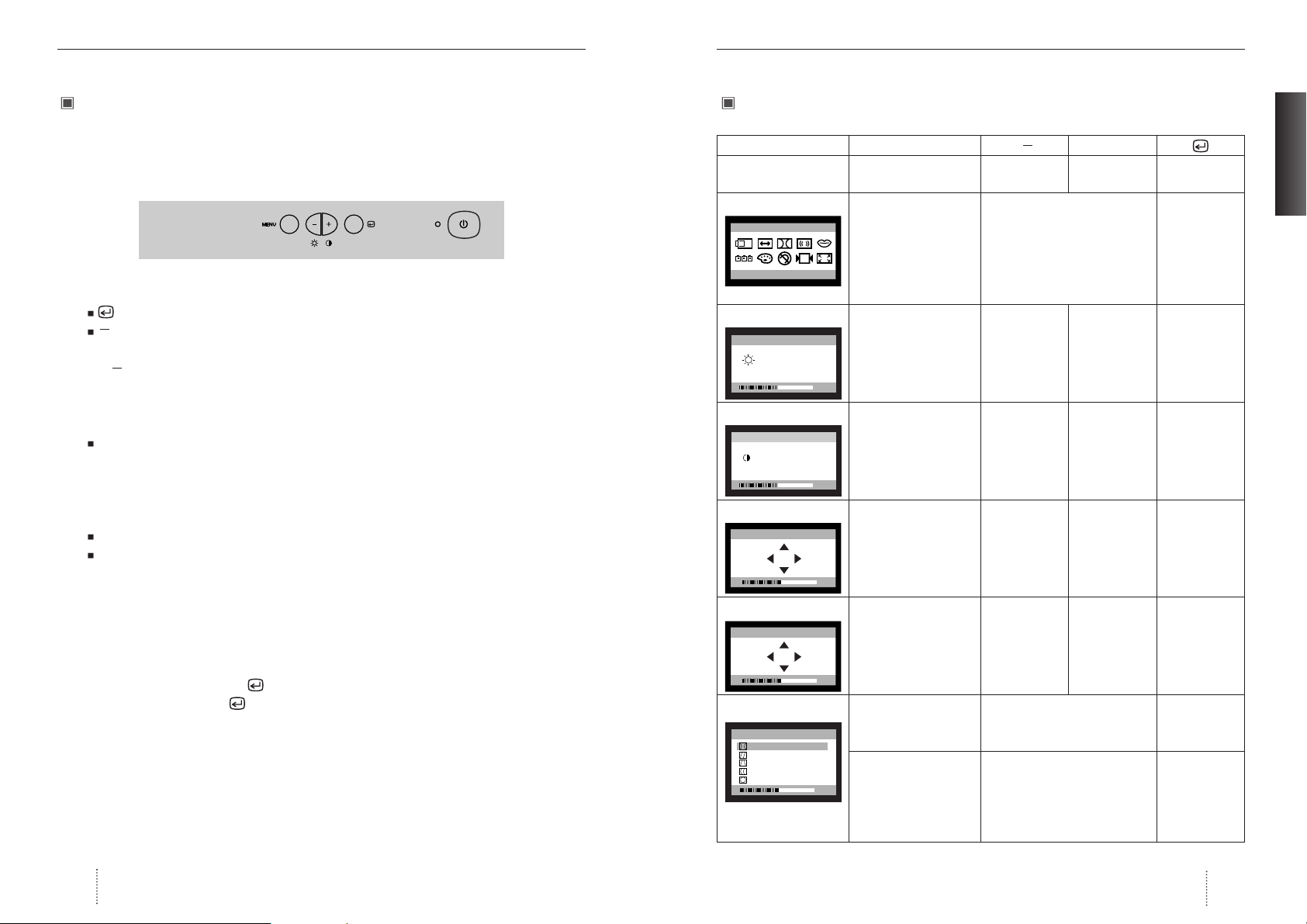

OSD Controls 8

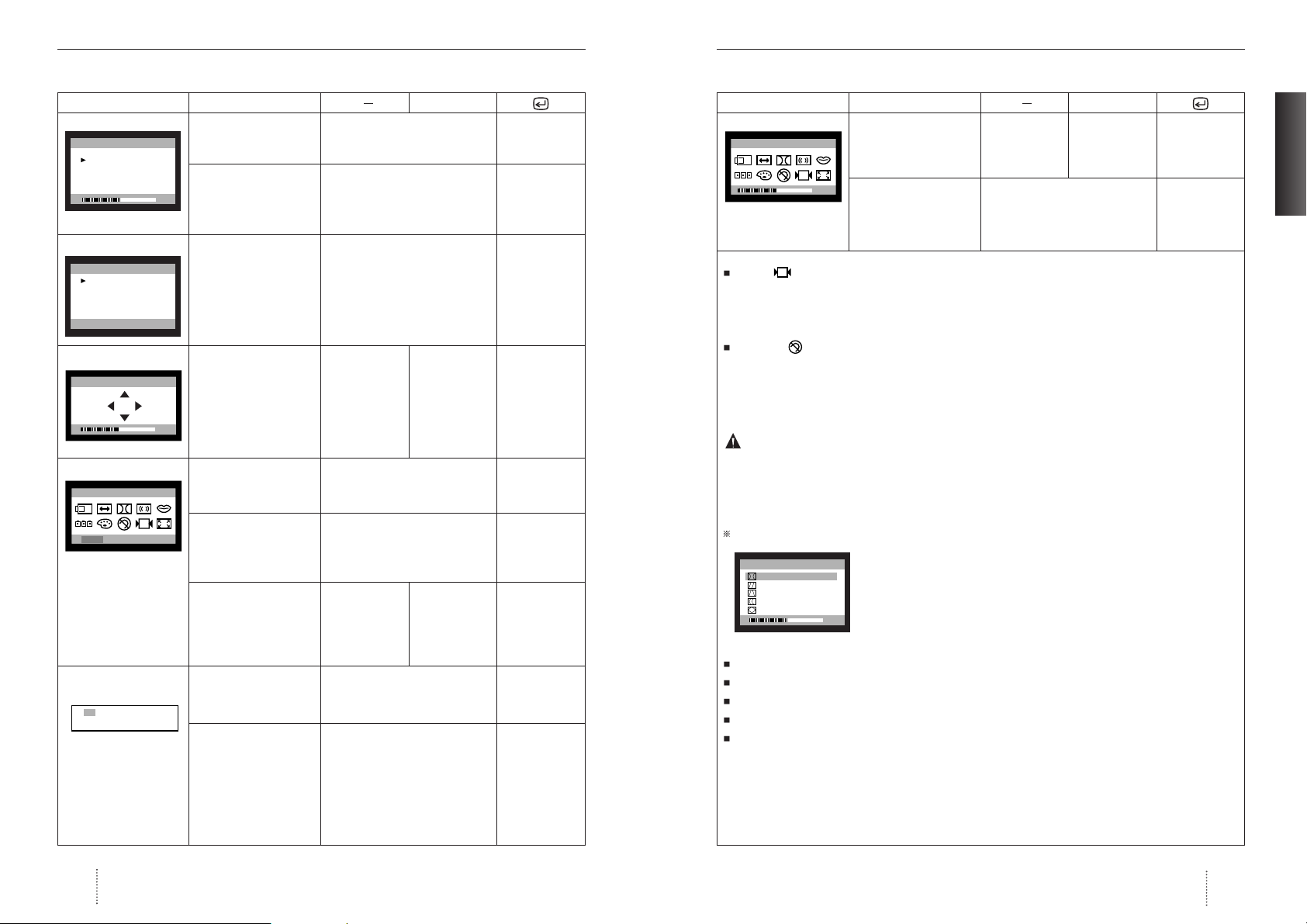

OSD Menus 9

Troubleshooting

No picture 12
Image is scrolling or unstable 12
Picture is fuzzy 12
Picture bounces or a waving pattern is present in the picture

12
Edges of the display image are not square 12
Display image is not centered, too small, or too large 12

Specifications

Electrical specifications 13
Mechanical specifications 13
Environmental specifications 13

Appendix

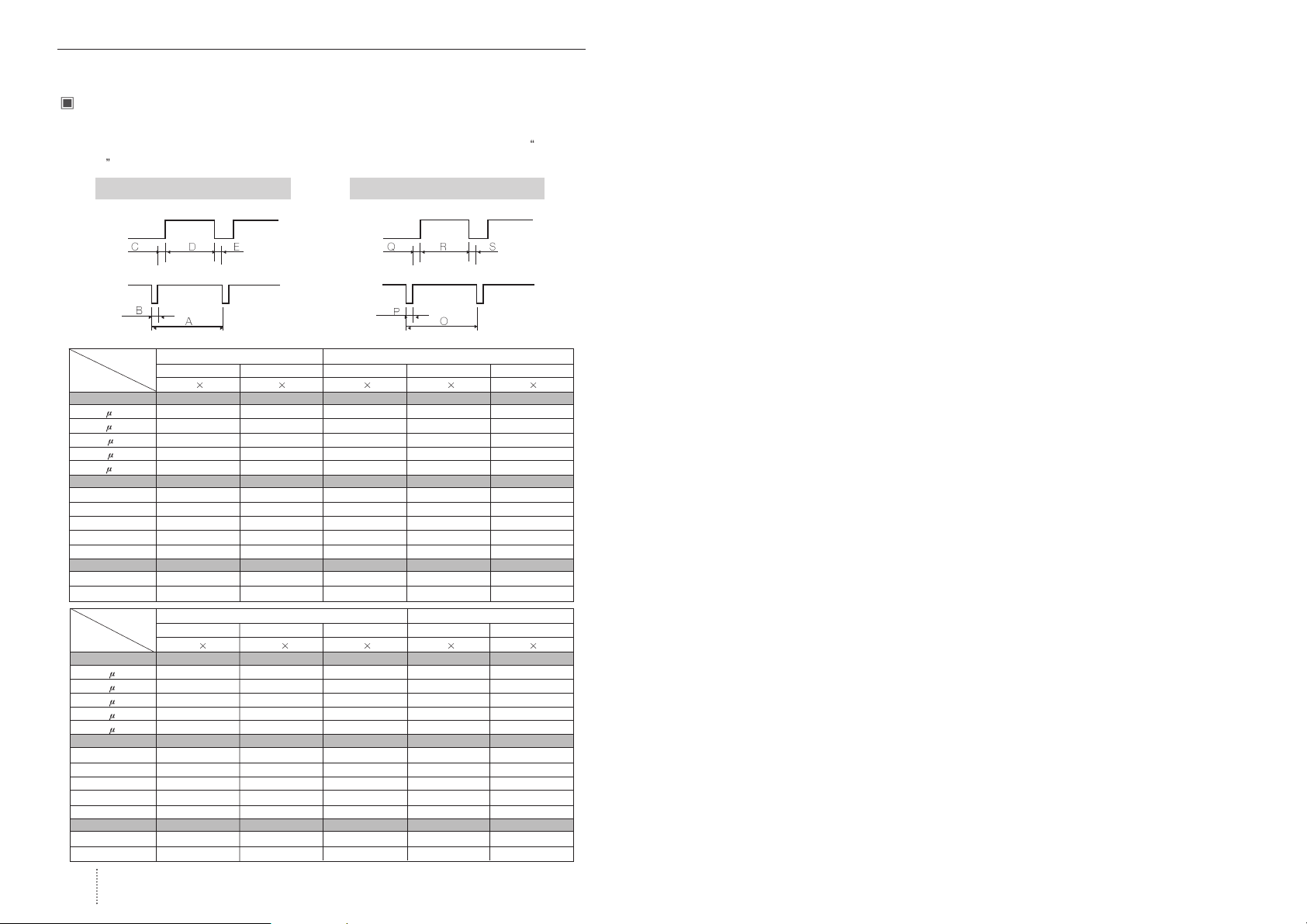

Preset Timings 14

Caution

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.

Notice

The information contained in this document is subject to change without notice.

English

Introduction

User’s Manual 5

Introduction

User’s Manual4

ENGLISH

Package

Congratulations on your purchase of this top quality color monitor!

The items illustrated below are contained in the carton.
First, be sure that your carton includes all of them.
If any items are missing or damaged, please contact your local dealer or supplier.

Safety information

Provided with this monitor is a detachable power supply cord with IEC320 style terminations.
It may be suitable for connection to any UL listed personal computer with similar
configuration. Before making the connection ensure that the voltage rating of the computer
convenience outlet is the same as the monitor and that the ampere rating of the computer
convenience outlet is equal to or exceeds the monitor current rating.
For 120Volt applications use only UL listed detachable power cord with NEMA configuration
5-15P type(parallel blades) plug cap.
For 240Volt applications use only UL listed detachable power cord with NEMA configuration
6-15P type(tandem blades) plug cap.
Use only a power source and connection appropriate for the monitor as indicated on the
marking label.
Slots and openings in the cabinet are provided for ventilation;
these openings must not be blocked or covered. Never push objects of any kind into cabinet
slots or other openings.
Never insert anything metallic into the monitor openings.
Doing so may create a danger of electric shock.
To avoid electric shock, never touch the inside of the monitor.
Only a qualified technician should open the monitor s case.
Unplug the monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp, lint-free cloth for cleaning.
Install the monitor near an outlet that you can reach easily. Disconnect the product by
grasping the plug firmly and pulling in from the outlet.
Never disconnect it by pulling the cord.

Display Monitor

AC Power Input Cable

Features

Superior image

On Screen menu fingertip control system to visually select and adjust screen using buttons

on front panel and on screen menus.

The exclusive double dynamic focus system with a hyperbolic focus compensation circuit

controls the electron beams resulting in a fine image display over the entire area of the

screen.

Super contrast screen for superior contrast and richer color.

Advanced INVAR Shadow mask for superior focus, brightness and color.

17", 0.27dot pitch high resolution, non-interlaced technology provides sharp, flicker-free

images.

On screen menu color control system easily allows the white of the image to be adjusted as

well as R.G. B signals, resulting in true-to-life colors.

Ergonomic Design

Flat, square screen to reduce image distortion and glare, thus relieving eye strain.

Tilt base allowing 90 rotation in the horizontal and 17 in the vertical for greater user comfort.

Low-leak radiation prevention meeting MPR II and the very stringent TCO (option) magnetic

field emissions standards for increased user safety.

Environmentally Friendly

Power management circuit conforming to VESA DPMS standards controls energy

consumption when monitor is not in use, you save energy.

All plastic parts are recyclable. All materials are strictly selected to ensure ease of

maintenance, inspection and disposal.

Timing

Automatic tracking of horizontal frequencies of 30 to 72 kHz,and vertical frequencies of

47 to 160 Hz.

Ten timings are factory preset for image size and position

Ten additional timings are user definable.

Synchronizing input signals (separate, composite) can be automatically selected.

User’s Manual 7

ENGLISH

Installation

Connection to your computer

CAUTION

Ensure that both the PC and the display monitor are switched off.

To attach the monitor to your system, as

shown in the following illustrations.

1. Insert the AC power cord into monitor

and then into an AC power outlet.

2. Connect the signal cable to the 15pin

graphics connector of the system and

tighten the fastening screws.

3. To turn on the monitor, push the power

switch.

Note : To attach the monitor to the Macintosh system, please contact an authorized

dealer.(Need to use a special adaptor)

Pin assignment table D-Sub Mini 15pin connector

The 15-pin D-Sub connector

(male) of the signal cable

(IBM Systems) :

(15 Pin D-Sub)

15

11 15

6

10

Pin No. Assignment

1 Red Video
2 Green Video
3 Blue Video
4 Frame Ground
5 Ground
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground

9 N.C
10 Sync. Ground
11 Ground
12 SDA
13 H-Sync.
14 V-Sync.
15 SCL

Introduction

User’s Manual6

System Flexibility

Equipped with DDC1, DDC2B and DDC2Bi for Plug & Play compatibility.

Monitor is compatible with VGA, SVGA, VESA and high resolution video modes up to

1280(H) 1024(V) 60Hz

Monitor may be used with IBM or compatible PC, MAC.

Automatic universal power supply is built in permitting AC power input of 100 - 240V AC,

50 or 60Hz.

Self-test menu allows the display unit to be checked on screen without connecting to a

computer.

Compact case minimizes desktop space giving you a large screen image without loss of

workspace.

Power cable included easily plugs into a standard outlet.

Power management system

This monitor complies with VESA, Nutek, and Energy Star power saving requirements. The

power saving system works only when used with VESA DPMS compliant PC’s and/or graphic

controllers.

The monitor goes into various power saving stages depending on the incoming

video signal as shown in the following table

Note

The monitor automatically goes through the DPMS steps when it is idle.

To release the monitor from the DPMS condition, press any key on the keyboard or mouse.

State Horizontal Sync Vertical Sync

On On On

Stand by Off On

Suspend On Off

Off Off Off

State LED Power Recovery Time

On Green Normal (75 Watts) N/A

Stand by Green 60 Watts 2 Sec

Suspend Amber 15 Watts 5 Sec

Off Amber/Blink 5 Watts 15 Sec
