Printed in Korea Part No. 942227020001-01

www.hansolel.co.kr

TFT-LCD Color Monitor

USER'S MANUAL

Printed on the recyclable paper

Parts 3

Connection to Computer 4

How to Adjust Monitor Angle 6

Installing Monitor Driver 7

Power Management Feature 9

Name and Function of Front 10

Adjusting OSD 12

Installing VESA stand and USB 20

Installing Option Stand 21

Standard Signal Table 22

Specification 23

Troubleshooting 24

Warning 26

Table of Contents

Parts

LCD Monitor

Place the monitor to face the user and then adjust the monitor angle. Take a break (for about 10 minutes) at every hour during the work with monitor. Refer to the following figure to take the correct posture.

about 50cm

Look down the monitor

below the horizon.

Relax shoulders and arms,

and sit back on the chair.

Adjust the monitor to

prevent reflection.

Adjust the monitor stand

to acquire required angle.

Keep feet flat on the ground.

Maintain the arms horizontally

and place hands softly on the keyboard.

Good Posture Guide

Stereo Cable

12V-DC Adapter

Arm

User's Manual /

Warranty Card

Signal Cable

AC Power Cable

Option Stand

Arm and Option Stand are optional.

Installation Disk

Installation Diskette

Applied Connection

Connection to Computer

Basic Connection

1. Use 220 V or 110 V. (Free Voltage)

2. Connect monitor and computer via computer cable (See figure )

3. Switch on power to monitor and computer.

4. Installation is finished.

1. Connect the adapter to "12V DC" input terminal.

2. Connect the computer cable to PC.

3. Connect audio output to Audio In (Stereo).

4. Connect headphone or earphone to H-Phone terminal.

12V DC connection

terminal

Computer cable

For PC

For Macintosh

Use adapter.

Adapter for Macintosh (Optional)

Refer to the table on the rear side of the optional Macintosh adapter and adjust DIP switch by the resolution of the monitor.

Installing Monitor Driver

1. Insert the Diskette in the Floppy driver.

2. Double-click Install.exe in the Floppy driver folder using search function.

3. Select the model and click "OK".

4. Select inf file of the model in Floppy driver, and then click "OK" button.

5. Click "Exit" to close the installation.

Automatic Installation

Manual Installation

1. Insert the Diskette in the Floppy driver.

2. Click 'My Computer' and follow the procedure below.

How to Adjust Monitor Angle

How to Default Stand

How to Option Stand

Refer to page 21 for installation of VESA stand.

Click 'Control Panel'.

Click 'Display'. Click 'Settings'.

Run (Click) Install at Floppy driver and select the product model to set the optimum display in Window 95, 98 or 2000.

Use the Driver Floppy provided.

Click 'Finish'.

Click 'Next>'.

No image is displayed with LED blinking.

Monitor is in power saving mode. Use mouse or keyboard to release power saving mode.

No image is displayed without LED on.

Power cable plug must be pulled out. Check the power plugs on monitor and on the wall.

"Out of range" displayed on the screen.

This message is displayed when the signal from video card exceeds the maximum frequency of the monitor. Readjust resolution and frequency in accordance with the monitor capacity. (Refer to Standard Signal Table)

Power Management Feature

When not in use for a long period of time, the monitor automatically reduces its power consumption, meeting power saving standards of EPA and NUTEK. The monitor is equipped with a power saving circuit that conforms to the world-standard Display Power Manager Signalling (DPMS) mode of Video Electronics Standard Association (VESA). The power management feature requires that the video card of the computer should support DPMS function.

Status Color of LED Power Consumption

Normal Green Normal Power

Power Cut Off Amber/Blinking

( 2 second interval )

Click 'Advanced..'.

Click 'Next>'.

Click 'Monitor'.

Click 'Display a list of all...'. Click 'Next>'.

Click 'Have Disk..'.

Select the driver and click 'OK'.

Click 'Next>'.

3. Select Exit if the monitor model is changed, and then reboot Windows.

5 W or Below

1110

Power Switch

Power switch is located in the lower center of the monitor stand. You can push the switch to turn on/off the power.

Power Saving LED

If the green LED around the power switch turns into blinking amber, it indicates the monitor is in power saving mode. If the amber LED keeps blinking and input signal LED is blinking, it indicates the monitor does not support input video signal.

On Screen Display (OSD) Function Button

OSD buttons on the front of the monitor perform the following functions.

MUTE : Cut off sound. AUDIO : Sound control function. AUTO : Press this button, when OSD is not displayed, to perform automatic

setting. MENU : Press this button to display menus. POWER : Power switch.

: Press this button when OSD is not displayed, You can adjust contrast

or brightness. By pressing this button when OSD is displayed, You can adjust gauge or select item.

VOLUME : Press this button to adjust volume of audio when OSD is not

displayed. By pressing this button when OSD is displayed, You can move the cursor into the menus which you want.

Functions

Name and Function of Front

Front panel

MUTE KEY

SELECT

KEY

AUTO KEY

MENU KEY

VOL

KEY

VOL

KEY

POWER KEY

Clock Phase

Horizontal Position

1312

Adjusting OSD

Brightness

Contrast

V ertical Position

Clock

1. Press the Menu button.

2. Use to select the Brightness ICON.

3. Use to adjust the brightness.

VOL

1. Press the Menu button.

2. Use to select the Contrast ICON.

3. Use

to adjust the contrast.

VOL

1. Press the Menu button.

2. Use to select the H-Position ICON.

3. Use to adjust display left or right.

VOL

1. Press the Menu button.

2. Use to select the V-Position ICON.

3. Use to adjust display upward or downward.

VOL

1. Press the Menu button.

2. Use to select the Clock Phase ICON.

3. Use to Correct fine trembling or Video noise.

VOL

1. Press the Menu button.

2. Use to select the Clock ICON.

3. If Auto-config function fails to remove Video noise, Use or to remove vertical noise.

( Adjusting clock phase is required after the

adjustment of clock.)

VOL

User Color

1514

Color

Preset Color

Special

Video Level

DOS Mode

1. Press the Menu button.

2. Use to select the Color ICON.

3. Use into the submenu.

VOL

1. Press the Menu button.

2. Use to select the Special ICON.

3. Use into the submenu.

VOL

1. Use to select Red, Green, Blue.

2. Use to increase or decrease each color.

3. Press the Menu button to exit.

VOL

1. Use to select the Video Level.

2. Use

to adjust level.

3. Press the Menu button to exit.

VOL

1. Use to select the DOS Mode.

2. Use to select Mode.

3. Press the Menu button to exit.

VOL

1. Use

to select the I or II.

2. Press the Menu button to exit.

I : Blue tone II : Default color

Language

1716

OSD Overlay

Sharpness

Auto-Config

Information

V ersion

1. Use to select the OSD Overlay.

2. Use to adjust OSD Overlay.

3. Press the Menu button to exit.

VOL

1. Use to select the Sharpness.

2. Use to adjust Sharpness.

3. Press the Menu button to exit.

VOL

1. Press the Menu button.

2. Use to select the Language.

3. Use to select language in order.

VOL

1. Press the Menu button.

2. Use to select the Version.

3. Check the version.

VOL

1. Press the Menu button.

2. Use to select the Information.

3. You can know a display information

(Horizantal, Vertical Frequency)

VOL

1. Press the Menu button.

2. Use to select the Auto-Config.

3. Use to readjust the display condition.

In most cass, Auto-Config adjusts display appropriately. Use PH or adjust CLK. in accordance with graphic card to fine tune the display.

VOL

1918

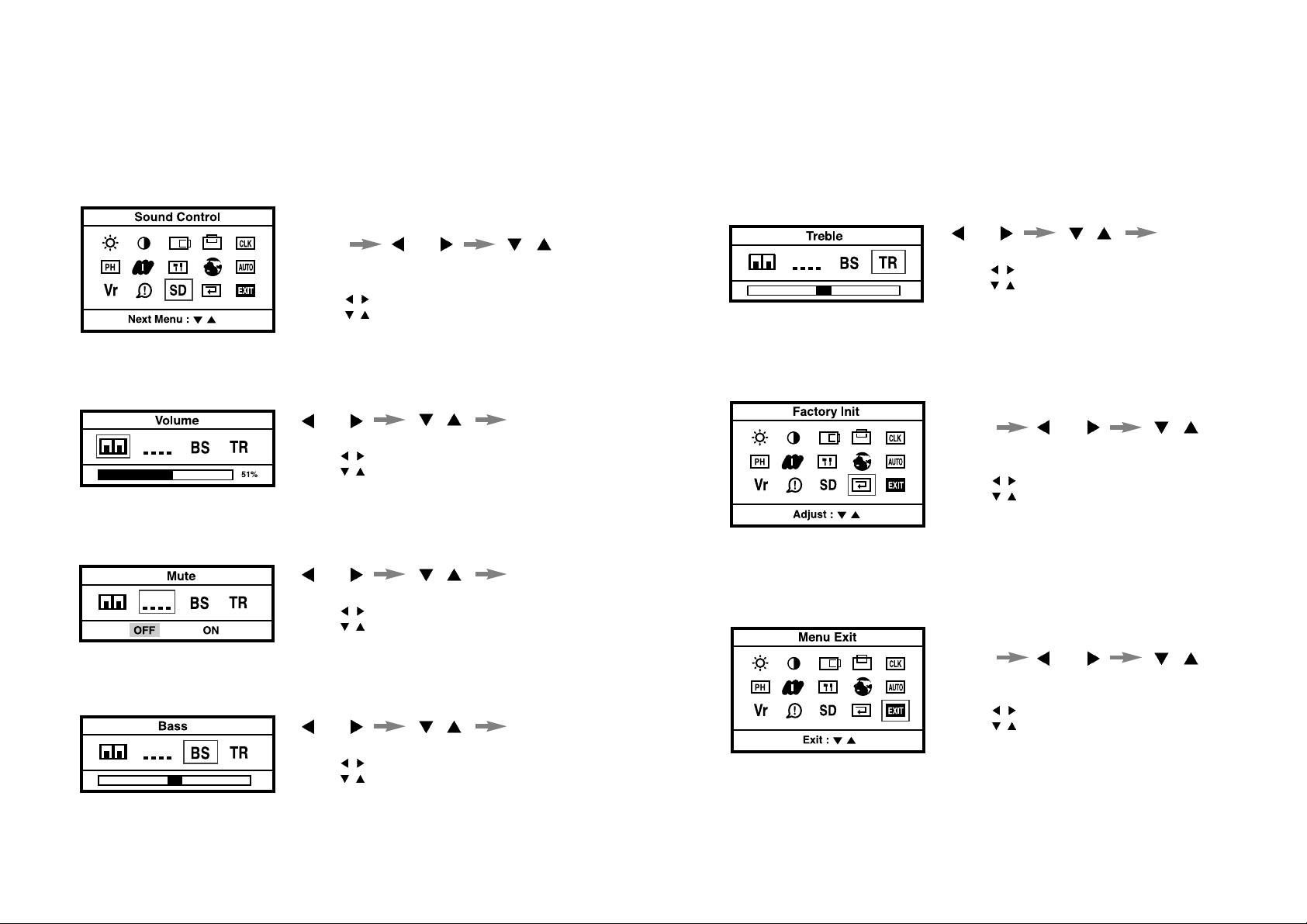

Volume

1. Use to select the Volume.

2. Use to adjust volume.

3. Press the Menu button to exit.

Mute

Bass

Factory Init

Menu Exit

T reble

VOL

1. Use to select the Treble.

2. Use to adjust treble.

3. Press the Menu button to exit.

VOL

1. Use to select the Mute.

2. Use to select OFF/ON.

3. Press the Menu button to exit.

VOL

1. Use to select the Bass.

2. Use to adjust bass.

3. Press the Menu button to exit.

VOL

1. Press the Menu button.

2. Use

to select the Factory Init.

3. Use

to return default setting.

VOL

1. Press the Menu button.

2. Use to select the Menu Exit.

3. Use to exit menu.

VOL

Sound Control

1. Press the Menu button.

2. Use to select the Sound Control.

3. Use into the submenu.

VOL

2120

Installing Option Stand

The monitor is available for various VESA standard stands. Follow the following instruction for VESA stand.

1. Place the monitor with its LCD panel on the flat ground covered with cushion or soft cloth.

2. Unscrew six screws.

3. Disassemble the stand.

4. Locate the option stand on the supporter.

5. Tighten four screws.

6. Stand the monitor and spread out the stand bar.

Installing VESA Stand

Installing VESA and USB

Arrange the VESA stand on supporter and fix with four screws.

Installing USB (Optional)

Install USB in the designated location in the rear side of the stand. (Use dedicated USB from Hansol Electronics only.)

Supporter for VESA

2322

Type Amorphous active matrix super TFT LCD Screen Size 43.18cm (Diagonal) Maximum Resolution

1280 X 1024@75 Hz

Pixel Range

0.264 mm X 0.264 mm Maximum Colors 16.7 M Contrast Rate 350 : 1 Visual Angle 80° / 80° / 80° / 80° (Left / Right / Up / Down) Response Speed 35 ms Brightness 200 cd/m2 Horizontal Frequency 80 kHz (Max.) Vertical Frequency 75 Hz (Max.) Video Signal Analog RGB (0.714 Vpp) Synchronous Signal Mode H, V Separate TTL Sync, SOG, COMPOSITE Maximum 47 W Power Saving Mode Under 5 W

MUTE, AUDIO, AUTO, MENU, VOL ,POWER,

SWITCH

Input: 100/240V (50~60 Hz),

Output: 12V, 4.58A, 55W Audio 3 Watt Speaker X 2 (Max.) Wall Mount VESA Standard Safety Standard UL, CE, TUV, CB EMI FCC Low Radiation MPR-II, TCO95, TCO99(Option) Size and Weight 435 X 448 X 197 / 6.0 Kg

Specification

LCD Panel

Synchro nization

Model 700Fs

Video Input

Power Consumption

Control key

Front Part

MultiMedia

Safety Standard & EMI

Dimension

Power Adapter

Standard Signal Table

Pin assignment table D-Sub Mini 15pin connector

VGA (720 X 400) VGA (640 X 480) VGA (640 X 480) SVGA (800 X 600) XGA (1024 X 768) XGA (1024 X 768) SXGA (1280 X 1024) SXGA (1280 X 1024) MAC (640 X 480) MAC (832 X 624) MAC (1152 X 870)

31.469

37.500

46.875

48.363

60.023

63.981

79.976

35.000

49.726

68.681

70.087

59.940

75.000

60.004

75.029

60.020

75.025

66.667

74.551

75.062

28.322

25.175

31.500

49.500

65.000

78.750

108.000

135.000

30.240

57.284

100.000

Resolution

Horizontal Frequency

(KHz)

Vertical Frequency

(Hz)

Clock Frequency

(MHz)

11 15

15pin D-Sub

Pin No. Assignment Pin No. Assignment

1 Red Video 9 N.C 2 Green Video 10 Ground 3 Blue Video 11 Ground 4 N.C 12 SDA 5 Ground 13 H.Sync 6 Red Video Ground 14 V.Sync 7 Green Video Ground 15 SCL 8 Blue Video Ground

2524

Check the resolution and frequency of computer and video card, and set up a gain in reference to the current monitor mode and standard signal mode table.

Double images or

'ghosts'.

Perform Auto-Config.

Adjust COLOR at User Mode in OSD Color Menu.

Picture is dark.

Picture is biased or cut

or too wide.

Monitor is in power saving mode.

Power LED turns into

amber or blinking

amber.

Adjust COLOR at User Mode in OSD Color Menu.

Color is irregular.

Troubleshooting

Check the power connection.

(Refer to page 4)

Power LED is off.

No picture.

Check the signal cable between monitor

and computer. (Refer to page 4)

Perform AUTO config.

Check the computer connection cable.

(Refer to page 4)

Check if computer power is on.

Message, "No sigral."

is displayed on the

screen.

Screen looks to be run

down.

Perform Clock and Adjust PHASE. Switch off/on the monitor. Remove accessories (Video extension cable and others) and switch on.

Screen is not clear.

Check the resolution and frequency of computer and video card, and set up the again in reference to the current monitor mode and standard signal mode table.

Display is unstable and

trembling.

Check the voice signal connection code or adjust volume.

No sound.

Adjust BASS and TREBLE.

Dead sound.

2726

MemoWarning

To prevent damage or loss, please read this warning carefully.

When connecting/disconnecting the plug, pull out the plug itself, and never pull the plug to prevent fire caused by short.

To prevent electric shock, do not connect/disconnect the plug with wet hand.

To prevent fire, do not connect a large number of equipment in a single line.

To prevent fire and electric shock, pull out the plug in case of thunder and lightening.

To prevent fire and electric shock, do not try to take the monitor apart or repair it yourself. Contact your local service station or customer service center for inspection, modification or repair.

AUTO / EXIT

VOL

AUTO / EXIT

VOL

AUTO / EXIT

VOL

If you see smoke or smell something burning, stop using the unit, switch off the power, pull out the plug, and then contact your local service station.
