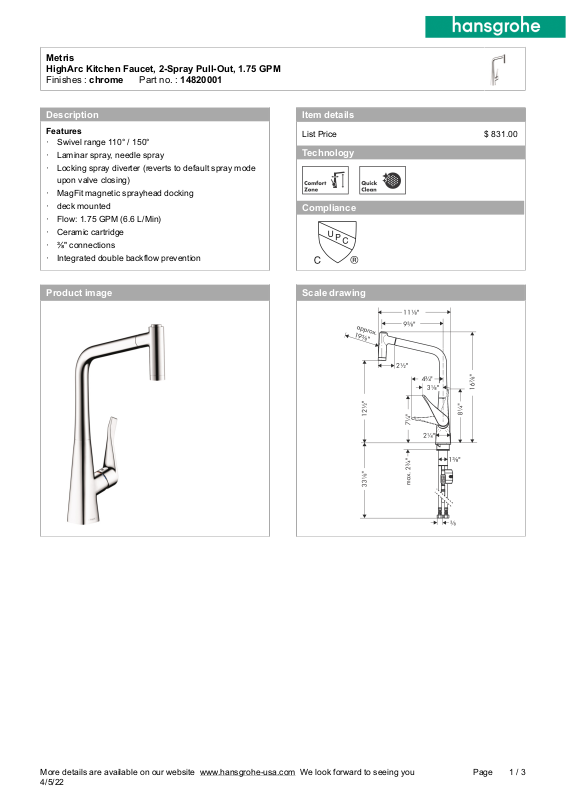

Page 1
Metris
HighArc Kitchen Faucet, 2-Spray Pull-Out, 1.75 GPM
Finishes : chrome___Part no. : 14820001
Description
Features
· Swivel range 110° / 150°
· Laminar spray, needle spray
· Locking spray diverter (reverts to default spray mode
upon valve closing)
· MagFit magnetic sprayhead docking
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· Integrated double backflow prevention
Item details
List Price $ 831.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
1 / 3Page
Page 2
Metris
HighArc Kitchen Faucet, 2-Spray Pull-Out, 1.75 GPM
Finishes : chrome___Part no. : 14820001

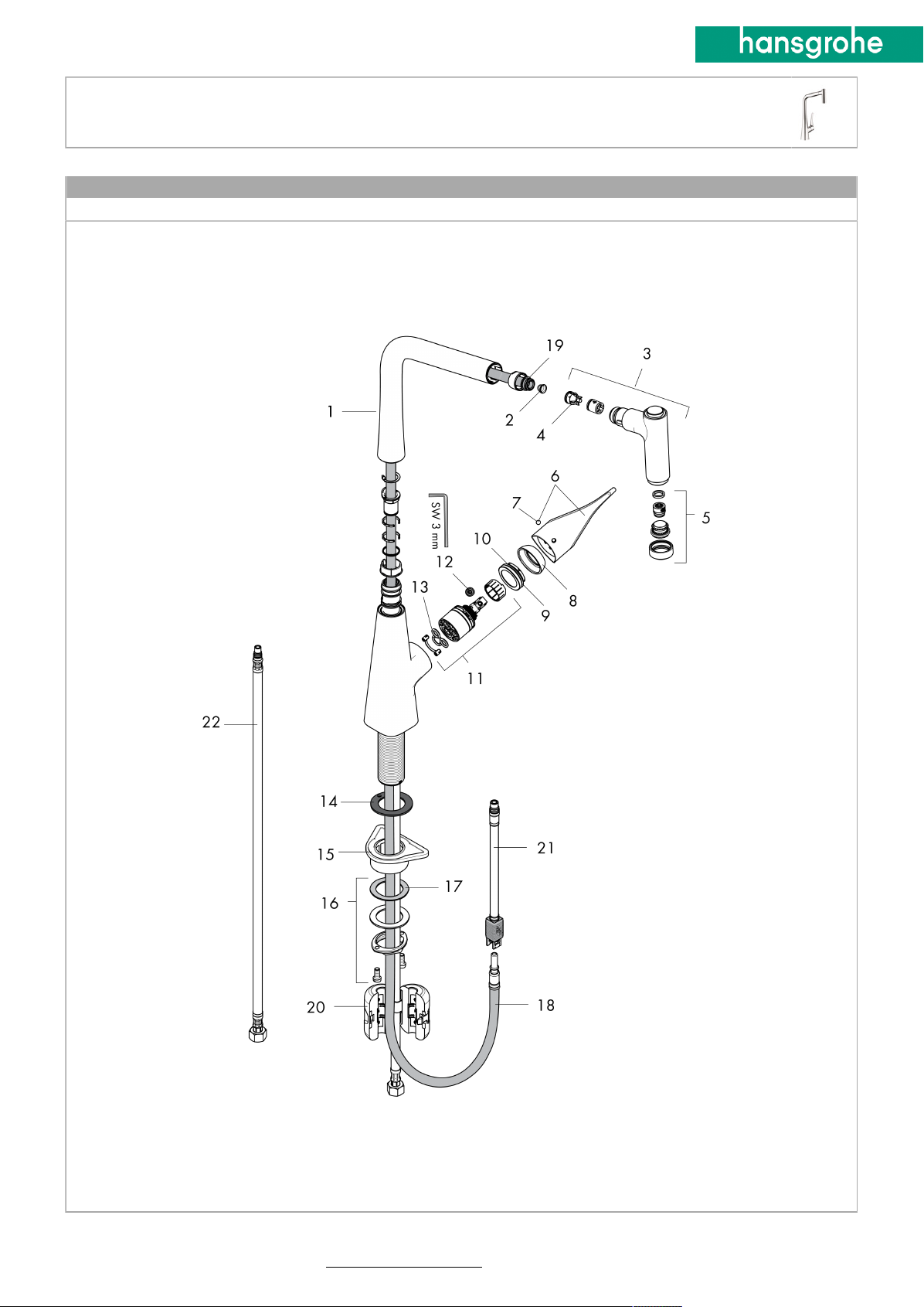

Exploded drawing
Year of production: >05/21
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
2 / 3Page
Page 3
Metris
HighArc Kitchen Faucet, 2-Spray Pull-Out, 1.75 GPM
Finishes : chrome___Part no. : 14820001
Spare parts list
Year of production: >05/21
Pos. Description Part no. Price PU
1 spout cpl. 98491000 - 1
2 filter 97735000 - 1
3 handspray 98492001 - 1
4 non return valve 93218000 - 1
5 spray former 92183000 - 1
6 handle 98455000 - 1
7 screw cover 96338000 - 1
8 flange 95498000 - 1
9 nut 97209000 - 1
10 O-Ring 32x2 98193000 - 1
11 cartridge, assy 92730000 - 1
12 locking screw for handle 95140000 - 1
13 seal 95008000 - 1
14 seal 92582000 - 1
15 support 97523000 - 1
16 fixing set (Ø 34) 95049000 - 1
17 lever collar 97548000 - 1
18 hose 1,50 m 88624000 - 1
19 O-ring 11x2 98127000 - 1
20 weight 92500000 - 1
21 connection hose 600 mm M10x1 95561000 - 1
22 connection hose 35½" M8x0,75 3/8" 96316001 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
3 / 3Page
