Logis
Logis Single-Hole Bidet Faucet
Finishes : Chrome___Part no. : 71200001
Description
Features
· Pivoting aerator
· Ceramic cartridge
· Includes pop-up assembly
Item details
List Price $ 158.00-
Compliance

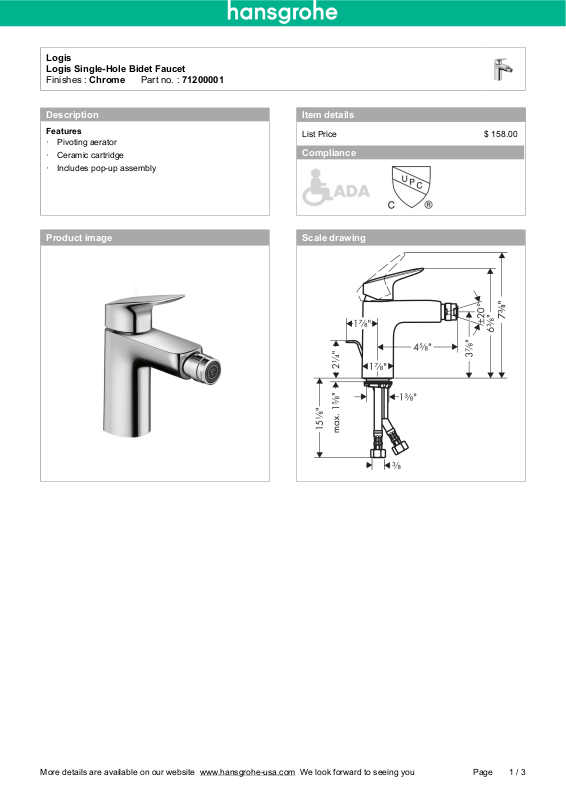

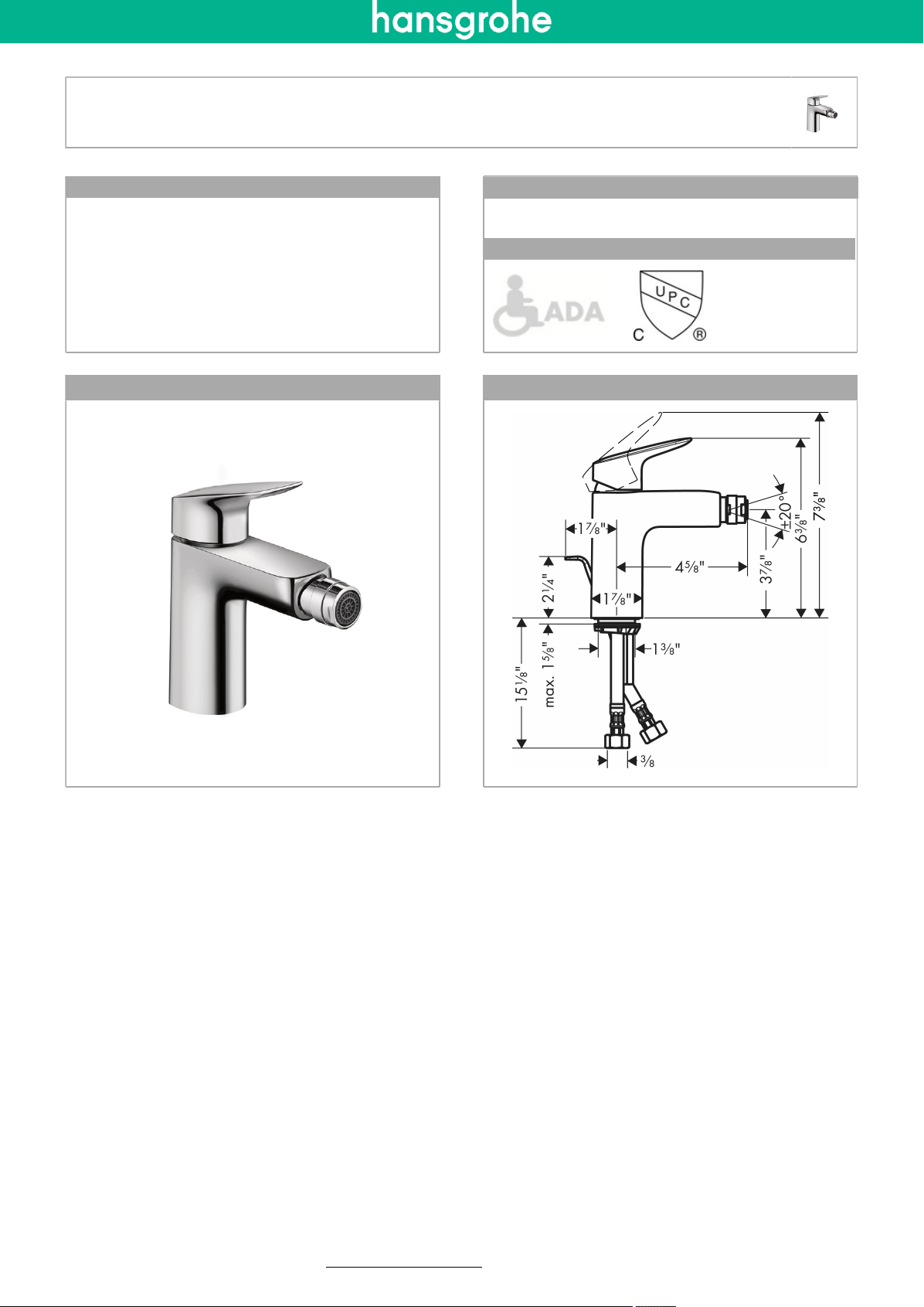

Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you 1 / 3Page
Page 2
Logis
Logis Single-Hole Bidet Faucet
Finishes : Chrome___Part no. : 71200001

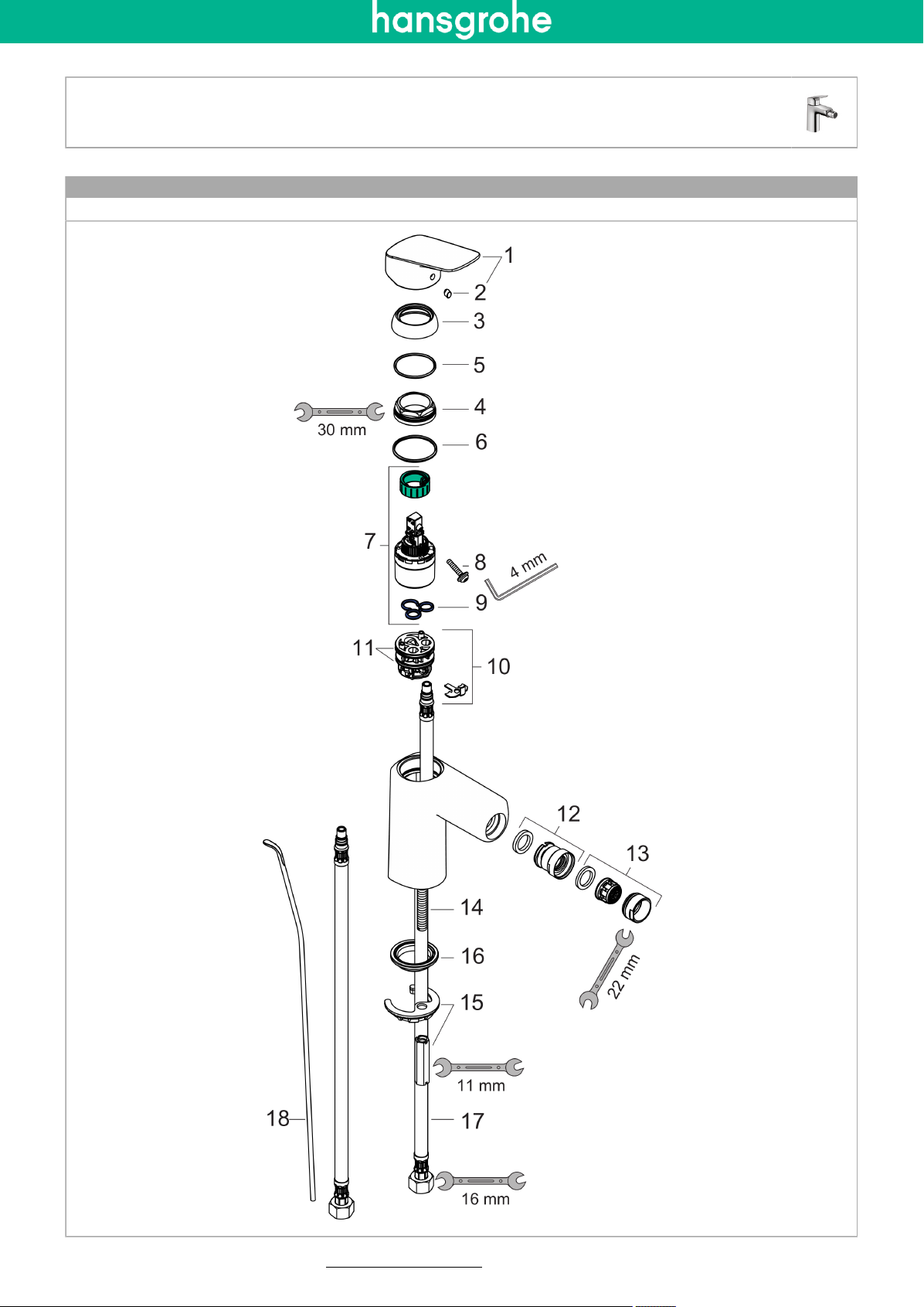

Exploded drawing
Year of production: >07/15
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you 2 / 3Page
Page 3
Logis
Logis Single-Hole Bidet Faucet
Finishes : Chrome___Part no. : 71200001
Spare parts list
Year of production: >07/15
Pos. Description Part no. Price PU
1 handle 92224000 - 1
2 screw cover 96338000 - 1
3 flange 97406000 - 1
4 nut 97209000 - 1
5 O-Ring 32x2 98193000 - 1
6 O-ring 35x2 92604000 - 1
7 cartridge, assy 92730000 - 1
8 locking screw for handle 95140000 - 1
9 seal 95008000 - 1
10 adapter for cartridge 98750000 - 1
11 O-Ring 30x2 98186000 - 1
12 ball joint 92036000 - 1
13 aerator M24x1 (7 l/min) 13912000 - 1
14 screw M8 x 68 97736000 - 1
15 seal 97608000 - 1
16 fixing set 96016000 - 1
17 connection hose 18½" M8x0,75 3/8" 96321001 - 1
18 pull rod 96657000 - 1
a pop up waste 88509000 - 1
