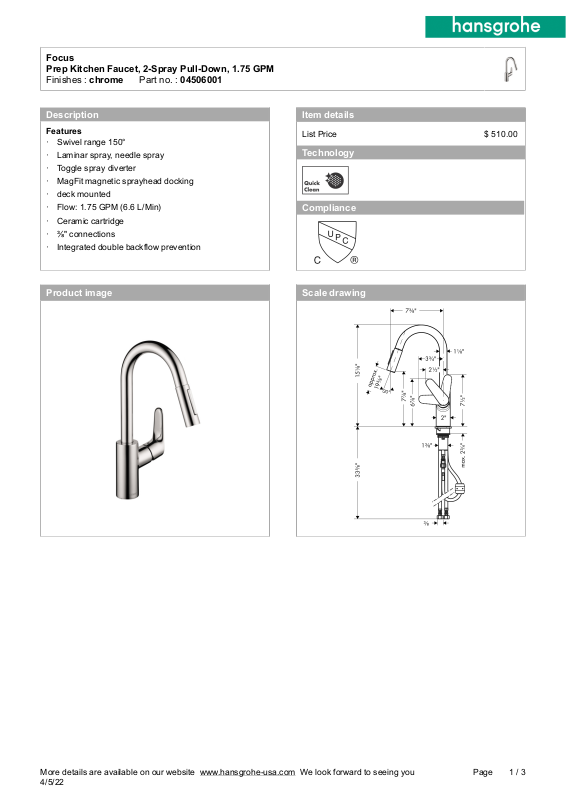

Page 1
Focus
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 04506001
Description
Features
· Swivel range 150°
· Laminar spray, needle spray
· Toggle spray diverter
· MagFit magnetic sprayhead docking
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· Integrated double backflow prevention
Item details
List Price $ 510.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
1 / 3Page
Page 2
Focus
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 04506001

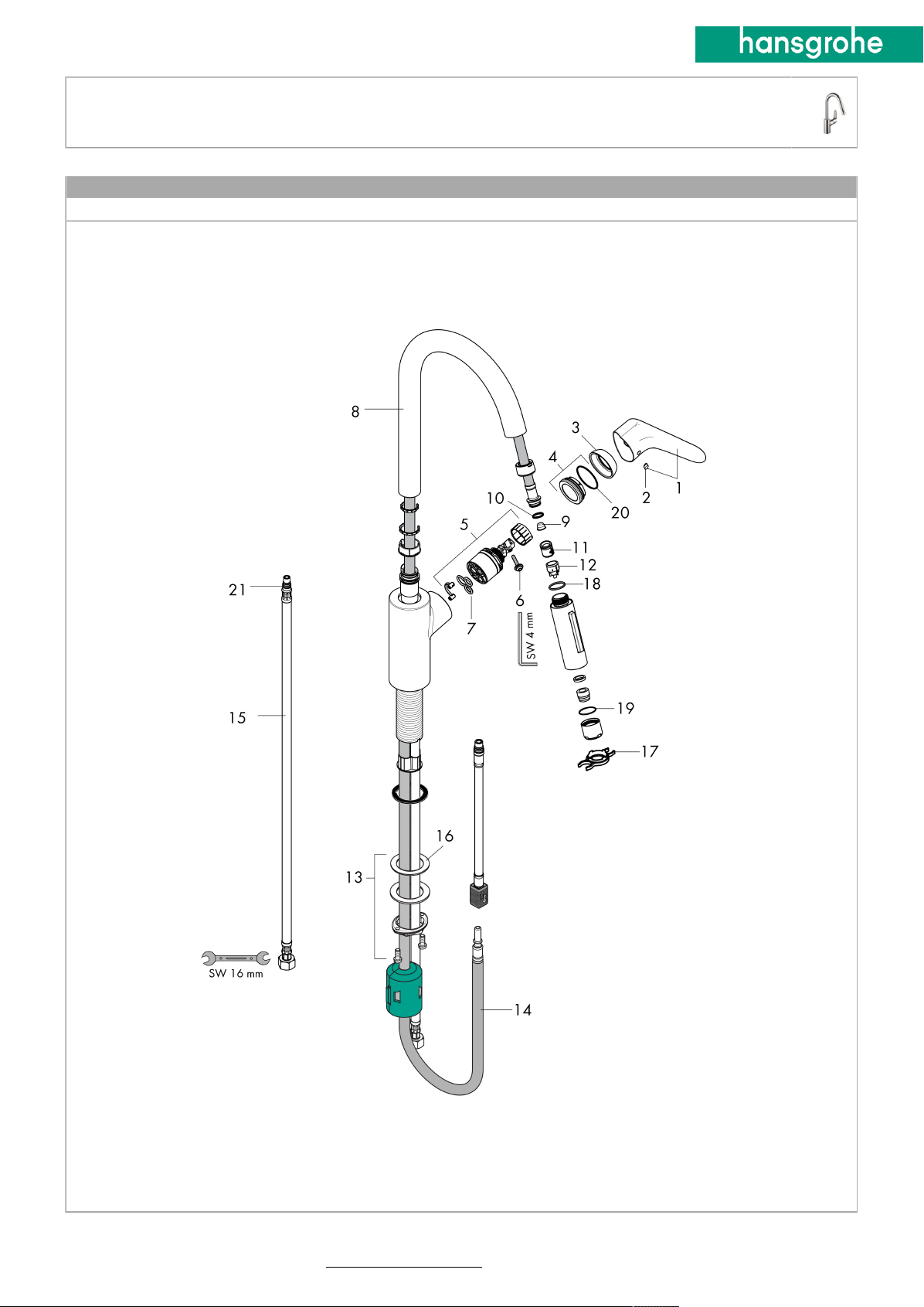

Exploded drawing
Year of production: >11/20
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
2 / 3Page
Page 3
Focus
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 04506001
Spare parts list
Year of production: >11/20
Pos. Description Part no. Price PU
1 handle 98460000 - 1
2 screw cover 96338000 - 1
3 flange 95498000 - 1
4 nut 97209000 - 1
5 cartridge, assy 92730000 - 1
6 locking screw for handle 95140000 - 1
7 seal 95008000 - 1
9 filter 97735000 - 1
10 O-ring 11x2 98127000 - 1
11 non return valve 93218000 - 1
12 set of non return valves DW 15 97350000 - 1
13 fixing set (Ø 34) 95049000 - 1
14 hose 1,50 m 88624000 - 1
15 connection hose 35½" M8x0,75 3/8" 96316001 - 1
17 service tool 95910000 - 1
18 O-ring 18x1,5 98231000 - 1
19 O-ring 20x1 98140000 - 1
a connection hose 600 mm M10x1 95561000 - 1
b weight 98551000 - 1
c aerator laminar M22x1 (15 l/min) 95909000 - 1
d handspray 98459001 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/5/22
3 / 3Page
