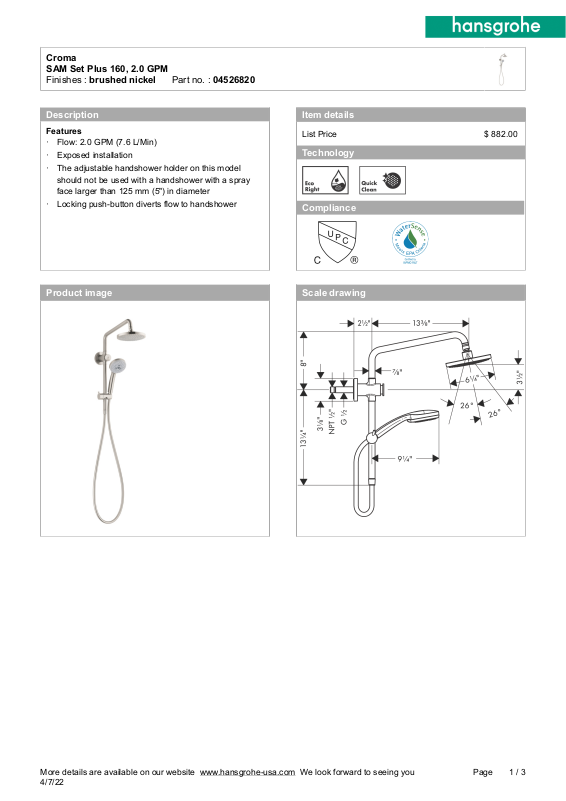

Page 1
Croma
SAM Set Plus 160, 2.0 GPM
Finishes : brushed nickel___Part no. : 04526820
Description
Features
· Flow: 2.0 GPM (7.6 L/Min)
· Exposed installation
· The adjustable handshower holder on this model
should not be used with a handshower with a spray
face larger than 125 mm (5") in diameter
· Locking push-button diverts flow to handshower
Item details
List Price $ 882.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
1 / 3Page
Page 2
Croma
SAM Set Plus 160, 2.0 GPM
Finishes : brushed nickel___Part no. : 04526820

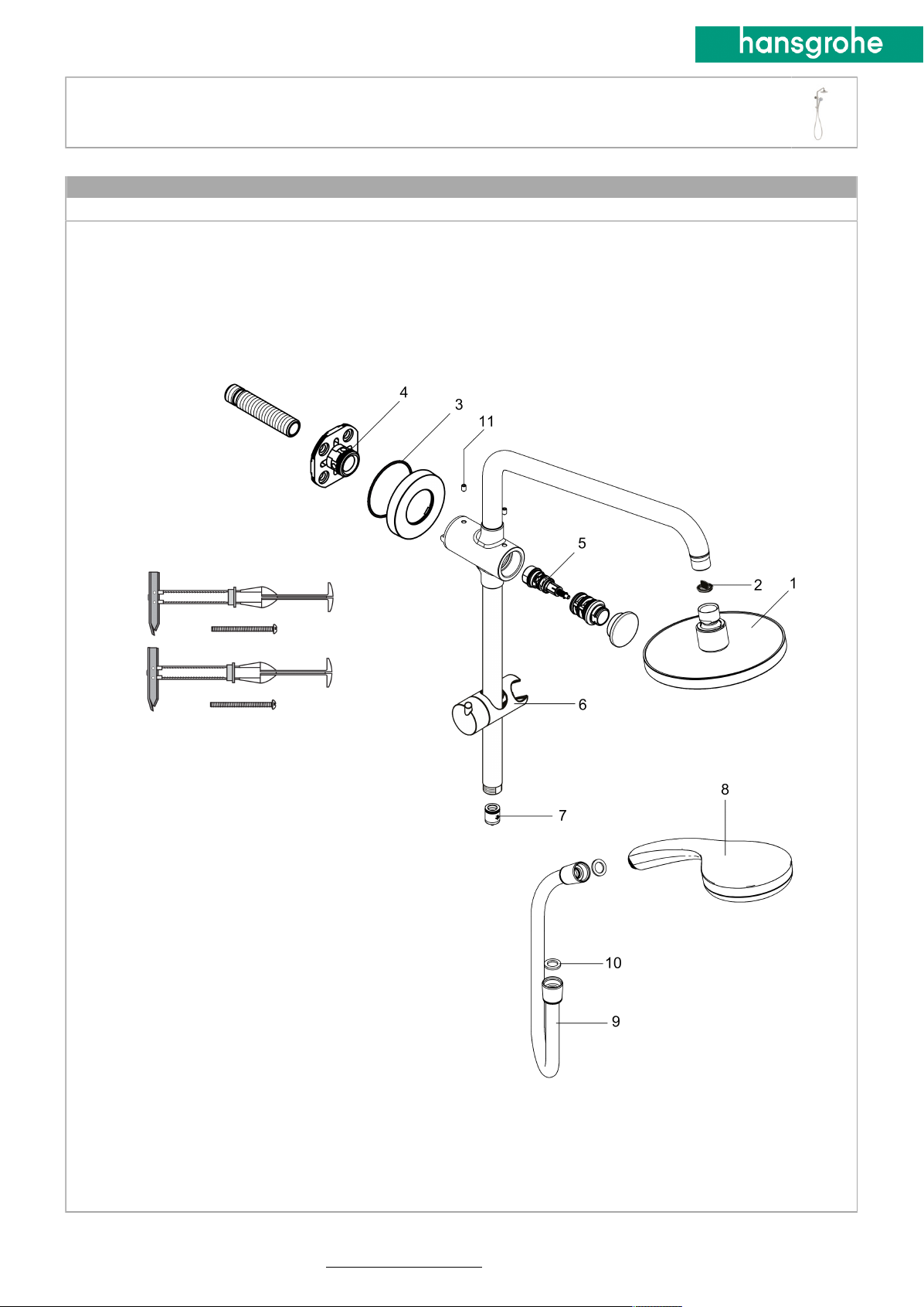

Exploded drawing
Year of production: >07/14
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
2 / 3Page
Page 3
Croma
SAM Set Plus 160, 2.0 GPM
Finishes : brushed nickel___Part no. : 04526820
Spare parts list
Year of production: >07/14
Pos. Description Part no. Price PU
1 showerhead cpl. 28450821 - 1
2 filter packing 88649000 - 1
3 O-ring 65x2 98472000 - 1
4 O-ring 25x2,5 92146000 - 1
5 selector (invers) 95657000 - 1
6 support, assy 95160820 - 1
7 set of non return valves DW 15 94074000 - 1
8 handshower 04083820 - 1
9 shower hose 1,60 m 28276823 - 1
10 seal 98058000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
3 / 3Page
