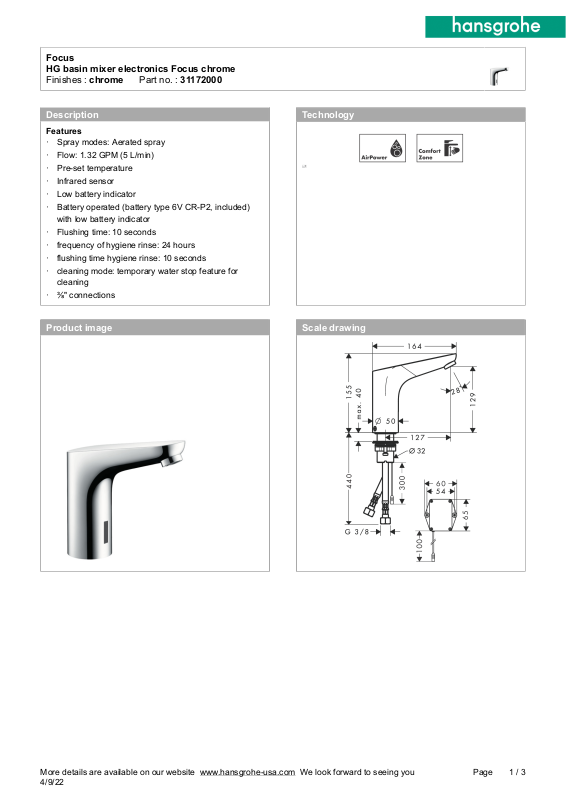

Page 1
Focus
HG basin mixer electronics Focus chrome
Finishes : chrome___Part no. : 31172000
Description
Features
· Spray modes: Aerated spray
· Flow: 1.32 GPM (5 L/min)
· Pre-set temperature
· Infrared sensor
· Low battery indicator
· Battery operated (battery type 6V CR-P2, included)
with low battery indicator
· Flushing time: 10 seconds
· frequency of hygiene rinse: 24 hours
· flushing time hygiene rinse: 10 seconds
· cleaning mode: temporary water stop feature for
cleaning
· ⅜" connections
Technology
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/9/22
1 / 3Page
Page 2
Focus
HG basin mixer electronics Focus chrome
Finishes : chrome___Part no. : 31172000

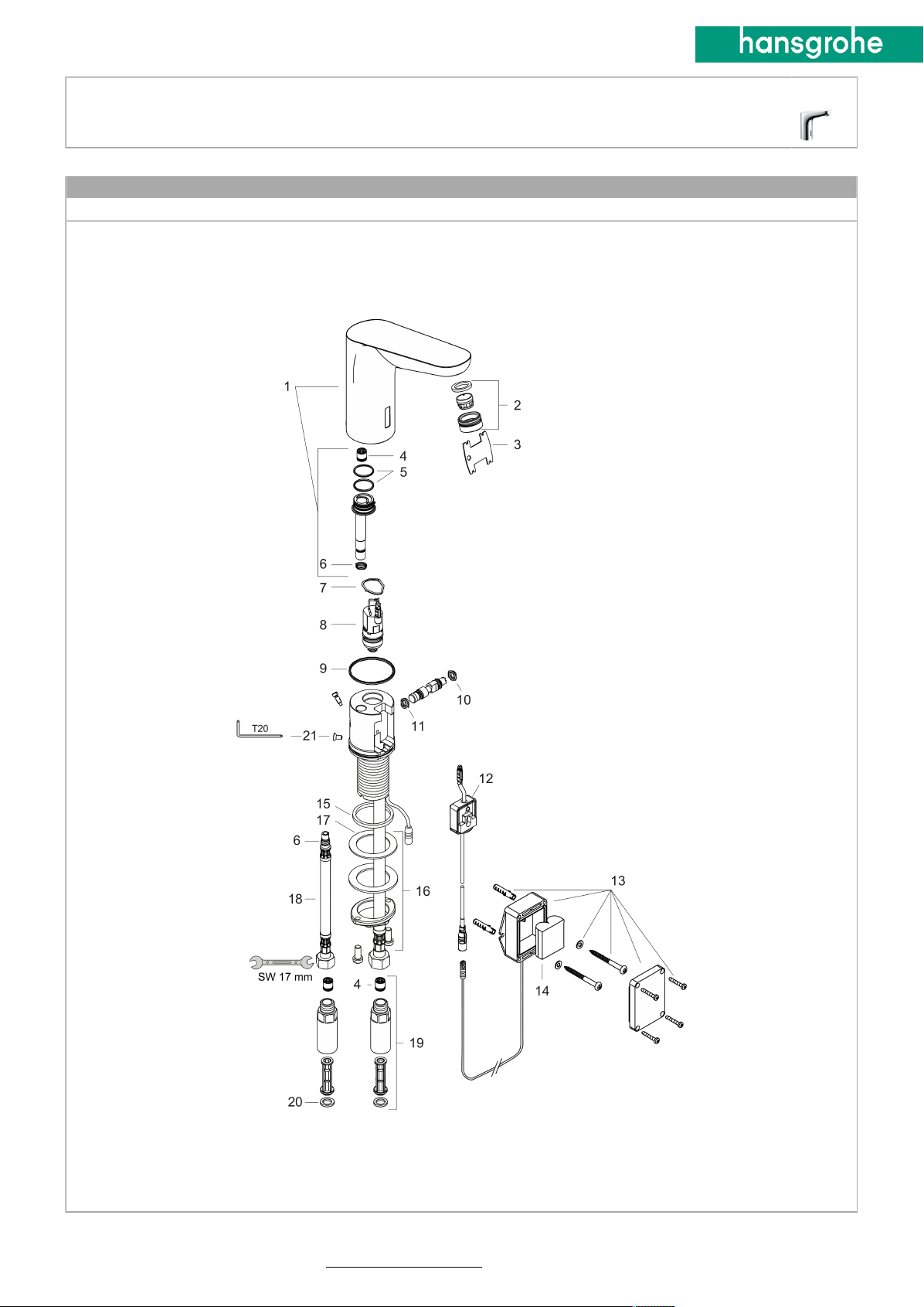

Exploded drawing
Year of production: >02/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/9/22
2 / 3Page
Page 3
Focus
HG basin mixer electronics Focus chrome
Finishes : chrome___Part no. : 31172000
Spare parts list
Year of production: >02/16
Pos. Description Part no. Price PU
1 mixer-hood 92310000 - 1
2 aerator M24x1 (5 l/min) 98802000 - 1
3 service tool 98808000 - 1
4 non return valve DW 10 96456000 - 1
5 O-ring 18x1,5 98231000 - 1
6 O-ring 7x1,5 98422000 - 1
7 O-ring 17x2 98199000 - 1
8 solenoid valve 95654000 - 1
9 O-ring 41x2 98212000 - 1
10 O-ring 6x2 98458000 - 1
11 O-ring 5x2 98215000 - 1
12 electronics 92346000 - 1
13 battery box 98801000 - 1
14 battery CR-P2 / 6V lithium 97399000 - 1
15 flat seal 98749000 - 1
16 fixing set (Ø 32) 13961000 - 1
17 lever collar 97548000 - 1
18 connection hose 450 mm 92345000 - 1
19 back flow preventor cartridge with microfilter 92297000 - 1
20 sealing set 95581000 - 1
21 screw 93272000 - 1
a fixation extension 35 mm 13898000 - 1
