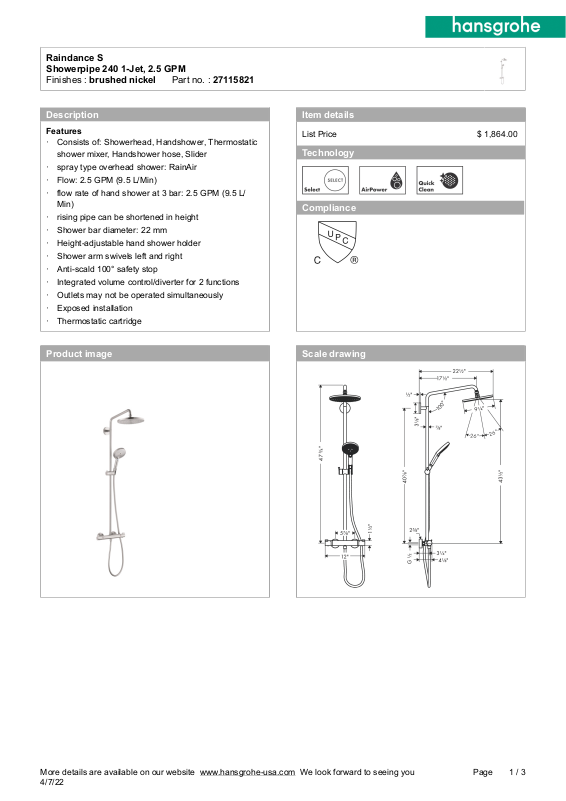

Page 1
Raindance S
Showerpipe 240 1-Jet, 2.5 GPM
Finishes : brushed nickel___Part no. : 27115821
Description
Features
· Consists of: Showerhead, Handshower, Thermostatic
shower mixer, Handshower hose, Slider
· spray type overhead shower: RainAir
· Flow: 2.5 GPM (9.5 L/Min)
· flow rate of hand shower at 3 bar: 2.5 GPM (9.5 L/
Min)
· rising pipe can be shortened in height
· Shower bar diameter: 22 mm
· Height-adjustable hand shower holder
· Shower arm swivels left and right
· Anti-scald 100° safety stop
· Integrated volume control/diverter for 2 functions
· Outlets may not be operated simultaneously
· Exposed installation
· Thermostatic cartridge
Item details
List Price $ 1,864.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
1 / 3Page
Page 2
Raindance S
Showerpipe 240 1-Jet, 2.5 GPM
Finishes : brushed nickel___Part no. : 27115821

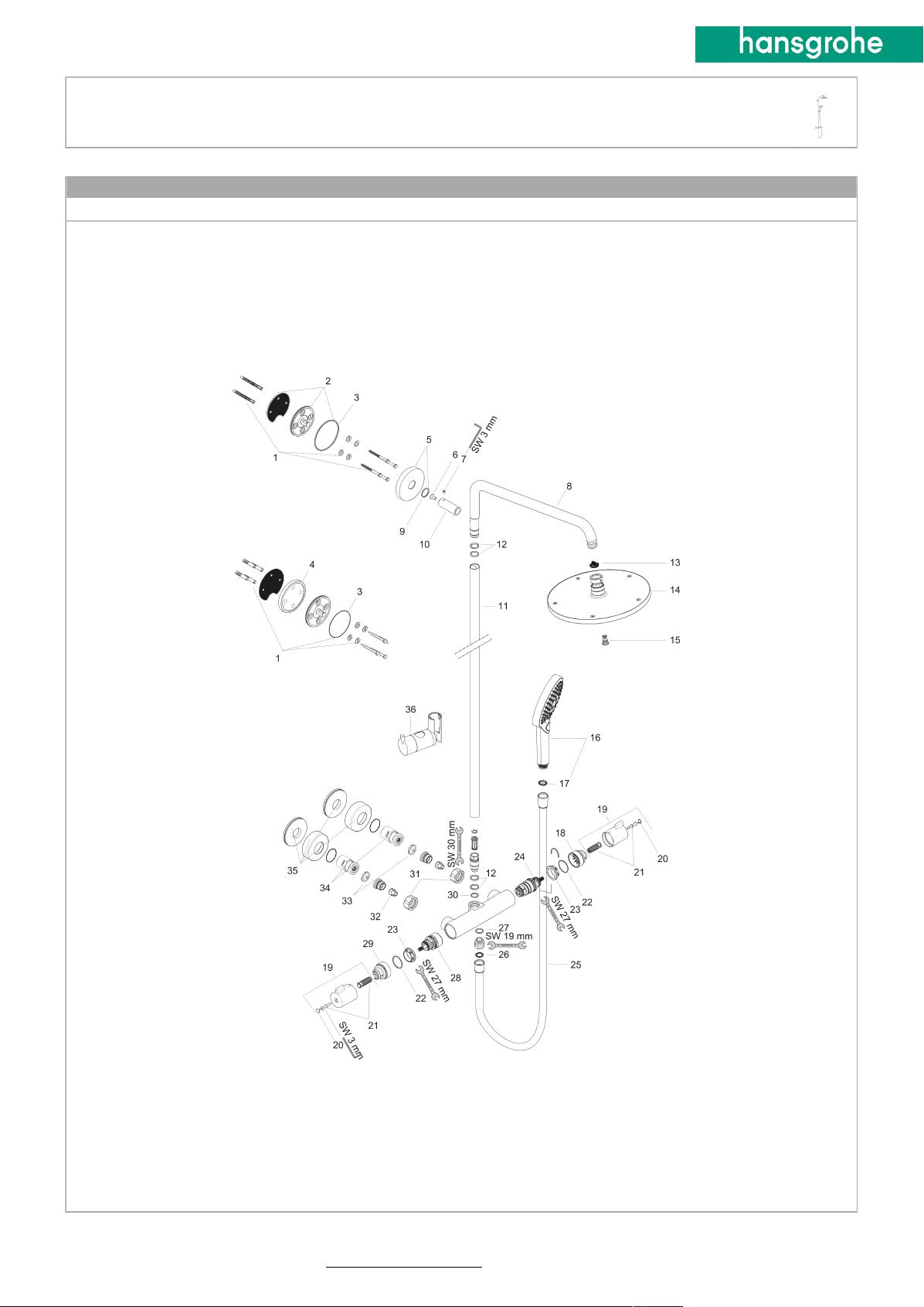

Exploded drawing
Year of production: >01/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
2 / 3Page
Page 3
Raindance S
Showerpipe 240 1-Jet, 2.5 GPM
Finishes : brushed nickel___Part no. : 27115821
Spare parts list
Year of production: >01/16
Pos. Description Part no. Price PU
1 mounting set 98716000 - 1
2 wall flange 95687000 - 1
3 O-ring 72x2 98395000 - 1
4 tile-matching-disk 7 mm 98681000 - 1
5 escutcheon Ø 80 mm 95691820 - 1
6 screw 92137000 - 1
7 hollow set screw M6x5 98447000 - 1
8 shower arm 95916820 - 1
9 O-ring 20x2 98165000 - 1
10 sleeve 92166820 - 1
11 pipe 1030 mm 95915820 - 1
12 O-ring 15x2,5 98131000 - 1
13 filter packing 88649000 - 1
14 head shower Ø 240 mm 92210821 - 1
15 air jet 95794820 - 1
16 handshower 26531821 - 1
17 filter packing 94246000 - 1
18 safety set for temperature control 95839001 - 1
19 handle 95836821 - 1
20 cover cap 95433820 - 1
21 handle fixing set 95843001 - 1
22 O-ring 26x1,5 98390000 - 1
23 nut 98913000 - 1
24 thermostat cartridge 98282000 - 1
25 shower hose 1,60 m 28276823 - 1
26 seal 98058000 - 1
27 O-ring 14x2 98129000 - 1
28 shut off unit with selector 98283000 - 1
29 stop ring for flow control 95927000 - 1
30 O-ring 12x2,25 98382000 - 1
31 set of nuts 96157820 - 1
32 non return valve 96737000 - 1
33 filter packing 96922000 - 1
34 isolation valve 98341000 - 1
35 escutcheon 98340820 - 1
36 support, assy 97651820 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/7/22
3 / 3Page
