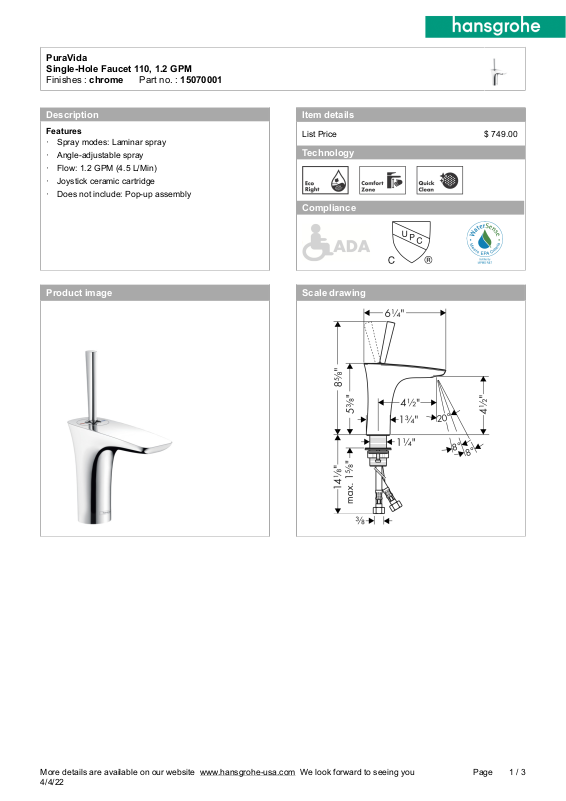

Page 1
PuraVida
Single-Hole Faucet 110, 1.2 GPM
Finishes : chrome___Part no. : 15070001
Description
Features
· Spray modes: Laminar spray
· Angle-adjustable spray
· Flow: 1.2 GPM (4.5 L/Min)
· Joystick ceramic cartridge
· Does not include: Pop-up assembly
Item details
List Price $ 749.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/4/22
1 / 3Page
Page 2
PuraVida
Single-Hole Faucet 110, 1.2 GPM
Finishes : chrome___Part no. : 15070001

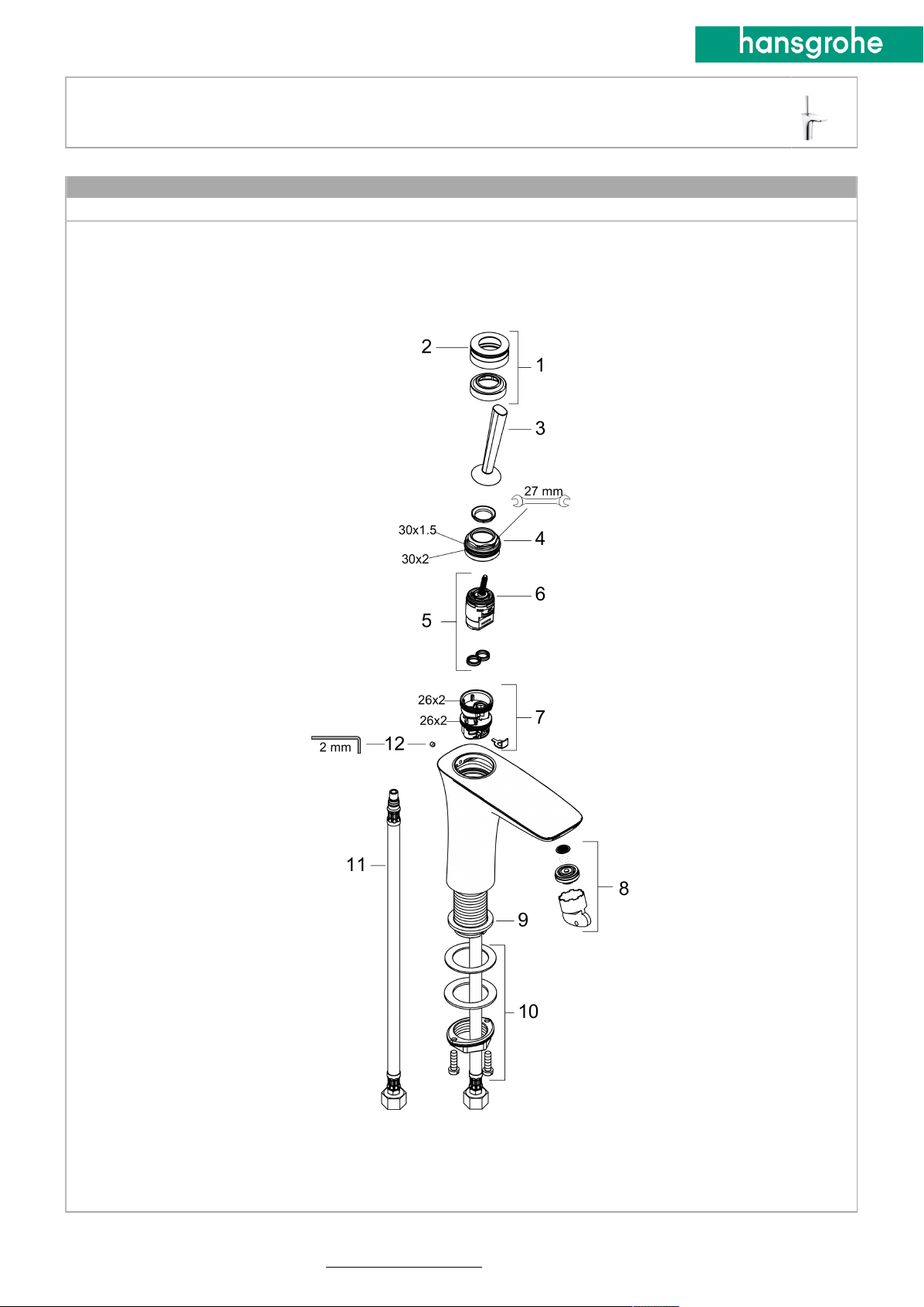

Exploded drawing
Year of production: >07/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/4/22
2 / 3Page
Page 3
PuraVida
Single-Hole Faucet 110, 1.2 GPM
Finishes : chrome___Part no. : 15070001
Spare parts list
Year of production: >07/16
Pos. Description Part no. Price PU
1 escutcheon Ø 37 mm 95288000 - 1
2 O-ring 33x1,5 98164000 - 1
3 handle 95287000 - 1
4 nut 97157000 - 1
5 cartridge, assy 96339000 - 1
6 O-ring 21,95x1,78 95169000 - 1
7 adapter for cartridge 95289000 - 1
8 aerator M24x1 (4,5 l/min) 92880000 - 1
9 flat seal 98749000 - 1
10 fixing set (Ø 32) 13961000 - 1
11 connection hose 17½" M8x0,75 G3/8 95141001 - 1
12 hollow set screw M4x6 97767000 - 1
a O-ring 26x2 98147000 - 1
b O-Ring 30x2 98186000 - 1
c O-ring 30x1,5 98433000 - 1
d service tool 95661000 - 1
e service tool for disassembling the handle 92124000 - 1
f fixation extension 35 mm 13898000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/4/22
3 / 3Page
