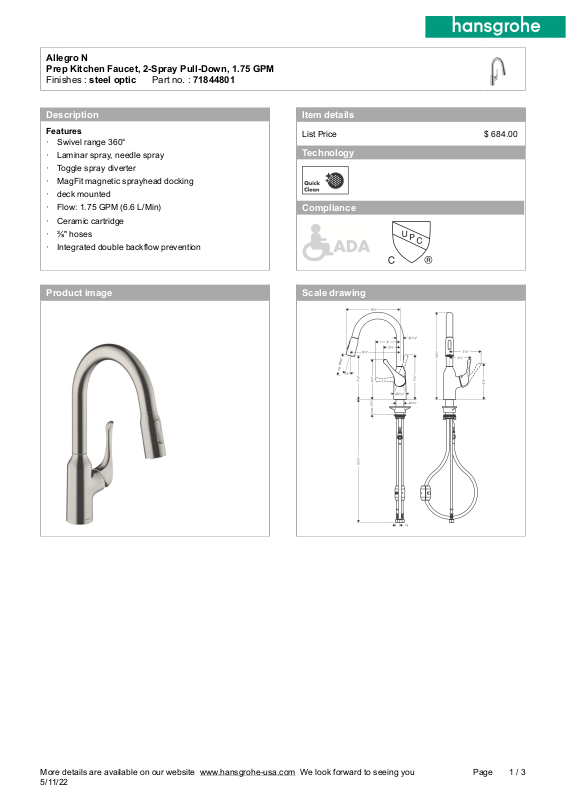

Page 1
Allegro N
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : steel optic___Part no. : 71844801
Description
Features
· Swivel range 360°
· Laminar spray, needle spray
· Toggle spray diverter
· MagFit magnetic sprayhead docking
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" hoses
· Integrated double backflow prevention
Item details
List Price $ 684.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
5/11/22
1 / 3Page
Page 2
Allegro N
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : steel optic___Part no. : 71844801

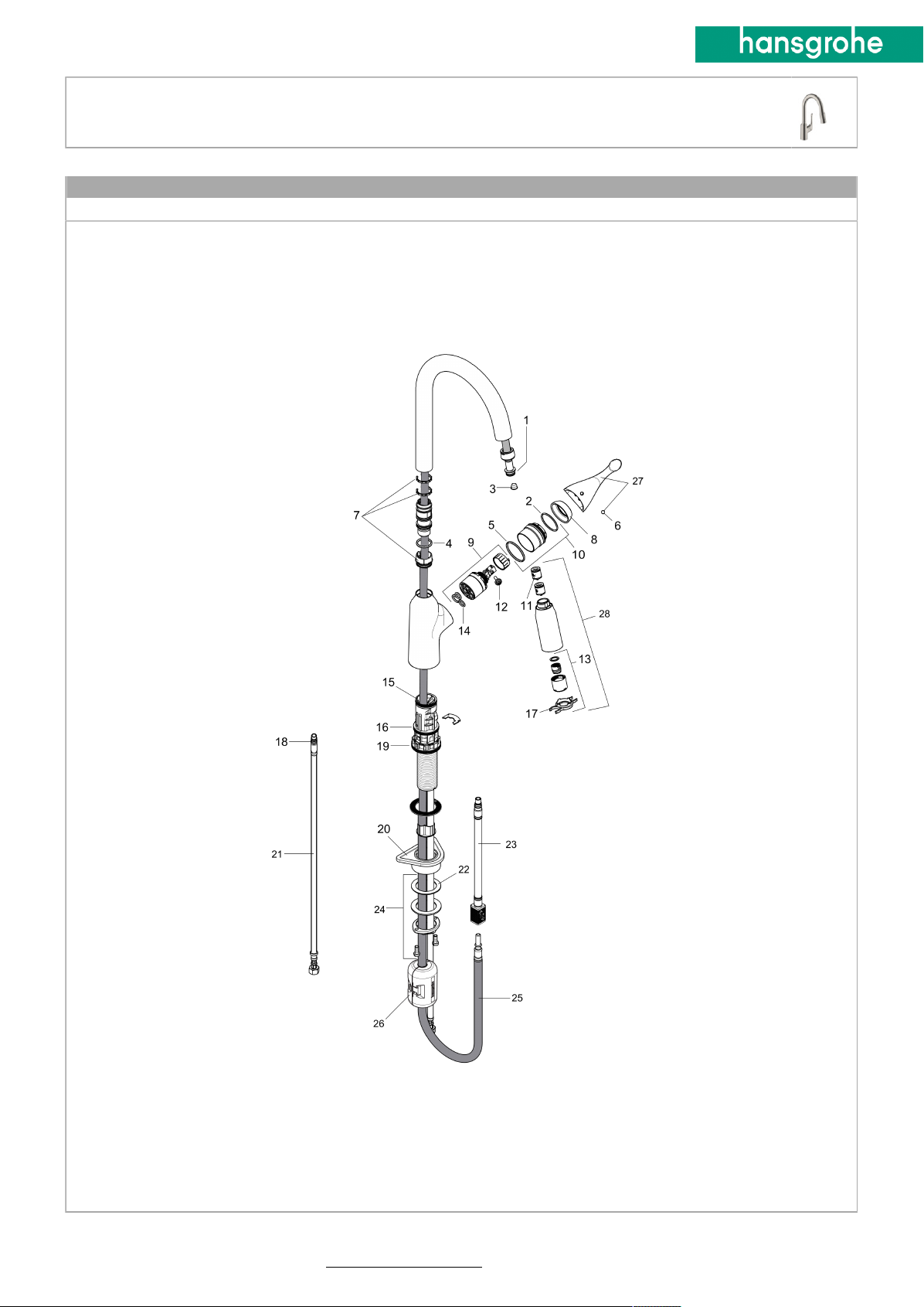

Exploded drawing
Year of production: >10/20
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
5/11/22
2 / 3Page
Page 3
Allegro N
Prep Kitchen Faucet, 2-Spray Pull-Down, 1.75 GPM
Finishes : steel optic___Part no. : 71844801
Spare parts list
Year of production: >10/20
Pos. Description Part no. Price PU
1 O-ring 11x2 98127000 - 1
2 O-Ring 32x2 98193000 - 1
3 filter 97735000 - 1
4 O-ring 21x2,5 98211000 - 1
5 O-ring 36x2 98156000 - 1
6 screw cover 96338000 - 1
7 set of lever collars 98365000 - 1
8 flange 97406800 - 1
9 cartridge, assy 92730000 - 1
10 nut 93346000 - 1
11 non return valve 93218000 - 1
12 locking screw for handle 95140000 - 1
13 spray former 93342000 - 1
14 seal 95008000 - 1
15 O-ring 30x1,5 98433000 - 1
16 O-ring 38x2 98396000 - 1
17 service tool 95910000 - 1
18 O-ring 6,6x1,6 93019000 - 1
19 O-ring 44x2,5 98162000 - 1
20 support 97523000 - 1
21 connection hose 35½" M8x0,75 3/8" 96316001 - 1
22 lever collar 97548000 - 1
23 connection hose 600 mm M10x1 95561000 - 1
24 fixing set (special) 93253000 - 1
25 hose 1,50 m 88624000 - 1
26 weight 98551000 - 1
27 handle 93496800 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
5/11/22
3 / 3Page
