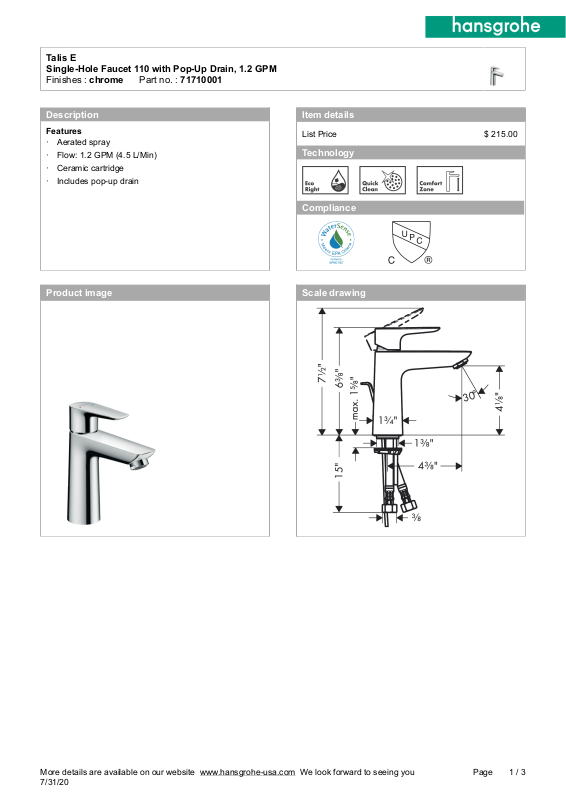

Page 1
Talis E
Single-Hole Faucet 110 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71710001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Ceramic cartridge
· Includes pop-up drain
Item details
List Price $ 215.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
1 / 3Page
Page 2
Talis E
Single-Hole Faucet 110 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71710001
Exploded drawing
Year of production: >10/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
2 / 3Page
Page 3
Talis E
Single-Hole Faucet 110 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71710001
Spare parts list
Year of production: >10/16
Pos. Description Part no. Price PU
1 handle 92687000 - 1
2 screw cover 95704000 - 1
3 flange 92625000 - 1
4 nut 92689000 - 1
5 O-ring 25x1,5 98146000 - 1
6 O-ring 27x1,5 92527000 - 1
7 cartridge, assy 95973001 - 1
8 seal 98865000 - 1
9 adapter for cartridge 92628000 - 1
10 adapter for cartridge 98866000 - 1
11 O-ring 23x2 98398000 - 1
12 aerator M24x1 (4,5 l/min) 92877000 - 1
13 screw M8 x 68 97736000 - 1
14 seal Ø 42 98722000 - 1
15 fixing set 96016000 - 1
16 connection hose 18½" M8x0,75 3/8" 96321001 - 1
17 O-ring 7x1,5 98422000 - 1
18 pull rod 96657000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
3 / 3Page
