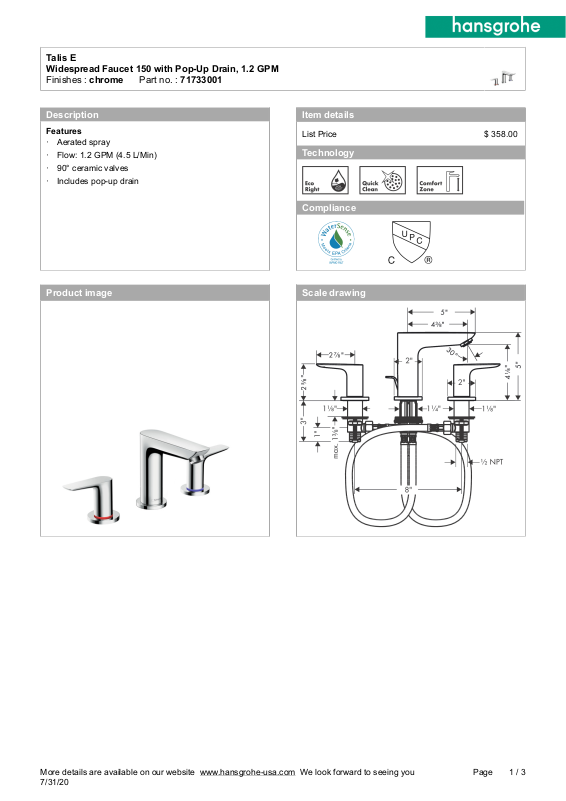

Page 1
Talis E
Widespread Faucet 150 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71733001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· 90° ceramic valves
· Includes pop-up drain
Item details
List Price $ 358.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
1 / 3Page
Page 2
Talis E
Widespread Faucet 150 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71733001

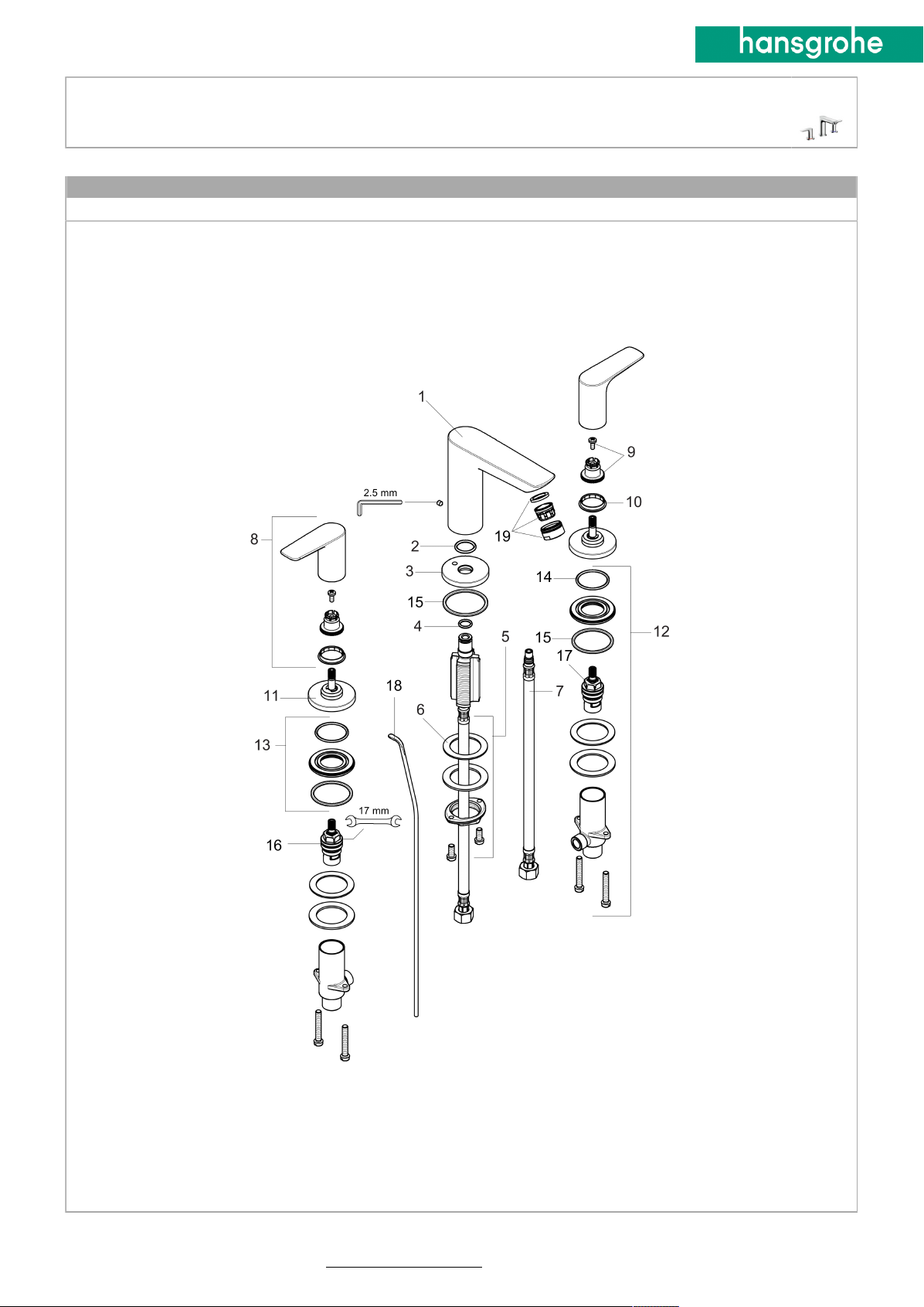

Exploded drawing
Year of production: >11/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
2 / 3Page
Page 3
Talis E
Widespread Faucet 150 with Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 71733001
Spare parts list
Year of production: >11/16
Pos. Description Part no. Price PU
1 spout cpl. 92785000 - 1
2 O-ring 18x2,5 98139000 - 1
3 escutcheon Ø 53 mm 95272000 - 1
4 O-ring 11x2 98127000 - 1
5 fixing set (Ø 32) 13961000 - 1
6 lever collar 97548000 - 1
7 connection hose 450 mm M8x0,75 G3/8 97206000 - 1
8 handle 92779000 - 1
9 handle fixing set 94184000 - 1
10 set of color-rings cold / hot water 95819000 - 1
11 escutcheon Ø 52 mm 97285000 - 1
12 stop valve cpl. 97357001 - 1
13 nut 92854000 - 1
14 O-Ring 32x2,5 96364000 - 1
15 O-ring 92768000 - 1
16 shut off unit right closing 94009000 - 1
17 shut off unit left closing 94008000 - 1
18 pull rod 96657000 - 1
19 aerator M24x1 (4,5 l/min) 92877000 - 1
a pop up waste 88509000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/31/20
3 / 3Page
