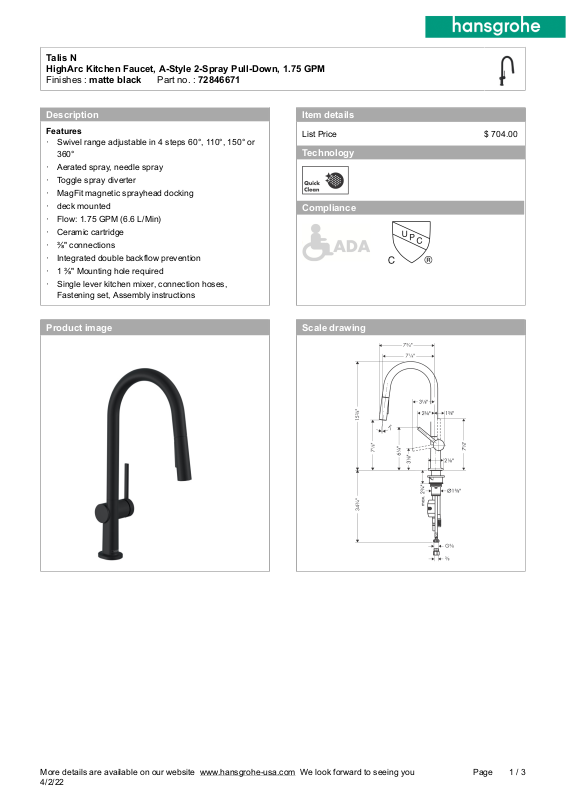

Page 1
Talis N
HighArc Kitchen Faucet, A-Style 2-Spray Pull-Down, 1.75 GPM
Finishes : matte black___Part no. : 72846671
Description
Features
· Swivel range adjustable in 4 steps 60°, 110°, 150° or
360°
· Aerated spray, needle spray
· Toggle spray diverter
· MagFit magnetic sprayhead docking
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· Integrated double backflow prevention
· 1 ⅜" Mounting hole required
· Single lever kitchen mixer, connection hoses,
Fastening set, Assembly instructions
Item details
List Price $ 704.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/2/22
1 / 3Page
Page 2
Talis N
HighArc Kitchen Faucet, A-Style 2-Spray Pull-Down, 1.75 GPM
Finishes : matte black___Part no. : 72846671

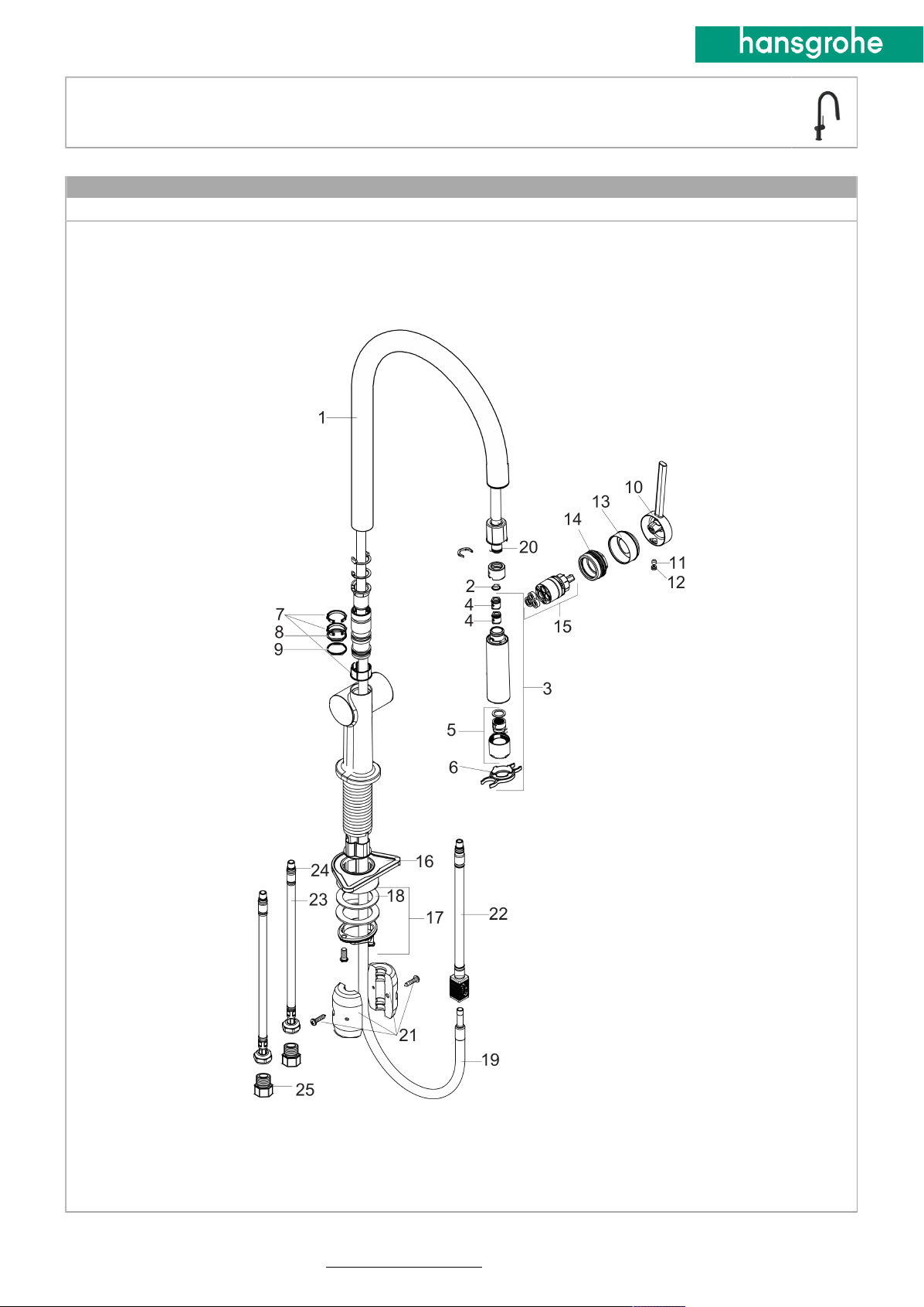

Exploded drawing
Year of production: >06/20
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/2/22
2 / 3Page
Page 3
Talis N
HighArc Kitchen Faucet, A-Style 2-Spray Pull-Down, 1.75 GPM
Finishes : matte black___Part no. : 72846671
Spare parts list
Year of production: >06/20
Pos. Description Part no. Price PU
1 spout cpl. 93826670 - 1
2 filter 98516000 - 1
3 handspray 93741671 - 1
4 non return valve DW 10 96456000 - 1
5 spray former 93342001 - 1
6 service tool 95910000 - 1
7 set of lever collars 98365000 - 1
8 O-ring 19x2 98426000 - 1
9 O-ring 20x1,5 98197000 - 1
10 handle 93736670 - 1
11 hollow set screw M5x5 98446000 - 1
12 screw cover 93735610 - 1
13 flange 93737670 - 1
14 nut 93738000 - 1
15 cartridge, assy 93740000 - 1
16 support 97523000 - 1
17 fixing set (Ø 34) 95049000 - 1
18 lever collar 97548000 - 1
19 hose 93745000 - 1
20 O-ring 8x2 98112000 - 1
21 weight 92500000 - 1
22 hose 93744000 - 1
23 connection hose 900 mm M8x0,75 G3/8 93746000 - 1
24 adapter for connection hose 88802000 - 1
25 O-ring 6,6x1,6 93019000 - 1
