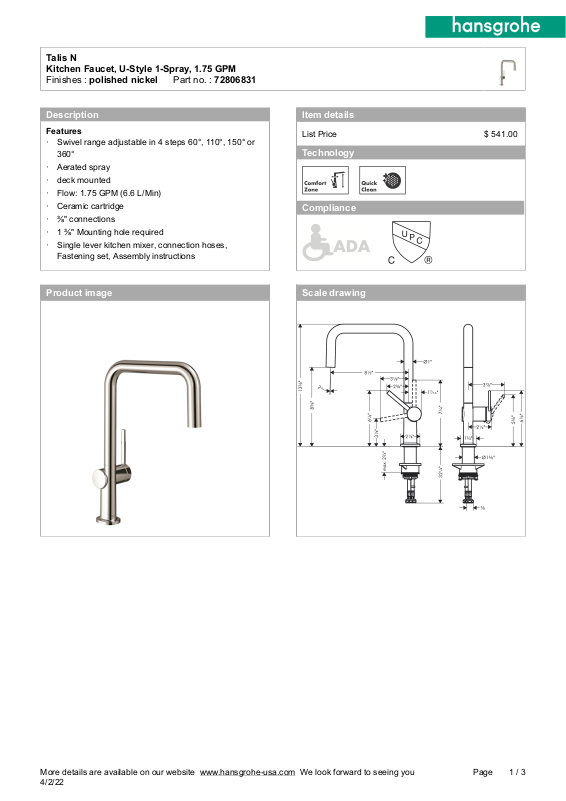

Page 1
Talis N
Kitchen Faucet, U-Style 1-Spray, 1.75 GPM
Finishes : polished nickel___Part no. : 72806831
Description
Features
· Swivel range adjustable in 4 steps 60°, 110°, 150° or
360°
· Aerated spray
· deck mounted
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· 1 ⅜" Mounting hole required
· Single lever kitchen mixer, connection hoses,
Fastening set, Assembly instructions
Item details
List Price $ 541.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/2/22
1 / 3Page
Page 2
Talis N
Kitchen Faucet, U-Style 1-Spray, 1.75 GPM
Finishes : polished nickel___Part no. : 72806831

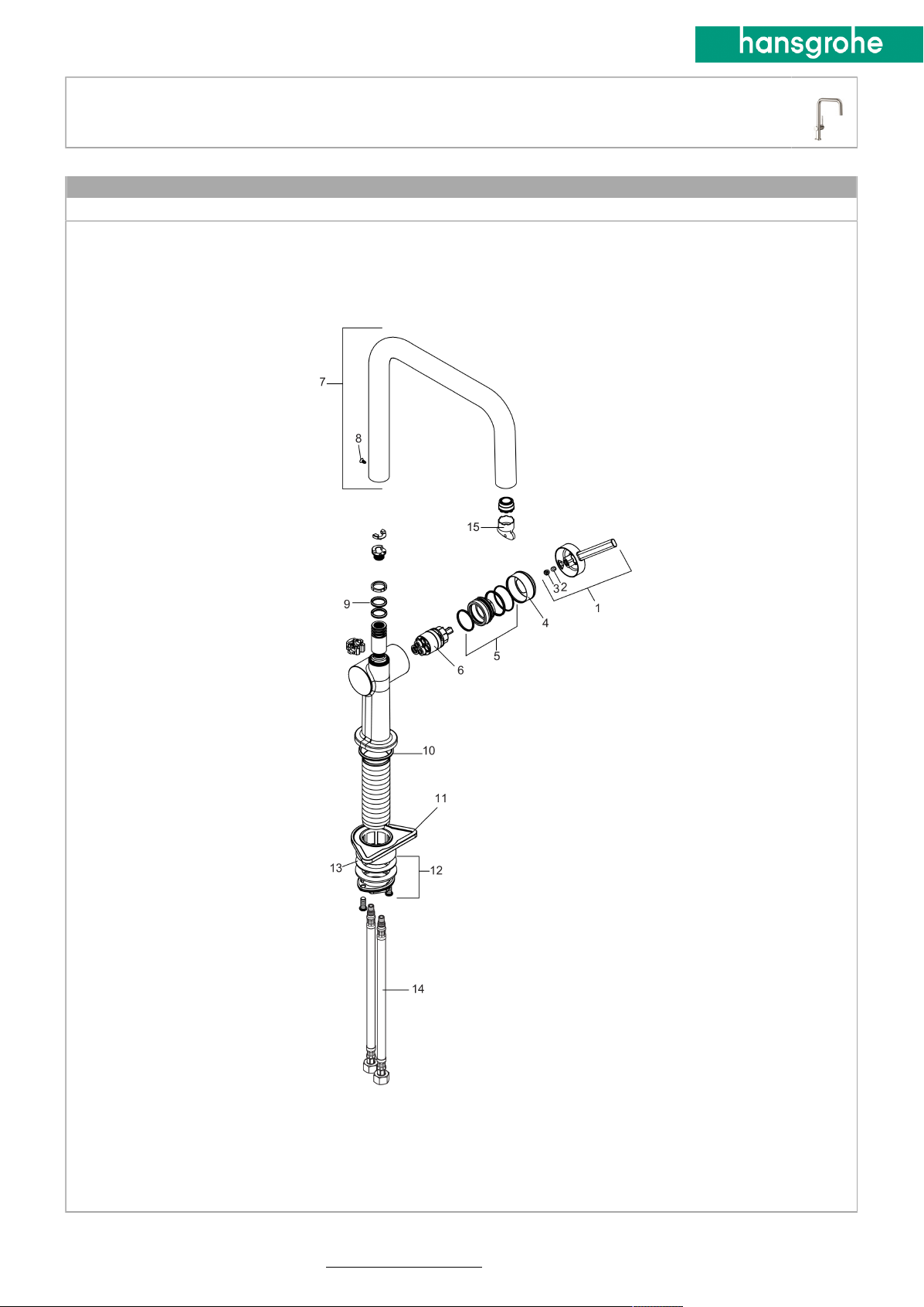

Exploded drawing
Year of production: >04/20
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/2/22
2 / 3Page
Page 3
Talis N
Kitchen Faucet, U-Style 1-Spray, 1.75 GPM
Finishes : polished nickel___Part no. : 72806831
Spare parts list
Year of production: >04/20
Pos. Description Part no. Price PU
1 handle 93736830 - 1
2 hollow set screw M5x5 98446000 - 1
3 screw cover 93735610 - 1
4 flange 93737830 - 1
5 nut 93738000 - 1
6 cartridge, assy 93760000 - 1
7 spout cpl. 93756830 - 1
8 screw 94319000 - 1
9 O-Ring 14x2,5 98189000 - 1
10 O-ring 36x3 98052000 - 1
11 support 97523000 - 1
12 fixing set (Ø 34) 95049000 - 1
13 lever collar 97548000 - 1
14 connection hose 35½" M8x0,75 3/8" 96316001 - 1
15 service tool 93750000 - 1
a O-ring 7x1,5 98422000 - 1
b aerator cpl. 94222000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
4/2/22
3 / 3Page
