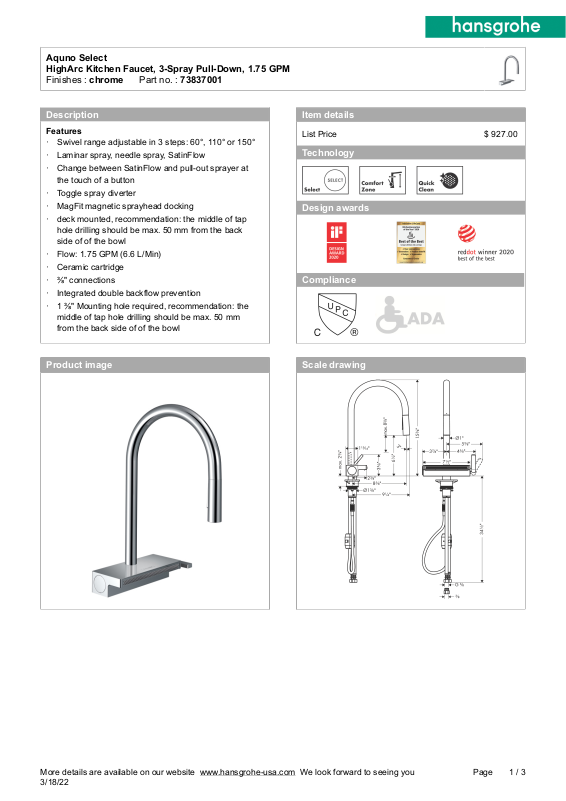

Aquno Select
HighArc Kitchen Faucet, 3-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 73837001
Description
Features
· Swivel range adjustable in 3 steps: 60°, 110° or 150°
· Laminar spray, needle spray, SatinFlow
· Change between SatinFlow and pull-out sprayer at
the touch of a button
· Toggle spray diverter
· MagFit magnetic sprayhead docking
· deck mounted, recommendation: the middle of tap
hole drilling should be max. 50 mm from the back
side of of the bowl
· Flow: 1.75 GPM (6.6 L/Min)
· Ceramic cartridge
· ⅜" connections
· Integrated double backflow prevention
· 1 ⅜" Mounting hole required, recommendation: the
middle of tap hole drilling should be max. 50 mm
from the back side of of the bowl
Item details
List Price $ 927.00-
Technology
Design awards
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/18/22
1 / 3Page
Page 2
Aquno Select
HighArc Kitchen Faucet, 3-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 73837001

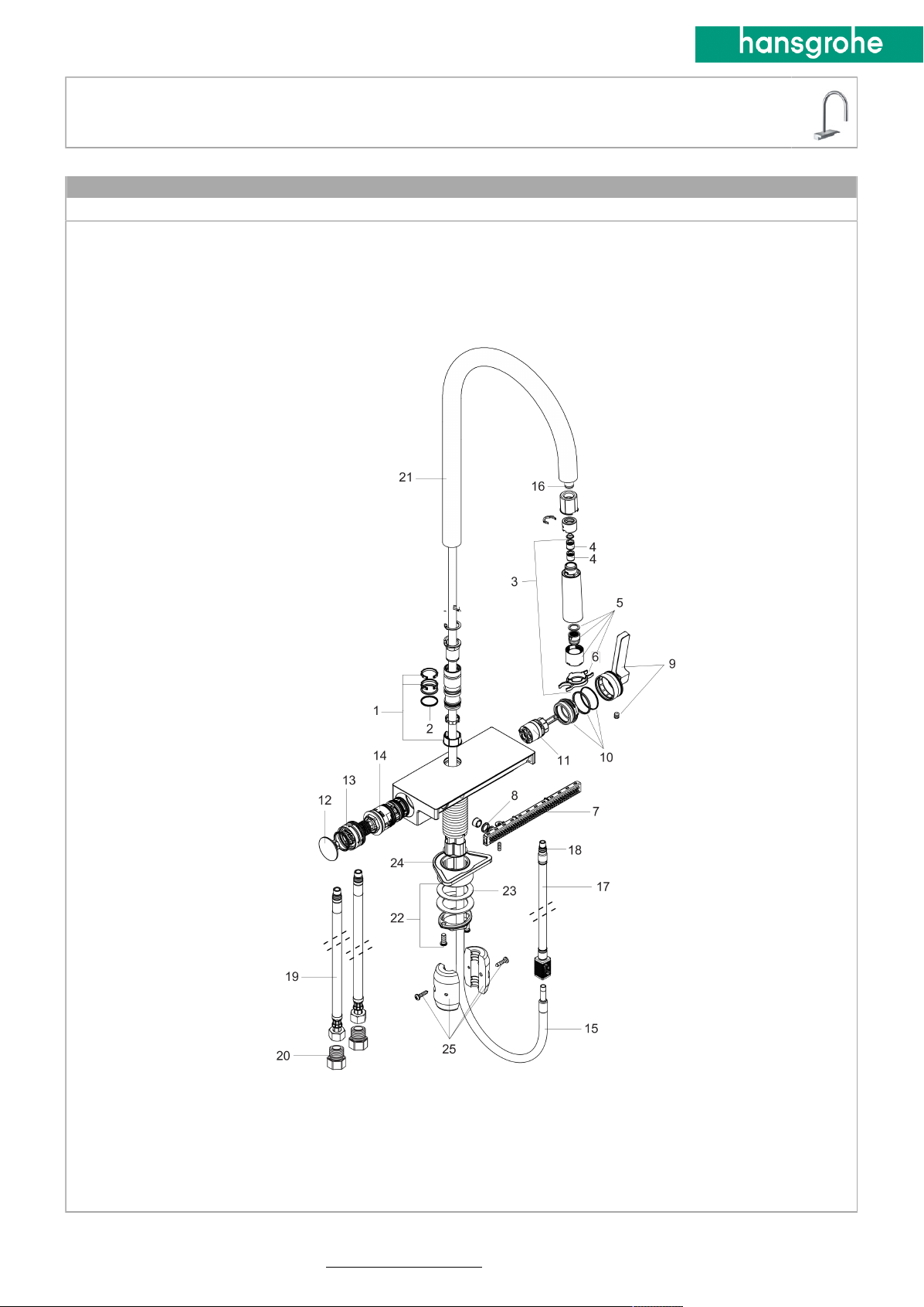

Exploded drawing
Year of production: >04/20
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/18/22
2 / 3Page
Page 3
Aquno Select
HighArc Kitchen Faucet, 3-Spray Pull-Down, 1.75 GPM
Finishes : chrome___Part no. : 73837001
Spare parts list
Year of production: >04/20
Pos. Description Part no. Price PU
1 set of lever collars 98365000 - 1
2 O-ring 19x2 98426000 - 1
3 handspray 93778001 - 1
4 non return valve DW 10 96456000 - 1
5 spray former 93342001 - 1
6 service tool 95910000 - 1
7 spray head cpl. 93781000 - 1
8 O-ring 10x2 98170000 - 1
9 handle 93776000 - 1
10 nut 92926000 - 1
11 cartridge, assy 93183000 - 1
12 cover 93777000 - 1
13 spring with sleeve 93782000 - 1
14 selector assy 93558000 - 1
15 hose 93745000 - 1
16 O-ring 8x2 98112000 - 1
17 null 92914000 - 1
18 O-ring 8x1,75 97827000 - 1
19 connection hose 900 mm M10x1 G3/8 93780000 - 1
20 adapter for connection hose 88802000 - 1
21 spout cpl. 93779000 - 1
22 fixing set (Ø 34) 95049000 - 1
23 lever collar 97548000 - 1
24 support 97523000 - 1
25 weight 92500000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
3/18/22
3 / 3Page
