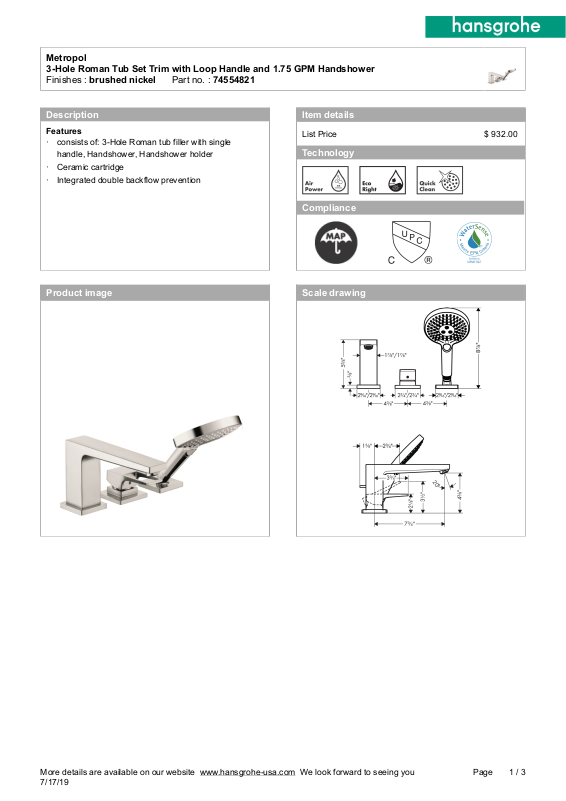

Page 1
Metropol
3-Hole Roman Tub Set Trim with Loop Handle and 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 74554821
Description
Features
· consists of: 3-Hole Roman tub filler with single
handle, Handshower, Handshower holder
· Ceramic cartridge
· Integrated double backflow prevention
Item details
List Price $ 932.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
3-Hole Roman Tub Set Trim with Loop Handle and 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 74554821

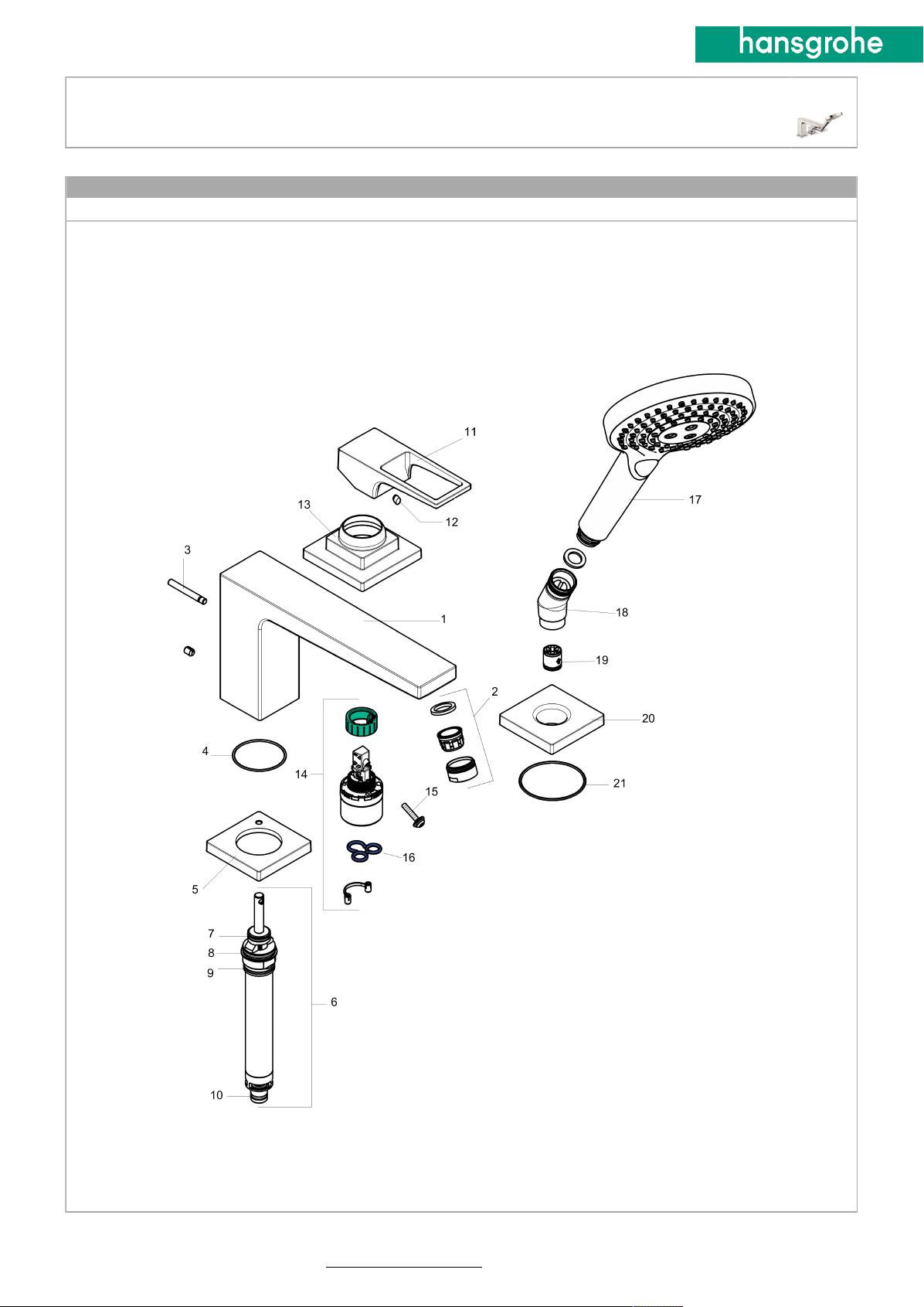

Exploded drawing
Year of production: >07/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
3-Hole Roman Tub Set Trim with Loop Handle and 1.75 GPM Handshower
Finishes : brushed nickel___Part no. : 74554821
Spare parts list
Year of production: >07/18
Pos. Description Part no. Price PU
1 spout cpl. 93151820 - 1
2 aerator M24x1 (30 l/min) 96512820 - 1
3 handle 93076820 - 1
4 diverter knob 98707820 - 1
5 O-ring 41x1,5 98168000 - 1
6 escutcheon for spout 93152820 - 1
7 selector assy 96775000 - 1
8 O-Ring 14x2,5 98189000 - 1
9 O-Ring 23x2,5 98183000 - 1
10 O-Ring 22x2 98185000 - 1
11 O-ring 9x2,5 98217000 - 1
12 screw cover 96338000 - 1
13 escutcheon 93138820 - 1
14 cartridge, assy 92730000 - 1
15 locking screw for handle 95140000 - 1
16 seal 95008000 - 1
17 handshower 26036821 - 1
18 shower holder 28071820 - 1
19 set of non return valves DW 15 94074000 - 1
20 escutcheon for shower holder 93153820 - 1
21 O-ring 56x2 98468000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
