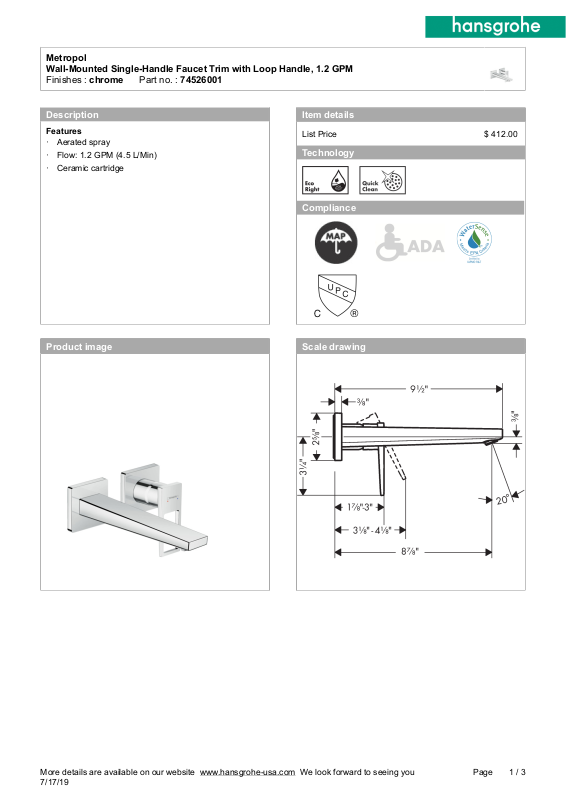

Page 1
Metropol
Wall-Mounted Single-Handle Faucet Trim with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74526001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Ceramic cartridge
Item details
List Price $ 412.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
Wall-Mounted Single-Handle Faucet Trim with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74526001

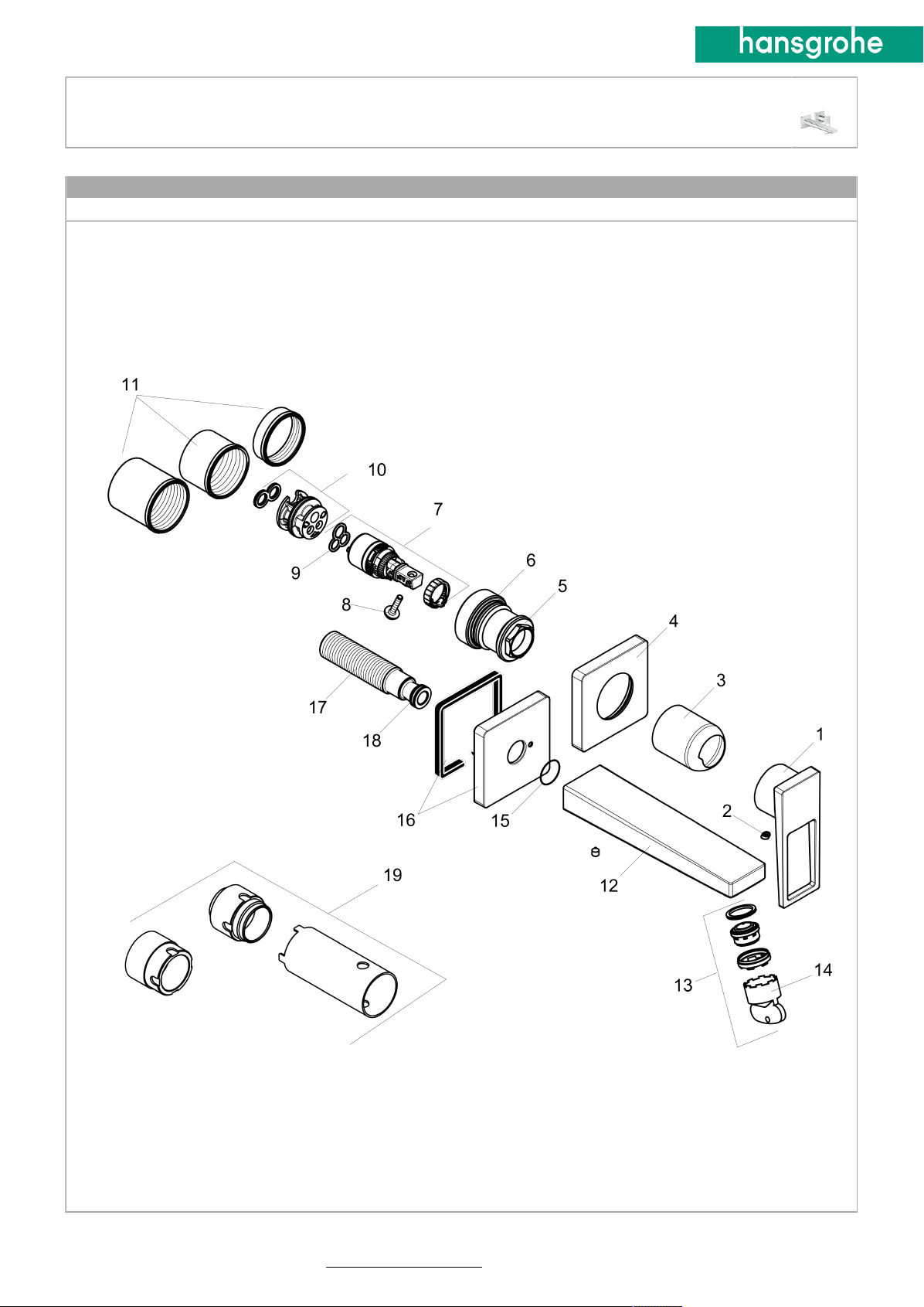

Exploded drawing
Year of production: >01/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
Wall-Mounted Single-Handle Faucet Trim with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74526001
Spare parts list
Year of production: >01/18
Pos. Description Part no. Price PU
1 handle 93164000 - 1
2 screw cover 96338000 - 1
3 sleeve 93053000 - 1
4 escutcheon for handle 93161000 - 1
5 nut 93141000 - 1
6 O-ring 26x2 98147000 - 1
7 cartridge, assy 95973001 - 1
8 locking screw for handle 95140000 - 1
9 seal 98865000 - 1
10 adapter for cartridge 95634000 - 1
11 fixing set 97971000 - 1
12 spout 225 mm 93166000 - 1
13 aerator M24x1 (4,5 l/min) 93202000 - 1
14 service tool 95661000 - 1
15 O-ring 18x1,5 98231000 - 1
16 escutcheon for spout 93162000 - 1
17 connecting thread G½ 95626000 - 1
18 O-ring 13x2 98128000 - 1
19 extension set 25 mm for 13622180 31971000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
