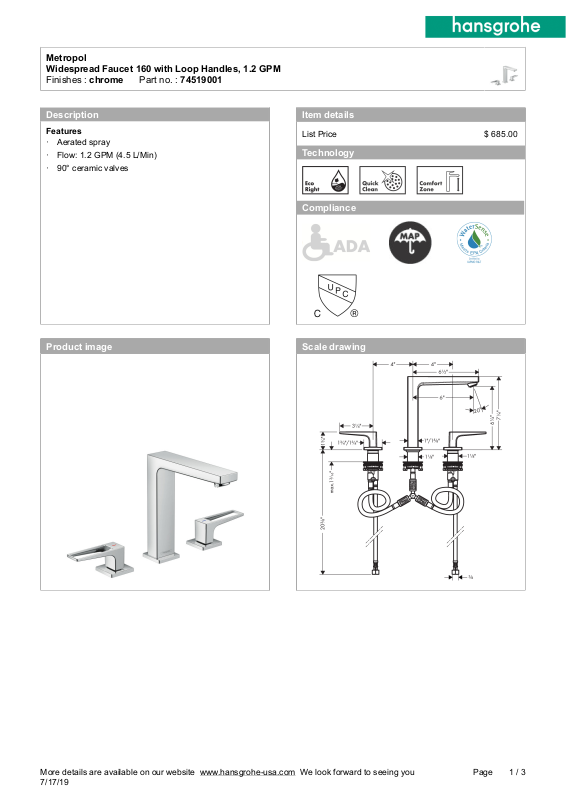

Page 1
Metropol
Widespread Faucet 160 with Loop Handles, 1.2 GPM
Finishes : chrome___Part no. : 74519001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· 90° ceramic valves
Item details
List Price $ 685.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
Widespread Faucet 160 with Loop Handles, 1.2 GPM
Finishes : chrome___Part no. : 74519001

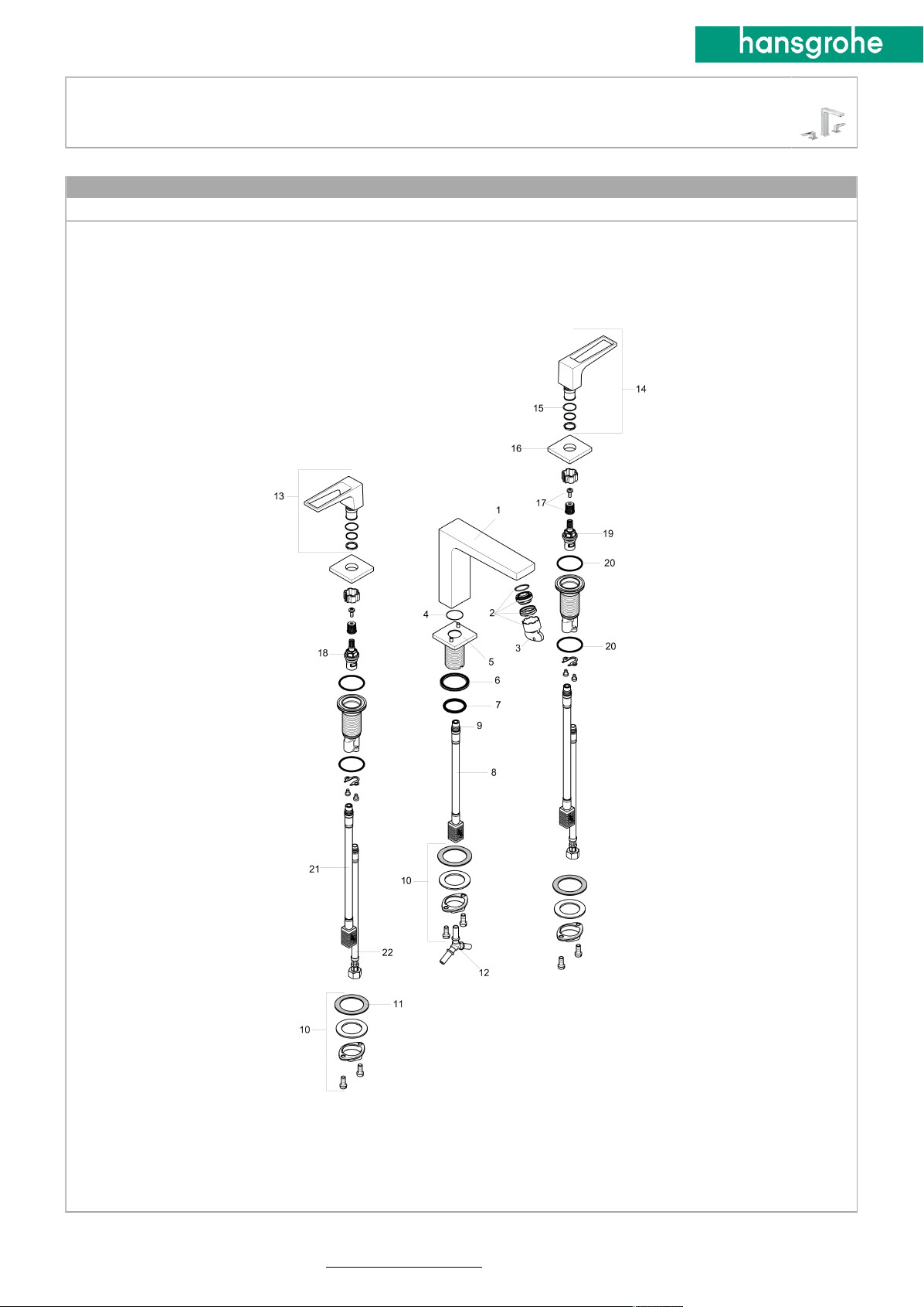

Exploded drawing
Year of production: >01/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
Widespread Faucet 160 with Loop Handles, 1.2 GPM
Finishes : chrome___Part no. : 74519001
Spare parts list
Year of production: >01/18
Pos. Description Part no. Price PU
1 spout 160 mm 93158000 - 1
2 aerator M24x1 (4,5 l/min) 93202000 - 1
3 service tool 95661000 - 1
4 O-ring 21x1,5 98219000 - 1
5 escutcheon for spout 92906000 - 1
6 flat seal 98749000 - 1
7 O-ring 26x4 92191000 - 1
8 connection hose 200 mm M10x1 92913000 - 1
9 O-ring 8x1,75 97827000 - 1
10 fixing set (Ø 28) 92909000 - 1
11 lever collar 97548000 - 1
12 hose connection angel 92905000 - 1
13 handle for hot water 92918000 - 1
14 handle for cold water 92919000 - 1
15 O-Ring 14x1,5 98201000 - 1
16 escutcheon 92915000 - 1
17 handle fixing set 98932000 - 1
18 shut off unit right closing 98817001 - 1
19 shut off unit left closing 95366001 - 1
20 O-ring 33x2,5 92907000 - 1
21 connection hose 400 mm M10x1 92914000 - 1
22 connection hose 18½" M8x0,75 3/8" 96321001 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
