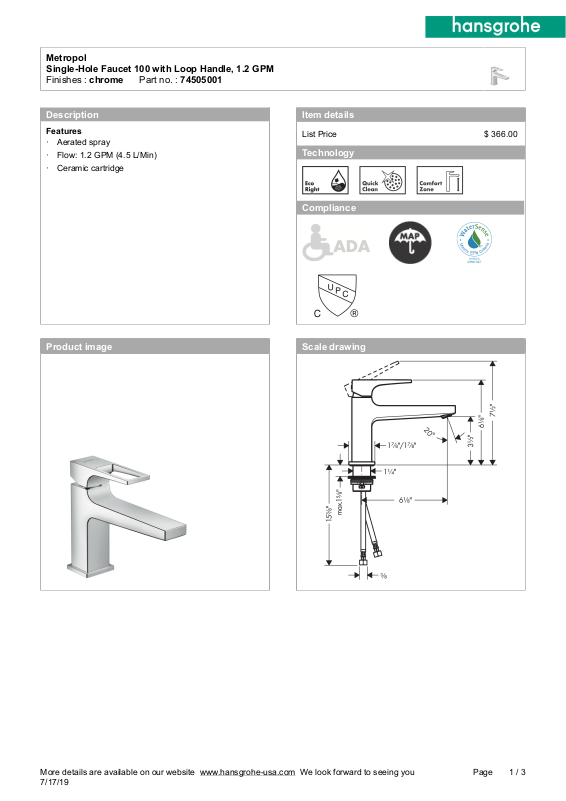

Page 1
Metropol
Single-Hole Faucet 100 with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74505001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· Ceramic cartridge
Item details
List Price $ 366.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
Single-Hole Faucet 100 with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74505001
Exploded drawing
Year of production: >10/17
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
Single-Hole Faucet 100 with Loop Handle, 1.2 GPM
Finishes : chrome___Part no. : 74505001
Spare parts list
Year of production: >10/17
Pos. Description Part no. Price PU
1 handle 93009000 - 1
2 screw cover 95704000 - 1
3 flange 92625000 - 1
4 nut 92689000 - 1
5 O-ring 27x1,5 92527000 - 1
6 O-ring 25x1,5 98146000 - 1
7 cartridge, assy 95973001 - 1
8 seal 98865000 - 1
9 adapter for cartridge 92628000 - 1
10 adapter for cartridge 98866000 - 1
11 O-ring 23x2 98398000 - 1
12 aerator M22x1 93098000 - 1
13 service tool 95661000 - 1
14 O-ring 32x1,5 92936000 - 1
15 escutcheon 93048000 - 1
16 flat seal 98749000 - 1
17 fixing set (Ø 32) 13961000 - 1
18 lever collar 97548000 - 1
19 connection hose 23½" M8x0,75 3/8" 98600001 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
