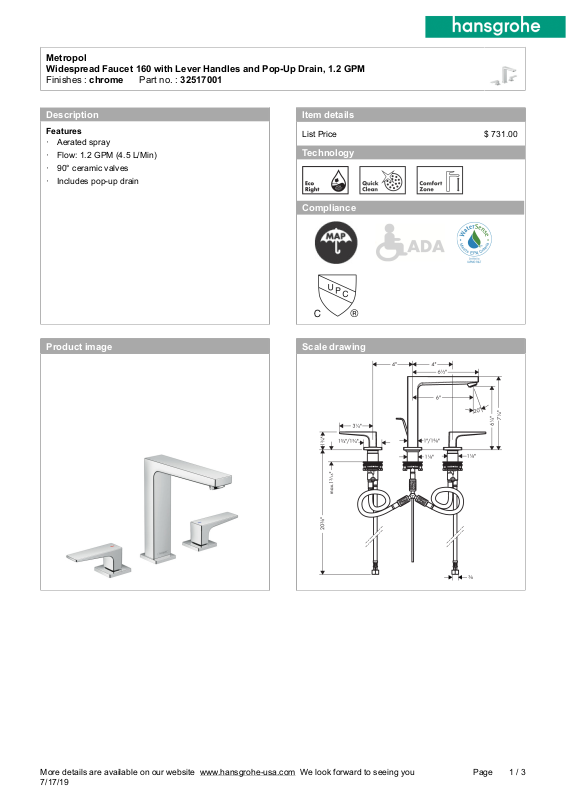

Page 1
Metropol
Widespread Faucet 160 with Lever Handles and Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 32517001
Description
Features
· Aerated spray
· Flow: 1.2 GPM (4.5 L/Min)
· 90° ceramic valves
· Includes pop-up drain
Item details
List Price $ 731.00-
Technology
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Metropol
Widespread Faucet 160 with Lever Handles and Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 32517001
Exploded drawing
Year of production: >07/18
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Metropol
Widespread Faucet 160 with Lever Handles and Pop-Up Drain, 1.2 GPM
Finishes : chrome___Part no. : 32517001
Spare parts list
Year of production: >07/18
Pos. Description Part no. Price PU
1 spout 160 mm 93022000 - 1
2 aerator M24x1 (4,5 l/min) 93202000 - 1
3 service tool 95661000 - 1
4 O-ring 21x1,5 98219000 - 1
5 escutcheon for spout 92906000 - 1
6 flat seal 98749000 - 1
7 O-ring 26x4 92191000 - 1
8 connection hose 200 mm M10x1 92913000 - 1
9 O-ring 8x1,75 97827000 - 1
10 fixing set (Ø 28) 92909000 - 1
11 lever collar 97548000 - 1
12 hose connection angel 92905000 - 1
13 O-Ring 14x1,5 98201000 - 1
14 escutcheon 92915000 - 1
15 handle fixing set 98932000 - 1
16 shut off unit right closing 98817001 - 1
17 shut off unit left closing 95366001 - 1
18 O-ring 33x2,5 92907000 - 1
19 connection hose 400 mm M10x1 92914000 - 1
20 connection hose 18½" M8x0,75 3/8" 96321001 - 1
21 pull rod 96657000 - 1
a pop up waste 88509000 - 1
b handle for cold water 92917000 - 1
c handle for hot water 92916000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
