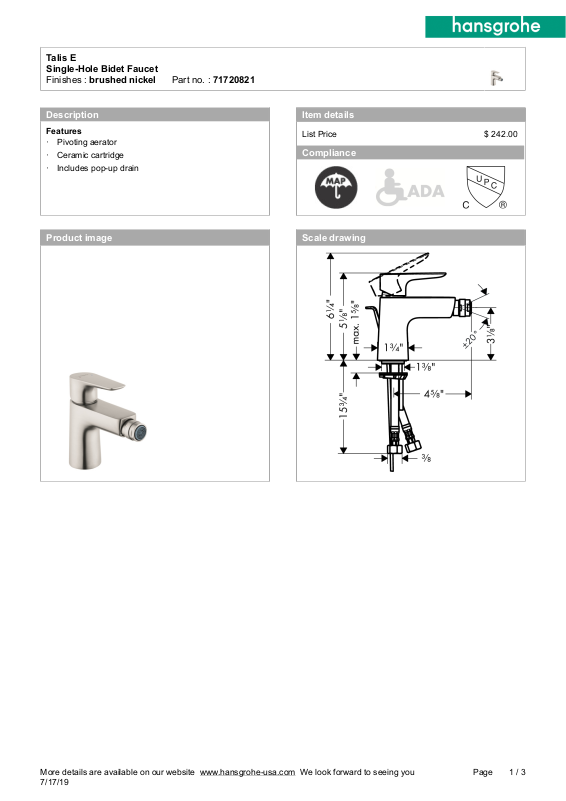

Page 1
Talis E
Single-Hole Bidet Faucet
Finishes : brushed nickel___Part no. : 71720821
Description
Features
· Pivoting aerator
· Ceramic cartridge
· Includes pop-up drain
Item details
List Price $ 242.00-
Compliance
Product image Scale drawing
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
1 / 3Page
Page 2
Talis E
Single-Hole Bidet Faucet
Finishes : brushed nickel___Part no. : 71720821

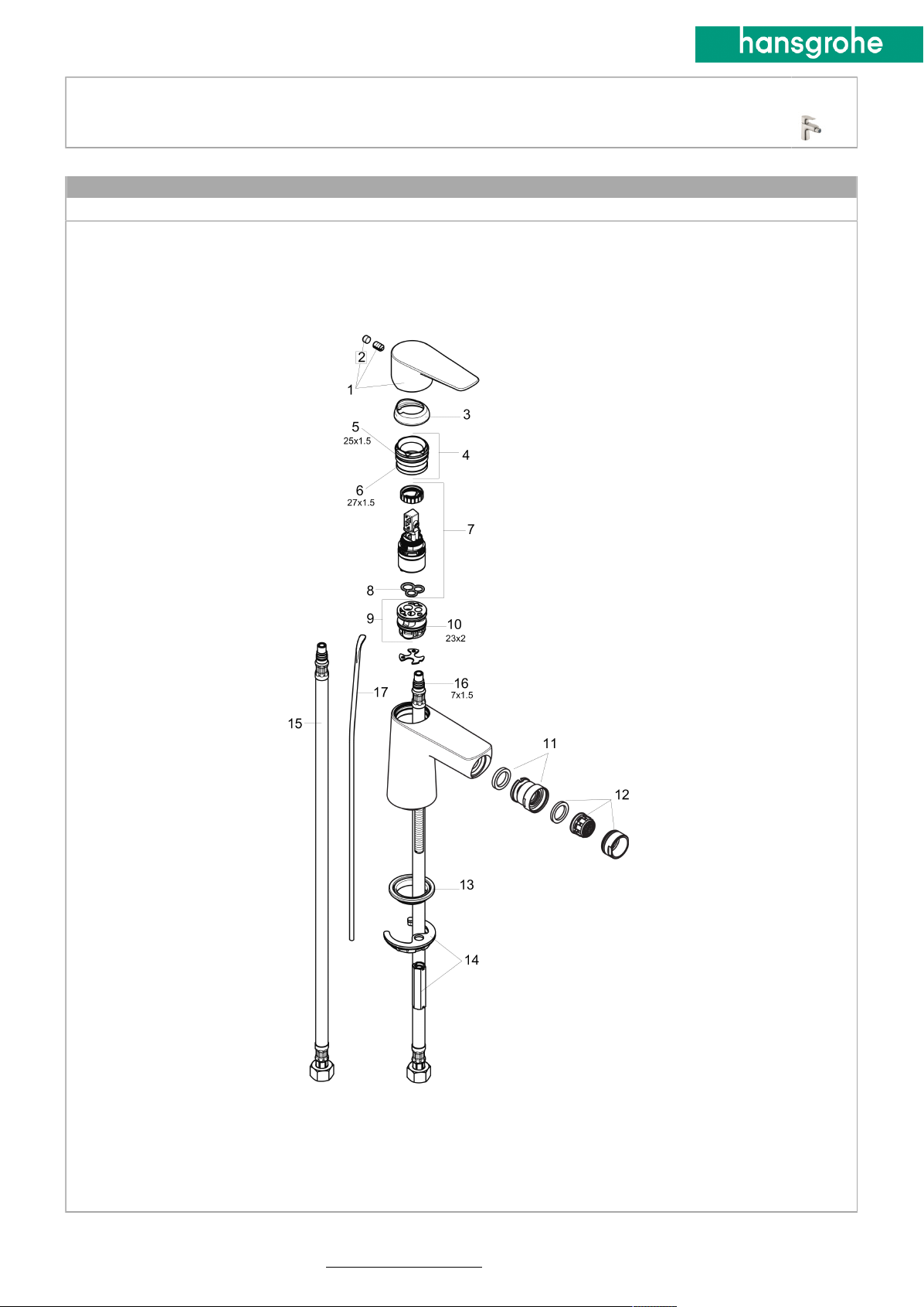

Exploded drawing
Year of production: >10/16
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
2 / 3Page
Page 3
Talis E
Single-Hole Bidet Faucet
Finishes : brushed nickel___Part no. : 71720821
Spare parts list
Year of production: >10/16
Pos. Description Part no. Price PU
1 handle 92687820 - 1
2 screw cover 95704000 - 1
3 flange 92625820 - 1
4 nut 92689000 - 1
5 O-ring 25x1,5 98146000 - 1
6 O-ring 27x1,5 92527000 - 1
7 cartridge, assy 95973001 - 1
8 seal 98865000 - 1
9 adapter for cartridge 98866000 - 1
10 O-ring 23x2 98398000 - 1
11 ball joint 96050820 - 1
12 aerator M24x1 (5 l/min) 95379820 - 1
13 seal Ø 42 98722000 - 1
14 fixing set 96016000 - 1
15 connection hose 18½" M8x0,75 3/8" 96321001 - 1
16 O-ring 7x1,5 98422000 - 1
17 pull rod 96657820 - 1
a pop up waste 88509820 - 1
b screw M8 x 68 97736000 - 1
More details are available on our website_www.hansgrohe-usa.com_We look forward to seeing you
7/17/19
3 / 3Page
